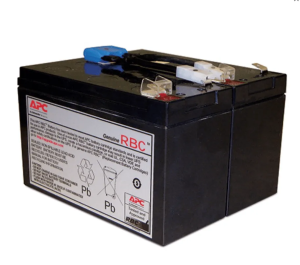

APC Replacement Battery Cartridge #148

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

number of RBC™ cartridges
1

Height
20,8 cm

Width
16.5 cm

depth
25,9 cm

Net weight
27,18 kg

Installation execution
Non - stable

Operating ambient temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95 %

Type of product or component
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Battery Location
Internal battery

The number of available battery slots
is 0

The number of filled battery slots
is 0

Installation of the device
Self-contained battery pack

Battery voltage
12 V

Number of replaceable batteries
1

Colour
Black

height
6.5 cm

Width
9.4 cm

Depth
15.1 cm

Net weight
2.59 kg

Installation mode
It is not mounted in a rack

USB-compatible
No

battery capacity
9.0 Ah

Ambient air temperature for operation
0...40 °C

Working height
0...10000 feet

Relative humidity
0...95 %

Ambient temperature during storage
-15...45 °C

Storage height
0.00...15240.00 m

The relative humidity of storage
is 0...95 %

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Height
10,2 cm

Width
26,4 cm

Depth
15,2 cm

Net weight
10,36 kg

Installation execution
Non - stable

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
19,4 cm

Package 1 Width
37,5 cm

Package 1 Length
26,7 cm

Package 1 Weight
11,82 kg

Type of product or component
Replaceable battery cartridge

Battery Type
Lead-acid battery

Battery packs per chain
10

Battery connectors are empty
0

Included battery modules
0

Installation of the device
Closed battery cartridge

Battery voltage
120 V

Number of RBC
1

Height
2.99 inches (7.6 cm)

Width
7.99 inches (20.3 cm)

Depth
22.99 inches (58.4 cm)

Net
Weight 49.10 lbs (USA) (22.27 kg)

Mounting mode
Not mounted in a rack

Ambient air temperature during operation
32…104 °F (0…40 °C)

Working height
0...10000 feet

Relative humidity
0...95 %

Ambient temperature during storage
5...113 °F (-15...45 °C)

Storage height
0-50,000 ft (0.00–15,240.00 m)

Relative humidity during storage
0...95 %

Category
11309-APC PRODUCTS FOR RESALE

Discount schedule
APK1

GTIN
731304282686

Returnability
No

Country of origin
PH

Main features
- Working time with a load of 10000 W: 2m 52s
- Output power: 10.0 kW / 10.0 kVA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Hard wire 3-wire (1P + N + E)

Exit
- Maximum specified power (W): 10.0 kW / 10.0 kVA
- Efficiency under full load: 94.0 %
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
-Topology: Topology double transformation
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)

Entrance
- Input frequency: 40-70 Hz
- Input voltage range when working from the mains: 110-300 Adjustable (half load), 176-300V
- Efficiency under full load: 94.0 %
- Other input voltage values: 220 V, 240 V

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 3 hours
- Charger Power (W): 531 Watts

Communication and administrative tools
- Interface Port (s): DB-9 RS-232, Intelligent Smart Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal
- Emergency Power Off (EPO): Yes
- Number of available SmartSlot™ interfaces: 1

Surge protection and noise filtering
- Burst energy rating: 600joules

Physical parameters
- Maximum height: 685MM, 68.5 cm
- Maximum width: 190MM, 19.0 cm
- Maximum depth: 447MM, 44.7 cm
- Net weight: 65.0 KG
- Gross weight: 77.0 KG
- Dimensions of the transport package: 910x320x580MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-60 °C
- Storage Relative humidity: 0-95 (Non-condensing) %
- Storage altitude: 0-15000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 58.0 dB (A)
- Protection class: IP20

Accordance
- Compliance with the requirements: CE, EAC, IEC 62040-1-1, IEC 62040-1-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency 50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection:

Standard runtime model:
● RT-5K/6KC13 x6, C19 x2, terminal x1, programmable socket C19 x1
● RT-8K/10KC13 x6, C19 x4, Terminal x1, Programmable socket C19 x1

A model with extended working hours
Terminal x1, Programmable Terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode 95.5%

Eco Mode
Up to 99%

Battery Type VRLA/Lithium-ion

Rated voltage:
Standard operating time model:
● RT-5K/6K192 In the post. current
● RT-8K/10K240 Per post. current

A model with extended working hours
144 In the post. current(2), 192-264 VDC. current

Charging current:
Standard operating time model:
● RT-5K/6K1 A (default), up to 8 A
● RT-8K/10K1.5 A (default), up to 8 A

A model with extended working hours
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with extended working hours:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Standard operating time model:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Height
11,2 cm

Width
9.9 cm

Depth
7,4 cm

Net weight
1,7 kg

Installation execution
Non - stable

Battery capacity
5,1 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
15,9 cm

Package 1 Width
17,8 cm

Package 1 Length
18,4 cm

Package 1 Weight
1,956 kg
