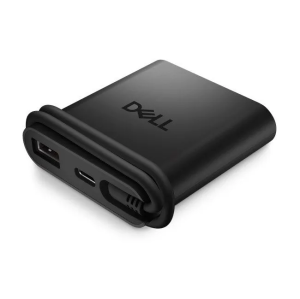

Product: Dell Pro 4-in-1 USB-C Travel Hub — DA225

Device Type: Docking station / USB-C hub

Host Interface: USB Type-C

Ports:

2 × USB-C 3.2 Gen 2 (10 Gbps, data only)

1 × USB-A 3.2 Gen 2 (10 Gbps, data only)

1 × HDMI 2.0b

Maximum Video Resolution: 4K UHD (3840 × 2160) @ 60 Hz

Cable Length: 27 cm

Color: Black

Dimensions (W × D × H): 56.9 × 56.9 × 15.2 mm

Weight: 47 g

Features: Plug and Play, Smart Power Management

Supported OS: Windows 11, macOS, iPadOS, ChromeOS, Ubuntu, Red Hat Enterprise Linux

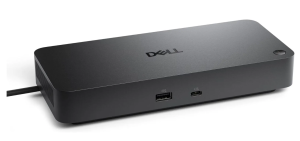

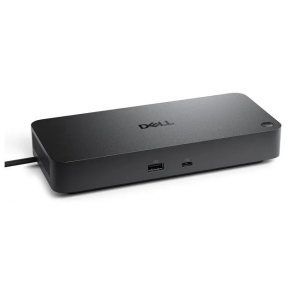

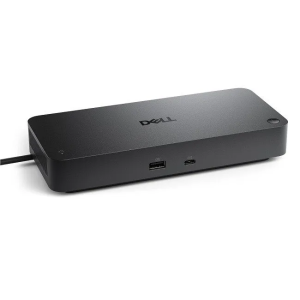

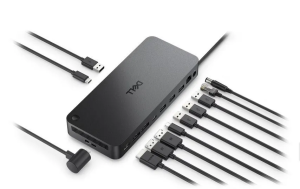

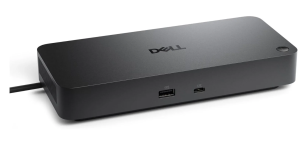

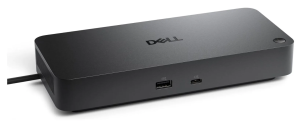

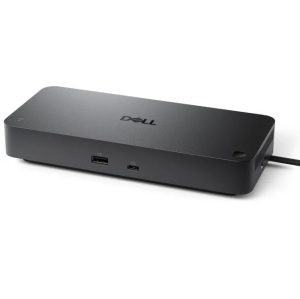

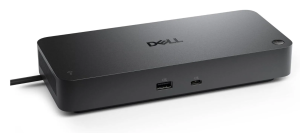

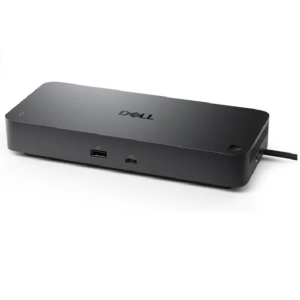

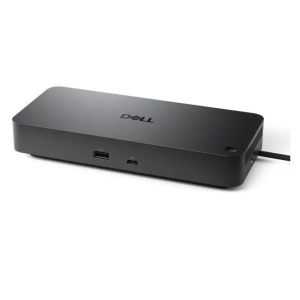

Technical description Docking station: Dell Pro Dock WD25Z Model: WD25Z Purpose The docking station is designed to connect laptops and desktop computers via the USB Type-C interface. Provides expansion of the number of ports, connection of multiple external monitors, network devices, peripherals and power supply to compatible devices via a single cable. Supports corporate management and remote administration functions. Main technical specifications Connection interface Connection interface to the computer - USB Type-C. Connection type - wired. Cable length - 0.9 m. Power supply External power adapter - 180 W. Power supply to the laptop: up to 130 W for compatible Dell laptops; up to 96 W for laptops from other manufacturers (USB Power Delivery). Power supply to USB ports: 4 × USB Type-A - up to 4.5 W each; USB Type-C - up to 15 W; USB Type-C with DisplayPort Alt Mode - up to 7.5 W. Video The docking station supports connection of up to 4 external displays. Supported resolutions: Full HD (1920 × 1080); QHD (2560 × 1440); WQHD (3440 × 1440); 4K UHD (3840 × 2160); 5K (5120 × 2160); 6K (6144 × 3456). The maximum number of simultaneously connected monitors is 4 (depending on the capabilities of the connected computer). Interfaces and connectors Video connectors 2 × DisplayPort 1.4. 1 × HDMI 2.1. 1 × USB Type-C with support for DisplayPort 1.4 Alt Mode (Multi-Function DisplayPort). USB ports 4 × USB 3.2 Gen 2 Type-A (10 Gbps). 1 × USB 3.2 Gen 2 Type-C (10 Gbps). 1 × USB Type-C with DisplayPort 1.4 Alt Mode support. Network interface 1 × RJ-45 Ethernet 2.5 Gigabit (10/100/1000/2500 Mbps). Performance Maximum data transfer rate is up to 10 Gbps via USB 3.2 Gen 2. The aggregate throughput of interfaces is up to 1.25 GB/s. Supported operating systems Windows 10. Windows 11. Ubuntu 24.04. Red Hat Enterprise Linux 9.6. ChromeOS 137. Management functions Supported: Wake-on-LAN; PXE Boot; MAC Address Pass-Through; WLAN to LAN Switch; Kernel DMA Protection; Dell Command Update; Dock Power Button Sync; Firmware update from computer; Firmware update after device disconnection; The ability to disable ports using administrative tools. Security: Kensington Security Slot. Noble Wedge Lock Slot. Dimensions: Width: 205 mm. Depth: 90 mm. Height: 35.3 mm. Weight: 550 g. Package Contents: Dell Pro Dock WD25Z. 180W Power Adapter. Power Cord. Quick Start Guide. Safety and Regulatory Information.

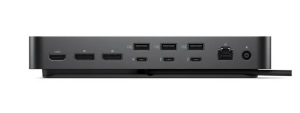

Interfaces/Ports
Interfaces
Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)

Product: Dell Pro 4-in-1 USB-C Travel Hub — DA225

Device Type: Docking station / USB-C hub

Host Interface: USB Type-C

Ports:

2 × USB-C 3.2 Gen 2 (10 Gbps, data only)

1 × USB-A 3.2 Gen 2 (10 Gbps, data only)

1 × HDMI 2.0b

Maximum Video Resolution: 4K UHD (3840 × 2160) @ 60 Hz

Cable Length: 27 cm

Color: Black

Dimensions (W × D × H): 56.9 × 56.9 × 15.2 mm

Weight: 47 g

Features: Plug and Play, Smart Power Management

Supported OS: Windows 11, macOS, iPadOS, ChromeOS, Ubuntu, Red Hat Enterprise Linux
