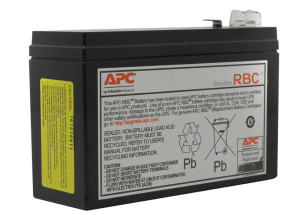

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Height
11,2 cm

Width
9.9 cm

Depth
7,4 cm

Net weight
1,7 kg

Installation execution
Non - stable

Battery capacity
5,1 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
15,9 cm

Package 1 Width
17,8 cm

Package 1 Length
18,4 cm

Package 1 Weight
1,956 kg

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3–5

- RBC quantity:
1

Physical parameters
- Maximum height:
76 mm, 7.6 cm

- Maximum width:
210 mm, 21.0 cm

- Maximum depth:
762 mm, 76.2 cm

- Net weight:
15.29 kg

- Gross weight:
17.55 kg

- Dimensions of the transport package:
203x343x635MM

- Color:
Black

- Devices on a pallet:
12.0

Environmental parameters
- Operating temperature:
0-40 °C

- Operating range of relative humidity:
0-95 (non-condensing) %

- Working altitude above sea level:
0 - 3048 meters

- Storage temperature:
-15–45 °C

- Relative humidity of storage:
0-95 (non-condensing) %

- Altitude above sea storage level:
0 - 15240 meters

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
6,6 cm

Width
5.8 cm

Depth
13,4 cm

Net weight
1,4 kg

Installation execution
Non - stable

Battery capacity
3 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Colour
Black

Height
7,6 cm

Width
21 cm

Depth
40 cm

Net weight
11,7 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95% without condensation

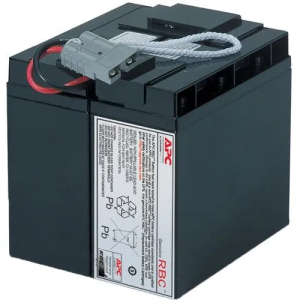

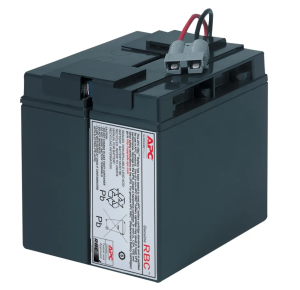

Specifications:

Basic

Product or component type: Replacement battery pack.
Number of cables: 1
Battery type: Lead-acid battery.
Provided equipment:
- All necessary connectors. Battery Recycling Guide.
- Reusable packaging.
- Installation instructions

Batteries and operating time:

Number of free battery slots: 0
Number of filled battery slots: 0
Device installation: self-contained battery pack

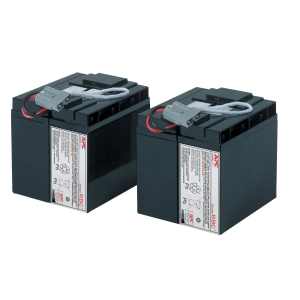

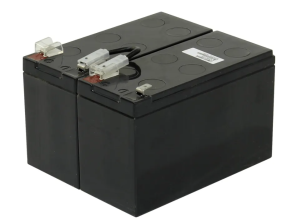

Additional information: The RBC 11 consists of two separate battery cells. Net dimensions are measured per cell.
Number of replaceable batteries: 1

Physical:

Black color
Height: 17.3 cm.
Width: 14.2 cm
Depth: 18.3 cm
Net weight: 24.27 kg
Mounting method: Not rack-mountable.
USB Compatible: No

Environmental

Ambient temperature during operation: 0…40 °C.
Operating altitude: 0...10000 feet
Relative humidity: 0…95%
Ambient temperature during storage: -15…45 °C.
Storage height: 0.00…15240.00 m.
Relative humidity during storage: 0...95%

Packaging units

Packaging unit type 1: PCE
Number of units per package 1: 1
Package 1. Height: 27.7 cm.
Pack 1 Width: 29.5 cm
Package 1. Length: 53.8 cm.
Package 1 Weight: 26.68 kg

Main characteristics:
- Main input voltage - 120 V;
- Product type - Backup battery;
- Number of cables - 1;
- Battery type - Lead-acid battery;
- Supplied equipment - Operation manual.

Batteries and battery life:
- Installation of the device - Free-standing battery;
- Battery life - 4…6 year(s);
- Battery voltage - 24 V;
- Battery capacity - 18 Ah;
- Pre-installed batteries - 2;
- Free battery compartments - 0;
- Number of RBC™ cartridges - 1;
- Battery power VAh - 372 VAh.

Physical parameters
- Black color;
- Height - 30.1 cm;
- Width - 11.2 cm;
- Depth - 38.2 cm;
- Product weight - 13.4 kg;
- USB compatible - No.

Environment parameters:
- Relative humidity - 0...95%;
- Relative humidity of storage - 0...95%;
- Ambient temperature during storage (-15…45 °C);
- Operating ambient temperature - (0…40 °C);
- Altitude 0...30000 ft;
- Storage height - 0.00…15240.00 m.

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
2 - 5

RBC™ quantity
1

Battery installation
--

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
48mm , 4.8cm

Maximum width
102mm , 10.2cm

Maximum depth
140mm , 14.0cm

Net weight, kg
2.5

Gross weight, kg
2.77

Height of the transport package
89mm , 8.9cm

Depth of transport packaging
213mm , 21.3cm

The width of the transport package
is 175mm , 17.5cm

Colour
Black

Devices on a pallet
240

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
0 - 40 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-3000meters

Main Input voltage
12 B direct current

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Supplied equipment
Installation Guide

Free battery compartments
0

Pre-installed batteries
0

number of RBC™ cartridges
1

Colour
Black

Height
7,6 cm

Width
15,2 cm

Depth
20,3 cm

Net weight
5,2 kg

Installation execution
Non - stable

Operating ambient temperature
0...45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-5…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95% without condensation

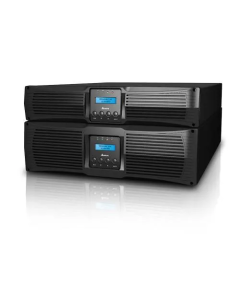

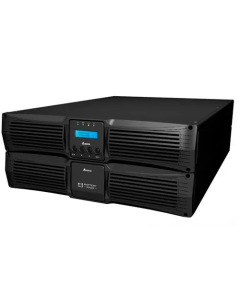

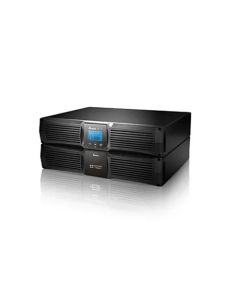

Rated voltage
220/ 230/ 240 Perem. current

Voltage range
180~280 vac. current (full load) ; 120~300 VAC Current (50% load)

Frequency
40~70 Hz

Power factor
≥ 0.99 (full load)

Rated voltage
208(1), 220, 230, 240 Perem. current

Voltage regulation limits
±1%

Frequency
50/60 ± 3 Hz

Total Harmonic Distortion (THDv)

Power factor
0.9

Connection
IEC C13 x4, C19 x1

Overload capacity

The current amplitude coefficient
is 3:1

Operating mode Efficiency
88-90%

Economical efficiency mode
94%

Battery type
VRLA, external battery module (optional)

Rated voltage
72 In the post. current

Battery quantity
6 pcs

Parallel activation
Up to 4 EBC

Charging current
1/2/4/6 A (adjustable)

Display
LCD display with LED indicators

Port
USB, RS-232, mini-card slot (optional slots for SNMP mini-card, MODBUS mini-card and relay I/O mini-card)

Dimensions (W x D x H)
438 x 410 x 86 mm

Net weight
8.4 kg
