• основной канал связи, если проводной интернет недоступен или нестабилен;
• резервный канал, чтобы при сбоях у провайдера сеть продолжала работать без простоя.

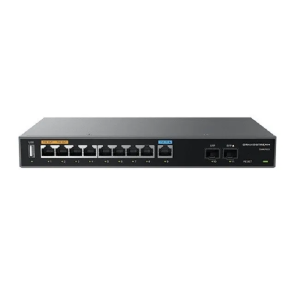

GWN7002/7003 is a powerful enterprise—grade gigabit multi-port interconnect router, including 2 SFP ports and multiple gigabit RJ45 ports, which provides a comprehensive VPN solution in one or more scenarios. As a high-performance and dynamic firewall, it supports comprehensive DPI security detection and content protection, including URL filtering, DNS filtering, web content filtering, secure search, application identification, traffic statistics and other comprehensive anti-attack tools that can effectively ensure the continuous and stable operation of core enterprise applications and services, as well as guarantee that enterprise management administrators can better monitor and manage network traffic. The GWN7002/7003 integrates a number of rich features, including NAT, firewall, VPN, load balancing, and bandwidth management capabilities. As a fanless PoE router, the GWN7002/7003 can be powered by an external power adapter or IEEE 802.3af/at PoE Input, 2 GbE ports can support passive or active (IEEE48af) 802.3V PoE output. It is also supported by GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premises network management platform that makes managing your network or multiple networks in multiple locations easier than ever before. Ideal for retail, education, hospitality and medical markets.

IEEE 802.11 a/b/g/n/ac/ax Wi-Fi Standards

Antennas
4 independent internal antennas, 2 per
2.4GHz band, maximum gain 4.5 dBi
5 GHz, maximum gain 5.0 dBi

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ac: 7.3–1201 Mbps
IEEE 802.11ac: 6.5–867 Mbps
IEEE 802.11n: 6.5–300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit:
IEEE 802.11n: 7.3–573.5 Mbit/s
IEEE 802.11n: 6.5–300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit
* The transmission rate can be affected by various factors, including environmental conditions, distance between
devices, radio interference, and the combination of devices in the network.

Frequency ranges
2.4GHz: 2400-2483.5 MHz
(2412-2472 MHz is the central channel of the frequency range; 2400-2483.5 MHz is the access frequency band)
5 GHz: 5150-5850 MHz
* In some regions, not all frequency bands are available for use.


2.4G bandwidth: 20 and 40 MHz
5G: 20, 40 and 80 MHz

Wi-Fi and system security
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking download and blocking
of critical data/controls using digital signatures, a unique security certificate
and a random default password for each device.

MU-MIMO
2×2:2 2.4GHz
2×2:2 5 GHz

Maximum power of the transmitter
5G: 26 dBm
2.4G: 27 dBm
* Maximum power depends on country, frequency range and MCS

Receiver sensitivity
2.4G
802.11b: -97 dBm at 1 Mbit/s; -89 dBm at 11 Mbit/s;
802.11g: -93 dBm at 6 Mbit/s, -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ax 20 MHz: -64 dBm at MCS11; 802.11ax 40 MHz: -63 dBm at MCS11
5G
802.11a: -93 dBm at 6 Mbit/s, − 75dBm at 54 Mbit/s;
802.11n: 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7
802.11ac 20 MHz: -70 dBm at MCS8; 802.11ac: HT40: -66 dBm at MCS9; 802.11ac 80 MHz: -62 dBm at MCS9;
802.11ax 20 MHz: -64 dBm at MCS11; 802.11ax 40 MHz: -61 dBm at MCS11; 802.11ax 80 MHz: -58 dBm at MCS11

Memory and NAT sessions
512 MB RAM, 120,000 NAT sessions

NAT and IPsec VPN routing speed
NAT routing speed — 2 Gbit/s; IPsec VPN speed — 850 Mbit/s

SSID
A total of 32 SSIDs, 16 per radio channel (2.4 and 5 GHz)

Number of simultaneously connected wireless client devices
Up to 256 wireless client devices

Network interfaces
One Gigabit Ethernet WAN connector, one Gigabit Ethernet connector (WAN/LAN configuration) and three Gigabit Ethernet LAN connectors

Additional connectors
1 USB 3.0 connector, 1 reset hole, 1 sync button

Mounting
Desktop PC

LED indicators
1 three-color LED and 7 single-color LEDs for device tracking and status indication

Network protocols
Pv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Quality of service
802.11e/WMM, VLAN, TOS

Firewall
DDNS, port forwarding, DMZ, UPnP, protection against DoS attacks, traffic routing rules, NAT, ALG

VPN
Client: L2TP, PPTP, IPsec, OpenVPN
Server: IPsec, OpenVPN

Network management
The integrated GWN7062 controller can manage up to 50 GWN devices
. GWN.Cloud offers a free cloud management platform for an unlimited number
of GWN7062 routers and GWN devices (coming soon)

Power and energy efficiency
The package includes a universal power adapter:
input: 100-240 V AC; 50-60 Hz
Output: DC12V, 1.5A (18W)

Environmental conditions
Operation: from 0 to 50 °C
Storage: -30 to 60 °C
Humidity: 10 to 90% non-condensing

Physical characteristics Device dimensions: 95 (L) × 95 (W) × 193 mm (H); Device weight: 690 g
Package dimensions: 286 (L) × 126.5 (W) × 105 mm (H); package weight: 960 g

Package contents
GWN7062 router, Universal power adapter, Network cable, quick installation guide

Compatibility
FCC, CE, RCM, IC, UKCA

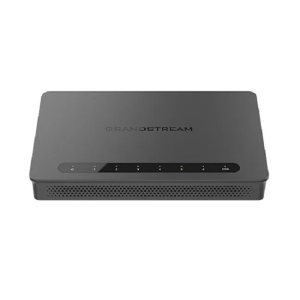

The GWN7062E is a reliable dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. It supports 2x2:2 MU-MIMO (2.4GHz) and 3x3:2 MU-MIMO (5GHz) technologies and uses XTRA Range beamforming technology for maximum data transfer rates, increased Wi-Fi coverage, and support for wireless mesh networks. This makes the GWN7062E an ideal solution for small offices, home offices, and remote workers. Equipped with a powerful 1.3GHz dual-core processor, the router delivers Wi-Fi speeds of up to 3Gbps. It can connect up to 128 wireless devices for intelligent home and office automation, smooth 4K Ultra HD video streaming, and high-quality picture and sound during work calls, video conferences, and online gaming. The GWN7062E delivers high-performance routing and switching and supports VPN for secure connections within and between offices. It has parental controls such as time limits, content blocking, and daily and weekly reports so that everyone in the family can safely surf the Internet. This router is equipped with enterprise-class security features, including unique security certificates and random default passwords that protect your Wi-Fi and VPN connections. For easy installation and management, the GWN7062E has a built-in controller that can be configured via a web interface. It is also supported by GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premises Wi-Fi management platforms. With high Wi-Fi speeds and advanced features including VPN support and enhanced quality of service, the GWN7062E is a great router for growing home networks, small offices, corporate networks, and more.

CPU
Two ARM Cortex-A53 processors with a frequency of 1 GHz

Memory and NAT sessions
512 MB RAM, 256 MB flash memory,
60,000 NAT sessions

Network interfaces
2 Gigabit SFP ports and 9 Gigabit ports
Ethernet
* All ports support
WAN/LAN configuration.

Throughput capacity
NAT 2.2 Gbps

Throughput capacity
IPsec VPN 530 Mbps

Additional ports
1 USB 2.0 port, 1 reset hole

Mounting
Desktop, wall-mounted or rack
-mounted version (rack mounting brackets
are included)

LED
indicators
13 single-color LEDs
for device monitoring and
status indication

Connection type
DHCP, Static IP, PPPoE, PPTP, L2TP

Network protocols
IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab

Quality of service
• VLAN, TOS
• Support for multiple traffic classes, filtering by ports, IP address, DSCP and policies
• Quality of service for applications
• VoIP prioritization

Firewall
DDNS, port forwarding, DMZ, UPnP, protection against DoS attacks, traffic distribution rules, NAT, ALG

Safety
• Application/protocol monitoring and traffic statistics
• Content filtering: Supports filtering applications/URLs/DNS/web content
• Secure Search

VPN
• IPsec VPN Client-to-Site/Site-to-Site
• PPTP VPN Server/Client
• L2TP Client-to-Site
• OpenVPN® Server/Client
• WireGuard®
• IPsec encryption: DES, 3DES, AES
• IPsec authentication: MD5, SHA-1, SHA2-256
• IPsec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Group 1/2/5/14
• IPsec Protocols: ESP
• IPsec NAT Traversal
• OpenVPN® encryption: AES, DES
• OpenVPN® authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
• OpenVPN® Certificate: RSA
• PPTP encryption: MPPE 40 bit, 128 bit, IPsec
• PPTP/L2TP authentication: MS-CHAPv1/2

Max. number of
parallel tunnels
VPN
Up to 100 tunnels

Network management
Built-in GWN7003 controller for
controlling the router itself and
access points (up to 150 points).
• Free GWN cloud platform.The Cloud supports the management of an unlimited number of routers and
GWN access points.
• SSH for the command line
• TR-069
• SNMP v1/v2c/v3
• Telnet (under development)

Entering PoE
Standard: IEEE 802.3af/at

PoE Output
Two ports with PoE output
Passive (48 V) or IEEE802.3af

Nutrition and
energy efficiency
The package includes a universal power adapter:
Input: 100-240 VAC. current, 50-60 Hz
Output: 24 V DC, 1 A (24 W)

Physical
characteristics
Device dimensions:
260 × 149.35 × 35 mm;
device weight: 1096 g
Package dimensions:
297 (L) × 255.5 (W) × 54 mm (H);
total package weight: 1443 g
