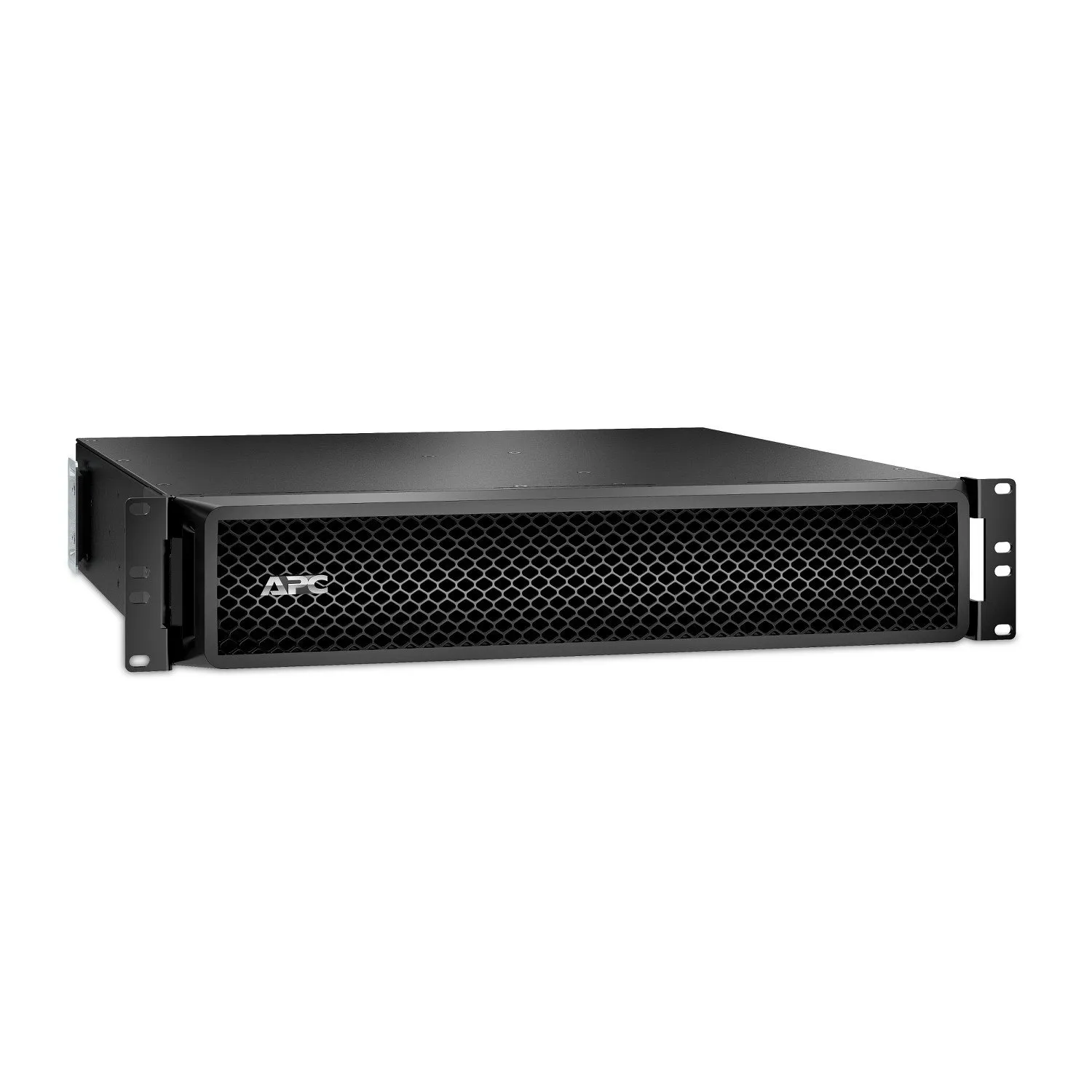

APC Smart-UPS SRT 72V 2.2kVA RM Battery Pack

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Colour
Black

Height
7,6 cm

Width
21 cm

Depth
40 cm

Net weight
11,7 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95% without condensation

Exit
- Battery output voltage:
192 V

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3-5

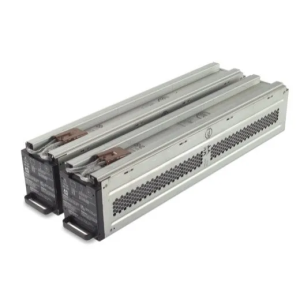

- Information about replaceable battery packs:
APCRBC140 consists of two battery modules

- RBC™ quantity:
1

Physical parameters
- Maximum height:
122MM, 12.2cm

- Maximum width:
197MM, 19.7cm

- Maximum depth:
597MM, 59.7cm

- Net weight:
34.55KG

- Gross weight:
37.27KG

- Dimensions of the transport package:
226x409x781MM

- Color:
Black

- Devices on the pallet:
20.0

Environmental Parameters
- Operating temperature:
0 - 40 °C

- Operating range of relative humidity:
0 - 95 (Non-condensing) %

- Operating range of altitude above sea level:
0 - 3048meters

- Storage temperature:
-15 - 45 °C

- Storage relative humidity:
0 - 95 (Non-condensing) %

- Altitude above sea level storage:
0 - 15240 meters

Accordance
- Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency 50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection:

Standard runtime model:
● RT-5K/6KC13 x6, C19 x2, terminal x1, programmable socket C19 x1
● RT-8K/10KC13 x6, C19 x4, Terminal x1, Programmable socket C19 x1

A model with extended working hours
Terminal x1, Programmable Terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode 95.5%

Eco Mode
Up to 99%

Battery Type VRLA/Lithium-ion

Rated voltage:
Standard operating time model:
● RT-5K/6K192 In the post. current
● RT-8K/10K240 Per post. current

A model with extended working hours
144 In the post. current(2), 192-264 VDC. current

Charging current:
Standard operating time model:
● RT-5K/6K1 A (default), up to 8 A
● RT-8K/10K1.5 A (default), up to 8 A

A model with extended working hours
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with extended working hours:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Standard operating time model:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

Additional information

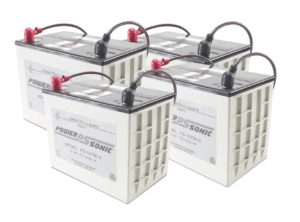

RBC 14 is composed of four seperate battery cells. The Net dimensions are measured per cell. Due to the weight of this RBC return postage is not included.

number of RBC™ cartridges
1

Colour
Black

Height
20,8 cm

Width
16.5 cm

Depth
25,9 cm

Net weight
108,73 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

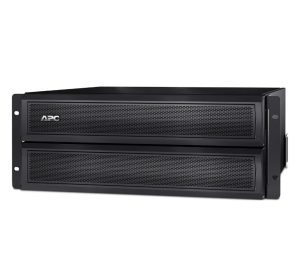

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Colour
Black

Height
43,2 cm

Width
17,8 cm

Depth
48.3 cm

Net weight
60,91 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Relative humidity
0...95 %

Altitude above sea level
0...10000 ft

Ambient temperature during storage
-15…45 °C

The relative humidity of storage
is 0...95 %

Storage height
0,00…15240,00 m

Type of product or component
Replaceable battery cartridge

Battery Type
Lead-acid battery

Battery packs per chain
10

Battery connectors are empty
0

Included battery modules
0

Installation of the device
Closed battery cartridge

Battery voltage
120 V

Number of RBC
1

Height
2.99 inches (7.6 cm)

Width
7.99 inches (20.3 cm)

Depth
22.99 inches (58.4 cm)

Net
Weight 49.10 lbs (USA) (22.27 kg)

Mounting mode
Not mounted in a rack

Ambient air temperature during operation
32…104 °F (0…40 °C)

Working height
0...10000 feet

Relative humidity
0...95 %

Ambient temperature during storage
5...113 °F (-15...45 °C)

Storage height
0-50,000 ft (0.00–15,240.00 m)

Relative humidity during storage
0...95 %

Category
11309-APC PRODUCTS FOR RESALE

Discount schedule
APK1

GTIN
731304282686

Returnability
No

Country of origin
PH

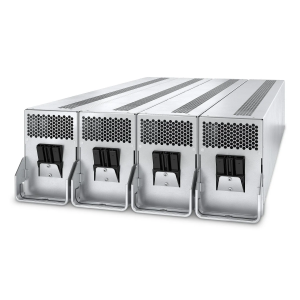

Overview Presentation High capacity battery pack for use with Easy UPS 3S with internal battery compartments and empty modular battery cabinet for Easy UPS 3S (E3SXR6). Each battery pack consists of four 9 Ah battery modules. Delivery Time Typically ships within 6 weeks Key Features Product Type Battery Module Product Series Compatibility Easy UPS 3M Battery Type Valve Regulated Lead Acid (VRLA) Easy UPS 3M Series Batteries and Runtimes Free Battery Slots 0 Pre-Installed Batteries 0 Unit Mounting Sealed Battery Pack Battery Voltage 120 V Battery Wattage 9 WAh Physical Parameters Height 15.7 cm Width 42.8 cm Depth 76 cm Net Weight 108 kg Mounting Type Non-Rack Mount Environmental Parameters Ambient Operating Temperature 0…40 °C Altitude 0...3281 ft Relative Humidity 0…95 % non-condensing Ambient Storage Temperature -15…40 °C Storage Altitude 0…15240 m Storage Relative Humidity 0…95 % non-condensing Unit Type of Package 1 PCE Number of units in a package 1 Package 1 Height 18,000 cm Package 1 Width 56,000 cm Package 1 Length 82,000 cm Package weight 112,000 kg

Overview Presentation High capacity battery pack for use with Easy UPS 3S with internal battery compartments and empty modular battery cabinet for Easy UPS 3S (E3SXR6). Each battery pack consists of four 9 Ah battery modules. Delivery Time Typically ships within 6 weeks Key Features Product Type Battery Module Product Series Compatibility Easy UPS 3M Battery Type Valve Regulated Lead Acid (VRLA) Easy UPS 3M Series Batteries and Runtimes Free Battery Slots 0 Pre-Installed Batteries 0 Unit Mounting Sealed Battery Pack Battery Voltage 120 V Battery Wattage 9 WAh Physical Parameters Height 15.7 cm Width 42.8 cm Depth 76 cm Net Weight 108 kg Mounting Type Non-Rack Mount Environmental Parameters Ambient Operating Temperature 0…40 °C Altitude 0...3281 ft Relative Humidity 0…95 % non-condensing Ambient Storage Temperature -15…40 °C Storage Altitude 0…15240 m Storage Relative Humidity 0…95 % non-condensing Unit Type of Package 1 PCE Number of units in a package 1 Package 1 Height 18,000 cm Package 1 Width 56,000 cm Package 1 Length 82,000 cm Package weight 112,000 kg

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
83mm , 8.3cm

Maximum width
216mm , 21.6cm

Maximum depth
343mm , 34.3cm

Net weight, kg
10.0

Gross weight, kg
10.91

The height of the transport package
is 152mm , 15.2cm

The depth of the transport package
is 495mm , 49.5cm

The width of the transport package
is 368mm , 36.8cm

Colour
Black

Devices on a pallet
20

Operating temperature
0 - 45 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters
