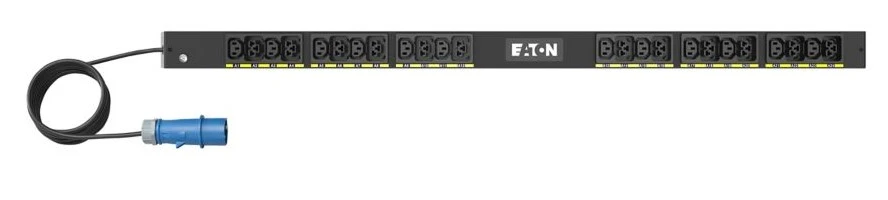

Блок распределения питания Eaton EVBAF116A (EVBAF116A)

Floor and rack versions 19”

Appointment
office

Number of phases (input-output)
1-1

Rated power, kVA
3

Active power,
2.7 kW

Rated voltage
200 At this voltage, the rated power of the UPS is lowered to the level of 90%./208 At this voltage, the rated power of the UPS is lowered to the level of 90%./220/230/240 Perem. current

Voltage range
175-280 V perem. current (100% load)? 20-175 Vac. current (load 50-100%)

The coefficient of nonlinear current distortion

Power factor
> 0.99 (at full load)

Frequency
40~70 Hz

Voltage
200 At this voltage, the rated power of the UPS is lowered to the level of 90%./208 At this voltage, the rated power of the UPS is lowered to the level of 90%./220/230/240 Perem. current

The output power factor
is 0.9

The coefficient of nonlinear voltage distortion

Voltage regulation limits
± 1% (at linear load)

Frequency
50/60 Hz ± 0.05 Hz

Overload capacity
At load
Cross factor
3:1

Sockets
IEC C13x6

Battery Type
72 In the post. current

The rated battery
life is 7.5 minutes (When the total load reaches 75%.)

Charging time
3 hours to 90 %

Charge current
2 A

Standard
1 SMART slot, 1 RS-232 port, 1 USB port, 1 REPO port

Normal mode (on-line)
up to 94 %

Economy mode
up to 97 %

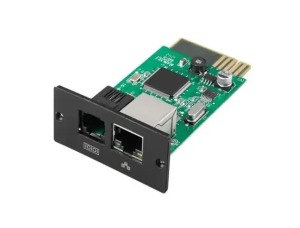

Карта SNMP предназначена для удаленного мониторинга и управления ИБП через локальную сеть или Интернет. Позволяет в режиме реального времени получать информацию о состоянии электросети и ИБП. Благодаря наличию встроенного http-сервера доступ к карте может осуществляться через любой веб-браузер.

Device Type
Network Management card for SNMP and remote Web access

Appointment
The remote control adapter is used to control a wide range of parameters, alarms and notifications. The card not only improves work efficiency by providing the ability to view the connected system one-to-one, but also provides a convenient way to configure and update devices.

Compatibility
Suitable for GXT MT+ CX series / GXT MT+ series / GXT RT+ series, Vertiv

Communication ports
(RS232) DB9F, DTE RJ45

Power requirements
DC inputs: 9 to 12 VDC, maximum 3.6W, power consumption: maximum 6 VA (1.75W)

Communication and administrative tools
- Authentication: Radius

Physical parameters
- Maximum height: 38MM, 3.8 cm
- Maximum width: 121MM, 12.1 cm
- Maximum depth: 114MM, 11.4 cm
- Net weight: 0.09 KG
- Gross weight: 0.34 KG
- Dimensions of the TRANSPORT package: 51x235x159MM

Environmental parameters
- Operating temperature: 0 - 45 °C
- Operating range of relative humidity: 0-95 %
- Operating range of altitude above sea level: 0-3048 meters
- Storage temperature: -5-45 °C
- Relative humidity of storage: 0-95 %
- Storage height above sea level: 0-15240 meters

Compliance
- Compliance with the requirements: AS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI Class A

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Physical parameters
Height
4,4 cm

Width
5,2 cm

Depth
8,0 cm

Net weight
0,05 kg

Type of fastener
No preference

Installation execution
Non - stable

Accordance
Standards
CISPR 32
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-6-2
EN/IEC 62040-2

Certificates
FCC Class A
ICES-003
VCCI Class A
AS/NZS

Environmental parameters
Ambient operating temperature
-5…45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…65 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Communication tools and admin
tools type of data exchange network
10/100/1000BASE-T

Device Type
Network Management card for SNMP and remote Web access

Appointment
The remote control adapter is used to control a wide range of parameters, alarms and notifications. The card not only improves work efficiency by providing the ability to view the connected system one-to-one, but also provides a convenient way to configure and update devices.

Compatibility
Suitable for GXT MT+ CX series / GXT MT+ series / GXT RT+ series, Vertiv

Communication ports
(RS232) DB9F, DTE RJ45

Power requirements
DC inputs: 9 to 12 VDC, maximum 3.6W, power consumption: maximum 6 VA (1.75W)
