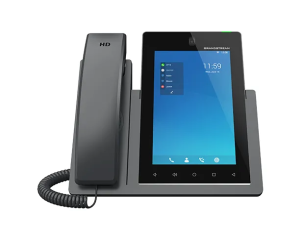

Grandstream GXV3480 desktop video phone,8” 1280x800 capacitive touch screen IPS LCD, 16 lines with up to 16 SIP accounts, tiltable 2 mega-pixel CMOS camera with privacy shutter, Wi-Fi 6 and Bluetoot

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
7.0" (1280×800) Capacitive Touch LCD Display, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band dual-stream Wi-Fi 6 (2.4and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay

Additional connectors
RJ9 connector for Plantronics EHS Headset Adapter, 3.5mm headset jack, USB 2.0 and USB 3.0 connectors, HDMI (output)

The main buttons
2 function keys: VOLUME +/–, 3 special Android touch keys: HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and functions, video resolution up to 720p, frame rate up to 30 frames per second, bitrate up to 2 Mbit/s, video conference for three participants (720p, 30 frames per second), Anti-Flicker technology, autofocus and automatic exposure

Telephony functions
Hold, Transfer, Forwarding (unconditional/no response/busy), Call parking, Call Interception, 10-way audio conference (including sender), Shared Call Appearance (SCA)/Bridge, BLA), Virtual Programmable Key, Contact upload (XML, LDAP, up to 1000 items), Call recording (locally and to the server), call log (up to 1000 records), call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups, personalization of the ringtone and hold, switching to a backup server in case of failure

Typical programs
Local Applications: Contacts, Call Log, File Manager, Softkey, Settings, Browser, Clock, Voicemail, Calculator, Sound Recording, GS Store, etc.

Support for third-party Android apps
API/SDK available for developing your own applications

Application Deployment
Supports the development, download and use of Android 11 compatible applications on devices with availability control

HD audio
Yes, two omnidirectional microphones, an HD headset and a broadband speaker

Rack
Yes, built-in, with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password, MD5 and MD5-sess authentication, 256-bit Configuration file with AES, TLS, SRTP*, HTTPS encryption, 802.1x-based media access control, secure boot with anti-hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and others

Updates/Settings
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, mass configuration via XML configuration file with TR-069 encryption or AES, GDMS

Power supply and energy efficiency

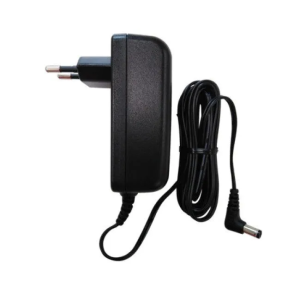

The package includes a universal power adapter. Input: 100-240VAC; 50-60 Hz; Output: DC12V, 1.5A (18 W) Built-in PoE*802.3af Class 3, PoE+802.3at Class 4

Temperature and humidity
Operation: 0 to 40 °C Storage: -10 to 60 °C Humidity: 10 to 90%, non-condensing

Package contents
GXV3470 phone, Wired headset, Stand, Universal power adapter, Network cable, screen wipe, Quick setup guide

Grandstream GXV3480 — это мощный интеллектуальный видеотелефон высокого класса для Android, который сочетает в себе 16-линейный IP-телефон с многоплатформенным решением для видео-сотрудничества и функциональность планшета Android, предлагая универсальное решение для связи. Это идеальное настольное устройство для занятых профессионалов и руководителей, а также мощное, но экономичное устройство для любого конференц-зала.

IP-видеотелефон GXV3480 для Android сочетает в себе 16-линейный IP-видеотелефон с многоплатформенным решением для видеоконференций и функциональность планшета Android, предлагая универсальное коммуникационное решение. Телефон оснащен 8-дюймовым емкостным сенсорным экраном IPS LCD с разрешением 1280x800, 2-мегапиксельной камерой, двойным микрофоном, двумя гигабитными портами с PoE/PoE+, HD-аудио и HD-видео, встроенным Wi-Fi 6 (802.11 a/b/g/n/ac). /ax) и Bluetooth 5.0, богатые периферийные интерфейсы. Он также работает на Android 11 и предлагает мгновенный доступ к сотням тысяч приложений для Android. Сочетая современный IP-видеотелефон, передовое решение для видеоконференций и функциональность планшета Android, GXV3480 предлагает предприятиям по всему миру мощное настольное решение для связи и повышения производительности.

Функции Grandstream GXV3480

• 16 линий до 16 SIP-аккаунтов
• Встроенная 2-мегапиксельная камера для видеозвонков с защитной шторкой
• Работает на операционной системе Android 11.
• Встроенный Bluetooth 5.0 для синхронизации с мобильными устройствами и подключения Bluetooth-гарнитур
• Двойные сетевые порты 10/100/1000 Мбит/с с автоматическим определением скорости
• Встроенный двухдиапазонный Wi-Fi 6 (2,4 ГГц и 5 ГГц)
• Встроенный PoE/PoE+ для питания и сетевых подключений
• Громкая связь HD с двумя микрофонами и шумоподавлением 2.0, усовершенствованным эхоподавлением и отличным качеством одновременного разговора
• Четырехъядерный процессор ARMCortex-A55 с тактовой частотой 2,0 ГГц, 4 ГБ ОЗУ и 16 ГБ флэш-памяти eMMC
• 8-дюймовый (1280x800) емкостный IPS ЖК-экран с 10 точками касания
• Периферийные устройства включают вход / выход HDMI, USB, Type-C, разъем для гарнитуры 3,5 мм , EHS (гарнитуры Plantronics)
• 12-сторонняя аудиоконференция HD и 3-сторонняя видеосвязь 1080p 30fps HD

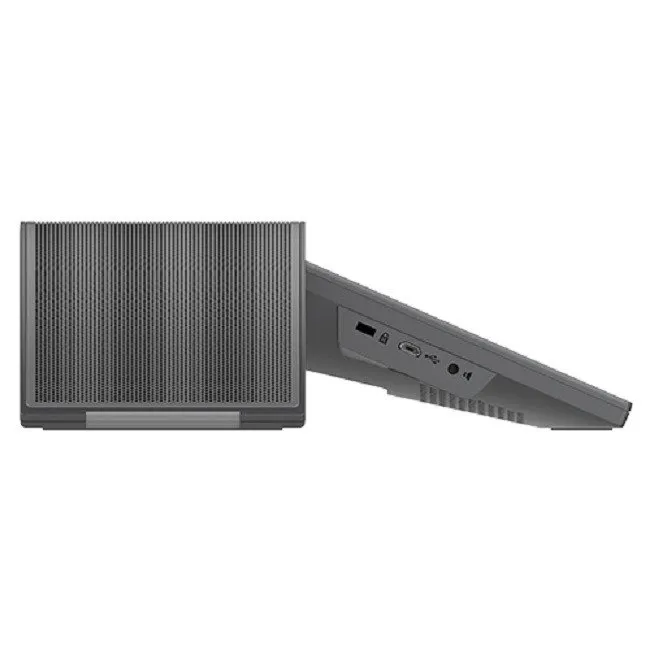

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

The operating system
Android 10

Network interface
One 10/100/1000 Mbps port with integrated PoE/PoE+ module

Wi-Fi
Wi-Fi 6, dual-band 2.4and 5 GHz module, 802.11 a/b/g/n/ac/ax

Bluetooth
Built-in module. V2.1 + EDR, V5.0 Dual Mode

Microphone
12 omnidirectional microphones with MMAD

External microphone
GMD1208, cascading up to 2 microphones

Speaker
10-watt speaker with high-quality sound
Frequency: 100-20,000 Hz
Volume: up to 83 dB at a distance of 1.0 m

Additional ports
1 Multimedia port, 1 Network port, 1 HDMI input, 1 USB, 1 line-out, 1 Micro-USB,
1 Kensington Castle

Speech codecs
G.711µ/a, G.722 (broadband), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band
and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS,
Noise Shield

Telephony functions
SIP paging, hold, parking/picking up a call, 12-way audio conference (including
the creator), multi-way call automatically generates a conference, virtual
programmable key, downloadable contacts (XML, LDAP, up to 2000 elements),
call recording (locally and to the server), call log (up to 2000 entries), waiting call,
answering machine, flexible configuration of subscriber groups, personalization of ringtones and ringtones
on hold

HD Audio
Yes, HD speakerphone with broadband audio support

Certification
Zoom

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, MD5 and MD5-sess authentication,
configuration file with 256-bit AES encryption, TLS, SRTP, HTTPS, access control to
the 802.1x-based transmission medium

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via local HTTP download,
mass configuration using an XML configuration file with AES encryption

Nutrition and energy efficiency
Built-in PoE+ 802.3at module, Class 4
3300mAh Built-in rechargeable battery, up to 4 hours of talk time

Package contents

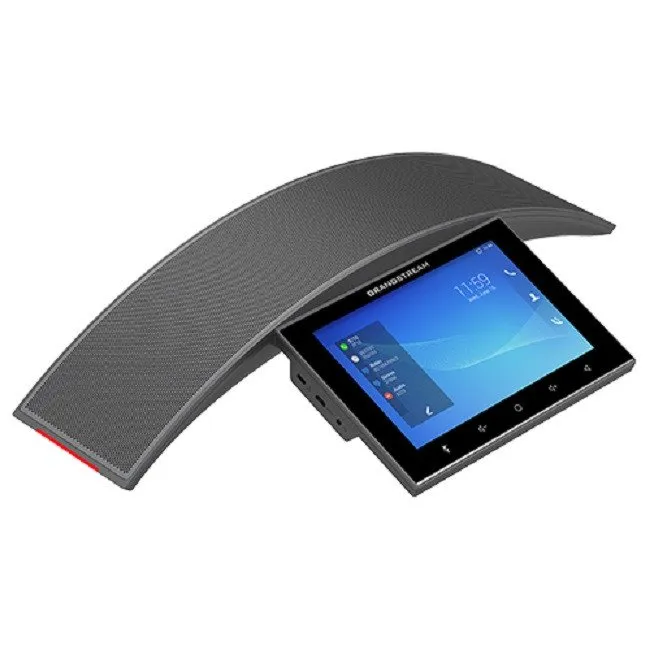

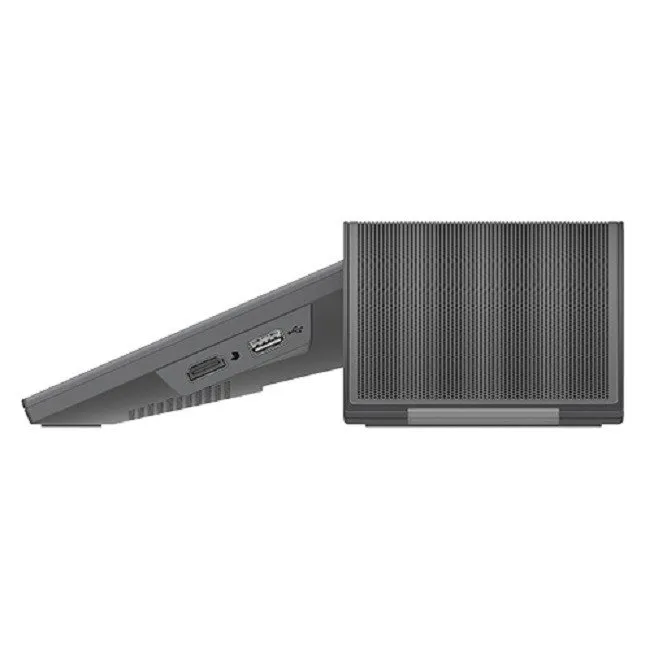

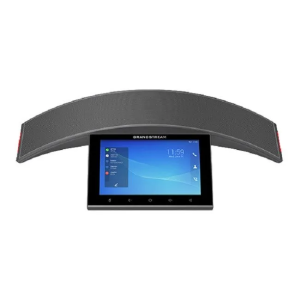

GAC2570 Conference Phone, Ethernet Cable, Micro-USB Cable, Quick
Installation Guide, PoE Injector, HDMI cable (optional), 2 GMD1208 wireless Microphones (optional)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90% (non-condensing)

Physical characteristics
Device weight: 1.38 kg
Device dimensions: 419.7 (D) × 218.5 (W) × 78.6 mm (H)

Accordance
FCC, CE, RCM, IC, UKCA

GVC3210 is an innovative video conferencing system designed for small and
medium-sized businesses, where an easy-to-use and at the same time powerful video conferencing solution is needed.
Support for the highest resolution 4K Ultra HD, allows the GVC3210 to improve the quality of any conference.
The GVC3210 is designed to be configured according to the specific requirements
of users ' communication systems, it can be used with most video and web
conference services, which allows you to create a multi-user video conferencing system. This
video conferencing system is managed by the AndroidTM operating system and gives full access to the app store
Google Play Store. Thanks to this, users get access to all Android applications for conferences
and communication. The GVC3210 has a modern noise reduction technology Noise Shield to eliminate background noise
and improve sound quality. It is also equipped with a 4-directional microphone array, modern
A 16-megapixel CMOS sensor with ePTZ for easy adjustment of the camera's field of view and support for Miracast
wireless for easy content sharing. This simple and powerful
video conferencing system is ideal for small and medium-sized businesses, where you need a device at an attractive
price that will have all the modern features that ensure high quality communication.

high quality video with a resolution of up to 4K
Android 6. x with full access to apps from the Google Play store
Built-in Bluetooth module for connecting Bluetooth speakers/ microphones, keyboards, data transmission, etc.
Built-in dual-band WiFi module for connecting to the video and web conferencing service
Built-in 4x-directional microphone array, support for external audio devices and modern noise reduction technology Noise Shield
A camera with a 16-megapixel CMOS sensor, a wide-angle lens with a 90° viewing angle and an ePTZ function for easy adjustment of the field of view
Support for sharing Miracast wireless content for sharing a presentation with conference participants
1x HDMI in, 2x HDMI out, and 2x USB ports

Technical specifications:
Protocols / Standards SIP RFC3261, H.323,BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE,LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP**, TCP/IP/UDP, IPv6, OpenVPN®

MCU
5-sided conference as 1080p@30fps, and 9-sided as 720p@30fps

Camera
1/2.5“, 8 MP, CMOS, 4k 30fps or 1080p 60fps

Lens
12x optical zoom,+/-30° tilt, +/-170° panorama, 70.1°~7.4°(W) viewing angle, 40.7°~4.2°(T) viewing angle

Network interface
1× RJ4510/ 100/ 1000 Mbps

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Wi-Fi support

Multimedia
Bluetooth
Built-in Bluetooth 5.0 + EDR module

Video outputs
1x HDMI 2.0 to 4K, 1x HDMI 1.4 to 1080p

Video inputs
1x HDMI 1.4a with up to 1080p resolution

Microphone/Speaker
Support external Bluetooth or 2.4G microphone, 1 built-in speaker, cascade support up to 2 GMD1208 wireless speakerphones

Audio inputs/outputs
1x Line input/output, 1x Media
Bluetooth remote control and IR remote control with multi-touch touchpad

Additional ports
1x USB 3.0, 1x USB 2.0, 1x SD, 1x Reset

Speech codecs
Support G.711µ/a, G.722 (wide-band), iLBC, Opus, G.711, G.722.1, G.722.1c,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)

Video codecs
H.264 BP/MP/HP, resolution up to 4k, frame rate up to 30 fps, bitrate up to 8Mbps,
H.265 BP/MP/HP, resolution up to 4K, frame rate up to 30 fps, bitrate up to 8Mbps

Video resolution
4K from 1Mbps to 8Mbps, 1080p from 1Mbps to 4Mbps and 720p from 512Kbps to 2Mbps

Video content Resolution
Input: 720p, 1080p (HDMI)
Coding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p

Streaming video from two BFCP sources, portrait video (up to 4K@30fps) + video content (up to 1080p@15fps)

Audio
AEC, ANS, AGC, PLC, CNG/VAD


FEC video, Dynamic layout, Picture in picture, Picture out of picture

Videoconferencing services platform
SIP, H.323, Grandstream IPVideoTalk, Bluejeans and Zoom

Telephony functions
Hold, Microphone off, Downloadable contacts (XML, LDAP), Call waiting, Call log, Flexible number plan, Backup serverfail-over

Application Examples
Microsoft Teams, Skype or Skype for Business, Zoom, Youtube, API/SDK support for installing custom applications

Application Deployment
Development, download and launch of various applications compatible with the Android 9.0 operating system on an embedded device with initialization control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption, TLS, 128/256-bit SRTP**, HTTPS, 802.1x media access control

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, etc.

Update/Automatic setup
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, automatic configuration using TR-069 or XML configuration file with AES encryption. Automatic detection of system updates from U disk/SD card

Power and energy efficiency
Universal Power Adapter:
Input: 100~240V AC 50~60Hz
Output: 48V/1.35A(64.8W)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (non-condensing)

FCC Compliance: Part15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; MPE
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1
IC: ICES-003; RSS-GEN; RSS-247; RSS-102(MPE). HDMI/EAC/REACH/ROHS/WEEE
