Jabra Biz 2300 QD, Wideband, Duo

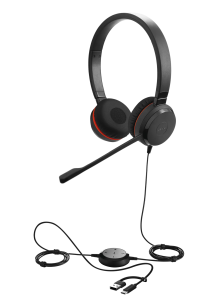

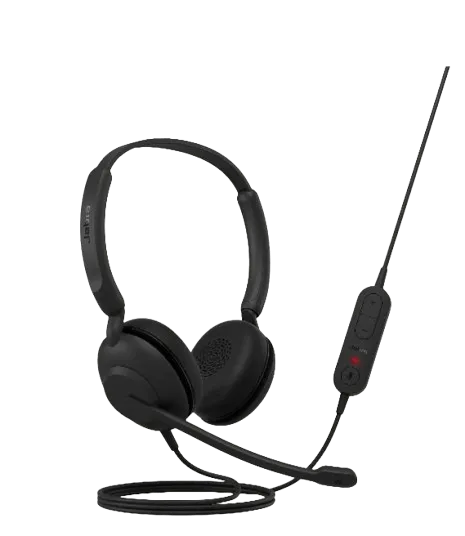

Jabra Evolve 20 SE, USB C/A, MS Stereo
Noise-canceling microphone, USB C/A connector, call control module with mute and volume control buttons on the cord, ear pads made of soft leatherette
Certified for Microsoft Teams/Skype for Business


Microphone Type:
- Noise Reduction

Connection:
- computer

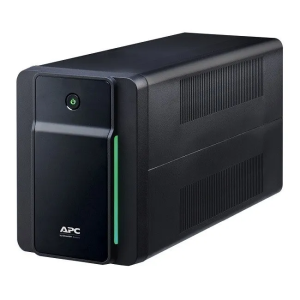

Main features
- Working time with a load of 650 W: 1m 1s
- Output power: 650 Watts / 1.2 kVA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko
- Length of the cord: 1.2 meters

Exit
- Maximum specified power (W): 650 Watts / 1.2 kVA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 140-300V
- Number of power cables: 1
- Input power factor under full load: 0.54

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5
- Battery capacity in volt-ampere-hours: 108

Communication and administrative tools
- Interface Port (s): 36 Pin Battery Mgmt, USB
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: A signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
- Burst energy rating: 273joules
- Data Line Protection: 10/100/1000 Base-T RJ45 Ethernet Protection

Physical parameters
- Maximum height: 190MM, 19.0 cm
- Maximum width: 140MM, 14.0 cm
- Maximum depth: 390MM, 39.0 cm
- Net weight: 7.6 KG
- Gross weight: 8.6 KG
- Dimensions of the transport package: 297x235x495MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-40 °C
- Storage Relative humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-3000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Accordance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

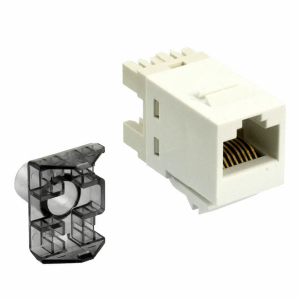

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Alpine White

Type of conductor
Solid

Built-in type of dust cover
Nobody

Mounting
SL series faceplates and panels

Installation Note
The color corresponds to the front panels and boxes for surface mounting in the style of SL Alpine white or Pro white.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes
Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.13 mm | 0.635 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible cable diameter, max
5.8mm | 0.228 inch

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics
Change in contact resistance, maximum
20 MOM

Contact resistance, max
. 100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

Material Characteristics
Contact base material
Beryllium copper

Contact coating material
Gold

Type of material
Polycarbonate

Contact coating
Pot

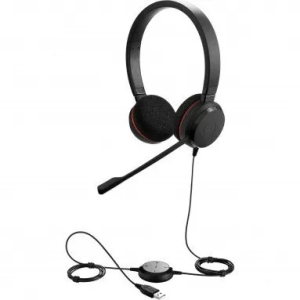

Jabra Evolve 30 II, USB C/A Stereo MS
Headband; USB C/A interface, 3.5 mm jack; answer and sound control button on the headset cord; ear pads made of leatherette; soft case
Certified for Microsoft Teams/Skype for Business


Microphone Type:
- Noise Reduction

Connection:
- computer, smartphone, tablet
