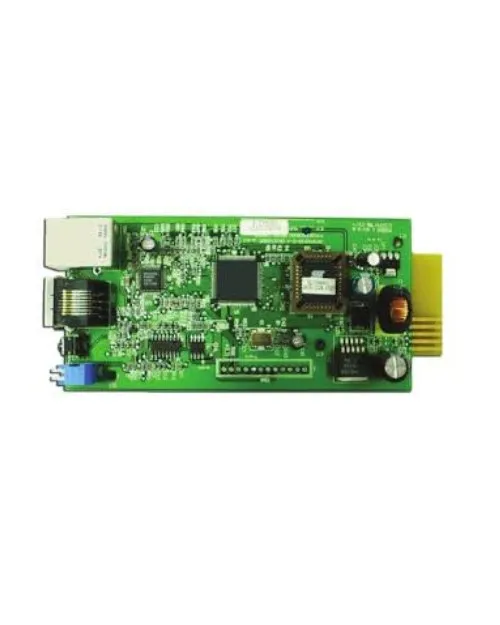

3915100120-S SNMP card IPv4

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

Extended Execution Time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Model with extended lead time
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

The extended execution time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Extended Execution time model
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

Extended Execution Time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Model with extended lead time
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency 50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection:

Standard runtime model:
● RT-5K/6KC13 x6, C19 x2, terminal x1, programmable socket C19 x1
● RT-8K/10KC13 x6, C19 x4, Terminal x1, Programmable socket C19 x1

A model with extended working hours
Terminal x1, Programmable Terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode 95.5%

Eco Mode
Up to 99%

Battery Type VRLA/Lithium-ion

Rated voltage:
Standard operating time model:
● RT-5K/6K192 In the post. current
● RT-8K/10K240 Per post. current

A model with extended working hours
144 In the post. current(2), 192-264 VDC. current

Charging current:
Standard operating time model:
● RT-5K/6K1 A (default), up to 8 A
● RT-8K/10K1.5 A (default), up to 8 A

A model with extended working hours
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with extended working hours:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Standard operating time model:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Main Input voltage
200 V
208 B
230 B

Type of BRP
Main

Main Output voltage
230 V

Input Connection Type
IEC 60309 16 A

Number of Units
0U

Length
3,05 m

Number of cables
1

Colour
Black

Height
161,9 cm

Width
5,6 cm

depth
4,4 cm

Net weight
5,57 kg

Installation location
Side

Type of fastener
No preference

Installation execution
Rack

Mounting position
Vertical

input current limits
16 A

Load capacity
3680 VA

Network frequency
47-63 Hz

Number of output connections
20 IEC 60320 C13
4 IEC 60320 C19

Certificates
CE
VDE
