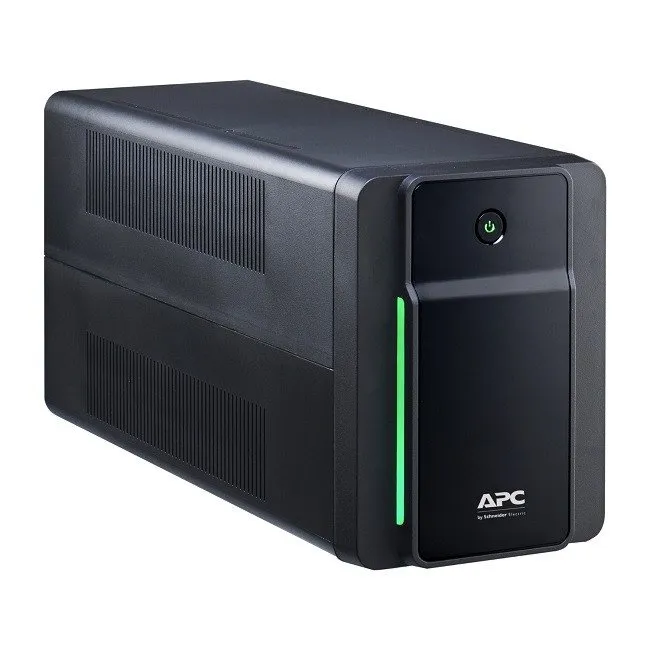

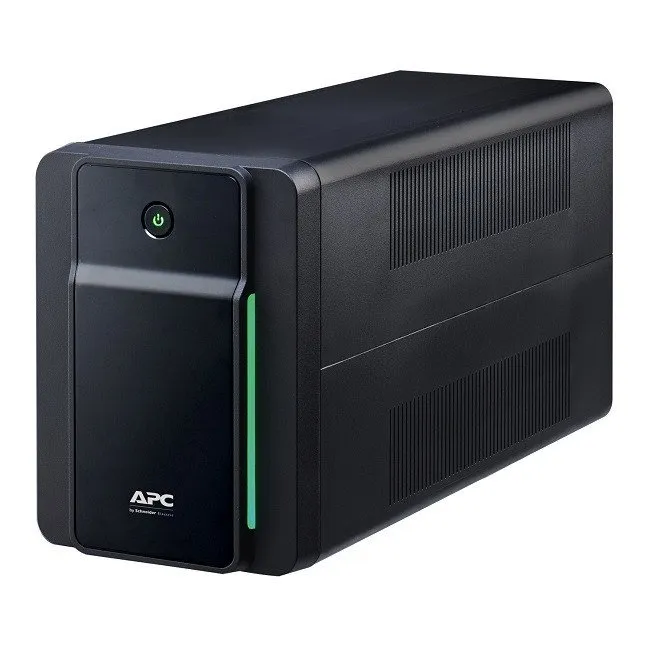

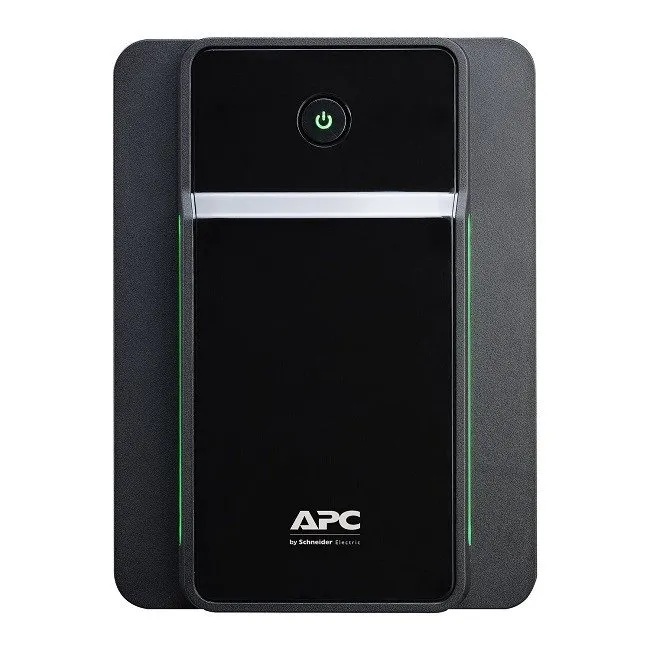

APC Back-UPS 2200VA, 230V, AVR, Schuko Sockets

Main characteristics:
- Main input voltage 230 V
- Rated power [W] 1200 W
- Rated power 2200 VA
- Output connection type 4 Schuko
- Length 1.22 m
- Number of cables 1
- Battery type Lead-acid battery

Are common:
- Equipment included - instruction manual
- Maximum autonomy time - 240 min
- Number of unoccupied layers by power modules - 0
- Number of slots occupied by power modules - 0
- Spare - No

Physical parameters:
- Black color
- Height 19 cm
- Width 14 cm
- Depth 39 cm
- Net weight 12.3 kg
- Fastening type No preference
- Installation style: Non-rackmount
- Two-post mount 0
- USB compatible No

Entrance:
- Network frequency - 50/60 Hz +/- 5 Hz auto detection
- Input voltage limits -140...300 V
- Input Coefficient power at full load - 0.54

Exit:
- Maximum set power (W) 1200 W
- Output frequency 50/60 Hz +/- 1 Hz synchronized with the mains
- UPS type Line-interactive
- Voltage waveform type: Stepwise sinusoidal approximation
- Autonomy time at full load 00:01:00 1200 W
- Autonomy time at half load 00:08:30 600 W
- Maximum set
- power (VA) 2200 VA
- Switching time Typical time - 6 ms, maximum - 10 ms

Exit:
- Maximum set power (W) 1200 W
- Output frequency 50/60 Hz +/- 1 Hz synchronized with the mains
-UPS type Line-interactive
-Voltage waveform type: Stepwise sinusoidal approximation
- Autonomy time at full load 00:01:00 1200 W
- Autonomy time at half load 00:08:30 600 W
- Maximum set power (VA) 2200 VA
- Switching time Typical time - 6 ms, maximum - 10 ms

Correspondence:
- CE Certificates
- C.B.
-EAC
- Standards EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
- Equipment protection policy For the entire service life: 50 thousand euros

Environment parameters:
- Operating ambient temperature 0…40 °C
- Relative humidity 0…95% without condensation
- Altitude above sea level 0...3000 m
- Ambient temperature during storage -15…40 °C
- Relative storage humidity 0…95% without condensation
- Storage altitude 0…3000 m
- Acoustic level 40 dBA
- IP protection degree IP20

Batteries and battery life:
- Pre-installed batteries - 0
- Free battery compartments 0
- Typical recharge time 8 h
- Battery voltage 24 V
- Battery capacity 9.0 Ah
- Battery capacity in volt-ampere hours
- 190 VAh operating time
- 216 Wh capacity
- Battery life 3…5 year(s)
- Spare battery APCRBC177
- Comments on the battery graph The curve corresponds to the results of battery life measurements. All measurements
were carried out with new, fully charged batteries, in typical climate conditions
conditions, without voltage applied to the input and with a resistive load at the output.
- Possibility of increasing autonomy time - 0

Communication and admin tools:
- Control panel LED display with on line indicators (working from the network)

Surge and filtering protection:
- Rating according to the level of absorbed energy of the float - 273 J
