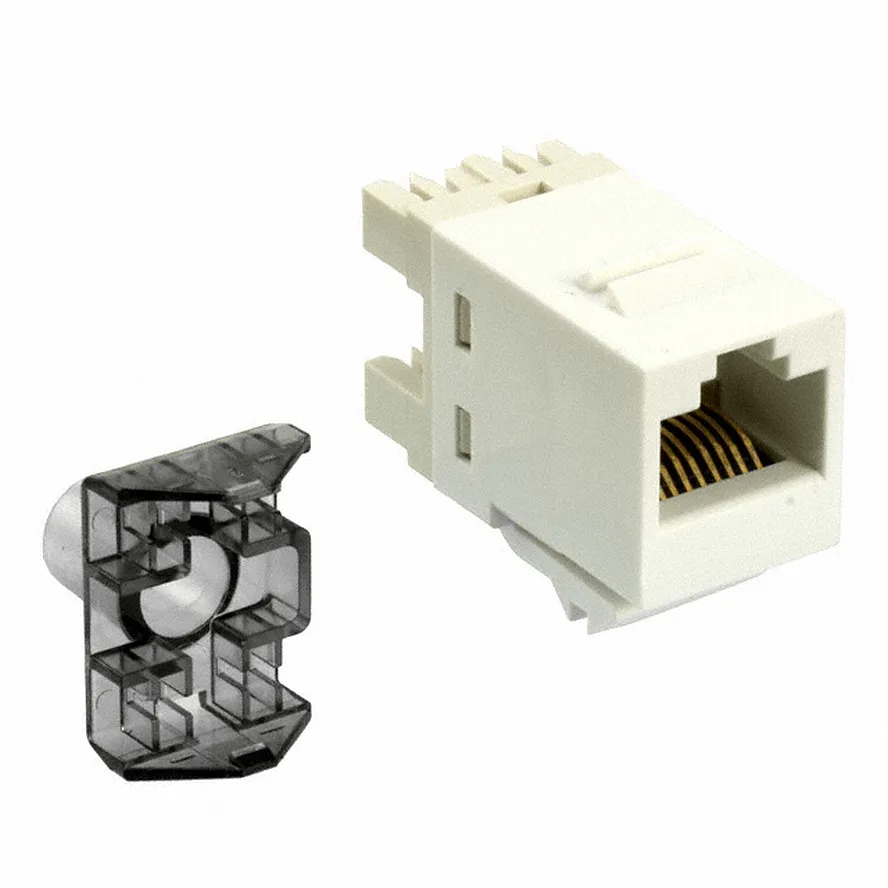

AMP Modular jack RJ45 UTP Cat.6 SL

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Alpine White

Type of conductor
Solid

Built-in type of dust cover
Nobody

Mounting
SL series faceplates and panels

Installation Note
The color corresponds to the front panels and boxes for surface mounting in the style of SL Alpine white or Pro white.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes
Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.13 mm | 0.635 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible cable diameter, max
5.8mm | 0.228 inch

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics
Change in contact resistance, maximum
20 MOM

Contact resistance, max
. 100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

Material Characteristics
Contact base material
Beryllium copper

Contact coating material
Gold

Type of material
Polycarbonate

Contact coating
Pot

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Black

Type of conductor
Solid | Stuck

Built-in type of dust cover
No

Mounting
SL series faceplates and panels

Installation Note
The color is combined with black SL-style faceplates and surface mount boxes.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes

Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.26 mm | 0.64 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics

Change in contact resistance, maximum
20 MOM

Contact resistance, maximum
100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Alpine White

Type of conductor
Solid

Built-in type of dust cover
Nobody

Mounting
SL series faceplates and panels

Installation Note
The color corresponds to the front panels and boxes for surface mounting in the style of SL Alpine white or Pro white.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes
Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.13 mm | 0.635 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible cable diameter, max
5.8mm | 0.228 inch

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics
Change in contact resistance, maximum
20 MOM

Contact resistance, max
. 100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

Material Characteristics
Contact base material
Beryllium copper

Contact coating material
Gold

Type of material
Polycarbonate

Contact coating
Pot

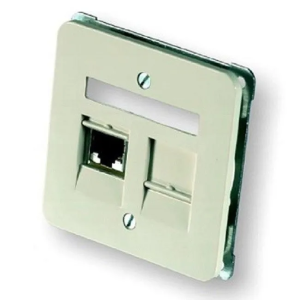

Product Type
Exit

Main Features
Colour
White

Mounting
Drowned

Output orientation
Flat

Total ports, number
2

Packaging and weight
Packing Quantity
1

Type of packaging
Bag

Product Type
Exit

Main Features
Colour
White

Mounting
Drowned

Output orientation
Flat

Total ports, number
2

Packaging and weight
Packing Quantity
1

Type of packaging
Bag

Product Type
Exit

Main Features
Colour
White

Mounting
Drowned

Output orientation
Flat

Total ports, number
2

Packaging and weight
Packing Quantity
1

Type of packaging
Bag

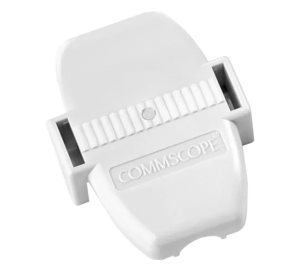

ANSI/TIA
6 | 6A category

Cable Type
U/UTP (unshielded)

Colour
Electric White

Type of conductor
Solid | Stuck

Product Type
A set of connectors

Height
27.178 mm | 1.07 inches

Width
35.56mm | 1.4 inches

Depth
51.816 mm | 2.04 inches

Compatible conductor gauge, solid
26–22 AWG

Compatible conductor gauge, stranded
26–22 AWG

Change in contact resistance, maximum
20 mOm

Contact resistance, maximum
100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric
Withstand voltage, RMS value, between contacts 1000 V AC at 60 Hz

Insulation resistance, minimum
500 mOm

Contact coating material
Precious metals

IDC connection material
Phosphoric bronze

Type of material
Impact-resistant, flame-resistant thermoplastic | Phosphoric Bronze

Plug service life, minimum
750 times

Cork retention force, minimum
44.645 kg/m | 30 lb/ft

Operating Temperature
-10 °C to +60 °C (+14 °F to +140 °F)

Storage temperature
-40 °C to +70 °C (-40 °F to +158 °F)

Relative humidity
Up to 95%, non-condensing

Ecological space
Low-smoke, halogen-free (LSZH) | Plenum

Flammability rating
94 V-0 STREET

Safety standard
ETL | cETL

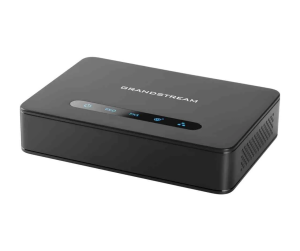

Telephone interfaces
One (1) RJ11 FXS port, one (1) RJ11 FXO PSTN port with
lifeline support

Network interfaces
Two (2) 10/100 Mbps ports (RJ45) with integrated NAT router

LED indicators
POWER, LAN, WAN, FXS, FXO

Reset button to factory settings
Yes

Telephony functions
Number detection and number detection blocking, call waiting,
flash, blind or accompanied translation, redirection, hold, do not
disturb, 3-way conference


G.711 voice codecs with Appendix I (PLC) and Appendix II (VAD/CNG), G.723.1,
G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced
line echo compensation

Fax transmission over IP
Fax relay of the third group of the standard T.38 with support
for data transfer rates up to 14.4 kbit/s and auto-switching in G 711 for fax transmission

Call distance for
short-range/ long-distance communication 3 REN: up to 1 km on a 24AWG line


Caller ID (Caller ID) Bellcore type 1 and 2, ETSI, BT, NTT and CID based on DTMF
Disconnection methods Busy signal, Reverse polarity/control pulse, Current in the circuit

Network protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,
TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP*, TR-069

QoS
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)

DTMF method
In-audio, RFC2833 and/or SIP INFO

Setup and management
HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated configuration
using AES encryption, system log

Safety
SRTP Environment*

Control
TLS/SIPS/HTTPS

Management
System log support, telnet, SSH, remote management via browser

Dimensions
Universal power supply
Input: 100-240V AC, 50-60 Hz
Output: 12V/0.5A

Environment
Working: 32º – 104ºF or 0º – 40ºC
Keeping: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90%, non-condensing

Dimensions and weight
130.5 x 90.5 x 29 mm (L x W x D)
Weight: 0.142kg

Compliance with FCC/CE/C-TICK/ITU-K.21
