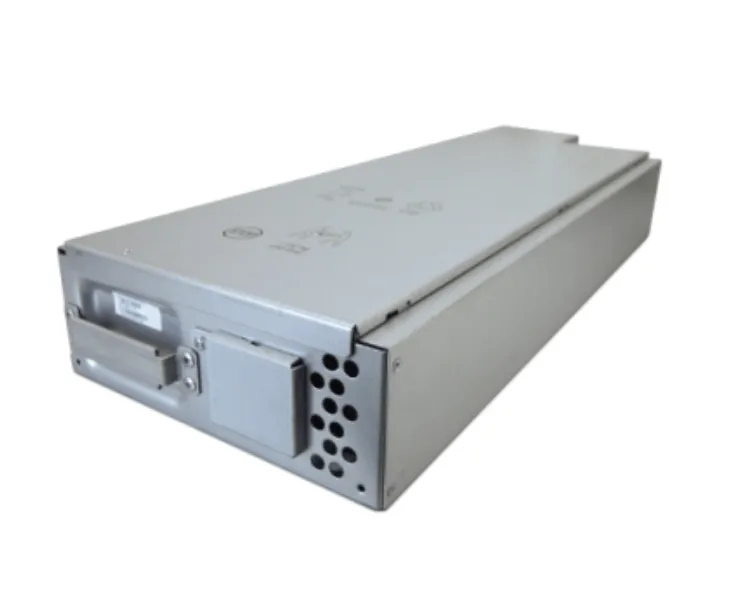

APC Replacement Battery Cartridge #117

Product or Component Type:
- Replaceable battery cartridge;

Battery Type - Lead-acid battery;

Batteries and operating time:
- The number of battery packs in the chain is 10;
- Number of free battery slots - 0;
- The number of filled battery slots - 0;
- Installation of the device - Closed battery pack;
- Battery voltage – 120 V;
- Number of replaceable batteries - 1;

Physical:
- Height – 22.5 cm;
- Width – 27.9 cm;
- Depth – 48.1 cm;
- Net weight – 22.27 kg;
- Mounting method - Not in a rack;

Environmental:
- Ambient temperature during operation - 0...40 °C;
- Working height - 0...10000 feet;
- relative humidity - 0...95%;
- ambient temperature during storage -15...45 ° C;
- Storage height - 0,00...15240,00 m;
- relative humidity of storage - 0...95 %;

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
2 - 5

RBC™ quantity
1

Battery installation
--

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
48mm , 4.8cm

Maximum width
102mm , 10.2cm

Maximum depth
140mm , 14.0cm

Net weight, kg
2.5

Gross weight, kg
2.77

Height of the transport package
89mm , 8.9cm

Depth of transport packaging
213mm , 21.3cm

The width of the transport package
is 175mm , 17.5cm

Colour
Black

Devices on a pallet
240

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
0 - 40 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-3000meters

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
10,2 cm

Width
9,4 cm

Depth
15 cm

Net weight
3.68 kg

Installation execution
Non - stable

Battery capacity
10 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
9,4 cm

Width
6,4 cm

Depth
15,1 cm

Net weight
2,5 kg

Installation execution
Non - stable

USB-compatible
No

Battery capacity
7,0 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Main Input voltage
12 B direct current

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Colour
Black

Height
8,3 cm

Width
21,6 cm

depth
34.3 cm

Net weight
10 kg

Installation execution
Non - stable

USB-compatible
No

Operating ambient temperature
0...45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95 %

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

Additional information
RBC 14 is composed of four seperate battery cells. The Net dimensions are measured per cell. Due to the weight of this RBC return postage is not included.

number of RBC™ cartridges
1

Colour
Black

Height
20,8 cm

Width
16.5 cm

Depth
25,9 cm

Net weight
108,73 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

Battery voltage
24 V

number of RBC™ cartridges
1

Colour
Black

Height
8,3 cm

Width
21,6 cm

Depth
34.3 cm

Net weight
5 kg

Installation execution
Non - stable

USB-compatible
No

Battery capacity
7,0 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
10

RBC™ quantity
1

Battery installation
Closed battery cartridge

Battery output voltage
120

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
76mm , 7.6cm

Maximum width
203mm , 20.3cm

Maximum depth
584mm , 58.4cm

Net weight, kg
22.27

Gross weight, kg
25.18

Transport package height
228mm , 22.8cm

The depth of the transport package
is 761mm , 76.1cm

The width of the transport package
is 393mm , 39.3cm

Devices on a pallet
12

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Rated voltage
220/ 230/ 240 Perem. current

Voltage range
180~280 vac. current (full load) ; 120~300 VAC Current (50% load)

Frequency
40~70 Hz

Power factor
≥ 0.99 (full load)

Rated voltage
208(1), 220, 230, 240 Perem. current

Voltage regulation limits
±1%

Frequency
50/60 ± 3 Hz

Total Harmonic Distortion (THDv)

Power factor
0.9

Connection
IEC C13 x4, C19 x1

Overload capacity

The current amplitude coefficient
is 3:1

Operating mode Efficiency
88-90%

Economical efficiency mode
94%

Battery type
VRLA, external battery module (optional)

Rated voltage
72 In the post. current

Battery quantity
6 pcs

Parallel activation
Up to 4 EBC

Charging current
1/2/4/6 A (adjustable)

Display
LCD display with LED indicators

Port
USB, RS-232, mini-card slot (optional slots for SNMP mini-card, MODBUS mini-card and relay I/O mini-card)

Dimensions (W x D x H)
438 x 410 x 86 mm

Net weight
8.4 kg
