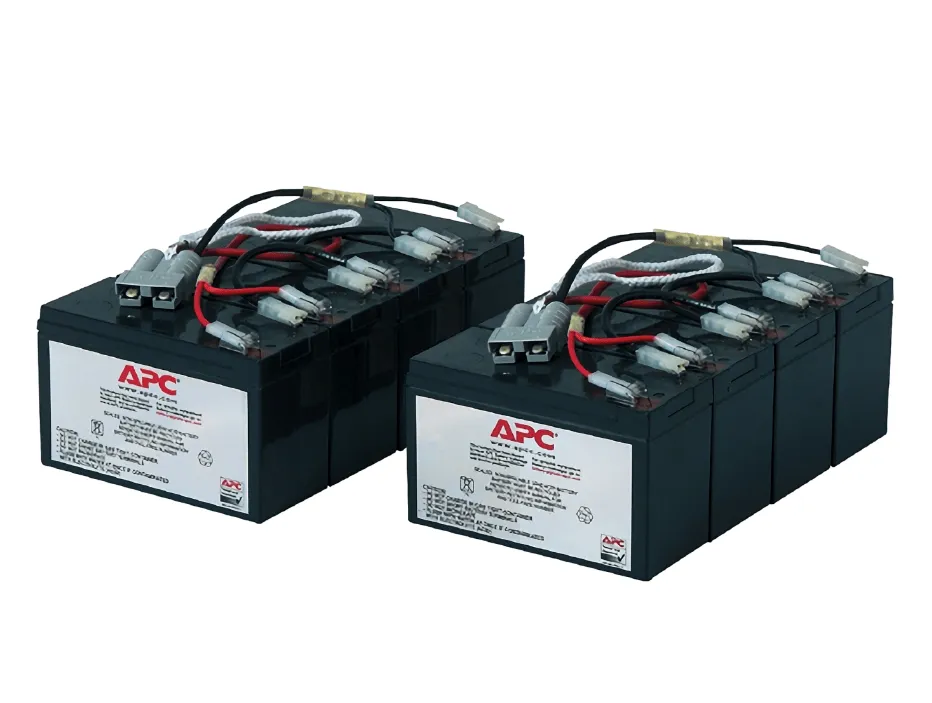

APC Replacement Battery Cartridge #12

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
83mm , 8.3cm

Maximum width
216mm , 21.6cm

Maximum depth
343mm , 34.3cm

Net weight, kg
10.0

Gross weight, kg
10.91

The height of the transport package
is 152mm , 15.2cm

The depth of the transport package
is 495mm , 49.5cm

The width of the transport package
is 368mm , 36.8cm

Colour
Black

Devices on a pallet
20

Operating temperature
0 - 45 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Rated voltage
220/ 230/ 240 Perem. current

Voltage range
180~280 vac. current (full load) ; 120~300 VAC Current (50% load)

Frequency
40~70 Hz

Power factor
≥ 0.99 (full load)

Rated voltage
208(1), 220, 230, 240 Perem. current

Voltage regulation limits
±1%

Frequency
50/60 ± 3 Hz

Total Harmonic Distortion (THDv)

Power factor
0.9

Connection
IEC C13 x4, C19 x1

Overload capacity

The current amplitude coefficient
is 3:1

Operating mode Efficiency
88-90%

Economical efficiency mode
94%

Battery type
VRLA, external battery module (optional)

Rated voltage
72 In the post. current

Battery quantity
6 pcs

Parallel activation
Up to 4 EBC

Charging current
1/2/4/6 A (adjustable)

Display
LCD display with LED indicators

Port
USB, RS-232, mini-card slot (optional slots for SNMP mini-card, MODBUS mini-card and relay I/O mini-card)

Dimensions (W x D x H)
438 x 410 x 86 mm

Net weight
8.4 kg

Overview Presentation High capacity battery pack for use with Easy UPS 3S with internal battery compartments and empty modular battery cabinet for Easy UPS 3S (E3SXR6). Each battery pack consists of four 9 Ah battery modules. Delivery Time Typically ships within 6 weeks Key Features Product Type Battery Module Product Series Compatibility Easy UPS 3M Battery Type Valve Regulated Lead Acid (VRLA) Easy UPS 3M Series Batteries and Runtimes Free Battery Slots 0 Pre-Installed Batteries 0 Unit Mounting Sealed Battery Pack Battery Voltage 120 V Battery Wattage 9 WAh Physical Parameters Height 15.7 cm Width 42.8 cm Depth 76 cm Net Weight 108 kg Mounting Type Non-Rack Mount Environmental Parameters Ambient Operating Temperature 0…40 °C Altitude 0...3281 ft Relative Humidity 0…95 % non-condensing Ambient Storage Temperature -15…40 °C Storage Altitude 0…15240 m Storage Relative Humidity 0…95 % non-condensing Unit Type of Package 1 PCE Number of units in a package 1 Package 1 Height 18,000 cm Package 1 Width 56,000 cm Package 1 Length 82,000 cm Package weight 112,000 kg

Product Type
Battery

Number of Units
2U

Battery Type
Lead-acid battery

Supplied equipment
Documentation CD-ROM

Installation Guide
Brackets for mounting in hardware racks

Series
Smart-UPS Battery Systems

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
72 V

number of RBC™ cartridges
2

Spare battery
APCRBC141

Colour
Black

Height
8,5 cm

Width
43,2 cm

Depth
59,4 cm

Net weight
33,9 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,0000000000…15240,0000000000 m

Relative humidity of storage
0...95% without condensation
