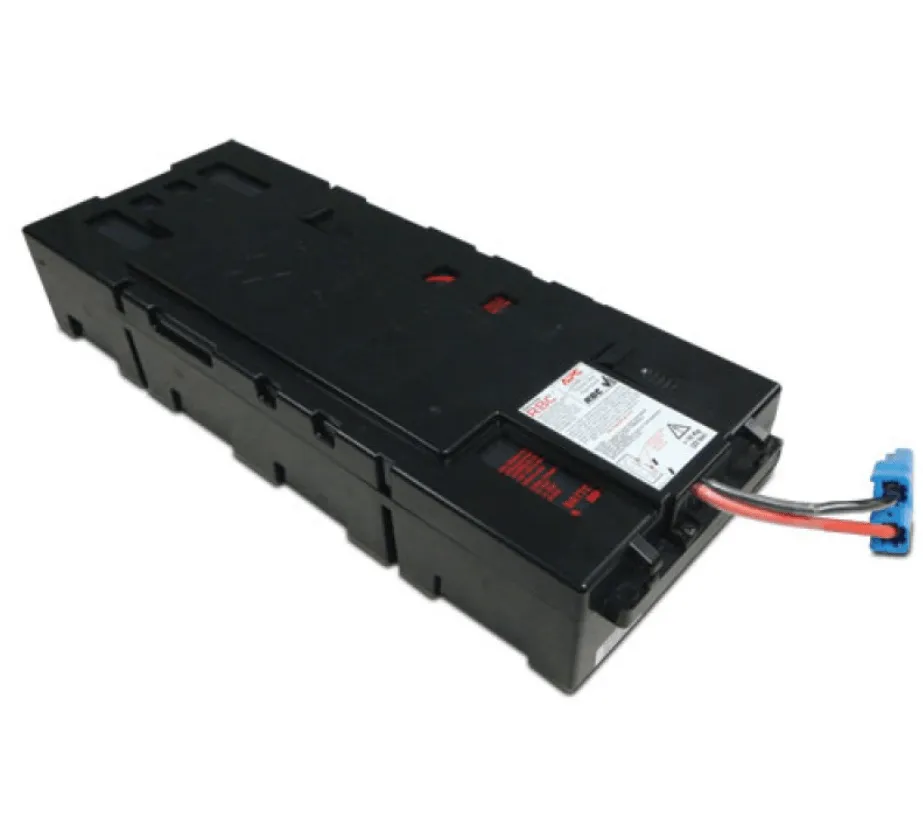

APC Replacement battery cartridge #141

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

Additional information
RBC 14 is composed of four seperate battery cells. The Net dimensions are measured per cell. Due to the weight of this RBC return postage is not included.

number of RBC™ cartridges
1

Colour
Black

Height
20,8 cm

Width
16.5 cm

Depth
25,9 cm

Net weight
108,73 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Main Features
- Number of Unit - 2U;
- Battery type - Lead-acid battery.

Batteries and battery life:
- Free battery compartments – 0;
- Pre-installed batteries – 0;
- Battery voltage - 96 V;
- Number of RBC™ cartridges - 2;
- Spare battery - APCRBC152.

Physical parameters
- Color – Black;
- Height - 8.5 cm;
- Width - 43.2 cm;
- Depth - 59.4 cm;
- Net weight - 40.6 kg;
- Installation design – Rack.

Environmental parameters:
- Ambient temperature - 0...40 °C;
- Altitude above sea level - 0...10000 ft;
- Relative humidity - 0...95% without condensation;
- Ambient temperature during storage - (-15...45 °C);
- Storage height - 0,00...15240,00 m;
- Relative humidity of storage - 0...95% without condensation.

Main characteristics:
- Main input voltage - 230 V
- Other Input voltage - 220 V; 240 B
- Main output voltage - 230 V
- Other Output voltage - 220 V; 240 V
- Rated power [W] - 800 W
- Rated power - 1000 VA
- Input Connection Type - IEC 60320 C14
- Output connection type - 3 IEC 60320 C13
- Length - 1.50 m
- Number of cables - 1

Are common:
- Maximum autonomy time - 4 min
- Number of slots occupied by power modules - 0
- Number of slots unoccupied by power modules - 0
- Spare - No

Physical parameters:
- Color Black (RAL 7010)
- Height 22.3 cm
- Width 14.5 cm
- Depth 28.8 cm
- Net weight 9.3 kg
- Installation location - Front
- Installation method - Floor
- Fastening type - No preference
- Installation style - Non-rackmount
- USB compatible - Yes
- Mounting position - Vertical

Entrance:
- Input voltage limits - 110...285 V half load; 160...280 V full load
- Network frequency - 40–70 Hz auto detection

Exit:
- Maximum set power (VA) - 1000 VA
- Maximum set power (W) - 800 W
- Output frequency - 50/60 Hz +/- 3 Hz synchronized with the mains
- Harmonic distortion - 3%
- UPS type - Double conversion topology
- Voltage waveform type - Sine wave
- Efficiency - 88% (full load)
- Additional information - Selectable output voltage 220, 230 or 240 V
- Bypass type - Internal bypass (automatic and manual)
- Crest factor - 3:1

Correspondence:
- CE Certificates; UKCA; EAC; TISI
- Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environment parameters:
- Operating ambient temperature - 0…40 °C
- Relative humidity 0…95% without condensation
- Altitude above sea level 0...3000 m
- Ambient temperature during storage: -20…50 °C
- Relative storage humidity - 0...95% without condensation
- Storage altitude 0…15000 m
- Acoustic level 50 dBA
- Heat dissipation 372 ‰
- IP protection degree - IP20

Batteries and battery life:
- Battery type - Lead-acid battery
- Battery voltage - 24 V
- Pre-installed batteries - 1
- Free battery compartments - 0
- Typical recharge time - 4 h
- Battery life - 3…5 year(s)
- Spare battery - APCRBCV203
- Charger power (W) - 30 W nominal

Communication and admin tools:
- Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Free slots - 1
- Control panel - Multifunctional LCD status and control panel

Surge protection and filtering
- Rating according to the level of absorbed energy of the float - 600 J

Type of product or component
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

The number of available battery slots
is 0

The number of filled battery slots
is 0

Installation of the device
Self-contained battery pack

Battery voltage
48 V

Additional information
The RBC 12 consists of two separate battery cells. The net dimensions are measured per cell.

Number of replaceable batteries
1

Colour
Black

height
9.7 cm

Width
25.4 cm

Depth
15.2 cm

Net weight
20 kg

Installation mode
It is not mounted in a rack

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
83mm , 8.3cm

Maximum width
216mm , 21.6cm

Maximum depth
343mm , 34.3cm

Net weight, kg
10.0

Gross weight, kg
10.91

The height of the transport package
is 152mm , 15.2cm

The depth of the transport package
is 495mm , 49.5cm

The width of the transport package
is 368mm , 36.8cm

Colour
Black

Devices on a pallet
20

Operating temperature
0 - 45 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Rated voltage
220/ 230/ 240 Perem. current

Voltage range
180~280 vac. current (full load) ; 120~300 VAC Current (50% load)

Frequency
40~70 Hz

Power factor
≥ 0.99 (full load)

Rated voltage
208(1), 220, 230, 240 Perem. current

Voltage regulation limits
±1%

Frequency
50/60 ± 3 Hz

Total Harmonic Distortion (THDv)

Power factor
0.9

Connection
IEC C13 x4, C19 x1

Overload capacity

The current amplitude coefficient
is 3:1

Operating mode Efficiency
88-90%

Economical efficiency mode
94%

Battery type
VRLA, external battery module (optional)

Rated voltage
72 In the post. current

Battery quantity
6 pcs

Parallel activation
Up to 4 EBC

Charging current
1/2/4/6 A (adjustable)

Display
LCD display with LED indicators

Port
USB, RS-232, mini-card slot (optional slots for SNMP mini-card, MODBUS mini-card and relay I/O mini-card)

Dimensions (W x D x H)
438 x 410 x 86 mm

Net weight
8.4 kg

Overview Presentation High capacity battery pack for use with Easy UPS 3S with internal battery compartments and empty modular battery cabinet for Easy UPS 3S (E3SXR6). Each battery pack consists of four 9 Ah battery modules. Delivery Time Typically ships within 6 weeks Key Features Product Type Battery Module Product Series Compatibility Easy UPS 3M Battery Type Valve Regulated Lead Acid (VRLA) Easy UPS 3M Series Batteries and Runtimes Free Battery Slots 0 Pre-Installed Batteries 0 Unit Mounting Sealed Battery Pack Battery Voltage 120 V Battery Wattage 9 WAh Physical Parameters Height 15.7 cm Width 42.8 cm Depth 76 cm Net Weight 108 kg Mounting Type Non-Rack Mount Environmental Parameters Ambient Operating Temperature 0…40 °C Altitude 0...3281 ft Relative Humidity 0…95 % non-condensing Ambient Storage Temperature -15…40 °C Storage Altitude 0…15240 m Storage Relative Humidity 0…95 % non-condensing Unit Type of Package 1 PCE Number of units in a package 1 Package 1 Height 18,000 cm Package 1 Width 56,000 cm Package 1 Length 82,000 cm Package weight 112,000 kg

Product Type
Battery

Number of Units
2U

Battery Type
Lead-acid battery

Supplied equipment
Documentation CD-ROM

Installation Guide
Brackets for mounting in hardware racks

Series
Smart-UPS Battery Systems

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
72 V

number of RBC™ cartridges
2

Spare battery
APCRBC141

Colour
Black

Height
8,5 cm

Width
43,2 cm

Depth
59,4 cm

Net weight
33,9 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,0000000000…15240,0000000000 m

Relative humidity of storage
0...95% without condensation
