APC Replacement battery cartridge #165

Exit
- Battery output voltage:
192 V

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3-5

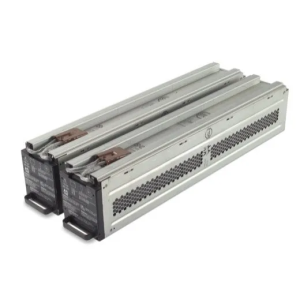

- Information about replaceable battery packs:
APCRBC140 consists of two battery modules

- RBC™ quantity:
1

Physical parameters
- Maximum height:
122MM, 12.2cm

- Maximum width:
197MM, 19.7cm

- Maximum depth:
597MM, 59.7cm

- Net weight:
34.55KG

- Gross weight:
37.27KG

- Dimensions of the transport package:
226x409x781MM

- Color:
Black

- Devices on the pallet:
20.0

Environmental Parameters
- Operating temperature:
0 - 40 °C

- Operating range of relative humidity:
0 - 95 (Non-condensing) %

- Operating range of altitude above sea level:
0 - 3048meters

- Storage temperature:
-15 - 45 °C

- Storage relative humidity:
0 - 95 (Non-condensing) %

- Altitude above sea level storage:
0 - 15240 meters

Accordance
- Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main Features
- Number of Unit - 2U;
- Battery type - Lead-acid battery.

Batteries and battery life:
- Free battery compartments – 0;
- Pre-installed batteries – 0;
- Battery voltage - 96 V;
- Number of RBC™ cartridges - 2;
- Spare battery - APCRBC152.

Physical parameters
- Color – Black;
- Height - 8.5 cm;
- Width - 43.2 cm;
- Depth - 59.4 cm;
- Net weight - 40.6 kg;
- Installation design – Rack.

Environmental parameters:
- Ambient temperature - 0...40 °C;
- Altitude above sea level - 0...10000 ft;
- Relative humidity - 0...95% without condensation;
- Ambient temperature during storage - (-15...45 °C);
- Storage height - 0,00...15240,00 m;
- Relative humidity of storage - 0...95% without condensation.

Type of product or component
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

The number of available battery slots
is 0

The number of filled battery slots
is 0

Installation of the device
Self-contained battery pack

Battery voltage
48 V

Additional information

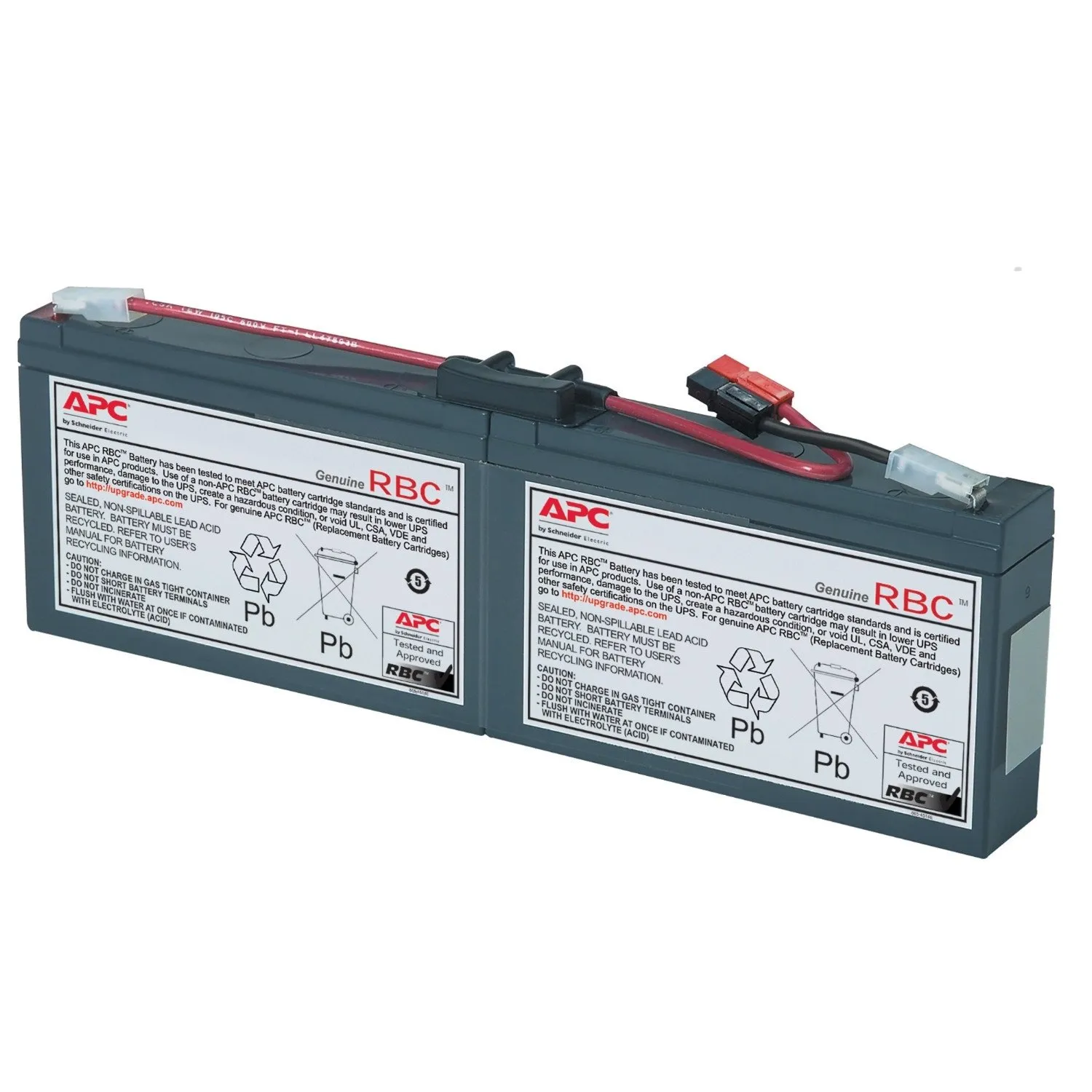

The RBC 12 consists of two separate battery cells. The net dimensions are measured per cell.

Number of replaceable batteries
1

Colour
Black

height
9.7 cm

Width
25.4 cm

Depth
15.2 cm

Net weight
20 kg

Installation mode
It is not mounted in a rack

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
83mm , 8.3cm

Maximum width
216mm , 21.6cm

Maximum depth
343mm , 34.3cm

Net weight, kg
10.0

Gross weight, kg
10.91

The height of the transport package
is 152mm , 15.2cm

The depth of the transport package
is 495mm , 49.5cm

The width of the transport package
is 368mm , 36.8cm

Colour
Black

Devices on a pallet
20

Operating temperature
0 - 45 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Colour
Black

Height
7,6 cm

Width
21 cm

Depth
40 cm

Net weight
11,7 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95% without condensation

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Colour
Black

Height
43,2 cm

Width
17,8 cm

Depth
48.3 cm

Net weight
60,91 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Relative humidity
0...95 %

Altitude above sea level
0...10000 ft

Ambient temperature during storage
-15…45 °C

The relative humidity of storage
is 0...95 %

Storage height
0,00…15240,00 m

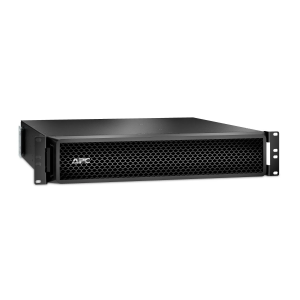

Product Type
Battery

Number of Units
2U

Battery Type
Lead-acid battery

Supplied equipment
Documentation CD-ROM

Installation Guide
Brackets for mounting in hardware racks

Series
Smart-UPS Battery Systems

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
72 V

number of RBC™ cartridges
2

Spare battery
APCRBC141

Colour
Black

Height
8,5 cm

Width
43,2 cm

Depth
59,4 cm

Net weight
33,9 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,0000000000…15240,0000000000 m

Relative humidity of storage
0...95% without condensation
