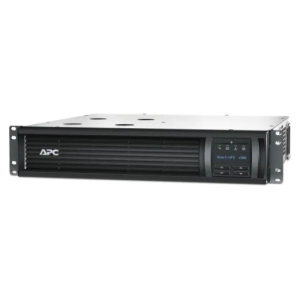

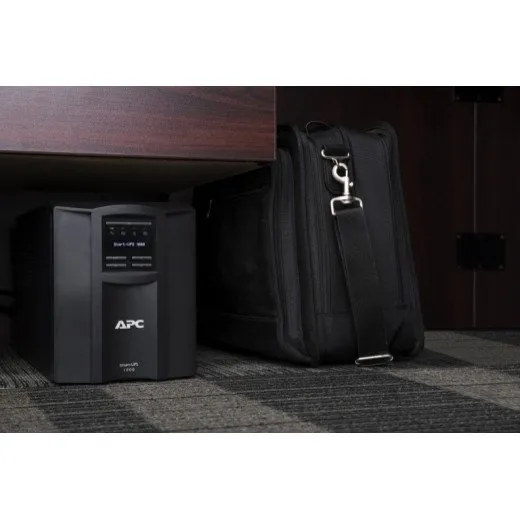

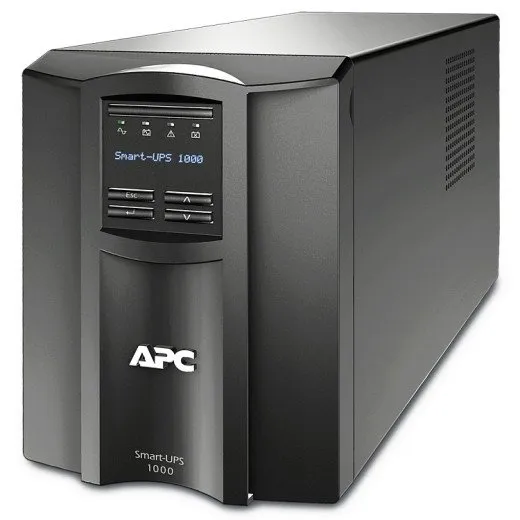

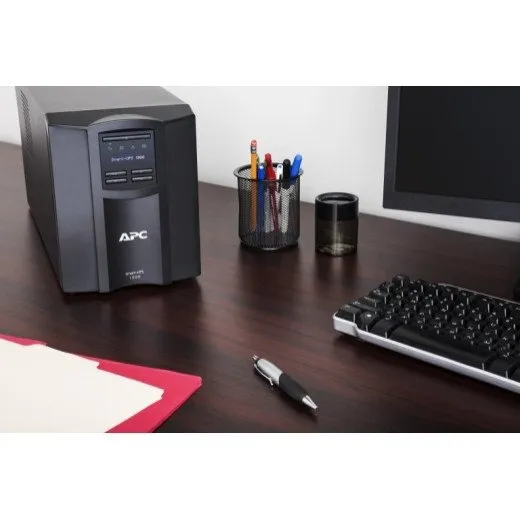

APC Smart-UPS 1500VA LCD 230V SmartConnect

Используется для защиты питания файловых серверов и АТС, а также любого другого оборудования, предъявляющего повышенные требования к качеству сетевого электропитания. Принцип работы состоит в двойном преобразовании (double conversion) тока. Сначала входное переменное напряжение преобразуется в постоянное, затем обратно в переменное напряжение с помощью обратного преобразователя (инвертора). При потере питания в городской сети, время переключения в автономный режим равно нулю.

Maximum adjustable power (W)
1.6 kW/2.0 kVA

Output voltage Note
Configurable for rated output voltage 220: 230 or 240.

Efficiency at full load
88,0 %

Output voltage distortion
3 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Peak load factor
3 : 1

Topology
Double Conversion Online

Signal type
The sine wave

Bypass
Internal bypass (automatic and manual)

Input frequency
40-70 Hz, automatic detection

Input voltage range for basic operations
110-285 Half load, 160-280 Full load In

Number of power cords
1

Efficiency at full load
88,0 %

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
4 hours)

Rated battery voltage
48 V

Spare battery
APCRBCV204

Expected battery life (years)
3-5

Battery power (W)
70 W

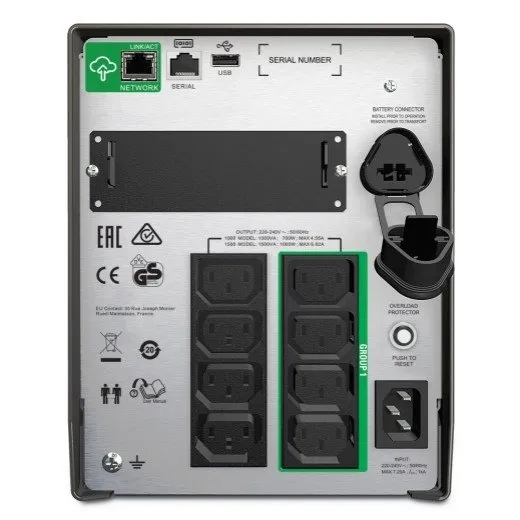

DB-9 RS-232 Interface Port(s), USB

The Control Panel
Multifunctional LCD status and control console

Operating Temperature
0-40 °C

Operating relative humidity
0-95 (non-condensing) %

Working height
0 - 3000 meters

Storage temperature
-20–50 °C

Relative humidity during storage
0-95 (non-condensing) %

Storage height
0 - 15000 meters

A noise is heard at a distance of 1 meter from the surface of the device.
50.0 dBA

Online heat dissipation
745.0 BTU/h

Protection class
IP20

Maximum adjustable power (W)
1.0 kW/1.5 kVA

Output Voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
Sinusoidal wave

Transmission time
6 ms is typical: 10 ms max

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
APCRBC159

Expected battery life (years)
3-5

Number of RBC
1

Battery power (W)
144 W

Interface Port(s)
RJ-45 serial port, SmartSlot, USB

Control Panel
Multifunctional LCD status and Control Console

Emergency Power Off (EPO)
Optional

Available number of SmartSlot™ interfaces
1

Pulse energy rating
459joules

Filtering
Constant multi-pole noise filtering: 0.3% IEEE overvoltage throughput: zero response time limits: complies with UL 1449

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg
