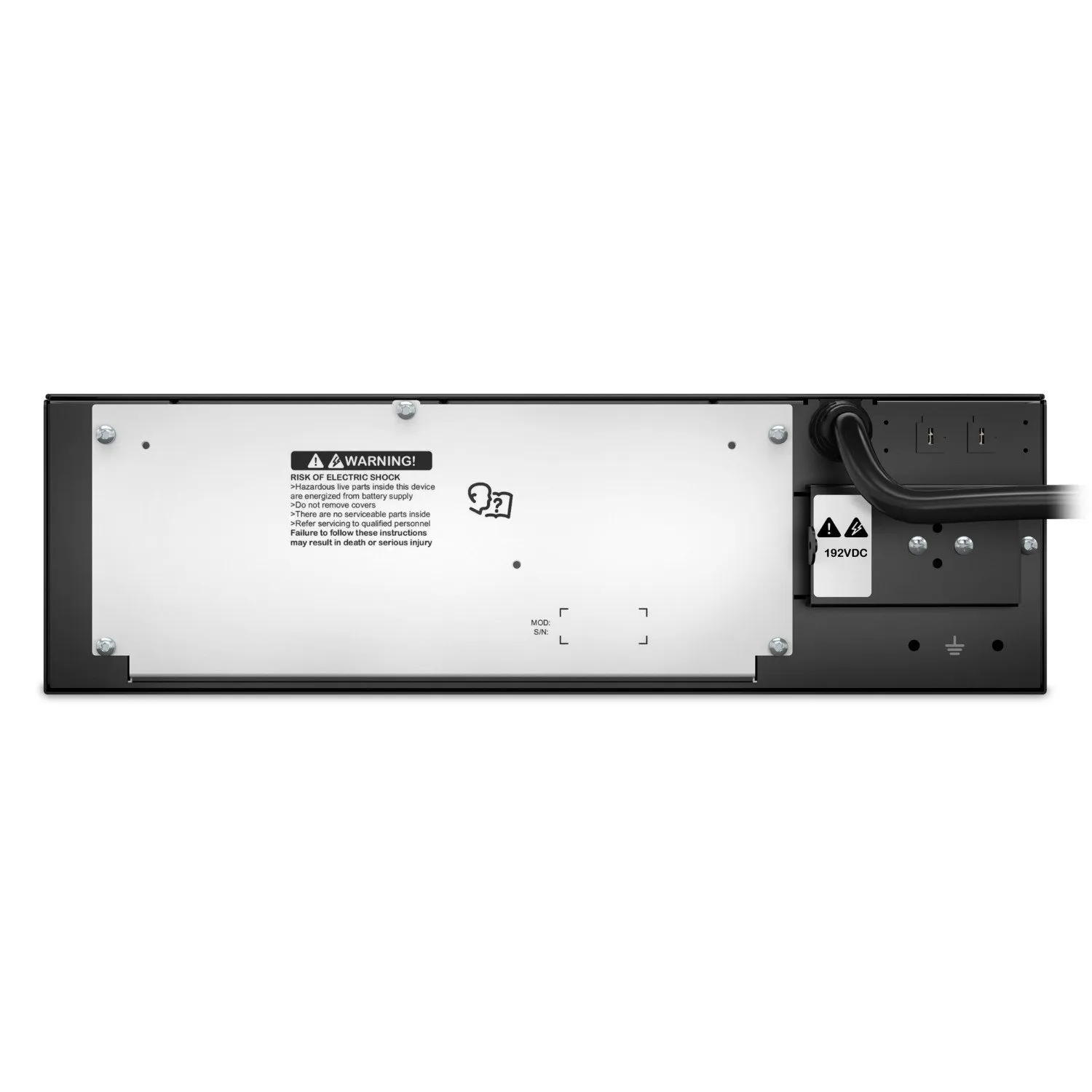

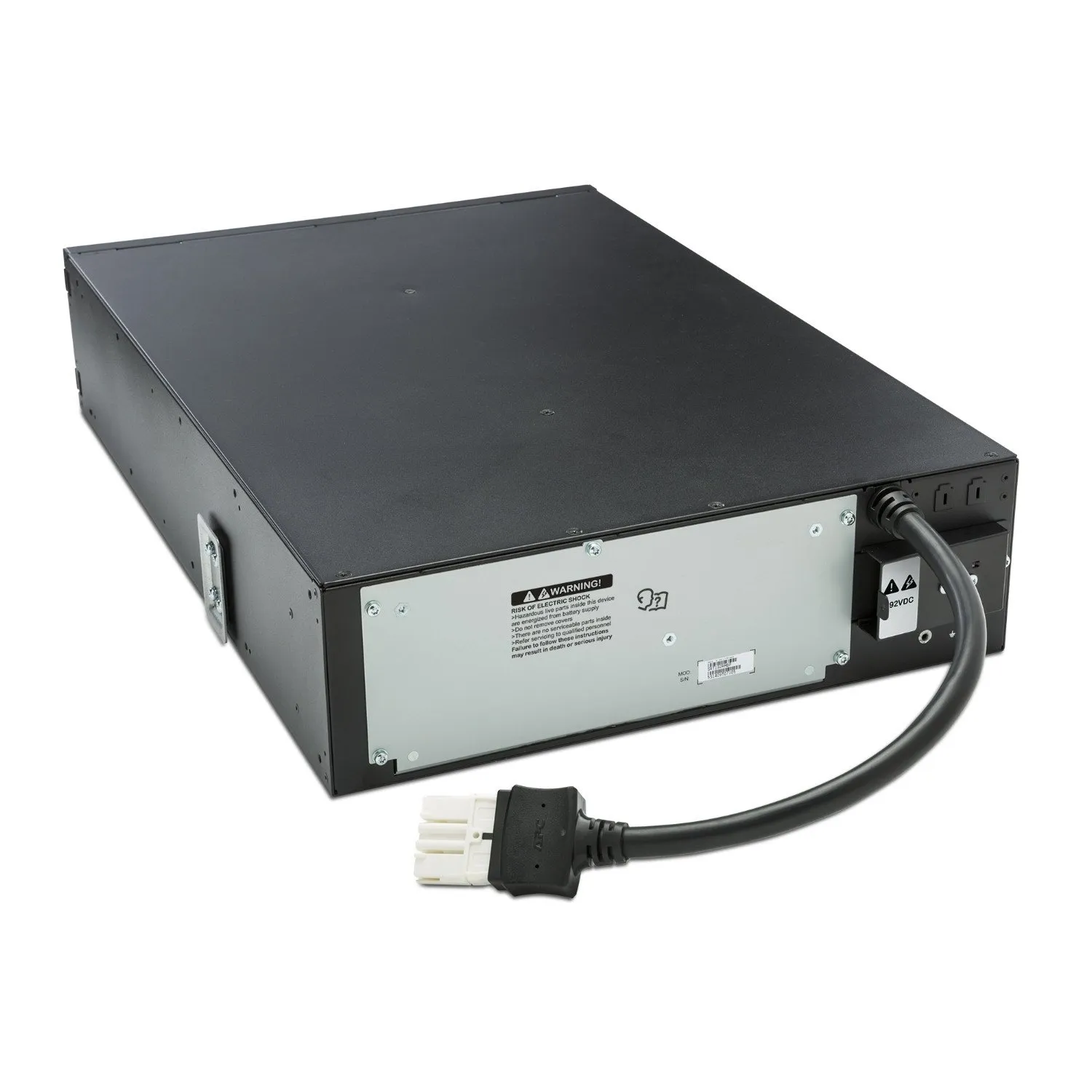

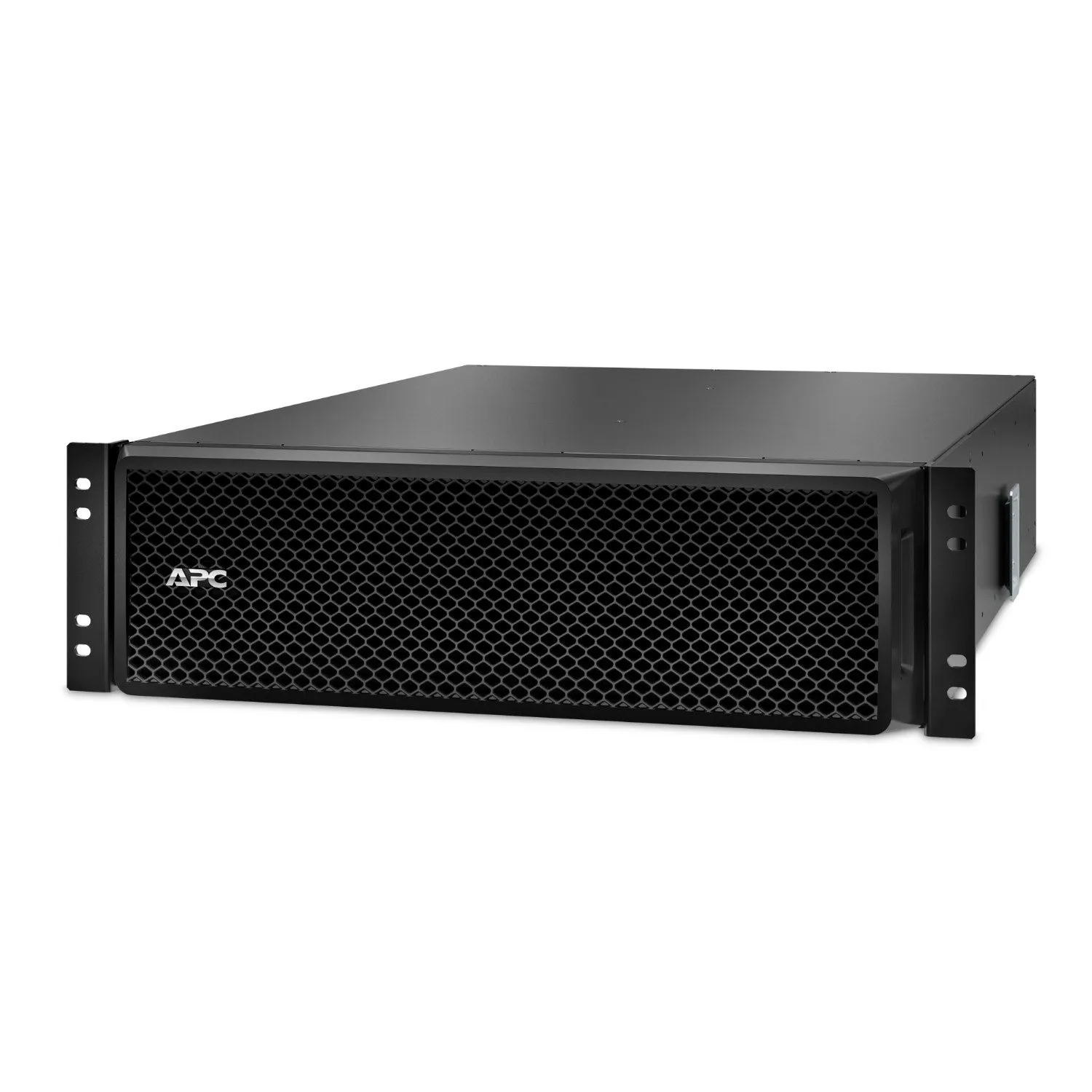

APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
83mm , 8.3cm

Maximum width
216mm , 21.6cm

Maximum depth
343mm , 34.3cm

Net weight, kg
10.0

Gross weight, kg
10.91

The height of the transport package
is 152mm , 15.2cm

The depth of the transport package
is 495mm , 49.5cm

The width of the transport package
is 368mm , 36.8cm

Colour
Black

Devices on a pallet
20

Operating temperature
0 - 45 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Exit
- Battery output voltage:
192 V

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3-5

- Information about replaceable battery packs:

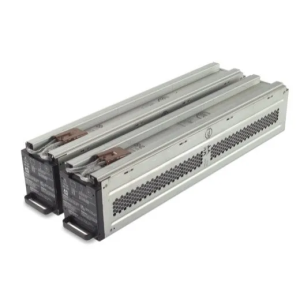

APCRBC140 consists of two battery modules

- RBC™ quantity:
1

Physical parameters
- Maximum height:
122MM, 12.2cm

- Maximum width:
197MM, 19.7cm

- Maximum depth:
597MM, 59.7cm

- Net weight:
34.55KG

- Gross weight:
37.27KG

- Dimensions of the transport package:
226x409x781MM

- Color:
Black

- Devices on the pallet:
20.0

Environmental Parameters
- Operating temperature:
0 - 40 °C

- Operating range of relative humidity:
0 - 95 (Non-condensing) %

- Operating range of altitude above sea level:
0 - 3048meters

- Storage temperature:
-15 - 45 °C

- Storage relative humidity:
0 - 95 (Non-condensing) %

- Altitude above sea level storage:
0 - 15240 meters

Accordance
- Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Rated voltage
220/ 230/ 240 Perem. current

Voltage range
180~280 vac. current (full load) ; 120~300 VAC Current (50% load)

Frequency
40~70 Hz

Power factor
≥ 0.99 (full load)

Rated voltage
208(1), 220, 230, 240 Perem. current

Voltage regulation limits
±1%

Frequency
50/60 ± 3 Hz

Total Harmonic Distortion (THDv)

Power factor
0.9

Connection
IEC C13 x4, C19 x1

Overload capacity

The current amplitude coefficient
is 3:1

Operating mode Efficiency
88-90%

Economical efficiency mode
94%

Battery type
VRLA, external battery module (optional)

Rated voltage
72 In the post. current

Battery quantity
6 pcs

Parallel activation
Up to 4 EBC

Charging current
1/2/4/6 A (adjustable)

Display
LCD display with LED indicators

Port
USB, RS-232, mini-card slot (optional slots for SNMP mini-card, MODBUS mini-card and relay I/O mini-card)

Dimensions (W x D x H)
438 x 410 x 86 mm

Net weight
8.4 kg

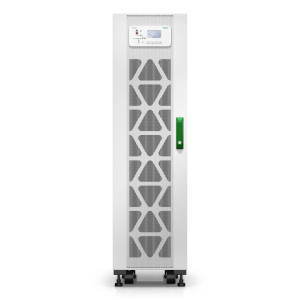

Overview Presentation A highly efficient three-phase UPS with advanced features and specifications, as well as robust electrical design, that ensures uninterrupted operation of equipment in data centers or electrical rooms. This 20 kVA UPS is ideal for small and medium businesses, and is easy to install, operate, and maintain. Comes with a dust filter and varnished PCBs for reliable operation in harsh environments. This UPS works with internal batteries, but is supplied without them, so you can choose the capacity you need. Delivery time Usually delivered within 6 weeks Key features Main Input voltage 400 V 3 phase Product type Uninterruptible power supply (UPS) Other Input voltage 380 V 415 V Main Output voltage 400 V3 phase Other Output voltage 380 V 415 V Nominal power [W] 20 kW Nominal power 20 kVA Equipment included Dust filter Installation guide Easy UPS 3S Series Batteries and runtime Efficiency View Efficiency Graph Battery type Valve-regulated lead acid (VRLA) Battery voltage 240 V maximum short-circuit current 10 kA Pre-installed batteries 0 Free battery slots 3 Physical parameters Colour White (RAL 9003) Height 140 cm Width 38 cm Depth 92.8 cm Net weight 122 kg USB compatible Yes Input Maximum input Current 37 A Total Input Harmonic Distortion Less than 3% at full load Load Power Factor From 0.9 leading to 0.9 lagging Input Coeff. Full load power 0.99 Input voltage limits 304...477 V Line frequency 45–65 Hz Output Maximum input power (VA) 20 kVA Maximum input power (W) 20 kW Output frequency 50 Hz synchronized with the mains 60 Hz synchronized with the mains Harmonic distortion Less than 3 % THD of the output voltage
