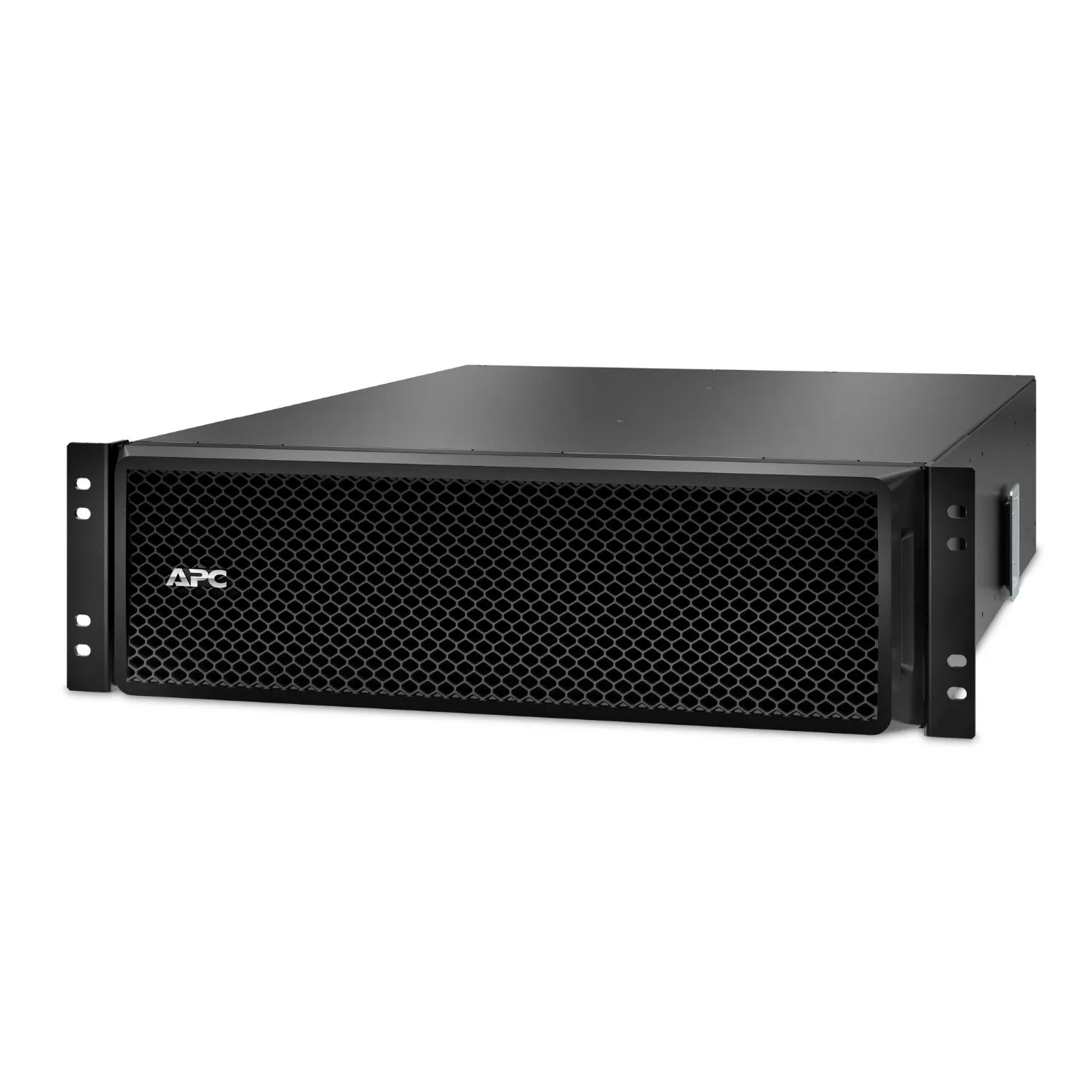

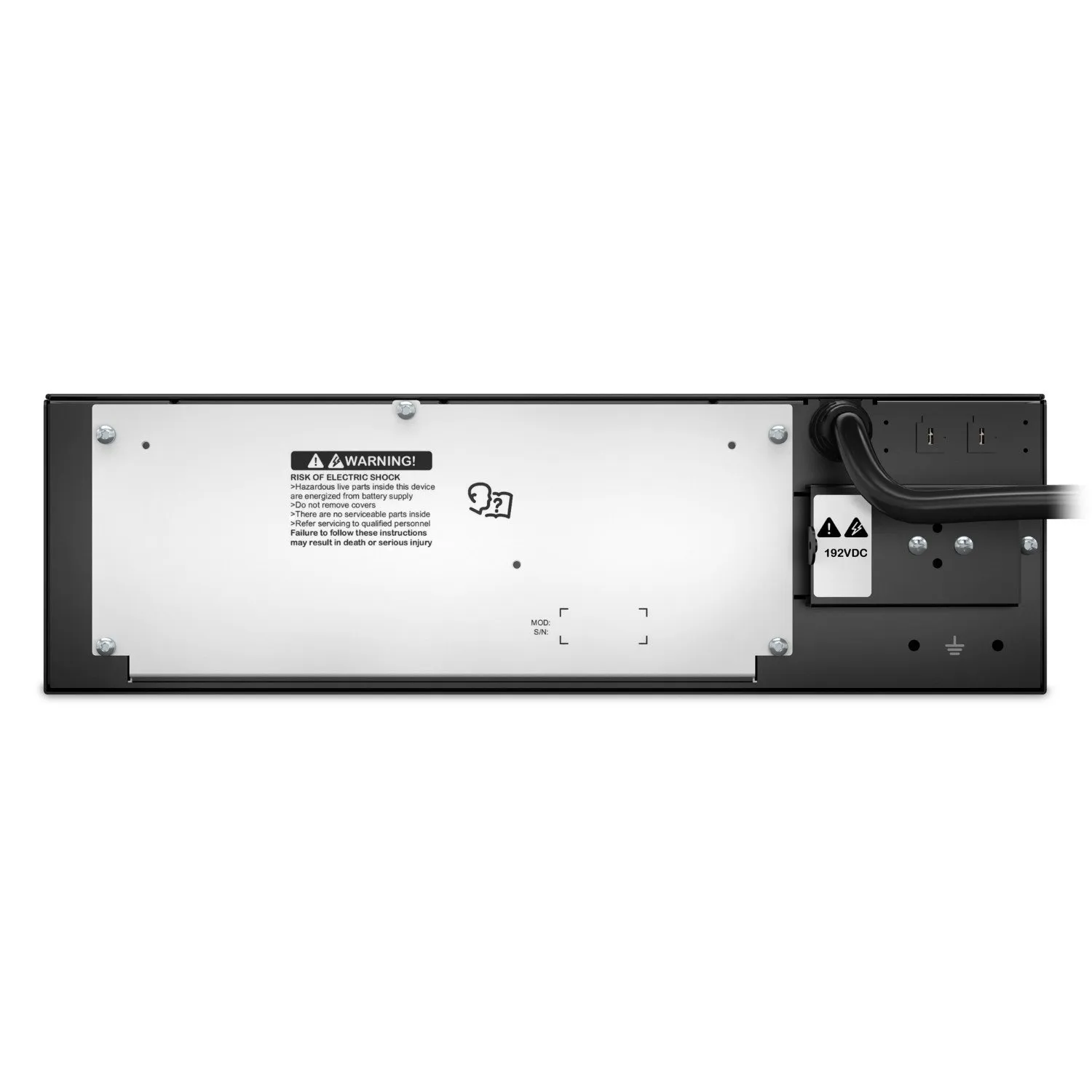

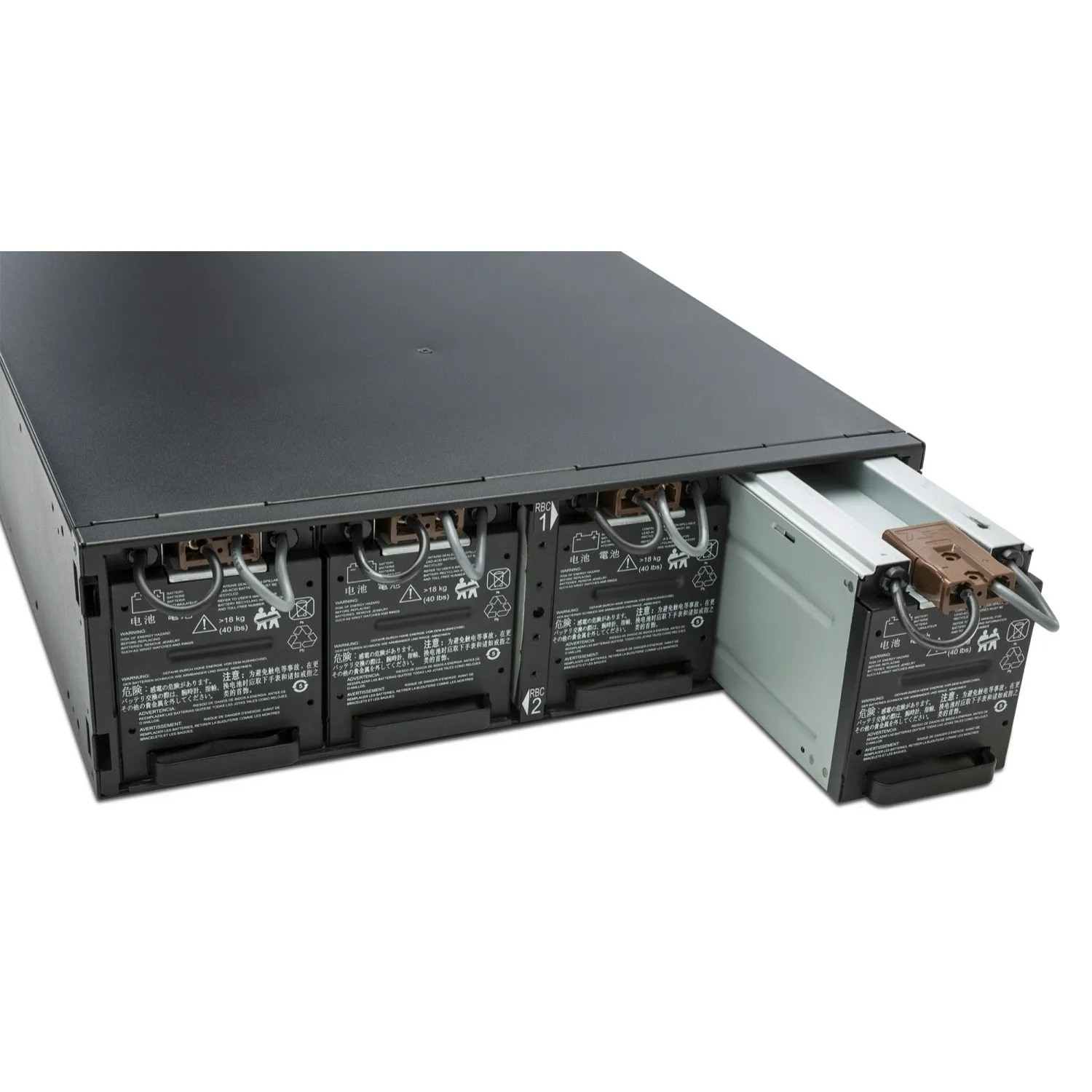

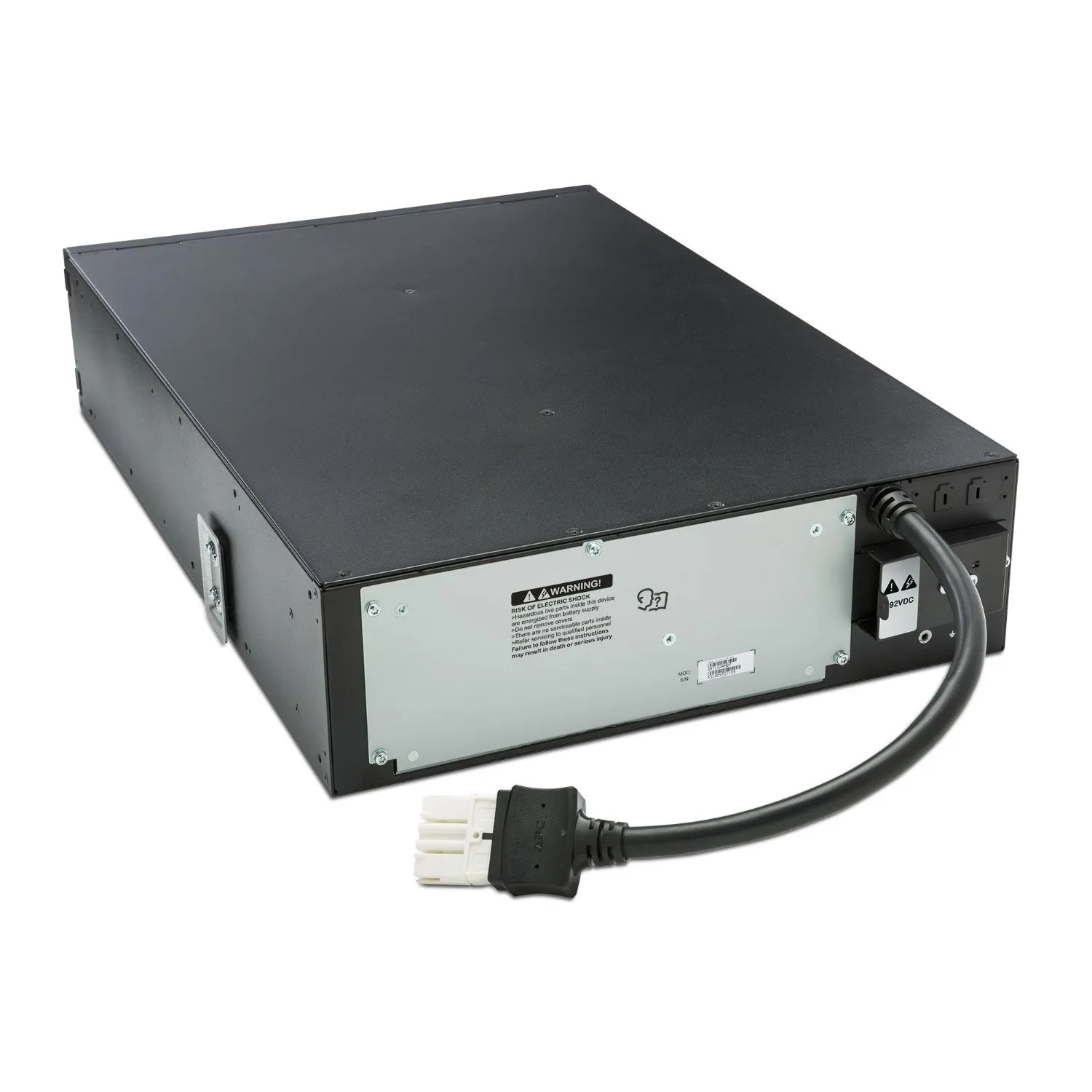

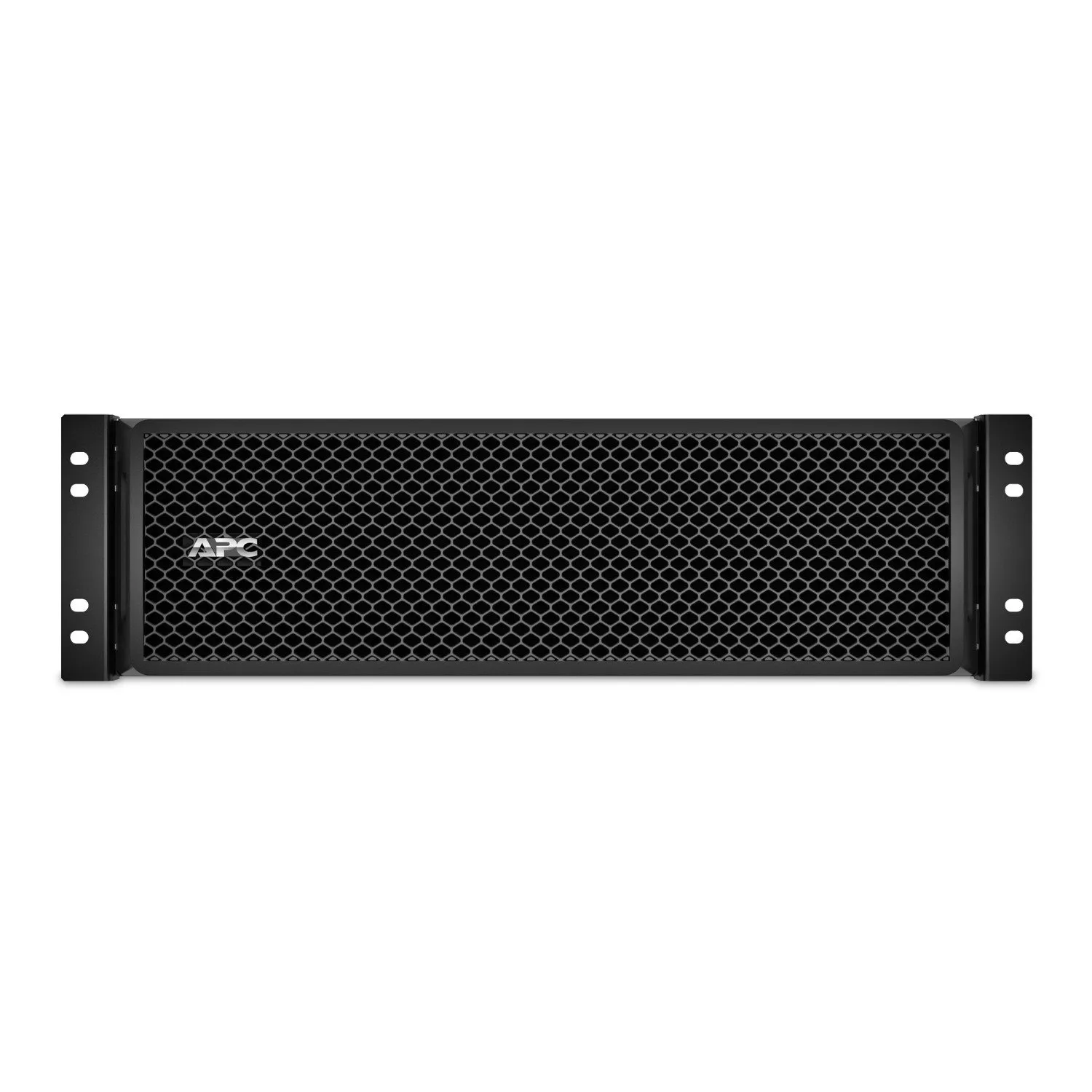

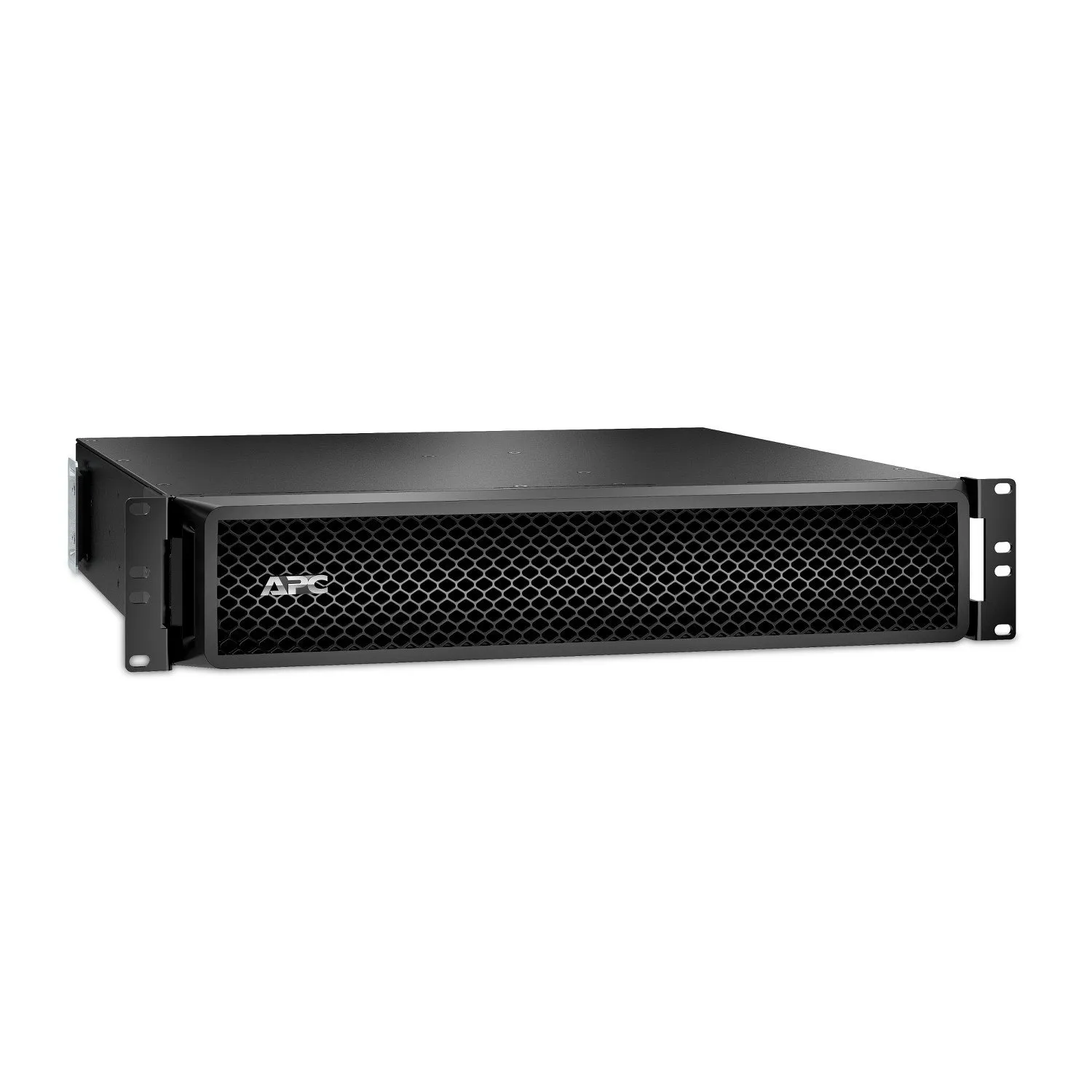

APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
10

RBC™ quantity
1

Battery installation
Closed battery cartridge

Battery output voltage
120

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
76mm , 7.6cm

Maximum width
203mm , 20.3cm

Maximum depth
584mm , 58.4cm

Net weight, kg
22.27

Gross weight, kg
25.18

Transport package height
228mm , 22.8cm

The depth of the transport package
is 761mm , 76.1cm

The width of the transport package
is 393mm , 39.3cm

Devices on a pallet
12

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
2

RBC™ quantity
1

Battery installation
Self-contained battery rack

Battery output voltage
24

Maximum height
108mm , 10.8cm

Maximum width
132mm , 13.2cm

Maximum depth
150mm , 15.0cm

Net weight, kg
6.01

Gross weight, kg
7.01

Height of the transport package
203mm , 20.3cm

Depth of transport packaging
224mm , 22.4cm

The width of the transport package
is 168mm , 16.8cm

Devices on a pallet
75

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Colour
Black

Height
43,2 cm

Width
17,8 cm

Depth
48.3 cm

Net weight
60,91 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Relative humidity
0...95 %

Altitude above sea level
0...10000 ft

Ambient temperature during storage
-15…45 °C

The relative humidity of storage
is 0...95 %

Storage height
0,00…15240,00 m

Specifications:

Basic

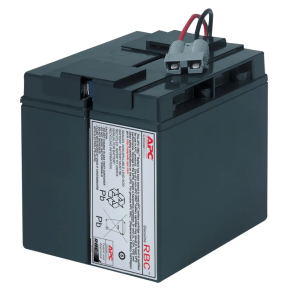

Product or component type: Replacement battery pack.
Number of cables: 1
Battery type: Lead-acid battery.
Provided equipment:
- All necessary connectors. Battery Recycling Guide.
- Reusable packaging.
- Installation instructions

Batteries and operating time:

Number of free battery slots: 0
Number of filled battery slots: 0
Device installation: self-contained battery pack
Additional information: The RBC 11 consists of two separate battery cells. Net dimensions are measured per cell.
Number of replaceable batteries: 1

Physical:

Black color
Height: 17.3 cm.
Width: 14.2 cm
Depth: 18.3 cm
Net weight: 24.27 kg
Mounting method: Not rack-mountable.
USB Compatible: No

Environmental

Ambient temperature during operation: 0…40 °C.
Operating altitude: 0...10000 feet
Relative humidity: 0…95%
Ambient temperature during storage: -15…45 °C.
Storage height: 0.00…15240.00 m.
Relative humidity during storage: 0...95%

Packaging units

Packaging unit type 1: PCE
Number of units per package 1: 1
Package 1. Height: 27.7 cm.
Pack 1 Width: 29.5 cm
Package 1. Length: 53.8 cm.
Package 1 Weight: 26.68 kg

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Colour
Black

Height
8,3 cm

Width
21,6 cm

Depth
34.3 cm

Net weight
10 kg

Installation execution
Non - stable

USB-compatible
No

Operating ambient temperature
0...45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
15,2 cm

Package 1 Width
36,8 cm

Package 1 Length
49,5 cm

Package 1 Weight
10,91 kg

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
6,6 cm

Width
5.8 cm

Depth
13,4 cm

Net weight
1,4 kg

Installation execution
Non - stable

Battery capacity
3 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %
