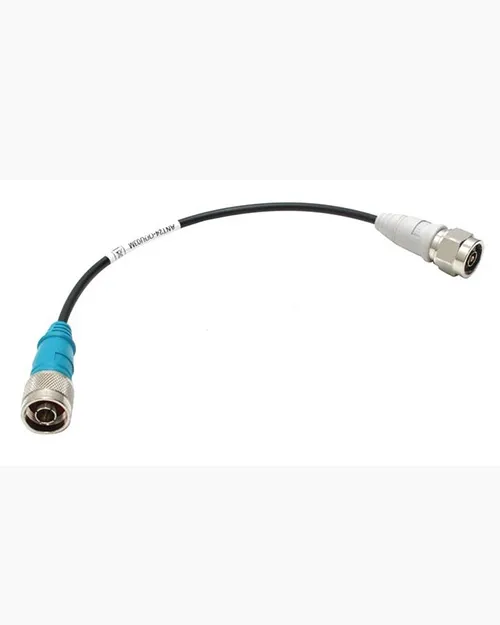

D-Link ANT24-ODU03M Кабель для антенны длиной 0,3м с разъемами RP-N и N-типа

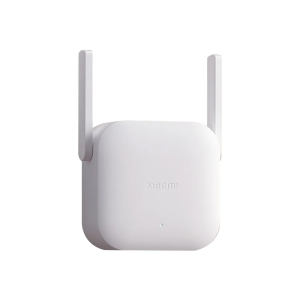

Xiaomi Mi Wi-Fi Range Extender N300

Расширьте возможности своей беспроводной сети

Xiaomi WiFi Range Extender N300 подключается к вашему маршрутизатору по беспроводной сети, усиливая и расширяя сигнал в каждом уголке дома – даже в труднодоступных местах, таких как ванные комнаты, балконы, спальни. Это обеспечивает расширенное покрытие надежного и высокоскоростного Интернета для таких устройств, как ноутбуки, планшеты, смартфоны, игровые консоли и смарт-телевизоры.

Внешняя антенна 2 × 2 со скоростью передачи до 300 Мбит/с

Добавьте удлинители Wi-Fi, которые значительно ускорят ваши игры и просмотр фильмов. Обновленный Xiaomi WiFi Range Extender N300 теперь поставляется с внешней антенной 2 × 2 для поддержания скорости передачи 300 Мбит / с и повышения стабильности сигнала. Оптимальное подключение выбирается автоматически, чтобы обеспечить вам лучший опыт работы в любое время и в любом месте.

Поддержка до 16 устройств, подключенных одновременно

Подключившись к существующему маршрутизатору, вы всегда получаете надежное соединение, где бы вы ни смотрели телевизор, просматривали последние серии или делились счастливыми воспоминаниями с детьми по видеосвязи.

ХАРАКТЕРИСТИКИ

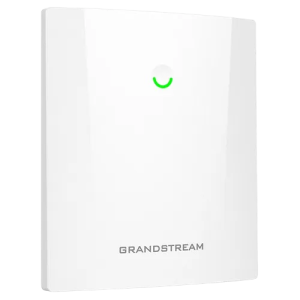

GWN7660ELR Outdoor Wi-Fi 6 Access Point AX3000 The GWN7660ELR is an enterprise-class long-range Wi-Fi 6 access point that enables next-generation Wi-Fi in high-density environments. It features weather-resistant and heat-resistant housing, dual-band 2×2:2 MU-MIMO with XTRA Range, and sophisticated antenna design for maximum data transfer rates. This access point can support up to 256 client devices within a coverage area of up to 300 meters. With an IP67 weather and dust protection rating and an operating temperature of -30 to 60 °C, the GWN7660ELR can withstand adverse weather conditions. For easy installation and management, the GWN7660ELR controller is integrated into the web interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premises Wi-Fi management platforms. The GWN7660ELR is an excellent Wi-Fi access point for Voice-over-Wi-Fi systems, providing seamless connectivity to Grandstream Wi-Fi-enabled voice and video IP phones. It delivers enhanced QoS, low-latency real-time applications, mesh support, and captive portals, and features a Gigabit Ethernet port with PoE/PoE+ and a 2.5Gbps SFP port. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multi-story offices, warehouses, hospitals, schools, and more.

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas
4 dual-band internal antennas
2.4GHz, 4 dBi gain
5 GHz, gain 5 dBi

IEEE 802.11ac Wi-Fi data transfer rate
: from 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s

2.4GHz frequency range Radio signal: 2412 - 2484 MHz
5 GHz radio signal: 5180 - 5825 MHz

2.4G channel bandwidth: 20 and 40 MHz
5G: 20 , 40 and 80 MHz

Wi-Fi and system security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, secure download to protect against hacking and
blocking critical data/digital signature management, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4G(MIMO)
4×4:4 5G(MU-MIMO)

Coverage area
Up to 175 meters
*the coverage area may differ from the specified one depending on the environment

Maximum
2.4G transmitter signal power: 27 dBm
5G: 25 dBm
*Maximum power depends on country, frequency range and MCS

Receiver sensitivity
2.4G
802.11b: -96 dBm at 1 Mbit/s, -88 dBm at 11 Mbit/s;
802.11g: -93 dBm at 6 Mbit/s, -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7;
802.11n 40 MHz:-70 dBm at MCS7
5G
802.11a: -92 dBm at 6 Mbit/s, -74 dBm at 54 Mbit/s;
802.11ac 20 MHz: -67 dBm at MCS8;
802.11ac: HT40:- 63 dBm at MCS9;
802.11ac 80 MHz: -59 dBm at MCS9

SSID
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneously supported client devices
200+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1 x Kensington Lock

Mounting
Kits for installation (indoors) on the wall and on the ceiling are included in the delivery package

SIDs
3 three-color LEDs for device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN Manager - a local software controller for managing up to 3,000 access points
GWN

Power and Energy Efficiency
Support 802.3 az; POE 802.3af/ 802.3at;
Max. Consumption: 16.5W
Environmental conditions Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 205.3 x 205.3 x 45.9 mm; Device weight: 590 g
Dimensions of the device with mounting kit: 205.3 x 205.3 x 50.9 mm; Weight of the device with mounting
kit: 710 g
Dimensions of the complete set in the package: 258 x 247 x 86 mm; Weight of the complete set in the package: 930 g

Accordance
FCC, CE, RCM, IC

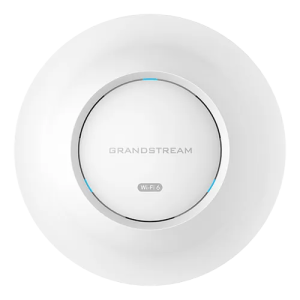

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC
