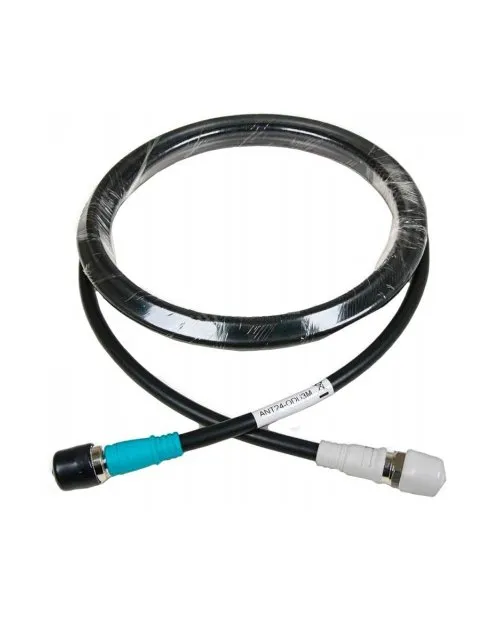

D-Link ANT24-ODU1M Кабель удлинительный для подкл антенн 1 м

Planet WNAP-6308 представляет беспроводное решение, которое может быть легко присоединено непосредственно к антенне, у которой есть больше возможности, чтобы расширить наружное беспроводное покрытие. Принятие IEEE 802.11n усовершенствовало технологию MIMO, это предоставляет надёжную страховую защиту беспроводной сети и невероятное улучшение беспроводной производительности. Как IEEE 802.11b/g/n совместимое беспроводное устройство, WNAP-6308 в состоянии дать стабильную и эффективную беспроводную производительность для наружных приложений, в то время как разработано со стандартом IEEE 802.11n и 1T1R технология MIMO, WNAP-6308 позволяет поставить скорости передачи данных до 150 Мбит/с, в три раза быстрее, чем нормальное беспроводное устройство 802.11g. Со встроенным соединителем антенны N-типа оно может быть соединено с различными типами антенн с высоким коэффициентом усиления. Таким образом WNAP-6308 может легко покрыть широкий диапазон и поставить

ME20.Усилитель Wi‑Fi сигнала AC750

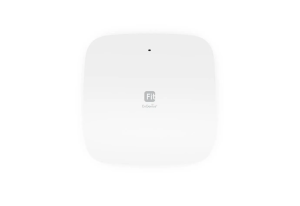

EnGenius Cloud Managed Wi-Fi 7 2x2x2 Access Point ECW526 using Qualcomm® Wi-Fi 7 platform supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to5,800 Mbps on 6 GHz, 2,900 Mbps (5 GHz), and up to 720 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Tri- concurrent 802.11be Wi-Fi 7 architecture & backward-compatible
Supercharged speeds up to 5,800 Mbps on 6 GHz, 2,900 Mbps (5 GHz) & up to700 Mbps (2.4 GHz)
10 GbE realizes greater throughput and supports 802.3at and 60W PoE injector input for flexible installation over 100 meters (328 feet)
WPA3 & WPA2-AES authentication support
Cloud Managed with AP & Mesh mode
Quick-scan device register & configuration and remote monitoring & troubleshooting
Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC
