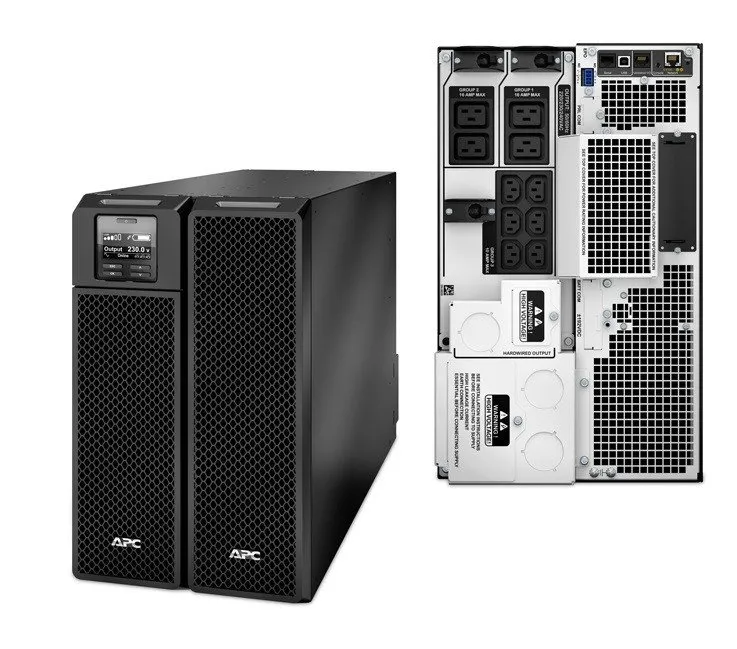

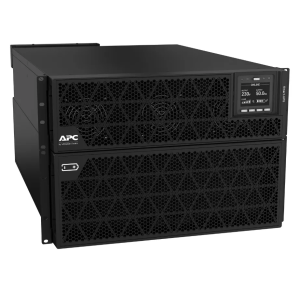

ИБП APC SRT10KXLI (SRT10KXLI)

Main input voltage
230 V

Type of product or component
Uninterruptible power Supply (UPS)

Other input voltage
220 V
240 V

Main output voltage
230 V

Other output voltage
220 V
240 V

Rated power [W]
5000 V

Rated power [VA]
5000 V·A

source connection type
2 IEC 60320 C13
1 IEC 60320 C19

Type of output connector
All-in-one three-wire (phase + neutral + ground) 1

Number of rack units
4U

Battery Type
Lead-acid battery pack

Battery voltage
+/- 96 V

The possibility of increasing the battery life
1

Pre-installed batteries
2

Number of empty battery compartments
0

Battery recharge time
Year 4

Number of replaceable battery packs
1

Colour
Black (RAL 9005)

Height
17.5 cm

Width
44 cm

Depth
62 cm

Net weight
55.9 kg

Preferred installation location
Lower

Mounting method
On the rack with the kit

Two-post installation
0

USB-compatible
Yes

Mounting position
Horizontal

Maximum incoming current
30 A

Permissible switching current
40 A

Input voltage limits
160...285 At full load
100...285 V half load

Number of connectors for inputs
1 All-in-one three-wire (phase + neutral + ground)

The network frequency
is 40...70 Hz auto-sensing

Bypass type
Internal bypass (with auto or manual on)

The amplitude coefficient
3:1

Harmonic distortion
Less than 2

Maximum configurable power [VA]
5000 V·A

Maximum configurable power [W]
5000 V

Wave type
The sinusoidal signal

Efficiency
93.5 %

Output frequency
50/60 Hz +/- 4 Hz synchronized with the power grid

Additional information
Configuration is possible for operation with an output voltage of 220: 230 or 240 V

Max. capacity used
100 %

The main input voltage
is 380...415 V
230 B

The other input voltage
is 220...240 V

The main output voltage
is 380...415 V
230 V

Other Output voltage
230 V

Rated power [W]
15000 W

Rated power
15000 VA

Type of output connection
All-in-one five-wire (3P + N + E) 1
All-in-one three-wire (1P + N + E) 1
IDC connector three-wire (1P+ N+ E) 1

Number of Units
7U

Battery Type
Lead-acid battery

Pre-installed batteries
0

Free battery compartments
0

Typical recharge time
4 h

number of RBC™ cartridges
2

Battery voltage
+/- 192 V

Charger power (W)
2160 W rated

battery life
3…5 year(s)

The possibility of increasing the time of autonomy
1

Type of UPS
Topology double transformation

The number of unoccupied power modules
is 0

The number of slots occupied by power modules
is 0

reserve
No

Colour
Black (RAL 9005)

Height
30.6 cm

Width
44,0 cm

Depth
70,0 cm

Net weight
142,5 kg

Installation location
Front

Type of fastener
Lower

Installation execution
Rack-mounted


two-support mount 0

USB-compatible
Yes

Mounting position
Horizontal

Network frequency
40-70 Hz auto detection

Number of input connections
1 All-in-one five-wire (3P + N + E)
1 All-in-one three-wire (1P + N + E)

The limits of the input voltage
are 160...285 V full load
380 V

Maximum input current
66 A

Current switching capacity
100 A

Total harmonic distortion at the input
Less than 5% at full load

Input current
66 A (1 phase)
66 A (3 phases)

load power factor
From 0.9 leading to 1 lagging

Maximum set power (VA)
15000 VA

Maximum set power (W)
15000 W

Output frequency
50/60 Hz +/- 4 Hz synchronized with the power grid

Type of voltage form
Sinusoidal signal

Overload mode
60 s at 125% and 30 s at 150%

EFFICIENCY
94 %

Harmonic distortion
Less than 5 %

The Cross factor
3:1

bypass type
Internal bypass (automatic and manual)

Additional information
Choice of output three-phase voltage 380 : 400 or 415 V

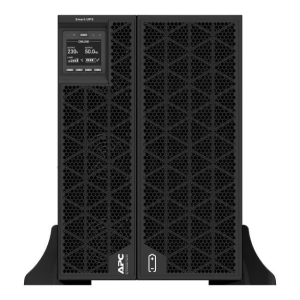

ИБП APC Smart-UPS предназначен для ИТ-специалистов и сетевых администраторов, чтобы обеспечить бесперебойную работу и непрерывность бизнеса. APC Smart-UPS SRTG15KXLI обеспечивает чистое синусоидальное питание и увеличенное время автономной работы для поддержки критически важной электроники во время перебоев в подаче электроэнергии. ИБП имеет встроенную карту сетевого управления для мониторинга и управления. ИБП имеет функцию PowerChute Network Shutdown, которая обеспечивает плавное завершение работы серверов и кластеров HCI. ИБП можно подключать к EcoStruxure IT или сторонним платформам централизованного управления.

Network connection
10/100 M RJ45 Connector

Input power
12 V DC

Power consumption

Operating temperature
0–60 °C

Working humidity
0–95%

Sizes
87 x 70 x 30 mm

Net weight
75 g

Standard
EN 55032:2015+A11:2020, EN 55035:2017+A11:2020

Safety
IEC 62443-4-1, IEC 62443-4-2

Product Certification
FCC Class B, CE, UL

Stability
RoHS, REACH

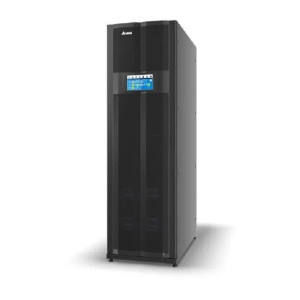

Модульные ИБП онлайн двойного преобразования предназначены для централизованной защиты систем трехфазного электропитания ЦОД и баз данных, офисных помещений и банков, промышленного и медицинского оборудования от перебоев в работе электросети, перепадов и искажений напряжения и частоты, импульсных и высокочастотных помех. Благодаря модульной конструкции возможно резервирование или гибкое наращивание мощности.
Для работы необходимы Силовые модули Eaton 93PR-25kW UPM Module, каждый дает по 25кВт, суммарно можно установить до 8 штук что дает 200кВт.
