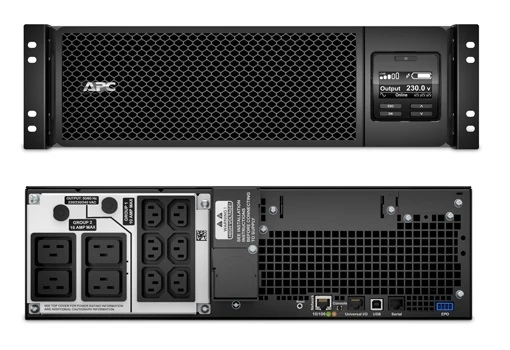

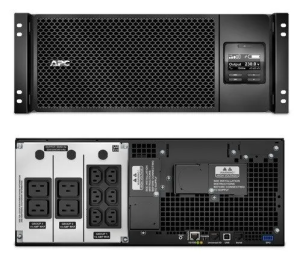

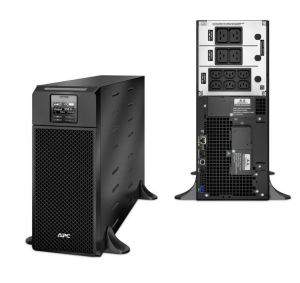

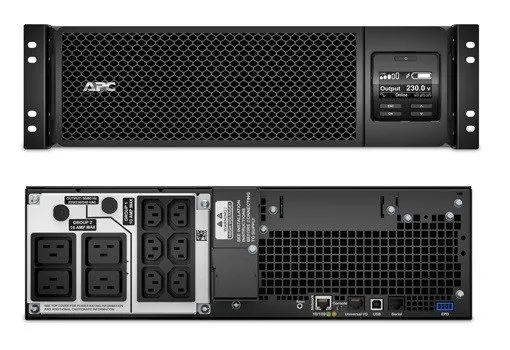

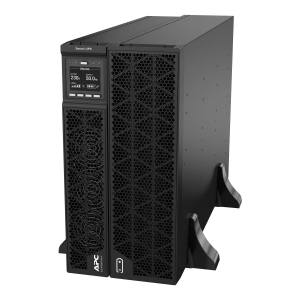

ИБП APC SRT5KRMXLI (SRT5KRMXLI)

ИБП APC Smart-UPS предназначен для ИТ-специалистов и сетевых администраторов, чтобы обеспечить бесперебойную работу и непрерывность бизнеса. APC Smart-UPS SRTG6KXLI обеспечивает чистое синусоидальное питание и увеличенное время автономной работы для поддержки критически важной электроники во время перебоев в подаче электроэнергии. ИБП имеет встроенную карту сетевого управления для мониторинга и управления. ИБП имеет функцию PowerChute Network Shutdown, которая обеспечивает плавное завершение работы серверов и кластеров HCI. ИБП можно подключать к EcoStruxure IT или сторонним платформам централизованного управления. В комплект поставки входит: 1 х USB-кабель 1 х кронштейны для монтажа в стойку 1 х стабилизирующие/настенные ножки 1 х руководство по установке 1 шнур питания C13-C14

Overview Presentation Ultra high density online power protection with scalable runtime supported by Lithium-Ion batteries. Delivery time Usually in stock Key features Runtime with 3000 W load Min.-max.: 300-3000 W 4 min 37 sec Max. Usable capacity 100% Main Input Voltage 230 V AC 1 phase Product type Uninterruptible power supply (UPS) Other Input Voltage 230 V Main Output Voltage 230 V AC 1 phase Other Output Voltage 230 V Nominal power [W] 3000 W Nominal power 3000 VA Input Connection Type BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P Output connection type 3 IEC 320 C13 2 IEC 320 C19 Quantity Unit 1U Cable length 2.4 m Number of cables 1 Battery type Li-Ion Included hardware RJ45 cable USB cable Safety manual Rack-mounting brackets Stabilization feet Screws Smart-UPS Ultra series Additional features Battery type Li-Ion (Lithium-ion) internal included UPS connectivity Serial port USB port Embedded network management card 3 mounting methods Rack/tower convertible with included kit Batteries and battery life Runtime View Runtime Graph Efficiency View Efficiency Graph Typical recharge time 1.5 h Number of RBC™ cartridges 1 Battery voltage 50 V Charger power (W) 448 W Battery life 8...10 g. Battery life 8...10 g. Spare battery APCRBC173-LI Extended runtime capability 1 General product web sub-family High density spare No Physical parameters Color Silver gray Height 43 mm Width 432 mm Depth 560 mm Net weight 15.9 kg Fastening type No preference Mounting style Rack-mounted with mounting kit Tower-mounted with kit Two-post mount 1 USB-compatible Yes Mounting position Horizontal Vertical Input Network frequency 50/60 Hz autosensing Input voltage limits 160...275 V adjustable (for half load) Input Power Factor at Full Load 1 Output Maximum Configurable Power (W) 3000 W Output Frequency 50/60 Hz +/- 3 Hz synchronized with the utility power Crest Factor 3:1 UPS Type On-Line Waveform Type Sine wave Output voltage THD

Main Features
- Number of Unit - 2U;
- Battery type - Lead-acid battery.

Batteries and battery life:
- Free battery compartments – 0;
- Pre-installed batteries – 0;
- Battery voltage - 96 V;
- Number of RBC™ cartridges - 2;
- Spare battery - APCRBC152.

Physical parameters
- Color – Black;
- Height - 8.5 cm;
- Width - 43.2 cm;
- Depth - 59.4 cm;
- Net weight - 40.6 kg;
- Installation design – Rack.

Environmental parameters:
- Ambient temperature - 0...40 °C;
- Altitude above sea level - 0...10000 ft;
- Relative humidity - 0...95% without condensation;
- Ambient temperature during storage - (-15...45 °C);
- Storage height - 0,00...15240,00 m;
- Relative humidity of storage - 0...95% without condensation.

Maximum adjustable power (W)
700 W/1.0 kVA

Output Voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
Sinusoidal wave

Transmission time
6 ms is typical: 10 ms max

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
APCRBC157

Expected battery life (years)
4-6

Number of RBC
1

Battery power (W)
112 W
