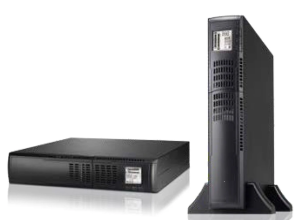

ИБП Astergo AST.UPS.PGOT3000 (AST.UPS.PGOT3000)

Main features
- Output power: 450 Watts / 800VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum specified power (W): 450 Watts / 800VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 161MM, 16.05 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 5.3 KG
- Gross weight: 5.6 KG
- Dimensions of the TRANSPORT package: 237x3632x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg
