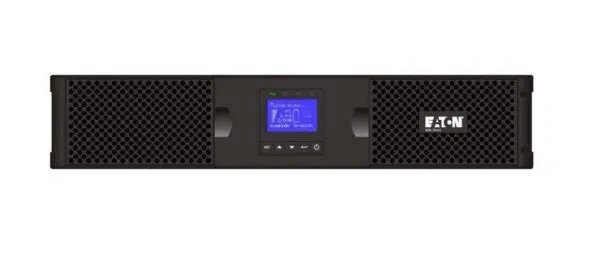

ИБП Eaton 9SX 1000i Rack2U (9SX1000IR)

Main input voltage
230 V

Other input voltage
220 V
240 V

Main output voltage
230 V

Other output voltage
220 V
240 V

Rated power, W
900 W

Rated power in VA
1500 VA

Type of product or component
Uninterruptible Power Supply (UPS)

Type of input connection
IEC 320 C14

type of output connection
8 IEC 320 C13
2 IEC jumpers

Battery Type
Lead-acid battery

Battery voltage
24 V

Extended working time
0

The number of filled battery slots
is 0

The number of available battery slots
is 0

Battery recharge time
3 hours

Number of batteries to replace
1

Battery life
is 3...5 years

Spare battery
RBK6

Battery charger power
Rated power 73 W

The number of filled slots of the power supply module
is 0

The number of free slots of the power supply module
is 0

a subfamily of web products
Cloud monitoring

Redundant
No

Input voltage limits
170...300 V adjustable
180...287 In

Network frequency
50/60 Hz +/- 3 Hz, auto-detection

Harmonic distortion
Less than 5 %

The maximum adjustable power in VA
is 1500 VA

The maximum adjustable power in watts
is 900 watts

Transfer time
6 ms is typical: 10 ms maximum

Type of UPS
The line is interactive

Type of wave
The sine wave

Output frequency
50/60 Hz +/- 3 Hz, network synchronization

Main features
- Output power: 450 Watts / 800VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum specified power (W): 450 Watts / 800VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 161MM, 16.05 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 5.3 KG
- Gross weight: 5.6 KG
- Dimensions of the TRANSPORT package: 237x3632x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main features
- Working time with load: 2400W: 4m 24s
- Output power: 2.4kW / 3.0kVA
- Rack height: 2U
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: IEC 60320 C20
- Cord length: 1.5meters

Exit
- Maximum set power (W): 2.4kW / 3.0kVA
- Efficiency under full load: 88.0 %
- Distortion of the output voltage shape: 3 %
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
- Topology: Topology double conversion
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)

Entrance
- Input frequency: 40 - 70 Hz Automatic detection
- Input voltage range during mains operation: 110 - 285 Half load, 160 - 280 Full load
- Number of power cables: 1
- Efficiency under full load: 88.0 %
- Other input voltage values: 220 V, 240 V

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 4 hours
- Rated battery voltage: 72 V
- Expected battery life (years): 3 - 5
- Charger Power (W): 60 Watts

Communication and administrative tools
- Interface Port(s): DB-9 RS-232, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Beep: Signal to switch to battery operation mode: special battery depletion signal : continuous overload signal
- Number of SmartSlot™ interfaces available: 1

Surge protection and noise filtering
- Burst energy Rating: 600joules

Physical parameters
- Maximum height: 86MM, 8.6cm
- Maximum width: 437MM, 43.7cm
- Maximum depth: 632MM, 63.2cm
- Net weight: 27.6KG
- Gross weight: 29.0KG
- Dimensions of the transport package: 228x570x794MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 %
- Operating altitude range above sea level: 0 - 3000meters
- Storage temperature: -20 - 50 °C
- Storage relative humidity: 0 - 95 (Non-condensing) %
- Storage altitude above sea level: 0 - 15000meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 50.0dB(A)
- Heat dissipation in operational mode: 910.0BTU/hour
- Protection class: IP20

Accordance
- Compliance with the requirements: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty: 2 years for repair or replacement.

Батарейный блок расширение для увеличения времени автономной работы ИБП EATON 9E3000I.
Дополнительная батарея для источника бесперебойного питания позволяет увеличить время автономной работы ИБП, кроме того, использование дополнительных батарей особенно необходимо, если в вашей электрической сети возможны длительные перебои, в то время как подключенные устройства не могут оставаться без питания.
Возможна горячая замена батареи.

Используется для защиты питания файловых серверов и АТС, а также любого другого оборудования, предъявляющего повышенные требования к качеству сетевого электропитания. Принцип работы состоит в двойном преобразовании (double conversion) тока. Сначала входное переменное напряжение преобразуется в постоянное, затем обратно в переменное напряжение с помощью обратного преобразователя (инвертора). При потере питания в городской сети, время переключения в автономный режим равно нулю. ИБП с внешним подключением батарейного блока, позволяет индивидуально конфигурировать время автономной работы. ИБП оснащен интерфейсными портами USB/RS-232, благодаря которым можно наблюдать за параметрами работы ИБП и корректно завершать работу.

Maximum adjustable power (W)
700 W/1.0 kVA

Output Voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
Sinusoidal wave

Transmission time
6 ms is typical: 10 ms max

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
APCRBC157

Expected battery life (years)
4-6

Number of RBC
1

Battery power (W)
112 W

Voltage
200 VAC / 208 VAC / 220 VAC / 230 VAC / 240 VAC, single phase

Input voltage range 220/230/240 VAC:
175~280VAC (100% load);
120~175VAC (70%~100% load)
200/208VAC: 160~280VAC (100% load);
120~160 VAC (70%~100% load)

Input frequency range
50/60 Hz (+/- 10 Hz) Automatic selection

Input connection
Power cord (IEC-320-C20 socket)

Adjusting the output voltage
200 / 208 / 220 / 230 / 240 AC voltage +/- 2%

Adjusting the output frequency
50/60 Hz (+/- 0.05 Hz)

Overload (all modes)
105%~125% 1 min; 126%~150% 15 sec

Internal battery
6 pcs. 12V/9 Ah

Maximum charging current
2A

Interface
RS232 x 1, USB x 1, SNMP slot x 1

Dimensions (WxDxH) mm
440 x 610 x 89 mm

Weight
28 kg

Используется для защиты питания файловых серверов и АТС, а также любого другого оборудования, предъявляющего повышенные требования к качеству сетевого электропитания. Принцип работы состоит в двойном преобразовании (double conversion) тока. Сначала входное переменное напряжение преобразуется в постоянное, затем обратно в переменное напряжение с помощью обратного преобразователя (инвертора). При потере питания в городской сети, время переключения в автономный режим равно нулю.

Высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. В комплект поставки входит: 1 IEC 60320 C19 to Schuko силовой кабель 1 IEC 60320 C13 to C14 силовой кабель 1 USB кабель 1 Кабель для конфигурирования через порт RS-232 руководство по эксплуатации
