Telephone connections

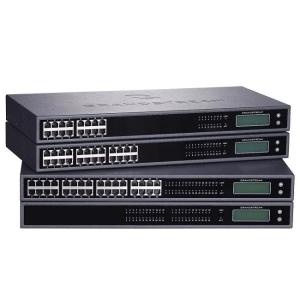

GXW4216/4224/4232: 16/24/32 x RJ11 FXS ports and 1/1/2 50-pin connectors
Telco GXW4248: 2 50–pin Telco Connectors

Network interfaces
1 x 10M/100M/1000Mbps RJ45 port with automatic identification

LED indicators
LAN Link, LAN Activity, connection for each phone port

LCD display
128x32 backlit graphic LCD display with multi
-language support

Speech transmission functions in batch mode
Windows-based operator-class line echo cancellation, dynamic
delay oscillation buffer, modem detection and automatic switching
to G.711

Speech signal compression
G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC

Fax by IP
Fax relay of the third group of the standard T.38 with support for data transfer rates
up to 14.4 Kbit/s and automatic switching to G.711 for fax transmission,
a functional unit for transmitting and receiving data by fax V.17, V.21, V.27ter, V.29
for fax relays of standard T.38

Phone functions
Displaying or blocking the caller's number, notification
of an incoming call, blind or accompanied call transfer,
forwarding, banning incoming calls, three-way conference call,
dialing the last incoming call, search call, LED indicator
of the incoming message (NEON LED) and intermittent signal, auto-dial

Quality of service
DiffServ, TOS, 802.1P/Q VLAN tagging

Network protocols
TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE,
STUN, LLDP (expected)

DTMF method
Configurable DTMF transmission methods, including In-audio, RFC2833, and/or SIP INFO

SIP signal Transmission (RFC 3261)
over UDP/TCP/TLS

SIP server profiles and accounts for each system
4 separate SIP server profiles for each system and separate accounts
SIP for each phone port

Registration
TFTP, HTTP, HTTPS, TR069

Safety
SRTP*, TLS/SIPS, HTTPS (AES-128 encryption for SRTP*, TLS and HTTPS)

Management
Syslog, HTTPS, Web browser, Telnet, Voice Reminders, TR-069

Universal power supply
GXW4232/4224/4216: Output: DC12V, 5 A; Input: 100~240V
AC, 50~60Hz; GXW4248: Output: DC24V, 6.25A; Input:
100~240 vac, 50~60 Hz

Environmental characteristics
Operation: 0°C ~45°C; Storage: -20°C ~60°C; Humidity: 10％ ~ 90% (non
-condensing)
Electrical protection Overvoltage and overvoltage protection (ITU-T K.21 recommendation, basic
level of verification)

Physical characteristics
Device Size: 440 mm (L) x 255 mm (W) x 44 mm (H) (1U) (GXW4248)
440 mm (L) x 185 mm (W) x 44 mm (H) (1U) (GXW4216/4224/4232)
Device weight: 3.21 kg; package weight: 4.31 kg (GXW4248)
2.63 kg; 3.68 kg (GXW4232)
2.57 kg; 3.62 kg (GXW4224)
2.39 kg; 3.48 kg (GXW4216)

Installation
Installation on a table and in a rack using front brackets
Near and far communication 2 REN, up to 6000 feet for 24 AWG wire
Bellcore Caller ID Type 1&2, ETSI, BT, NTT, and DTMF based CID

Disabling methods
Busy signal, polarity change/instability, current in the circuit

Compliance with regulatory requirements
US Federal Communications Commission: Part 15 (CFR 47) Class B, Council of Europe:
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS, C-TICK:
AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, ITU-T K.21 (basic
verification level); UL 60950 (power adapter)

Telephone connections
GXW4216/4224/4232: 16/24/32 x RJ11 FXS ports and 1/1/2 50-pin connectors
Telco GXW4248: 2 50–pin Telco Connectors

Network interfaces
1 x 10M/100M/1000Mbps RJ45 port with automatic identification

LED indicators
LAN Link, LAN Activity, connection for each phone port

LCD display
128x32 backlit graphic LCD display with multi
-language support

Speech transmission functions in batch mode
Windows-based operator-class line echo cancellation, dynamic
delay oscillation buffer, modem detection and automatic switching
to G.711

Speech signal compression
G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC

Fax by IP
Fax relay of the third group of the standard T.38 with support for data transfer rates
up to 14.4 Kbit/s and automatic switching to G.711 for fax transmission,
a functional unit for transmitting and receiving data by fax V.17, V.21, V.27ter, V.29
for fax relays of standard T.38

Telephone functions
Displaying or blocking the caller's number, notification
of an incoming call, blind or accompanied call transfer,
forwarding, banning incoming calls, three-way conference call, dialing
the number of the last incoming call, search call, LED indicator
of the incoming message (NEON LED) and intermittent signal, auto-call

Quality of service
DiffServ, TOS, 802.1P/Q VLAN tagging

Network protocols
TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP (expected)

DTMF method
Configurable DTMF transmission methods, including In-audio, RFC2833, and/or SIP INFO

Signal transmission
SIP (RFC 3261) over UDP/TCP/TLS

SIP server profiles and accounts for each system
4 separate SIP server profiles for each system and separate SIP accounts for each phone port

Registration
TFTP, HTTP, HTTPS, TR069

Safety
SRTP*, TLS/SIPS, HTTPS (AES-128 encryption for SRTP*, TLS and HTTPS)

Management
Syslog, HTTPS, Web browser, Telnet, Voice Reminders, TR-069

Universal power supply
GXW4232/4224/4216: Output: DC12V, 5 A; Input: 100~240V
AC, 50~60Hz; GXW4248: Output: DC24V, 6.25A; Input:
100~240 vac, 50~60 Hz

Environmental characteristics
Operation: 0°C ~45°C; Storage: -20°C ~60°C; Humidity: 10％ ~ 90% (non-condensing)

Electrical protection
Overvoltage and overvoltage protection (ITU-T Recommendation K.21, basic level of verification)

Physical characteristics
Device Size:
440 mm (L) x 185 mm (W) x 44 mm (H)
Device weight: 3.21 kg; package weight:
2.57 kg; 3.62 kg (GXW4224)

Installation
Installation on a table and in a rack using front brackets

Near and far communication
2 REN, up to 6000 feet for 24 AWG wire

Caller's number
Bellcore Type 1&2, ETSI, BT, NTT, and CID based

Disabling methods
Busy signal, polarity change/instability, current in the circuit

Compliance with regulatory requirements
US Federal Communications Commission: Part 15 (CFR 47) Class B, Council of Europe:
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS, C-TICK:
AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, ITU-T K.21 (basic
verification level); UL 60950 (power adapter)

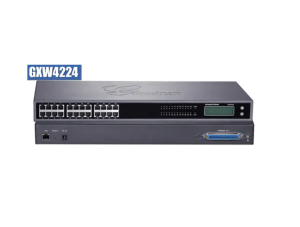

VoIP‑шлюз Grandstream GXW4232 — высокопроизводительное FXS‑решение

Grandstream GXW4232 — это корпоративный **аналоговый VoIP шлюз высокой плотности** с 32 FXS‑портами, предназначенный для интеграции большого количества традиционных аналоговых телефонов, факсов и других устройств в IP‑телефонию. Шлюз полностью совместим со стандартом SIP и подходит для офисов, call‑центров, корпоративных систем и других развёртываний, где требуется надёжная работа с SIP‑серверами и большая плотность портов.

Основные характеристики

• 32 FXS‑порта RJ11 и 2 50‑контактных Telco‑коннектора для подключения аналоговых телефонов и факсов
• 1 Gigabit Ethernet порт (10/100/1000 Mbps) с автоопределением скорости
• Графический LCD‑дисплей с подсветкой для отображения состояния и информации
• LED‑индикаторы для каждого телефонного порта, LAN и сетевой активности
• Поддержка до четырёх SIP‑серверных профилей и независимых SIP‑аккаунтов для каждого порта

Функции телефонии

• Стандартные функции вызовов: отображение и блокировка Caller ID, ожидание вызова, удержание, слепой и сопровождаемый перевод, переадресация, «Не беспокоить», тристоронняя конференция
• Гибкие планы набора, автодозвон и уведомления о пропущенных вызовах
• Поддержка широкого набора голосовых кодеков: G.711, G.723.1, G.726, G.729A/B, iLBC, Opus и других

Fax и качество связи

• Поддержка Fax‑over‑IP (T.38) с автоматическим переходом на G.711 для Fax Pass‑through
• Подавление эха класса carrier‑grade, динамический jitter‑буфер и автоматическое обнаружение модема

Безопасность и управление

• Поддержка шифрования и защиты трафика: SRTP, TLS/SIPS, HTTPS
• Автоматическое и централизованное развертывание через TR‑069, TFTP, HTTP/HTTPS и защищённые XML‑конфигурации
• Управление через веб‑интерфейс, syslog и протоколы для централизованного контроля

Сеть и протоколы

• Поддержка TCP/UDP, RTP/RTCP, DHCP, DNS, NTP, STUN, PPPoE и прочих стандартных сетевых протоколов
• Поддержка QoS с DiffServ, ToS, 802.1P/Q VLAN tagging для приоритизации трафика

Эксплуатация и монтаж

• Корпус 1U для настольного или 19″ стоечного монтажа
• Рабочая температура: 0 °C – 45 °C, влажность: 10 % – 90 % без конденсации
• Габариты примерно 440 × 255 × 44 мм; вес около 2.6 кг

Преимущества

• Высокая плотность аналоговых подключений — до 32 линий в одном устройстве
• Гибкая интеграция аналоговых телефонов и факсов в VoIP‑сети
• Продвинутые функции вызовов и поддержку широкого спектра кодеков
• Продвинутая безопасность и централизованное управление
• Поддержка автоматизированного развертывания и резервирования SIP‑серверов

Область применения

• Офисы малого и среднего бизнеса
• Корпоративные телефонные системы и call‑центры
• Гибридные VoIP + аналоговые инфраструктуры
• Переход от традиционной PSTN‑связи к современным SIP‑сетям

Telephone connections
GXW4216/4224/4232: 16/24/32 x RJ11 FXS ports and 1/1/2 50-pin connectors
Telco GXW4248: 2 50–pin Telco Connectors

Network interfaces
1 x 10M/100M/1000Mbps RJ45 port with automatic identification

LED indicators
LAN Link, LAN Activity, connection for each phone port

LCD display
128x32 backlit graphic LCD display with multi
-language support

Speech transmission functions in batch mode
Windows-based operator-class line echo cancellation, dynamic
delay oscillation buffer, modem detection and automatic switching
to G.711

Speech signal compression
G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC

Fax by IP
Fax relay of the third group of the standard T.38 with support for data transfer rates
up to 14.4 Kbit/s and automatic switching to G.711 for fax transmission,
a functional unit for transmitting and receiving data by fax V.17, V.21, V.27ter, V.29
for fax relays of standard T.38

Telephone functions
Displaying or blocking the caller's number, notification
of an incoming call, blind or accompanied call transfer,
forwarding, banning incoming calls, three-way conference call,
dialing the last incoming call, search call, LED indicator
of an incoming message (NEON LED) and intermittent signal, auto-call

Quality of service
DiffServ, TOS, 802.1P/Q VLAN tagging

Network protocols
TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP (expected)

DTMF method
Configurable DTMF transmission methods, including In-audio, RFC2833, and/or SIP INFO

Signal transmission
SIP (RFC 3261) over UDP/TCP/TLS

SIP server profiles and accounts for each system
4 separate SIP server profiles for each system and separate accounts
SIP for each phone port

Registration
TFTP, HTTP, HTTPS, TR069

Safety
SRTP*, TLS/SIPS, HTTPS (AES-128 encryption for SRTP*, TLS and HTTPS)

Management
Syslog, HTTPS, Web browser, Telnet, Voice Reminders, TR-069

Universal power supply
GXW4232/4224/4216: Output: DC12V, 5 A; Input: 100~240V
AC, 50~60Hz; GXW4248: Output: DC24V, 6.25A; input:
100~240 vac, 50~60 Hz

Environmental characteristics
Operation: 0°C ~45°C; Storage: -20°C ~60°C; Humidity: 10％ ~ 90% (non
-condensing)
Electrical protection Overvoltage and overvoltage protection (ITU-T K.21 recommendation, basic
level of verification)

Physical characteristics
Device Size: 440 mm (L) x 255 mm (W) x 44 mm (H) (1U) (GXW4248)
440 mm (L) x 185 mm (W) x 44 mm (H) (1U) (GXW4216/4224/4232)
Device weight: 3.21 kg; package weight: 4.31 kg (GXW4248)
2.63 kg; 3.68 kg (GXW4232)
2.57 kg; 3.62 kg (GXW4224)
2.39 kg; 3.48 kg (GXW4216)

Installation
Installation on a table and in a rack with front brackets
Near and far communication 2 REN, up to 6000 feet for 24 AWG wire

Caller's number
Bellcore Type 1&2, ETSI, BT, NTT, and DTMF based CID

Disabling methods
Busy signal, polarity change/instability, current in the circuit

Compliance with regulatory requirements
US Federal Communications Commission: Part 15 (CFR 47) Class B, Council of Europe:
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS, C-TICK:
AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, ITU-T K.21 (basic
verification level); UL 60950 (power adapter)

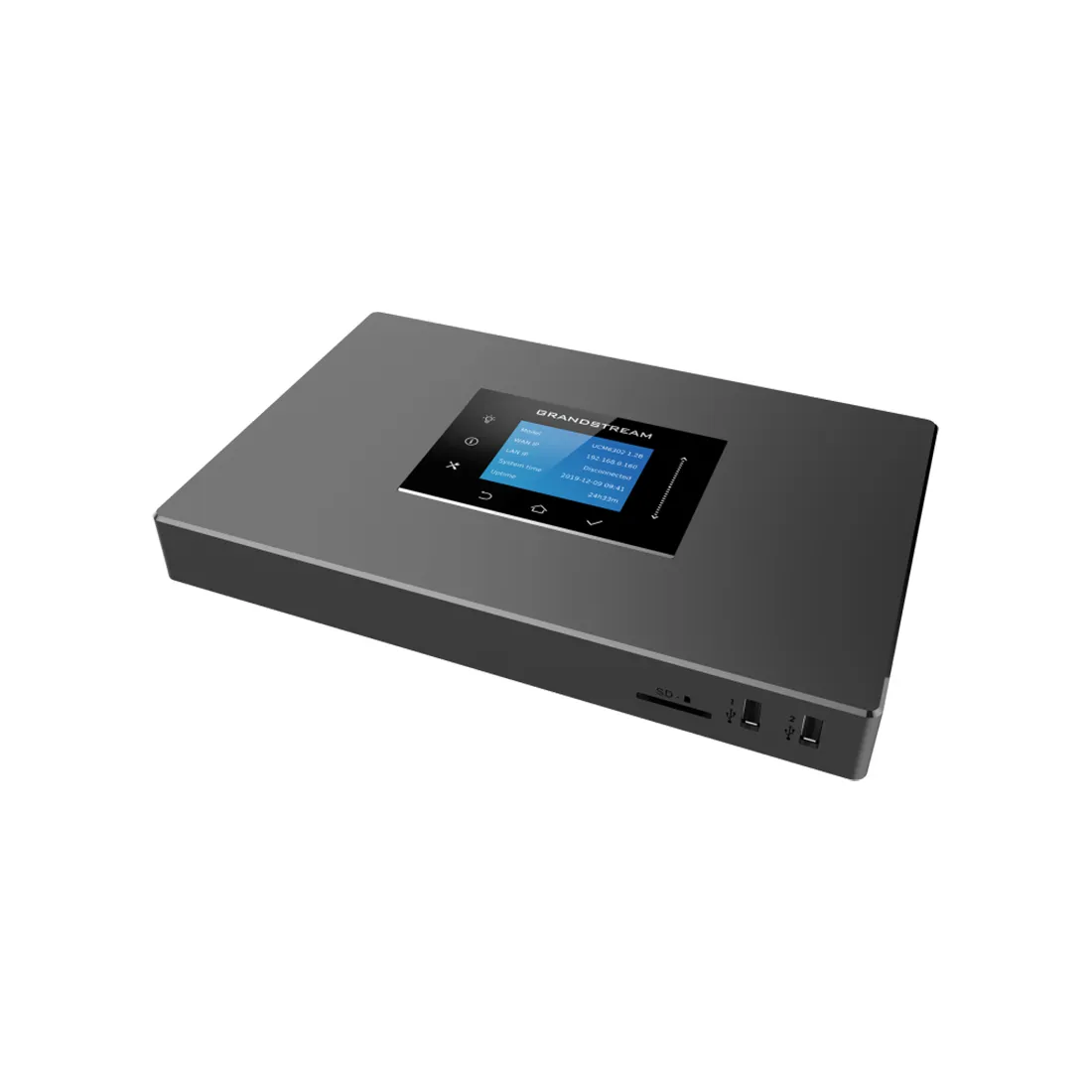

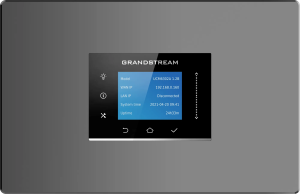

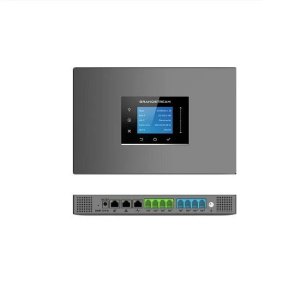

Supports up to 3000 users and up to 450 simultaneous calls.

Zero configuration of endpoints
SIP Grandstream

Built-in platform for conferences and meetings;
supports Desktop, Wave application and SIP endpoints

Wave for browsers
Android, iOS, Chrome and Firefox allows you to communicate with all users and UCM6300 solutions.

API is available
for third-party integration, including CRM and PMS platforms.

Advanced protection with secure boot,
a unique certificate and a random default password to protect calls and accounts.

Three Gigabit
RJ45 network ports with automatic recognition, built-in PoE+ and a NAT-enabled router.

Automatic Firewall Bypass Service
NAT provides secure remote connections.

Supports full-range voice codec
Opus and H.264/H.263/H.263+/H.265/VP8 video codec, jitter resistance up to 50% packet loss.

Compatible with GDMS for configuring, managing and monitoring the cloud.
Based on the open source telephony operating system Asterisk* version 16.
