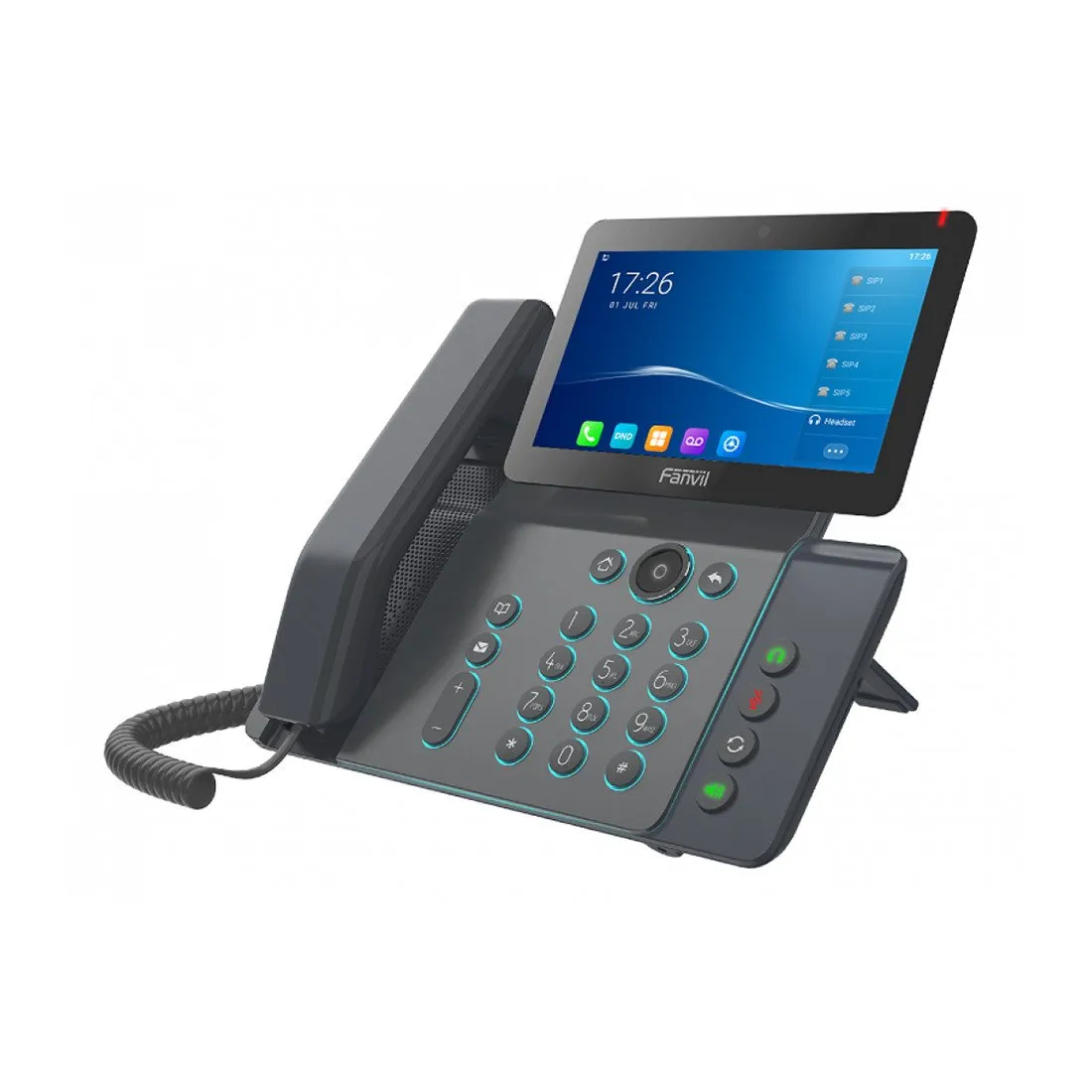

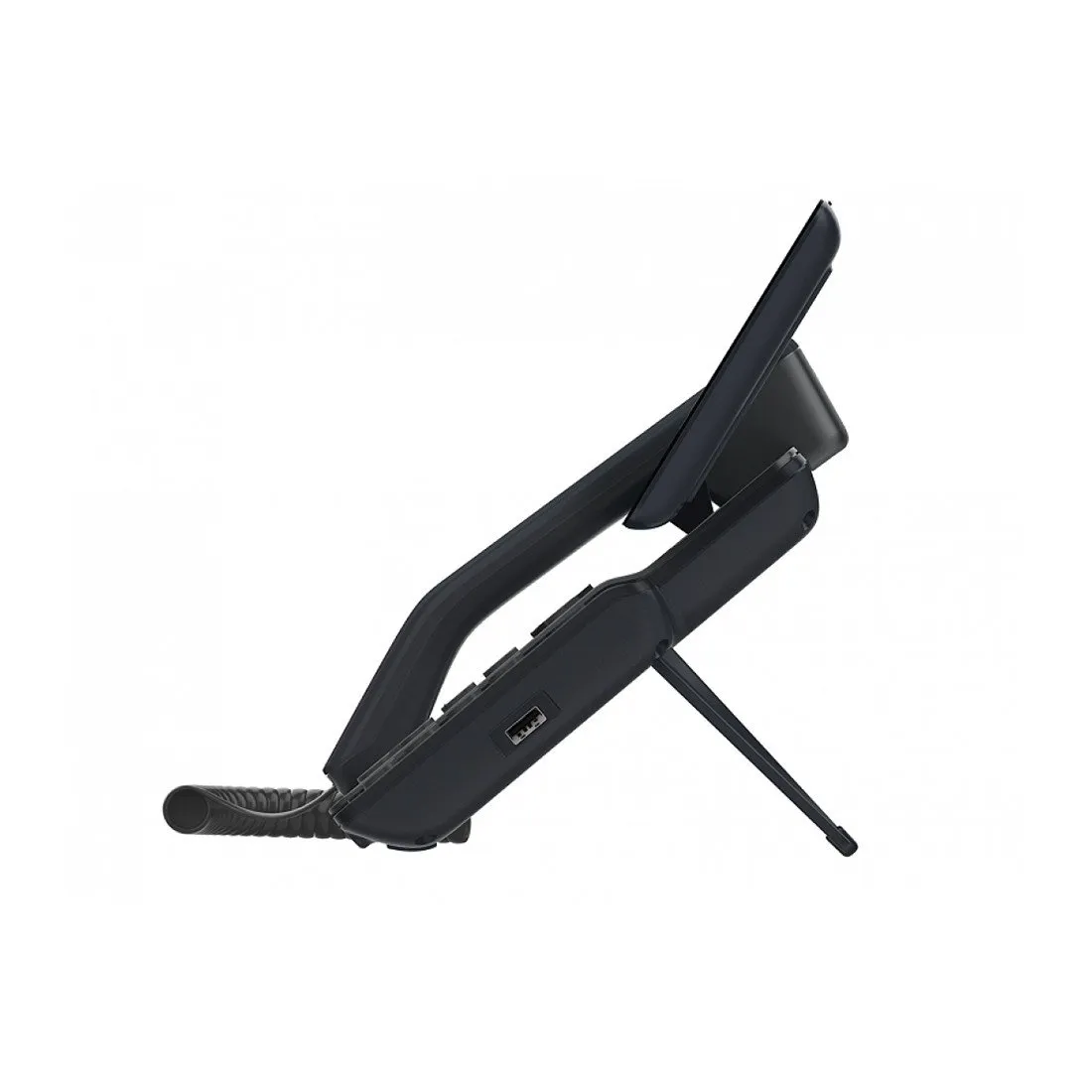

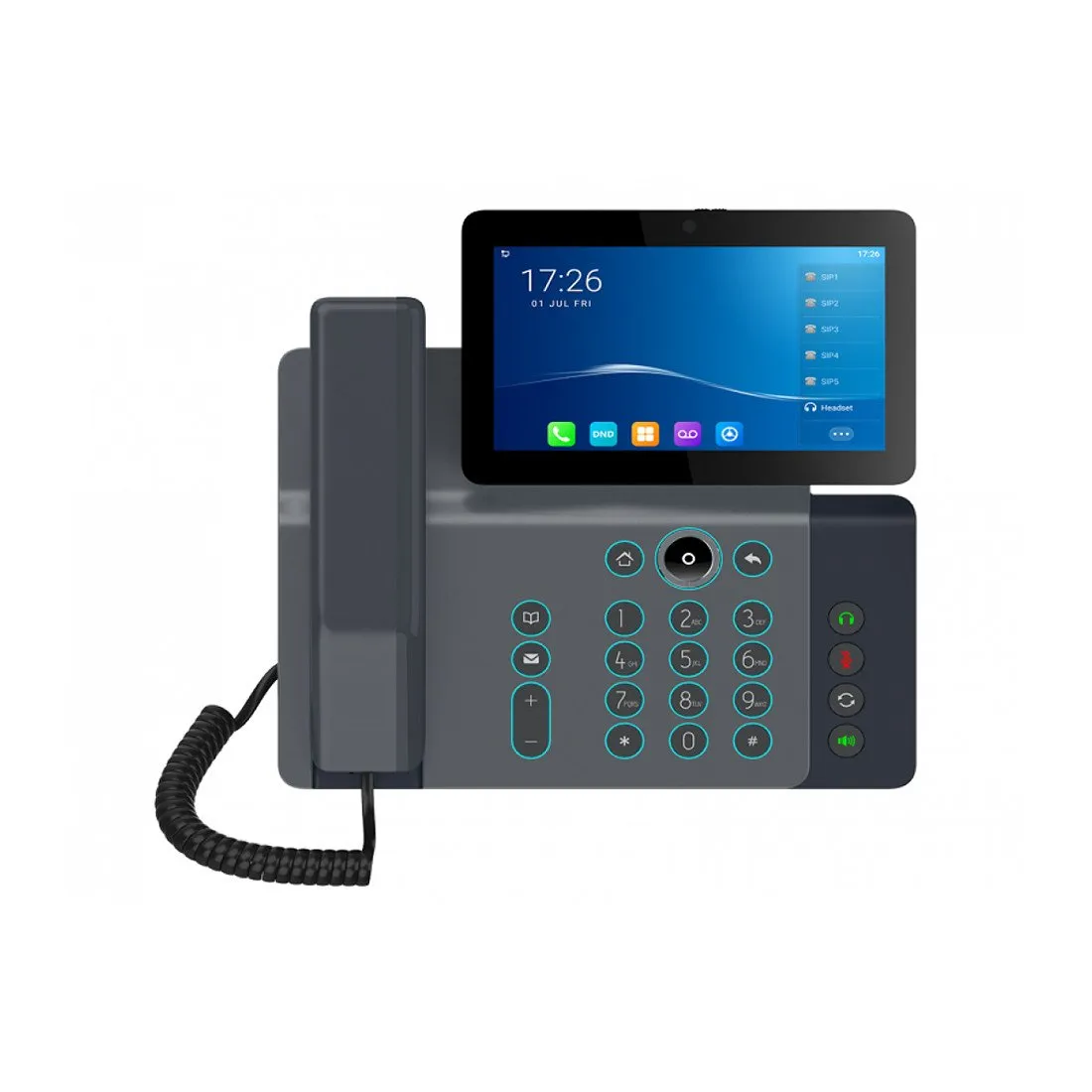

IP-телефон Fanvil V67

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100Mbps network port with integrated PoE (GXP1625 only)

Graphic display
Graphic LCD display 132*48 pixels (2.95’) with backlight

Function Keys
2 line keys with two-color LED, and 2 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special keys with MUTE, HEADSET, TRANSFER, CONFERENCE,
SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD,
PAGE/INTERCOM, RECORD, HOME functions

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.722.1, G.723, G.726-32, G.729
A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)VAD,
CNG, AEC, PLC, AJB, AGC

Telephony Functions
Hold, transfer, redirect (unlimited/no-response/busy),
Shared Call Appearance (SCA) / Bridged Line Appearance(BLA), Downloadable
Phonebook (XML, LDAP, up to 1000 items), Call Waiting
, Call History (up to 200 entries), Auto-call, Automatic Response, One
-click Dialing, Flexible Numbering Plan, Hot Desking, Personalized
Music ringtones, Redundancy servers and fault tolerance
Headset connector Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

HD Audio
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, there are 2 corner positions available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/ providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision
of services via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (GXP1625 only)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.73 kg;
Package weight: 1.1 kg

Temperature and Humidity
For operation: from 0°C to 40°C, Storage: from -10°C to 60°C, Humidity: 10％ - 90%
Non - condensing

Contents of the delivery set
Phone GXP1620/GXP1625, handset with cord, base,
universal power supply, power cord, Quick Start Guide,
Brochure, GPL license

Accordance
FCC: Part 15 (CFR 47) Class B, CE : EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950;
AS/NZS 60950.1

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Grandstream GXV3450 — интеллектуальный IP‑видеотелефон на Android

Grandstream GXV3450 — это мощный IP‑видеотелефон с поддержкой Android, сочетающий в себе функциональность бизнес‑телефона, современную платформу для видеосвязи и возможности планшета. Он подходит для офисов, кол‑центров, менеджеров и специалистов, которым требуется универсальное коммуникационное решение с видео‑ и аудиовызовами, поддержкой многолинейности и расширяемыми возможностями.

Основные характеристики

• Поддержка до 16 линий и 16 SIP‑аккаунтов для гибкого управления вызовами на одном устройстве.
• Работает под управлением Android 14, с доступом к широкому набору бизнес‑приложений.
• 5″ сенсорный IPS дисплей с разрешением 1280×720 (HD) и поддержкой мультитача.
• Встроенная наклоняемая 2‑мегапиксельная CMOS‑камера с шторкой конфиденциальности для видеозвонков до 1080p и поддержкой 3‑сторонних видеоконференций (720p@30fps).
• Разъёмы: USB 3.0, USB 2.0, RJ9 для гарнитуры с EHS (Plantronics), встроенный трубочный разъём.
• Два гигабитных сетевых порта с автосенсорным переключением и поддержкой PoE/PoE+ для питания и подключения.
• Интегрированный двухдиапазонный Wi‑Fi 5 (2.4/5 GHz) и Bluetooth 5.0 для гибкого подключения и поддержки гарнитур или мобильных устройств.
• HD‑динамик с двумя микрофонами, технологиями подавления шума Noise Shield 2.0 и продвинутым эхо‑контролем для чёткой аудиосвязи.
• Мощный 4‑ядерный процессор ARM Cortex‑A55 с 2 GB RAM и 16 GB внутренней памяти eMMC.
• Поддержка 10‑сторонней аудиоконференции и расширенного аудио‑/видео функционала для командных взаимодействий.
• Централизованное управление через Grandstream Device Management System (GDMS).

Функции телефонии и коммуникаций

• Стандартные SIP‑функции: удержание, перевод, переадресация, ожидание вызова, парковка/подхват вызова.
• 10‑сторонние аудиоконференции и 3‑сторонние видеоконференции с поддержкой HD‑видео.
• Поддержка загрузки контактов (LDAP/XML), журналов вызовов (до ~1000 записей), записи звонков на устройство или сервер.
• Гибкая настройка интерфейса, XML‑скрипты, мульти‑язычность интерфейса пользователя.

Преимущества

• Коммуникационное и коллаборационное устройство «всё в одном» — объединяет IP‑телефонию, видеозвонки и Android‑приложения.
• Поддержка Wi‑Fi и Bluetooth открывает дополнительные сценарии использования без проводов.
• Широкая поддержка конференц‑режимов делает устройство подходящим для групповых коммуникаций и совещаний.
• Интеграция с GDMS облегчает удалённое развертывание, управление и обновления.

Область применения

Grandstream GXV3450 идеально подходит для руководителей, кол‑центров, офисных сотрудников и профессионалов, которым необходим IP‑видеотелефон с расширенными возможностями видеосвязи, гибкими коммуникационными функциями и поддержкой мобильных приложений. Его функциональность делает его хорошим решением для корпоративной телефонии, связи с партнёрами и внутрикомандного общения.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069,
802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/1000Mbps network port with integrated PoE

Graphic display
Graphic LCD display 132*48 (2.95’) pixels with backlight

Function Keys
2 line keys with two-color LED, and 2 SIP account, 3
context-dependent programmable touch keys, eight programmable
BLF extension keys, 5 navigation/menu keys, 13 special
keys with MUTE, HEADSET, TRANSFER, CONFERENCE, SEND, REDIAL functions,
SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC, in
-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)VAD, CNG, AEC, PLC,
AJB, AGC

Telephony Functions
Hold, transfer, redirect (unlimited/no-response/busy),
Shared Call Appearance (SCA) / Bridged Line Appearance(BLA), Downloadable
Phonebook (XML, LDAP, up to 1000 items), Call Waiting
, Call History (up to 200 entries), Auto-call, Automatic Response, One
-click Dialing, Flexible Numbering Plan, Hot Desking, Personalized
Music ringtones, Redundancy servers and fault tolerance
Headset connector Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

HD Audio
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision
of services via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.8 kg;
Package weight: 1.2 kg

Temperature and Humidity
For operation: from 0°C to 40°C, Storage: from -10°C to 60°C, Humidity: 10％ - 90%
Non - condensing

Contents of the delivery set
Phone GXP1628, handset with cord, base, universal
power supply, power cord, Quick Start Manual, brochure, license
GPL

Accordance
FCC: Part 15 (CFR 47) Class B, CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide

Grandstream GXV3480 — это мощный интеллектуальный видеотелефон высокого класса для Android, который сочетает в себе 16-линейный IP-телефон с многоплатформенным решением для видео-сотрудничества и функциональность планшета Android, предлагая универсальное решение для связи. Это идеальное настольное устройство для занятых профессионалов и руководителей, а также мощное, но экономичное устройство для любого конференц-зала.

IP-видеотелефон GXV3480 для Android сочетает в себе 16-линейный IP-видеотелефон с многоплатформенным решением для видеоконференций и функциональность планшета Android, предлагая универсальное коммуникационное решение. Телефон оснащен 8-дюймовым емкостным сенсорным экраном IPS LCD с разрешением 1280x800, 2-мегапиксельной камерой, двойным микрофоном, двумя гигабитными портами с PoE/PoE+, HD-аудио и HD-видео, встроенным Wi-Fi 6 (802.11 a/b/g/n/ac). /ax) и Bluetooth 5.0, богатые периферийные интерфейсы. Он также работает на Android 11 и предлагает мгновенный доступ к сотням тысяч приложений для Android. Сочетая современный IP-видеотелефон, передовое решение для видеоконференций и функциональность планшета Android, GXV3480 предлагает предприятиям по всему миру мощное настольное решение для связи и повышения производительности.

Функции Grandstream GXV3480

• 16 линий до 16 SIP-аккаунтов
• Встроенная 2-мегапиксельная камера для видеозвонков с защитной шторкой
• Работает на операционной системе Android 11.
• Встроенный Bluetooth 5.0 для синхронизации с мобильными устройствами и подключения Bluetooth-гарнитур
• Двойные сетевые порты 10/100/1000 Мбит/с с автоматическим определением скорости
• Встроенный двухдиапазонный Wi-Fi 6 (2,4 ГГц и 5 ГГц)
• Встроенный PoE/PoE+ для питания и сетевых подключений
• Громкая связь HD с двумя микрофонами и шумоподавлением 2.0, усовершенствованным эхоподавлением и отличным качеством одновременного разговора
• Четырехъядерный процессор ARMCortex-A55 с тактовой частотой 2,0 ГГц, 4 ГБ ОЗУ и 16 ГБ флэш-памяти eMMC
• 8-дюймовый (1280x800) емкостный IPS ЖК-экран с 10 точками касания
• Периферийные устройства включают вход / выход HDMI, USB, Type-C, разъем для гарнитуры 3,5 мм , EHS (гарнитуры Plantronics)
• 12-сторонняя аудиоконференция HD и 3-сторонняя видеосвязь 1080p 30fps HD
