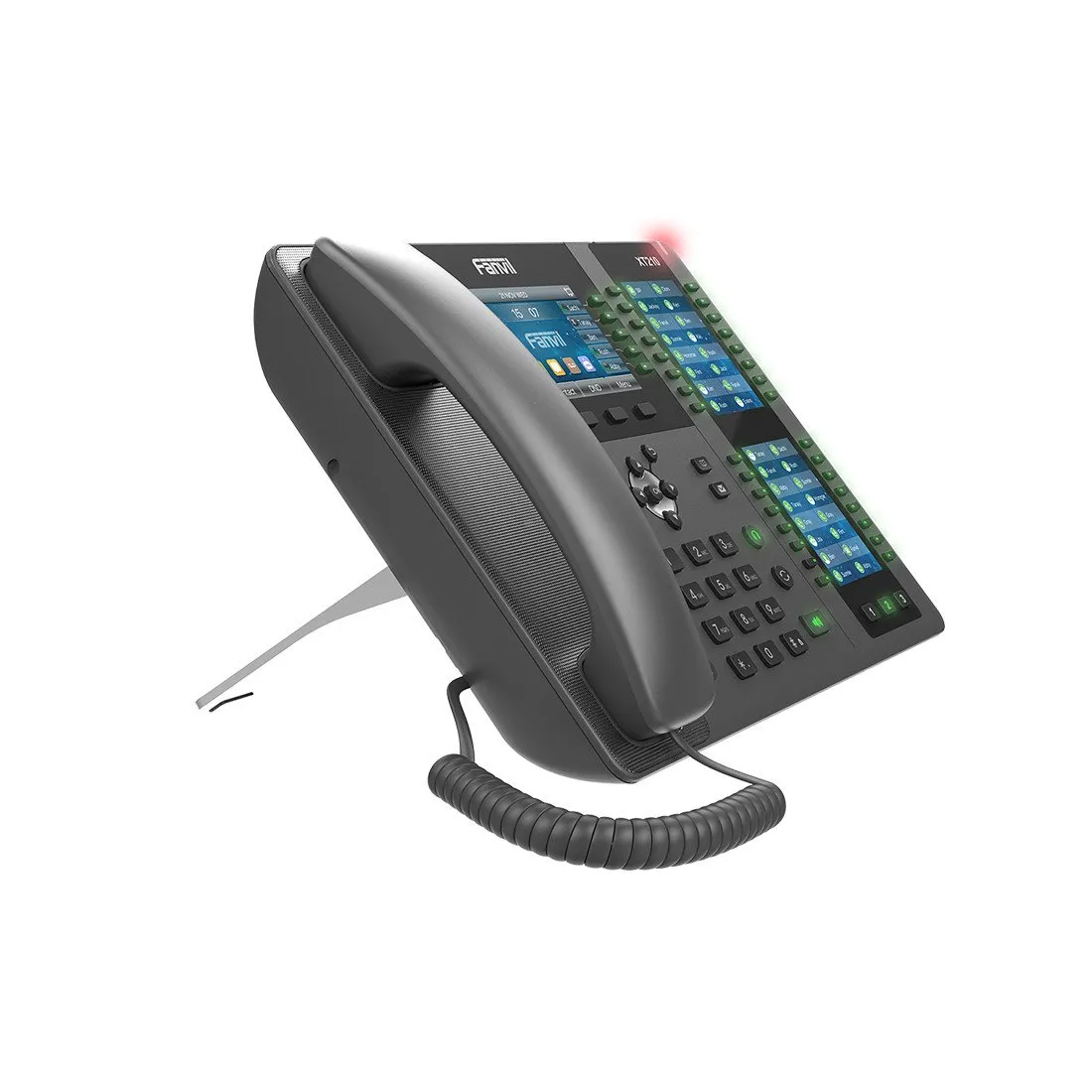

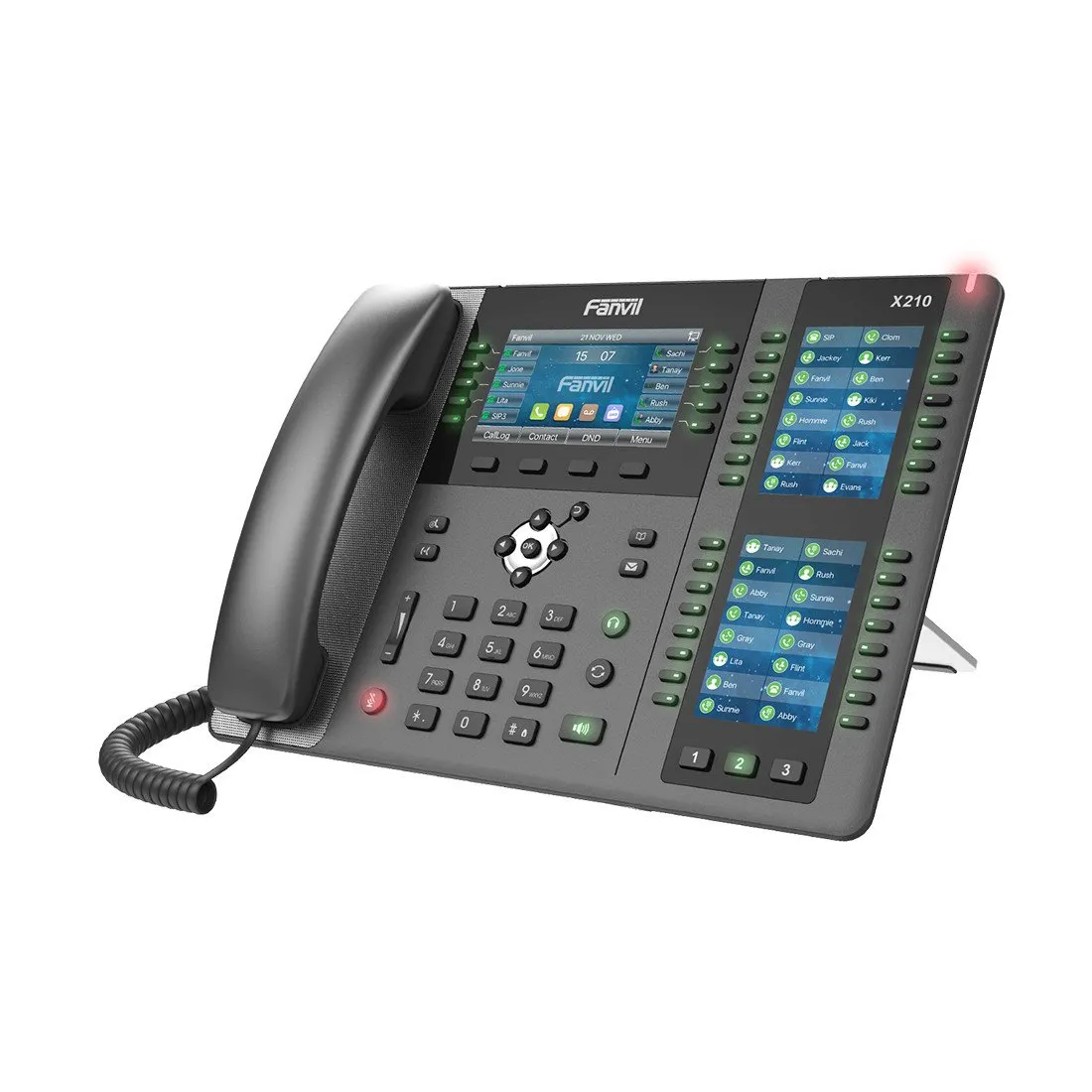

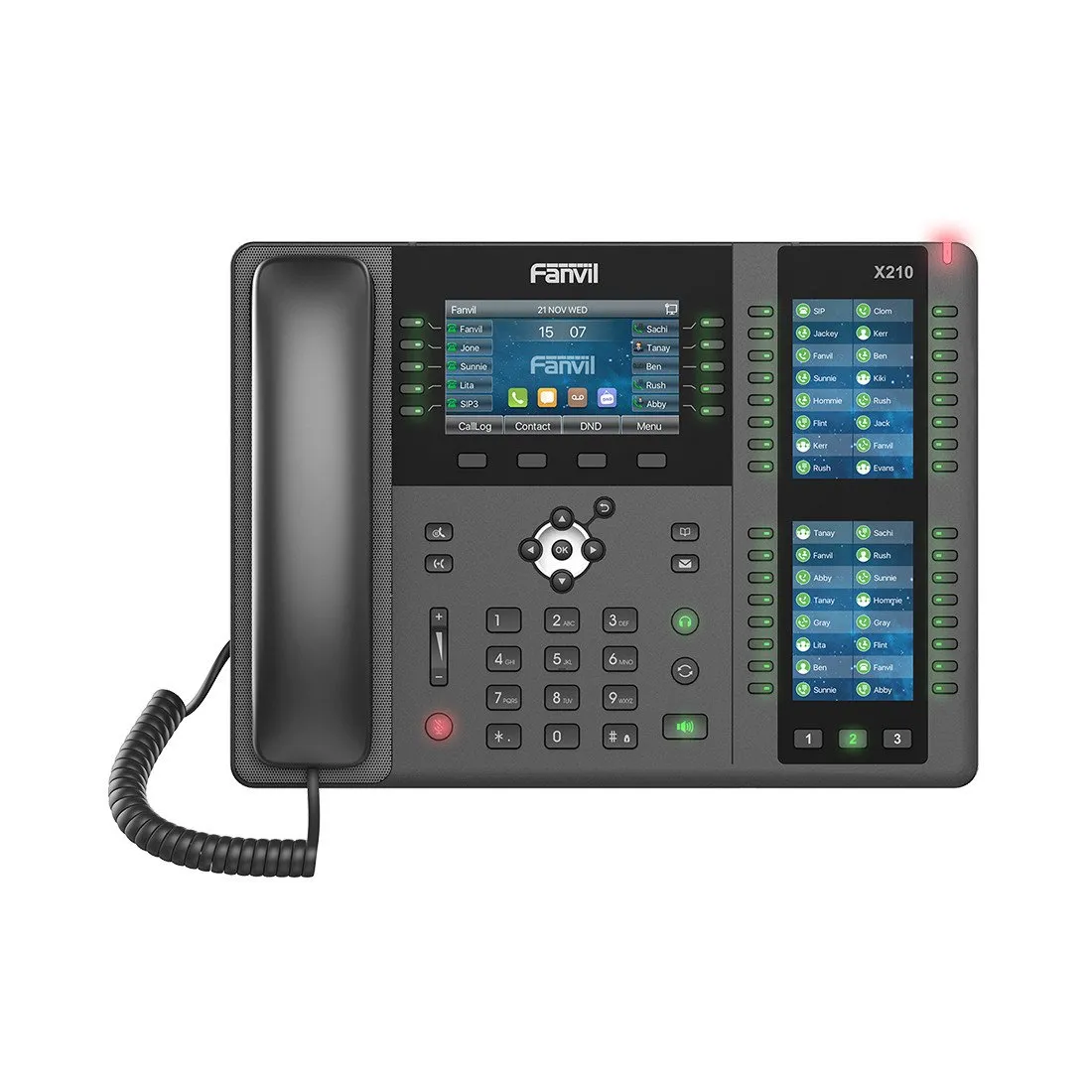

IP-телефон Fanvil X210

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP, IPV6

Network interfaces
Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support

Screen
2.8 inch Color TFT LCD Display 320x240 dots

Wi-Fi
Yes, Built-in dual-band WiFi 802.11 a/b/g/n/ac (2.4Hz and 5Hz)

Bluetooth
Yes, built-in

Function buttons
8 line buttons with up to 4 SIP accounts, 10 MPK with a pocket for a paper
label, 4 XML programmable context-sensitive on-screen buttons,
5 buttons (navigation, menu), 9 special function buttons for:
MESSAGE (with LED indicator), TRANSFER, HOLD,
HEADSET, MUTE, SEND/REDIAL,
HANDS-FREE, VOLUME +, VOLUME Additional RJ9 ports headset jack with EHS support for Plantronics headsets, USB port
for GUV series headsets from Grandstream and third-party USB headsets

Voice codecs and
features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS,
in- and out-of-band DTMF(in audio, RFC2833, SIP INFO)

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel call display
(BLA), downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting
, call log (up to 2000 entries), screen personalization using
XML, auto-dial when you pick up the phone, auto-answer, click-to-dial, flexible number
plan, hot table system, personalized ringtones and music on
hold, backup server and fault tolerance

HD Audio
Yes, high-resolution audio through a handset speaker and a speaker with
broadband audio support, two microphones.

The extension module
No

Footing
Yes, 2 positions are available, wall mounting option (*
wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP, TLS, 802.1x, secure download

Supported languages English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Automatic configuration
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Nutrition and energy efficiency
Universal Power Adapter included:
Input: 100-240V; Output: +12V, 1A;
Support for Power-over-Ethernet (802.3af)
IEEE 802.3az Ethernet energy efficiency

Max. power consumption 9.5W (power adapter) or 10.8W (PoE)
Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

IP‑телефон Fanvil V65

Fanvil V65 — современный корпоративный IP‑телефон с большим регулируемым 4.3" цветным дисплеем, поддержкой Wi‑Fi и Bluetooth, предназначенный для профессиональной VoIP‑связи в офисах, колл‑центрах и бизнес‑средах. Устройство обеспечивает широкий функционал, гибкую настройку и высокое качество связи.

Телефон работает на Linux, поддерживает до 20 SIP‑линий и HD‑аудио, а также имеет широкие сетевые возможности: две гигабитные Ethernet‑порты с PoE, встроенный Wi‑Fi 2.4/5 GHz и Bluetooth 5.0. Он также оснащён USB‑портом для подключения USB‑гарнитур и других аксессуаров.

Основные особенности

• Цветной 4.3" регулируемый дисплей IPS (480 × 272)
• Поддержка до 20 SIP‑линий
• HD Voice и широкополосные аудиокодеки
• 6‑сторонняя аудиоконференция
• Встроенный Wi‑Fi (2.4 GHz / 5 GHz)
• Встроенный Bluetooth 5.0
• Два гигабитных Ethernet‑порта с поддержкой PoE
• До 45 программируемых функциональных клавиш
• Поддержка USB‑гарнитур через USB‑порт
• Локальная телефонная книга до 2000 записей
• Удалённая телефонная книга (XML / LDAP)
• Поддержка IPv4 / IPv6
• Антибактериальное покрытие корпуса и клавиатуры

Технические характеристики

• Операционная система: Linux
• SIP‑линии: до 20
• Дисплей: 4.3" IPS цветной LCD, 480 × 272
• Сетевые интерфейсы: 2 × Gigabit Ethernet (10/100/1000 Мбит/с)
• Беспроводные интерфейсы: Wi‑Fi (2.4/5 GHz), Bluetooth 5.0
• Питание: PoE (802.3af) или адаптер питания
• USB: 1 × порт USB‑A
• Поддержка гарнитур: Bluetooth, USB, EHS
• Телефонная книга: до 2000 записей (локальная и удалённая)
• Журнал вызовов: до 1000 записей
• Поддержка IPv4 / IPv6, VLAN, VPN
• Конференция: до 6 участников
• Программируемые клавиши: до 45

Применение

IP‑телефон Fanvil V65 отлично подходит для руководителей, офисных сотрудников, колл‑центров и профессиональных рабочих мест, где требуется высокая функциональность, гибкие настройки вызовов, поддержка беспроводной связи и расширенный интерфейс управления.

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (record A, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS,
SRTP, IPV6

Network interfaces
Two switchable 10/100/1000 Mbit/s Gigabit Ethernet ports with
auto-negotiation and integrated PoE module

Graphic display
5" TFT LCD display (1280×720)

Wi-Fi
Yes, built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4 and 5 GHz)

Bluetooth
Yes, the built-in module

Main buttons
14 line buttons with support for up to 6 SIP accounts, 6 programmable (XML)
contextual touch keys, 5 menu/navigation keys, 9 special keys:
MESSAGE (with LED indicator), TRANSLATE, HOLD, HEADSET,
SOUND OFF, SEND/REDIAL, SPEAKER, THUNDER.+, THUNDER.–
Additional connectors RJ9 headset jack (allowing you to connect an EHS headset adapter
Plantronics) and a USB connector

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726-32, G.722 (broadband), G723.1, iLBC,
OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony functions
Retention, transfer, forwarding, five-participant conference, call parking
, call interception, single internal number (shared call appearance,
SCA), bridged line appearance (BLA) function, downloadable
phone book (XML, LDAP, up to 2000 elements), call waiting
, call log (up to 2000 recordings), XML screen setup, auto-dial when the handset is picked up,
answering machine, call from the website (click-to-dial), flexible configuration of subscriber groups,
support for shared workplace usage, personalization of ringtones
and ringtones on hold, switching to a backup server in case of failure

HD Audio
Yes (HD tube and speaker), with broadband audio support
and two microphones

Expansion Module
Yes, GBX20

Rack
Yes, with two tilt angles and wall mount (*Wall mount
is available separately)

Quality of service
Layer 2 (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, authentication on the database
MD5 and MD5-session, configuration file with 256-bit AES encryption, SRTP, TLS,
802.1x-based media access control, secure download

Languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, mass configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Nutrition and energy efficiency
The package includes a universal power adapter:
input: 100-240 V; output: +12V, 1.0 A;
integrated Power-over-Ethernet module (802.3af)
IEEE 802.3az Ethernet energy efficiency
Maximum power consumption: 6.2W (power adapter)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package Contents
GRP2650 phone, handset with wire, stand, 12V power adapter, Network
cable, Quick installation guide

Physical characteristics
Sizes: device weight 1050 g; package weight 1620 g
Dimensions: 263 × 210 x 82 mm

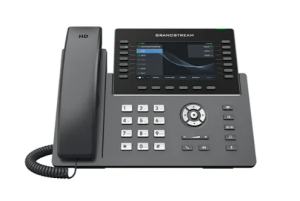

Grandstream GRP2636 - IP телефон

Модель GRP2636 в линейке устройств операторского класса Grandstream GRP — это профессиональный IP-телефон с поддержкой 12 линий и автоматической настройкой для простого развертывания и управления. Модель отличают стильный дизайн и передовые функции, включая поддержку аудио-конференц-связи для эффективного взаимодействия (до пяти участников), встроенные модули PoE и Wi-F 6i, четкий HD-звук динамика и гарнитуры. Серия GRP включает функции безопасности операторского класса для развертывания в корпоративных инфраструктурах, в том числе безопасную загрузку, два образа прошивки и хранилище данных с шифрованием. Телефоны GRP2636 поддерживаются системой управления устройствами Grandstream Device Management System (GDMS) — облачным центром настройки, инициализации, управления и мониторинга развертываний конечных точек Grandstream. GRP2636 — отличное решение для секретарей и других сотрудников компании, которые совершают и принимают большое количество звонков. GRP2636 разработан для простого использования и быстрого развертывания на крупных предприятиях, в компаниях поставщиков услуг и других организациях с большим объемом телефонного трафика.

Технические характеристики:

Особенности:

• 12 линий, 16 SIP-аккаунтов.
• Поддержка GDMS, которая обеспечивает централизованный интерфейс для конфигурации, настройки, управления и контроля устройств от компании Grandstream
• Встроенный двухдиапазонный WiFi 6 802.11 a/b/g/n/ ac/ax (2.4Гц и 5Гц) - Аппаратная версия 5.0 и выше
• Технология шумоподавления для снижения фонового шума
• Полнодуплексный динамик со звуком высокого разрешения, обеспечивающим наилучшее качество и чистоту звука
• Два коммутируемых 10/100/1000 Мбит/с гигабитных Ethernet порта с автоопределением и поддержкой PoE
• RJ9 для гарнитур с поддержкой EHS для гарнитур Plantronics и поддержка USB гарнитур

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*,
IPV6

Network interfaces
Two 10/100 Mbps network ports with auto-detection (GRP2612)
Two 10/100 Mbps network ports with auto-detection with PoE support (GRP2612P/
GRP2612W)
Two 10/100/1000 Mbps network ports with auto-detection with PoE support
(GRP2612G)

Wi-Fi
GRP2612W, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
2.4 inch TFT color LCD screen (320x240)

Function buttons
4 line buttons and up to 2 SIP accounts, 4 XML programmable context-
sensitive on-screen buttons, 5 navigation/menu buttons, 9 special function
buttons: MESSAGE/MESSAGE (with LED indicator), TRANSFER/TRANSLATION, HOLD/
HOLD, HEADSET/HEADSET, MUTE/OFF SOUND, SEND/REDIAL / SEND/
REDIAL, SPEAKERPHONE/SPEAKERPHONE, VOL+/VOLUME+, VOL-/
VOLUME

Optional
RJ9 port headset jack (EHS support when using headsets
Plantronics)

Speech Codecs and Features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
Hold, transfer, forwarding, 3-way conference, call parking
, call interception, paired lines (SCA)/(BLA), downloadable phonebook (XML,
LDAP, up to 1000 positions), call waiting, Call log (up to 1000 entries), XML
screen personalization, auto-dialing when picking up the handset, auto-reply, push call,
flexible number plan, shift work of users, personalized
ringtones and melody on hold, switching to a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Footing
Yes, 2 positions are available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM)GRP2612W, and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot.

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal Power adapter:
Input: 100-240V; Output: +5V, 0.6A;
Powered by Ethernet (802.3af)
IEEE 802.3az Ethernet Energy efficiency
Max. power consumption 3W (power adapter, GRP2612/GRP2612W/GRP2612G)
or 3.8W (PoE, GRP2612P/GRP2612W/GRP2612G)

Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing


Dimensions and weight
Dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g
Model GRP2612/GRP2612P/
GRP2612G

Accordance
FCC: Part 15 Class B; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004.
IC: ICES-003; CS-03, Part V.
Model GRP2612W

Accordance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1;
EN 301 489-17; EN 300 328; EN 301 893; EN 62311.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.
IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6

Network interfaces
Two Gigabit network ports 10/100 Mbit/s auto-detection with support
PoE

Bluetooth
Yes, built-in

Wi-Fi Yes, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
TFT color LCD screen 2.8 inches (320x240), additional screen 2.4 inches
(320x240)

Speech Codecs and Features
Support G7.29A/B, G.711p/a-law, G.726, G.722(wide-band), G723,iLBC, OPUS,
in- and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC,
AJB, AGC

Telephony functions
Hold, Transfer, forwarding, 3-way conference, Call Parking
, Call Interception, paired lines (SCA)/(BLA), downloadable
Phonebook (XML, LDAP, up to 2000 positions), Call waiting, Call log (up to 2000
records), XML personalization of the screen, auto-dial when you pick up the handset, auto-answer,
call by pressing, flexible number plan, shift work of users,
personalized ringtones and melody on hold, switching to
a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Extension Module
No

Function keys
4 line buttons and up to 4 SIP accounts, 8 MPK expansion buttons with two-color
LED display with 2 left/right buttons, 4 XML programmable
context-sensitive on-screen buttons, 5 navigation/menu buttons,
11 special function buttons: MESSAGE/MESSAGE (with LED
indicator), phonebook/phonebook, transfer/transfer, conference/
conference call, hold/hold, headset/headset, mute/off sound,
send/redial/send/redial, speakerphone/speakerphone, vol+/
volume+, vol-/Volume base Yes, 2 positions available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS
Additional RJ9 ports headset jack (EHS support when using Plantronics headsets)

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Configuration Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and Energy Efficiency
Universal Power Adapter - Input: 100-240V; Output: +12VDC, 1A; Powered
by Ethernet (802.3af); IEEE 802.3az Ethernet energy efficiency; Max.
Power consumption 3.5W (power adapter) or 4W (PoE)

Temperature and Humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone GRP2614, handset with wire, stand, 12V power adapter,
network cable, quick installation guide, GPL license

Dimensions and weight
Device weight: 950g; Package weight: 1460g Dimensions: 234mm x 213mm x 82.2mm

Accordance
FCC: Part 15 Class B; Part 15 Subsection C, 15.247; Part 15 Subsection E, 15.407;
FCC Part 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 4268; AS/NZS
60950.1; AS/CA S004
IC: ICES-003; CS-03; RSS-247; RSS-102.

Grandstream WP825- Беспроводной IP-телефон Wi-Fi

WP825 — портативный защищенный IP-телефон Wi-Fi, который находит применение во многих компаниях и отраслях, включая розничную торговлю, логистику, образование, медицину и обеспечение безопасности. Это беспроводной телефон с двухдиапазонным модулем Wi-Fi 802.11a/b/g/n/ac, передовой конструкцией антенн и поддержкой роуминга. Телефон может работать 8 часов в режиме разговора, поддерживает технологию HD Voice и оснащен двумя микрофонами. Благодаря доступной цене, широкому набору функций, мобильности и надежности WP825 станет отличным решением для тех, кому нужно всегда оставаться на связи..

Технические характеристики:

Особенности:

• Два SIP-аккаунта, две линии
• Двухдиапазонный модуль Wi-Fi, эффективная конструкция антенн и расширенная поддержка роуминга
• Встроенный двухдиапазонный WiFi 6 802.11 a/b/g/n/ ac/ax (2.4Гц и 5Гц) - Аппаратная версия 5.0 и выше
• HD Voice и два микрофона с поддержкой технологий AEC и Noise Shield
• Разъем Micro USB и разъем 3,5 мм для гарнитур
• Защищенная конструкция. Пылевлагозащита, выдерживает падение с высоты 2,5 м
• Аккумуляторная батарея 2000 мА∙ч, 8 часов в режиме разговора, 200 часов в режиме ожидания

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS,
SRTP*, IPv6, CDP/SNMP/RTCP-XR

Network Interfaces
Dual 10/100/1000 Mbps network port with automatic recognition and
built-in PoE

Graphic display
Color LCD Display(480x272) TFT LCD 4.3 inches

Bluetooth
Yes, Bluetooth V2.1

Function keys
6 line keys, up to 6 SIP accounts, 24 BLF speed dial/extension keys with
two-color display, 5 context-sensitive programmable keys, 5
navigation/menu keys, 11 special function keys for functions such
as: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER,
CONFERENCE, CALL HOLD, HEADSET, MUTE, SEND/
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME -

Speech codec
Support G.729A/B, G.711µ/a-law, G.726, G.722 (broadband),G723.1, iLBC, Opus,
in- and out-of-band DTMF (in audio, RFC2833, SIP INFO

Additional connectors
Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets), USB

Telephony Functions
Hold, transfer, forwarding, conference up to 5 participants, standby mode,
call capture, call separation (SCA)/call transfer (BLA), downloadable
phonebook (XML, LDAP, up to 2000 positions), call waiting, call log
(up to 500 entries), screen setup, auto-dial when answering the phone, auto-response,
one-click dialing, flexible dialing plan, hot table system, personal
music ringtones and music for standby mode, backup server.

Standard Applications
Last.fm (expected), weather, stocks, currency, news (expected), Internet radio (expected), XML

HD Audio
Yes, both on the handset and on the speaker

Table mount
Yes, there are 2 corner positions

Wall Mount
Yes

Quality of service in the network (QoS)
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level passwords,
MD5 and MD5-sess authentication, AES protected configuration file, media access control
SRTP*, TLS, 802.1x

Support for foreign languages
English, Arabic, Chinese, Croatian, Czech, Dutch, German,
French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Slovenian, Spanish, Turkish.

Update/Service
Program update via TFTP/HTTP/HTTPS, mass pre-configuration of devices via TR-069 or encrypted XML configuration file, FTP/FTPS

Energy and Environmental efficiency
The kit includes a universal power adapter: Input: 100-240 V; Output: +12V, 1A Built-in current-over-Ethernet (802.3af) The maximum power consumption is 12 W (power adapter) or 12.95W (PoE)

Dimensions
Dimensions: 222 mm (W) x 210 mm (L) x 93 mm (H);
Device weight: 0.98kg; Package weight: 1.63 kg

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Contents of the delivery set
Phone GXP2160, handset with cord, base, universal power
supply, power cord,
Quick Start Guide

Compatibility
FCC Part15 (CFR 47) Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024,
EN60950-1, AS/NZS
CISPR22 Class B, AS/NZS CISPR 24; RoHS; UL 60950 (power supply)
