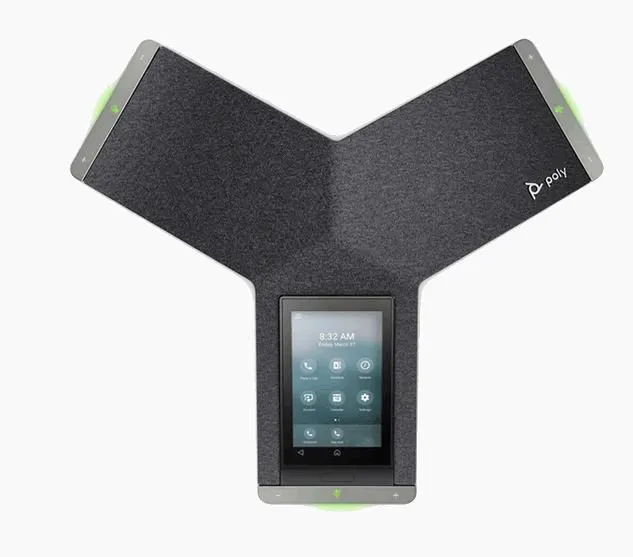

IP -телефон Poly Trio C60 IP (849B4AA#ABB)

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Two switched Ethernet ports 10/ 100/ 1000 Mbps with automatic
recognition and with built-in PoE support

Graphic display
Backlit graphic LCD display with a resolution of 132 x 64 dots (2.98’)

Keys
3 keys with two-color LED backlight and 3 SIP accounts, 3
context-dependent programmable touch
keys, 5 keys (navigation, menu), 8 BLF keys, 13 special keys
with MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, pAGE/INTERCOM, RECORD,
HOME

Voice Codecs
Support for G.711µ/a, G.722 (broadband), G.723, G.726-32, G.729 A/B,
iLBC, in-band and out-of-band DTMF signals (in audio, RFC2833, SIP
INFO)

Telephony functions
Call hold, call transfer (unconditional transfer/no response/busy),
call transfer to a fixed number, 4-way audio conference,
General call indication (SCA) / Call Interception (BLA), downloadable
phonebook (XML, LDAP, up to 1000 entries), Call waiting
, Call history (up to 200 recordings), auto-dialing when the handset is off, answering machine,
mouse-click dialing, flexible number plan, "hot" workplace,
personal ringtones, server reservation and switching in
case of failure

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

HD audio sound
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, 2 corner positions are available, there is a possibility of mounting on the wall

Headset Jack
Yes

QoS
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Access control at the user and administrator level, authentication
MD5 and MD5-sess, 256-bit configuration file protected by AES,
TLS, SRTP*, HTTPS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc

Updating/ providing services
Firmware update via TFTP/HTTP/HTTPS, mass connection
using TR-069 or AES encrypted
XML configuration file, FTP/FTPS

Energy consumption and environmental efficiency
Universal Power Supply Connector Input 100-240VAC 50-60Hz;
Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE)

Physical properties
Dimensions: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with tube)
Device weight: 0.8 kg, Package weight: 1.2 kg

Temperature and humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to
90% without condensation

Contents of the delivery set
Phone GXP1630, handset with cord, base, universal power supply,
network cable, quick installation guide, brochure, GPL license

Compliance with the requirements of standards
FCC: Part 15 (CFR 47) Class BCE : EN55022 Class B, EN55024 Class B; EN61000-3-
2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950;
AS/NZS 60950.1

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP,
LDAP, TR-069, 802.1x, TLS, SRTP*, IPV6, CDP/SNMP/RTCP-XR

Network interfaces
Two switched Ethernet ports 10/ 100/ 1000 Mbps with automatic
recognition and with built-in PoE support

Graphic display
2.8 inch (320x240) TFT color LCD

Bluetooth
Yes, built-in

Keys
8 keys, up to 4 SIP accounts, 4 context-sensitive programmable keys, 5 navigation/menu keys, 11 special
keys for the following functions: MESSAGE (WITH LED
INDICATOR), PHONE BOOK, TRANSFER, CONFERENCE,
HOLD, HEADSET, MUTE, SEND/
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME -

Support for voice codecs
Support G.729A/B, G.711µ/a-law, G.726, G.722 (Broadband),
G723.1, iLBC, Opus, in-band and out-of-band DTMF signals (in
audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Auxiliary ports Headset with RJ9 connector (which allows the use of EHS with
Plantronics headsets)

Phone Functions
Call Hold, Transfer, Call Redirection, 4-way
conference, Call Parking, Call Interception, General
Call Indication (SCA)/Call Interception (BLA), Downloadable Phonebook
(XML, LDAP, up to 2000 records), Call Waiting, Call history (up
to 500 records), XML screen setup, auto-dial when the handset is off,
answering machine, mouse-click dialing, flexible number plan, "hot"
workplace, personal ringtones and music for standby mode,
server reservation and switching in case of failure.

HD Audio
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, 2 corner positions are available, there is a possibility of mounting on the wall

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
Passwords at the user and administrator level, authentication
MD5 and MD5-sess, a 256-bit configuration file protected by an algorithm
AES, SRTP*, TLS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish,
Portuguese, Russian, Croatian, Chinese, Korean, Japanese.

Update/ Provizhining
Firmware update via TFTP/ HTTP/HTTPS, mass
connection using TR-069 or AES encrypted
XML configuration file, FTP/FTPS

Nutrition and energy efficiency
Universal Power adapter: Input: 100-240V; Output: +12V, 0.5A;
Built-in power function via Ethernet(802.3af) Maximum
power consumption: 6.4W(power adapter) or 6.49W (PoE)

Physical properties
Dimensions: 201mm(W) x 193mm(L) x 85mm(H); Weight of the device:0.85 kg;
Package weight: 1.12 kg

Temperature and humidity
In operating conditions: from 0°C to 40°C, Storage from -10°C to 60°C,
humidity: from 10% to 90% without condensation

Package contents
Phone GXP2135, handset with cord, base, universal power
supply, network cable, quick installation guide, license
GPL

Compliance with the requirements of compatibility standards:
FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B; EN55024 Class
B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.

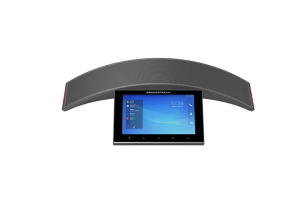

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

The operating system
Android 10

Network interface
One 10/100/1000 Mbps port with integrated PoE/PoE+ module

Wi-Fi
Wi-Fi 6, dual-band 2.4and 5 GHz module, 802.11 a/b/g/n/ac/ax

Bluetooth
Built-in module. V2.1 + EDR, V5.0 Dual Mode

Microphone
12 omnidirectional microphones with MMAD

External microphone
GMD1208, cascading up to 2 microphones

Speaker
10-watt speaker with high-quality sound
Frequency: 100-20,000 Hz
Volume: up to 83 dB at a distance of 1.0 m

Additional ports
1 Multimedia port, 1 Network port, 1 HDMI input, 1 USB, 1 line-out, 1 Micro-USB,
1 Kensington Castle

Speech codecs
G.711µ/a, G.722 (broadband), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band
and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS,
Noise Shield

Telephony functions
SIP paging, hold, parking/picking up a call, 12-way audio conference (including
the creator), multi-way call automatically generates a conference, virtual
programmable key, downloadable contacts (XML, LDAP, up to 2000 elements),
call recording (locally and to the server), call log (up to 2000 entries), waiting call,
answering machine, flexible configuration of subscriber groups, personalization of ringtones and ringtones
on hold

HD Audio
Yes, HD speakerphone with broadband audio support

Certification
Zoom

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, MD5 and MD5-sess authentication,
configuration file with 256-bit AES encryption, TLS, SRTP, HTTPS, access control to
the 802.1x-based transmission medium

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via local HTTP download,
mass configuration using an XML configuration file with AES encryption

Nutrition and energy efficiency
Built-in PoE+ 802.3at module, Class 4
3300mAh Built-in rechargeable battery, up to 4 hours of talk time

Package contents
GAC2570 Conference Phone, Ethernet Cable, Micro-USB Cable, Quick
Installation Guide, PoE Injector, HDMI cable (optional), 2 GMD1208 wireless Microphones (optional)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90% (non-condensing)

Physical characteristics
Device weight: 1.38 kg
Device dimensions: 419.7 (D) × 218.5 (W) × 78.6 mm (H)

Accordance
FCC, CE, RCM, IC, UKCA

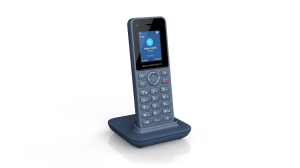

Protocol/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, 802.1x, TLS, SRTP*, IPv6
(LDAP, TR-069 for WP820)

Audio codecs and features
Supports G.711µ/A, G.729A/B, G.722 (broadband), iLBC, Opus, In- and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Wi-Fi
Dual-band 802.11 a/b/g/n/ac module (2.4GHz and 5 GHz) Supports 802.11k/r/v (WPA2/WPA2-Enterprise)

Wi-Fi Encryption
WEP, WPA/WPA2, WPA Enterprise

Display
1.8 inch color TFT LCD screen with a resolution of 128x160 pixels

The periphery
2 on-screen buttons, dial, hang up, speaker, phonebook, backlit keyboard, proximity sensor, vibration motor, volume and navigation buttons

Push-to-Talk
Customizable push-to-talk button

Additional ports
3.5mm Headset jack, Micro USB Charging Port, Two Microphones, Two-color LED indicator

Telephony
Hold, transfer, forwarding, 3-way voice conference, call waiting, downloadable XML and LDAP phone books, auto-dial when you pick up the phone, call log, answering machine, flexible number plan, personalized ringtones and music on hold, push to talk, automatic switching to a backup server in case of failure, LDAP

Push-to-Talk
Customizable push-to-talk button

Additional ports
3.5mm Headset jack, Micro USB Charging Port, Two Microphones, Two-color LED indicator

Telephony
Hold, transfer, forwarding, 3-way voice conference, call waiting, downloadable XML and LDAP phone books, auto-dial when you pick up the phone, call log, answering machine, flexible number plan, personalized ringtones and music on hold, push to talk, automatic switching to a backup server in case of failure, LDAP

Phone Book
500 entries

Call log
100 entries

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption, SRTP*, TLS, 802.1x media access control

HD audio
Yes, both in the speaker and in the speaker with broadband audio support, HAC support

QoS
802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS

Language support
English, Chinese, German, French, Italian, Portuguese, Russian, Spanish, etc.

Update/Setup
Firmware update via TFTP/HTTP/HTTPS/FTP/FTPS, mass configuration using an encrypted XML configuration file, manual download

Battery and autonomy
Li-Ion, 1500mA, up to 120 hours standby and 6 hours talk time

Nutrition and energy efficiency
Universal power adapter included
Input: 100-240V AC; Output: +5V DC. Current, 1A (5W)

Temperature and humidity Operating temperature: 0ºC to 45ºC
Operating humidity: 10 to 90% (non
-condensing) Storage temperature: -20 °C to 60 °C
Storage humidity: 10% to 90% (non-condensing)

Case Protection
No

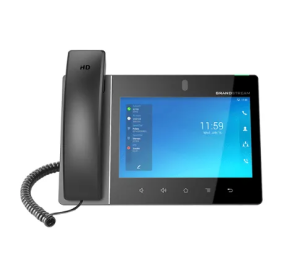

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
7.0" (1280×800) Capacitive Touch LCD Display, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band dual-stream Wi-Fi 6 (2.4and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay

Additional connectors
RJ9 connector for Plantronics EHS Headset Adapter, 3.5mm headset jack, USB 2.0 and USB 3.0 connectors, HDMI (output)

The main buttons
2 function keys: VOLUME +/–, 3 special Android touch keys: HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and functions, video resolution up to 720p, frame rate up to 30 frames per second, bitrate up to 2 Mbit/s, video conference for three participants (720p, 30 frames per second), Anti-Flicker technology, autofocus and automatic exposure

Telephony functions
Hold, Transfer, Forwarding (unconditional/no response/busy), Call parking, Call Interception, 10-way audio conference (including sender), Shared Call Appearance (SCA)/Bridge, BLA), Virtual Programmable Key, Contact upload (XML, LDAP, up to 1000 items), Call recording (locally and to the server), call log (up to 1000 records), call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups, personalization of the ringtone and hold, switching to a backup server in case of failure

Typical programs
Local Applications: Contacts, Call Log, File Manager, Softkey, Settings, Browser, Clock, Voicemail, Calculator, Sound Recording, GS Store, etc.

Support for third-party Android apps
API/SDK available for developing your own applications

Application Deployment
Supports the development, download and use of Android 11 compatible applications on devices with availability control

HD audio
Yes, two omnidirectional microphones, an HD headset and a broadband speaker

Rack
Yes, built-in, with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password, MD5 and MD5-sess authentication, 256-bit Configuration file with AES, TLS, SRTP*, HTTPS encryption, 802.1x-based media access control, secure boot with anti-hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and others

Updates/Settings
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, mass configuration via XML configuration file with TR-069 encryption or AES, GDMS

Power supply and energy efficiency
The package includes a universal power adapter. Input: 100-240VAC; 50-60 Hz; Output: DC12V, 1.5A (18 W) Built-in PoE*802.3af Class 3, PoE+802.3at Class 4

Temperature and humidity
Operation: 0 to 40 °C Storage: -10 to 60 °C Humidity: 10 to 90%, non-condensing

Package contents

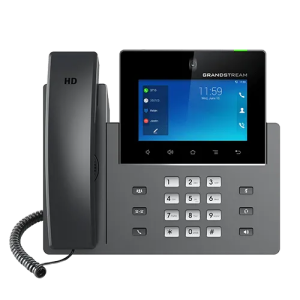

GXV3470 phone, Wired headset, Stand, Universal power adapter, Network cable, screen wipe, Quick setup guide

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide

Protocols/standards
SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN,
LLDP, TR-069, 802.1x

Network interfaces
One 10/100 Mbps Ethernet connector with auto-negotiation function and integrated Class 2 PoE module (GHP620/GHP621)

Wi-Fi
Built-in dual-band 802.11a/b/g/n/ac Wi-Fi module (2.4 and 5 GHz) (GHP620W/GHP621W models)

Main buttons
26 keys, including: 6 programmable keys; 12 standard numeric keys (0-9: speed dial keys, configurable on the website, *, #); 5 special keys (Flash, redial, speakerphone, answering machine, hold); 3 volume control keys: increase, decrease, mute (with red LED
indicator)

HD Audio One HD tube with broadband audio
Audio conferencing 2 SIP accounts and 2 lines, conferences for up to 3 participants

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726, G.722 (broadband), G.723, iLBC,
full-band Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO),
VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Dial, answer, redial, reset, speakerphone, voicemail (with server), translation,
conference, hold/de-hold, microphone mute and on,
flexible subscriber group configuration, switching to backup server in
case of failure during speed dial

Additional features
Support for multicast paging and E911 service
Door opening support via GDS
Support for advanced jitter resistance algorithm
USB Type-C connector for charging external devices (max. 500 mA)

Wall mounting
One wall mount

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Secure boot, random default password, unique security certificate
for each device, passwords for administrators, 256-bit configuration file
AES encryption, SRTP, TLS, access control to the transmission medium based on 802.1x
Multiple languages English and Chinese

Update/Setup
Firmware update via FTP/TFTP/HTTP/HTTPS, quick setup in 15 seconds,
mass configuration using GDMS/TR-069 or an encrypted XML configuration file
AES

Nutrition and energy efficiency
Universal Power Adapter (GHP620W/GHP621W)
Input: 100-240 VAC, 50-60 Hz
Output: 12V/0.5A (6W)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to +60 °C
Humidity: 10 to 90% (non-condensing)

Package Contents

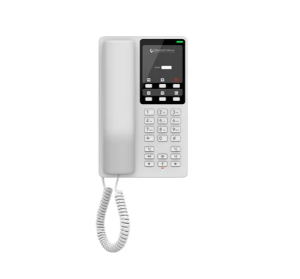

GHP phone, Handset with Cord, Mount, Universal Power Adapter
(GHP620W and GHP621W), front panel, quick installation guide

Colour
White (GHP620, GHP620W), Black (GHP621, GHP621W)

Physical characteristics
210mm (L) * 132mm (W) * 89.8mm (H) (with tube and stand)
Device weight: 560g (GHP620/GHP621), 610g (GHP620W/GHP621W [USA]), 620g (GHP620W/
GHP621W [other countries])
Package weight: 860g g (GHP620/GHP621), 910 g (GHP620W/GHP621W [USA]),
920 g (GHP620W/GHP621W [other countries])
