IP-видеотелефон Grandstream GXV3450

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)

Temperature and Humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% - 90%
Non - condensing

Contents of the delivery set

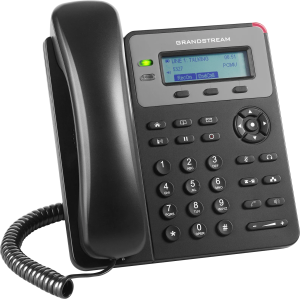

Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
"Quick Start", brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide

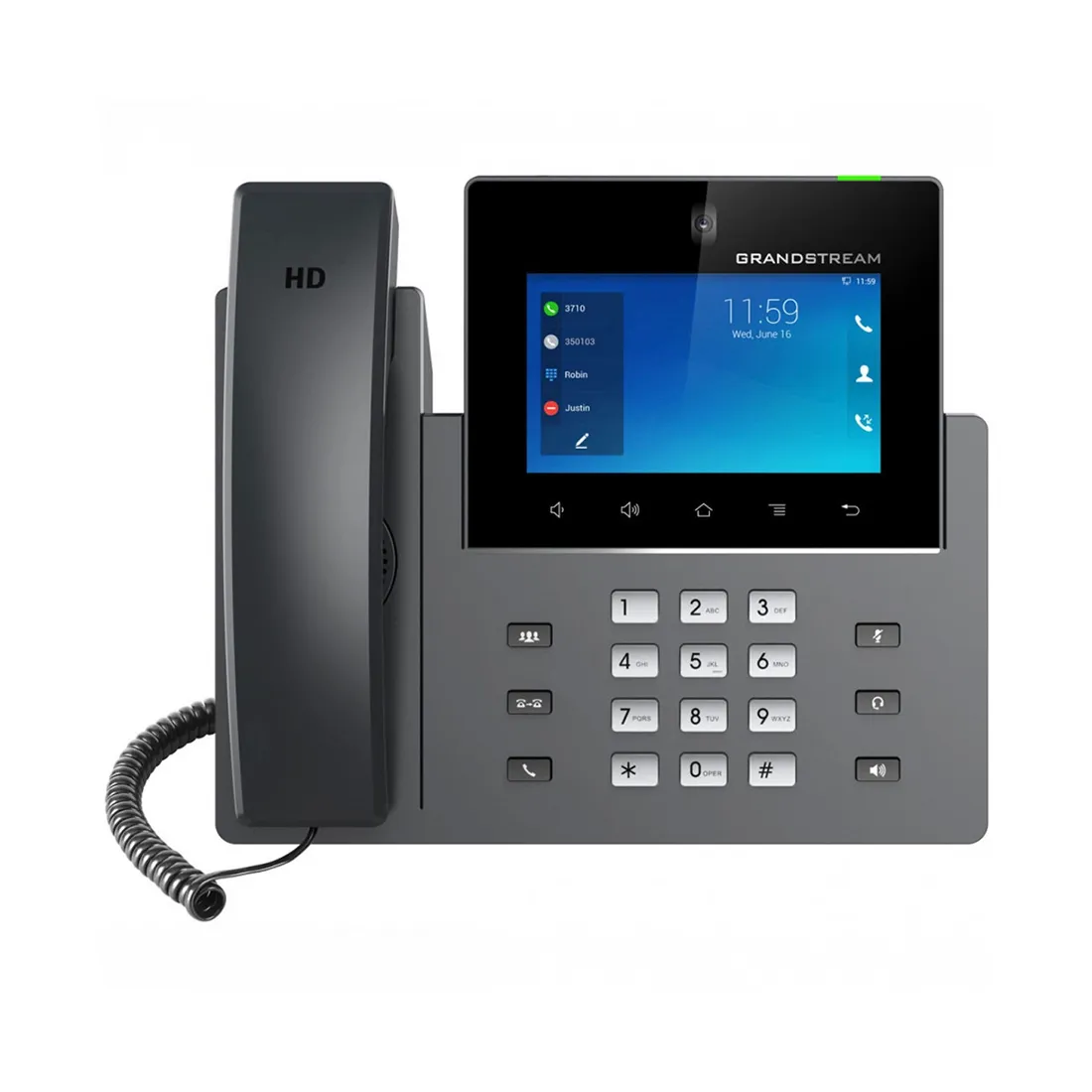

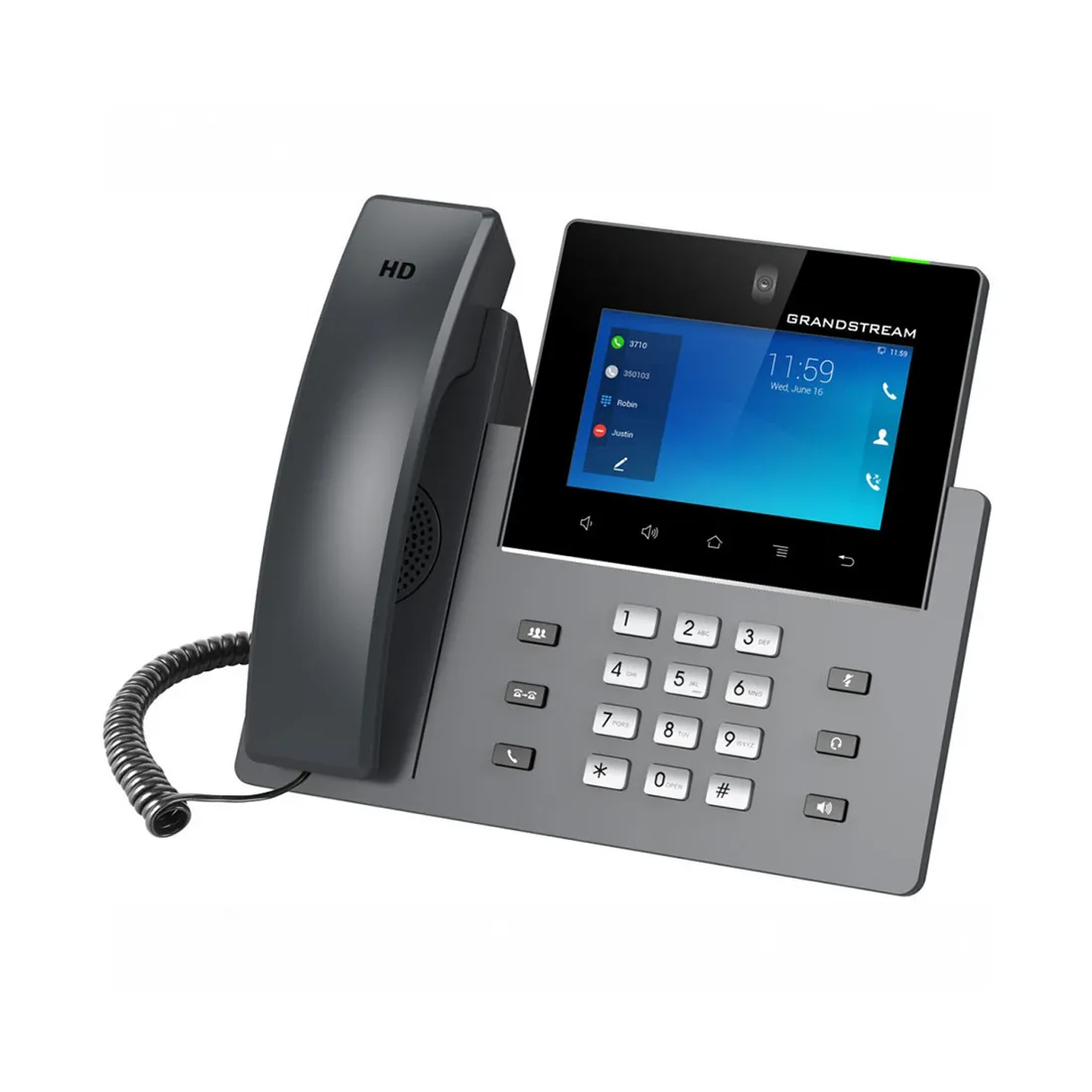

Grandstream GXV3480 — это мощный интеллектуальный видеотелефон высокого класса для Android, который сочетает в себе 16-линейный IP-телефон с многоплатформенным решением для видео-сотрудничества и функциональность планшета Android, предлагая универсальное решение для связи. Это идеальное настольное устройство для занятых профессионалов и руководителей, а также мощное, но экономичное устройство для любого конференц-зала.

IP-видеотелефон GXV3480 для Android сочетает в себе 16-линейный IP-видеотелефон с многоплатформенным решением для видеоконференций и функциональность планшета Android, предлагая универсальное коммуникационное решение. Телефон оснащен 8-дюймовым емкостным сенсорным экраном IPS LCD с разрешением 1280x800, 2-мегапиксельной камерой, двойным микрофоном, двумя гигабитными портами с PoE/PoE+, HD-аудио и HD-видео, встроенным Wi-Fi 6 (802.11 a/b/g/n/ac). /ax) и Bluetooth 5.0, богатые периферийные интерфейсы. Он также работает на Android 11 и предлагает мгновенный доступ к сотням тысяч приложений для Android. Сочетая современный IP-видеотелефон, передовое решение для видеоконференций и функциональность планшета Android, GXV3480 предлагает предприятиям по всему миру мощное настольное решение для связи и повышения производительности.

Функции Grandstream GXV3480

• 16 линий до 16 SIP-аккаунтов
• Встроенная 2-мегапиксельная камера для видеозвонков с защитной шторкой
• Работает на операционной системе Android 11.
• Встроенный Bluetooth 5.0 для синхронизации с мобильными устройствами и подключения Bluetooth-гарнитур
• Двойные сетевые порты 10/100/1000 Мбит/с с автоматическим определением скорости
• Встроенный двухдиапазонный Wi-Fi 6 (2,4 ГГц и 5 ГГц)
• Встроенный PoE/PoE+ для питания и сетевых подключений
• Громкая связь HD с двумя микрофонами и шумоподавлением 2.0, усовершенствованным эхоподавлением и отличным качеством одновременного разговора
• Четырехъядерный процессор ARMCortex-A55 с тактовой частотой 2,0 ГГц, 4 ГБ ОЗУ и 16 ГБ флэш-памяти eMMC
• 8-дюймовый (1280x800) емкостный IPS ЖК-экран с 10 точками касания
• Периферийные устройства включают вход / выход HDMI, USB, Type-C, разъем для гарнитуры 3,5 мм , EHS (гарнитуры Plantronics)
• 12-сторонняя аудиоконференция HD и 3-сторонняя видеосвязь 1080p 30fps HD

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
7.0" (1280×800) Capacitive Touch LCD Display, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band dual-stream Wi-Fi 6 (2.4and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay

Additional connectors
RJ9 connector for Plantronics EHS Headset Adapter, 3.5mm headset jack, USB 2.0 and USB 3.0 connectors, HDMI (output)

The main buttons
2 function keys: VOLUME +/–, 3 special Android touch keys: HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and functions, video resolution up to 720p, frame rate up to 30 frames per second, bitrate up to 2 Mbit/s, video conference for three participants (720p, 30 frames per second), Anti-Flicker technology, autofocus and automatic exposure

Telephony functions
Hold, Transfer, Forwarding (unconditional/no response/busy), Call parking, Call Interception, 10-way audio conference (including sender), Shared Call Appearance (SCA)/Bridge, BLA), Virtual Programmable Key, Contact upload (XML, LDAP, up to 1000 items), Call recording (locally and to the server), call log (up to 1000 records), call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups, personalization of the ringtone and hold, switching to a backup server in case of failure

Typical programs
Local Applications: Contacts, Call Log, File Manager, Softkey, Settings, Browser, Clock, Voicemail, Calculator, Sound Recording, GS Store, etc.

Support for third-party Android apps
API/SDK available for developing your own applications

Application Deployment
Supports the development, download and use of Android 11 compatible applications on devices with availability control

HD audio
Yes, two omnidirectional microphones, an HD headset and a broadband speaker

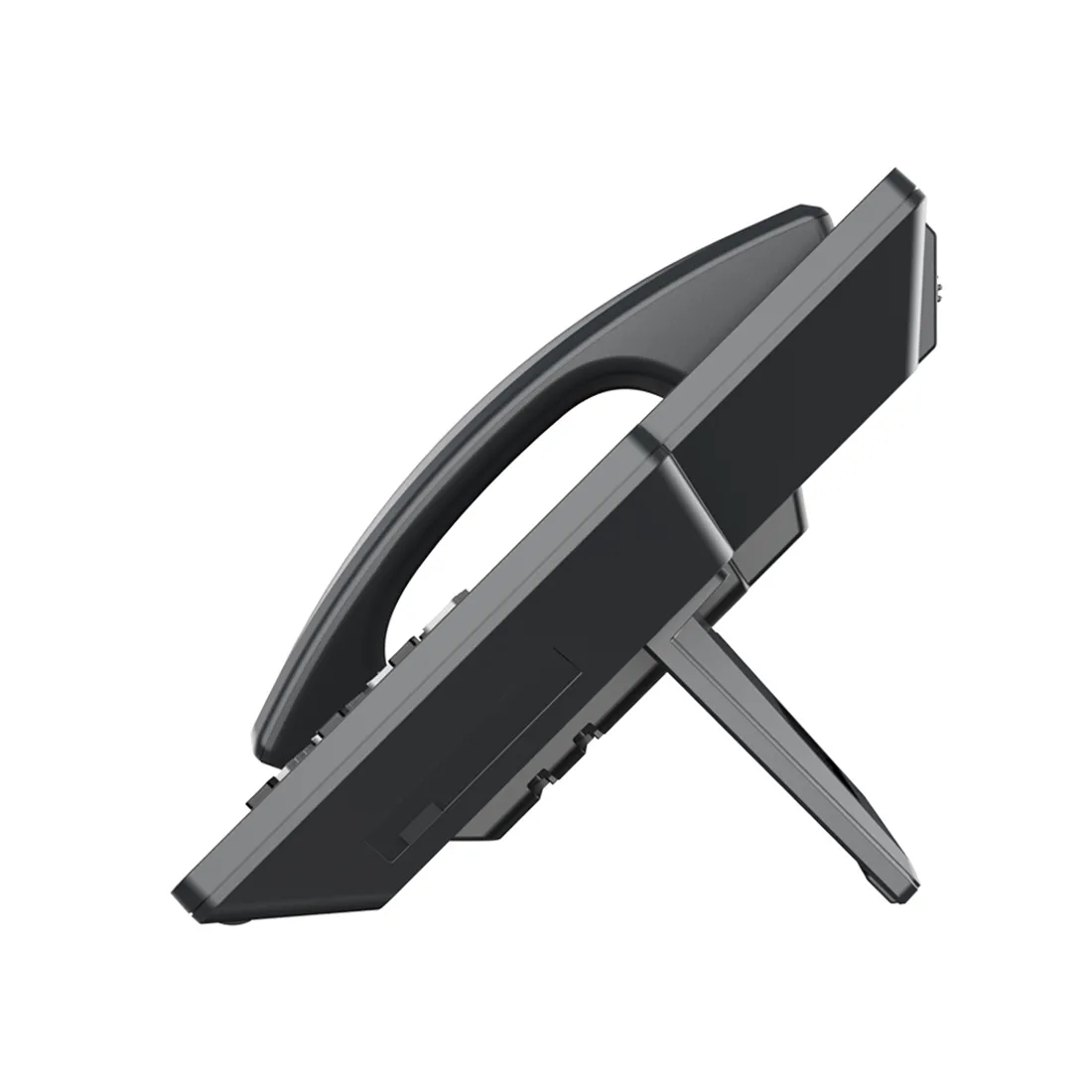

Rack
Yes, built-in, with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password, MD5 and MD5-sess authentication, 256-bit Configuration file with AES, TLS, SRTP*, HTTPS encryption, 802.1x-based media access control, secure boot with anti-hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and others

Updates/Settings
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, mass configuration via XML configuration file with TR-069 encryption or AES, GDMS

Power supply and energy efficiency
The package includes a universal power adapter. Input: 100-240VAC; 50-60 Hz; Output: DC12V, 1.5A (18 W) Built-in PoE*802.3af Class 3, PoE+802.3at Class 4

Temperature and humidity
Operation: 0 to 40 °C Storage: -10 to 60 °C Humidity: 10 to 90%, non-condensing

Package contents
GXV3470 phone, Wired headset, Stand, Universal power adapter, Network cable, screen wipe, Quick setup guide

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

The operating system
Android 10

Network interface
One 10/100/1000 Mbps port with integrated PoE/PoE+ module

Wi-Fi
Wi-Fi 6, dual-band 2.4and 5 GHz module, 802.11 a/b/g/n/ac/ax

Bluetooth
Built-in module. V2.1 + EDR, V5.0 Dual Mode

Microphone
12 omnidirectional microphones with MMAD

External microphone
GMD1208, cascading up to 2 microphones

Speaker
10-watt speaker with high-quality sound
Frequency: 100-20,000 Hz
Volume: up to 83 dB at a distance of 1.0 m

Additional ports
1 Multimedia port, 1 Network port, 1 HDMI input, 1 USB, 1 line-out, 1 Micro-USB,
1 Kensington Castle

Speech codecs
G.711µ/a, G.722 (broadband), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band
and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS,
Noise Shield

Telephony functions
SIP paging, hold, parking/picking up a call, 12-way audio conference (including
the creator), multi-way call automatically generates a conference, virtual
programmable key, downloadable contacts (XML, LDAP, up to 2000 elements),
call recording (locally and to the server), call log (up to 2000 entries), waiting call,
answering machine, flexible configuration of subscriber groups, personalization of ringtones and ringtones
on hold

HD Audio
Yes, HD speakerphone with broadband audio support

Certification
Zoom

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, MD5 and MD5-sess authentication,
configuration file with 256-bit AES encryption, TLS, SRTP, HTTPS, access control to
the 802.1x-based transmission medium

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via local HTTP download,
mass configuration using an XML configuration file with AES encryption

Nutrition and energy efficiency
Built-in PoE+ 802.3at module, Class 4
3300mAh Built-in rechargeable battery, up to 4 hours of talk time

Package contents
GAC2570 Conference Phone, Ethernet Cable, Micro-USB Cable, Quick
Installation Guide, PoE Injector, HDMI cable (optional), 2 GMD1208 wireless Microphones (optional)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90% (non-condensing)

Physical characteristics
Device weight: 1.38 kg
Device dimensions: 419.7 (D) × 218.5 (W) × 78.6 mm (H)

Accordance
FCC, CE, RCM, IC, UKCA
