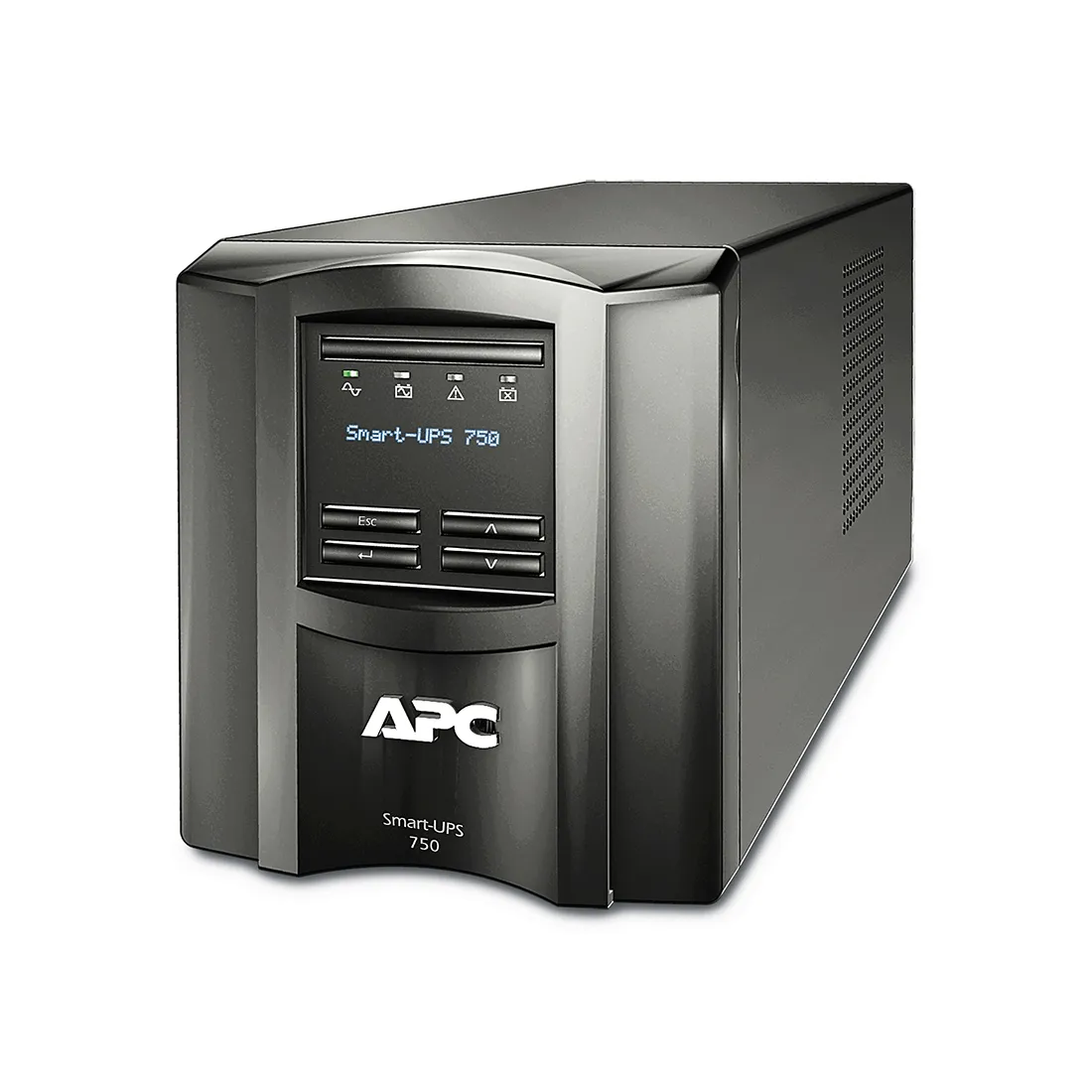

Источник бесперебойного питания APC Smart-UPS SMT750IC

Используется для защиты питания файловых серверов и АТС, а также любого другого оборудования, предъявляющего повышенные требования к качеству сетевого электропитания. Принцип работы состоит в двойном преобразовании (double conversion) тока. Сначала входное переменное напряжение преобразуется в постоянное, затем обратно в переменное напряжение с помощью обратного преобразователя (инвертора). При потере питания в городской сети, время переключения в автономный режим равно нулю.

Дополнительная батарея для источника бесперебойного питания позволяет увеличить время автономной работы ИБП, кроме того, использование дополнительных батарей особенно необходимо, если в вашей электрической сети возможны длительные перебои, в то время как подключенные устройства не могут оставаться без питания. Герметичный свинцово-кислотный батарейный блок имеет встроенное зарядное устройство. Возможна горячая замена батареи. Заряжается блок в течение 8 часов, и может служить как для домашнего использования, так и для профессионального.

Main input voltage
230 V

Other input voltage
220 V
240 V

Main output voltage
230 V

Other output voltage
220 V
240 V

Rated power, W
900 W

Rated power in VA
1500 VA

Type of product or component
Uninterruptible Power Supply (UPS)

Type of input connection
IEC 320 C14

type of output connection
8 IEC 320 C13
2 IEC jumpers

Battery Type
Lead-acid battery

Battery voltage
24 V

Extended working time
0

The number of filled battery slots
is 0

The number of available battery slots
is 0

Battery recharge time
3 hours

Number of batteries to replace
1

Battery life
is 3...5 years

Spare battery
RBK6

Battery charger power
Rated power 73 W

The number of filled slots of the power supply module
is 0

The number of free slots of the power supply module
is 0

a subfamily of web products
Cloud monitoring

Redundant
No

Input voltage limits
170...300 V adjustable
180...287 In

Network frequency
50/60 Hz +/- 3 Hz, auto-detection

Harmonic distortion
Less than 5 %

The maximum adjustable power in VA
is 1500 VA

The maximum adjustable power in watts
is 900 watts

Transfer time
6 ms is typical: 10 ms maximum

Type of UPS
The line is interactive

Type of wave
The sine wave

Output frequency
50/60 Hz +/- 3 Hz, network synchronization

Main features
- Output power: 450 Watts / 800VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum specified power (W): 450 Watts / 800VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 161MM, 16.05 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 5.3 KG
- Gross weight: 5.6 KG
- Dimensions of the TRANSPORT package: 237x3632x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main features
- Working time with load: 2400W: 4m 24s
- Output power: 2.4kW / 3.0kVA
- Rack height: 2U
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: IEC 60320 C20
- Cord length: 1.5meters

Exit
- Maximum set power (W): 2.4kW / 3.0kVA
- Efficiency under full load: 88.0 %
- Distortion of the output voltage shape: 3 %
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
- Topology: Topology double conversion
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)

Entrance
- Input frequency: 40 - 70 Hz Automatic detection
- Input voltage range during mains operation: 110 - 285 Half load, 160 - 280 Full load
- Number of power cables: 1
- Efficiency under full load: 88.0 %
- Other input voltage values: 220 V, 240 V

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 4 hours
- Rated battery voltage: 72 V
- Expected battery life (years): 3 - 5
- Charger Power (W): 60 Watts

Communication and administrative tools
- Interface Port(s): DB-9 RS-232, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Beep: Signal to switch to battery operation mode: special battery depletion signal : continuous overload signal
- Number of SmartSlot™ interfaces available: 1

Surge protection and noise filtering
- Burst energy Rating: 600joules

Physical parameters
- Maximum height: 86MM, 8.6cm
- Maximum width: 437MM, 43.7cm
- Maximum depth: 632MM, 63.2cm
- Net weight: 27.6KG
- Gross weight: 29.0KG
- Dimensions of the transport package: 228x570x794MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 %
- Operating altitude range above sea level: 0 - 3000meters
- Storage temperature: -20 - 50 °C
- Storage relative humidity: 0 - 95 (Non-condensing) %
- Storage altitude above sea level: 0 - 15000meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 50.0dB(A)
- Heat dissipation in operational mode: 910.0BTU/hour
- Protection class: IP20

Accordance
- Compliance with the requirements: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty: 2 years for repair or replacement.
