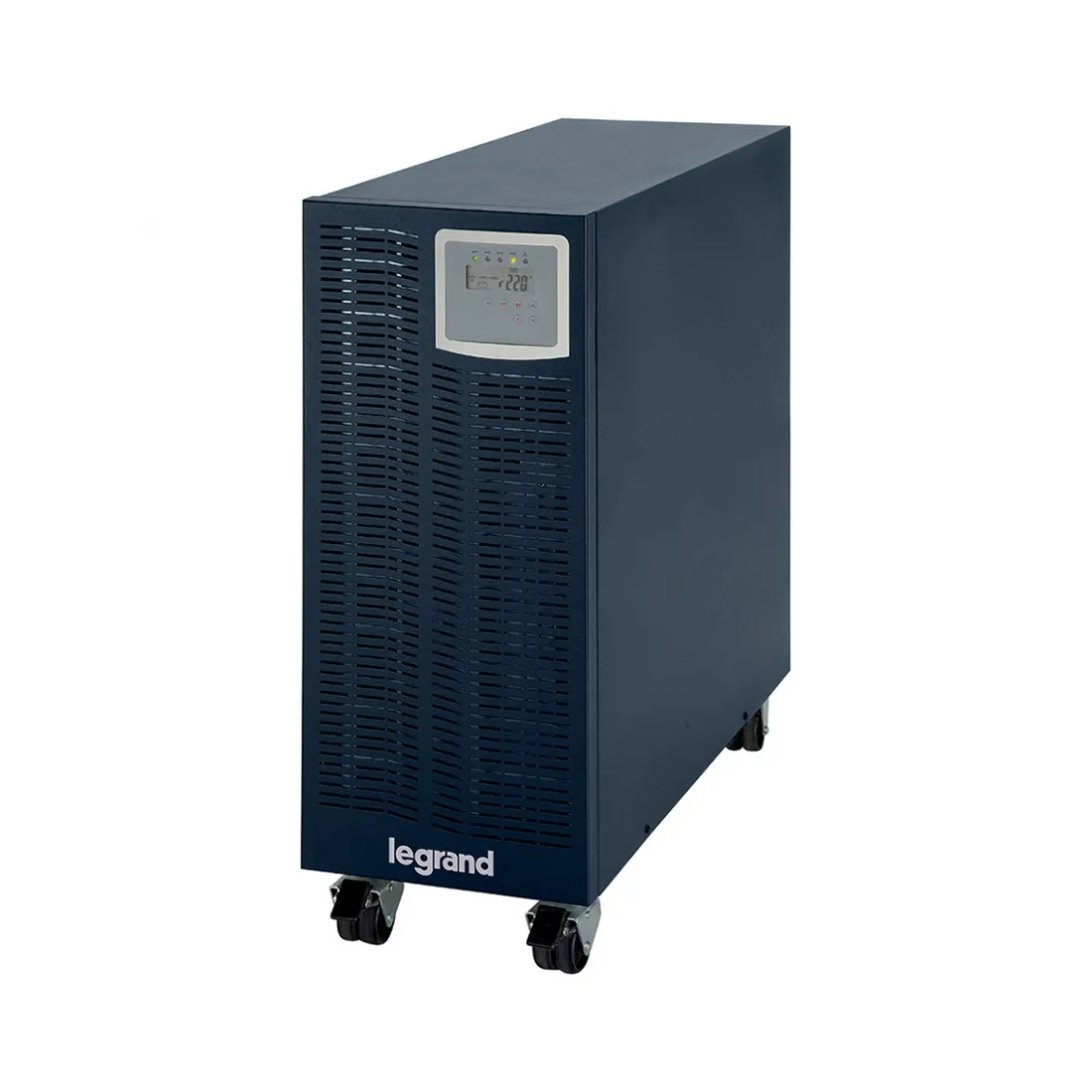

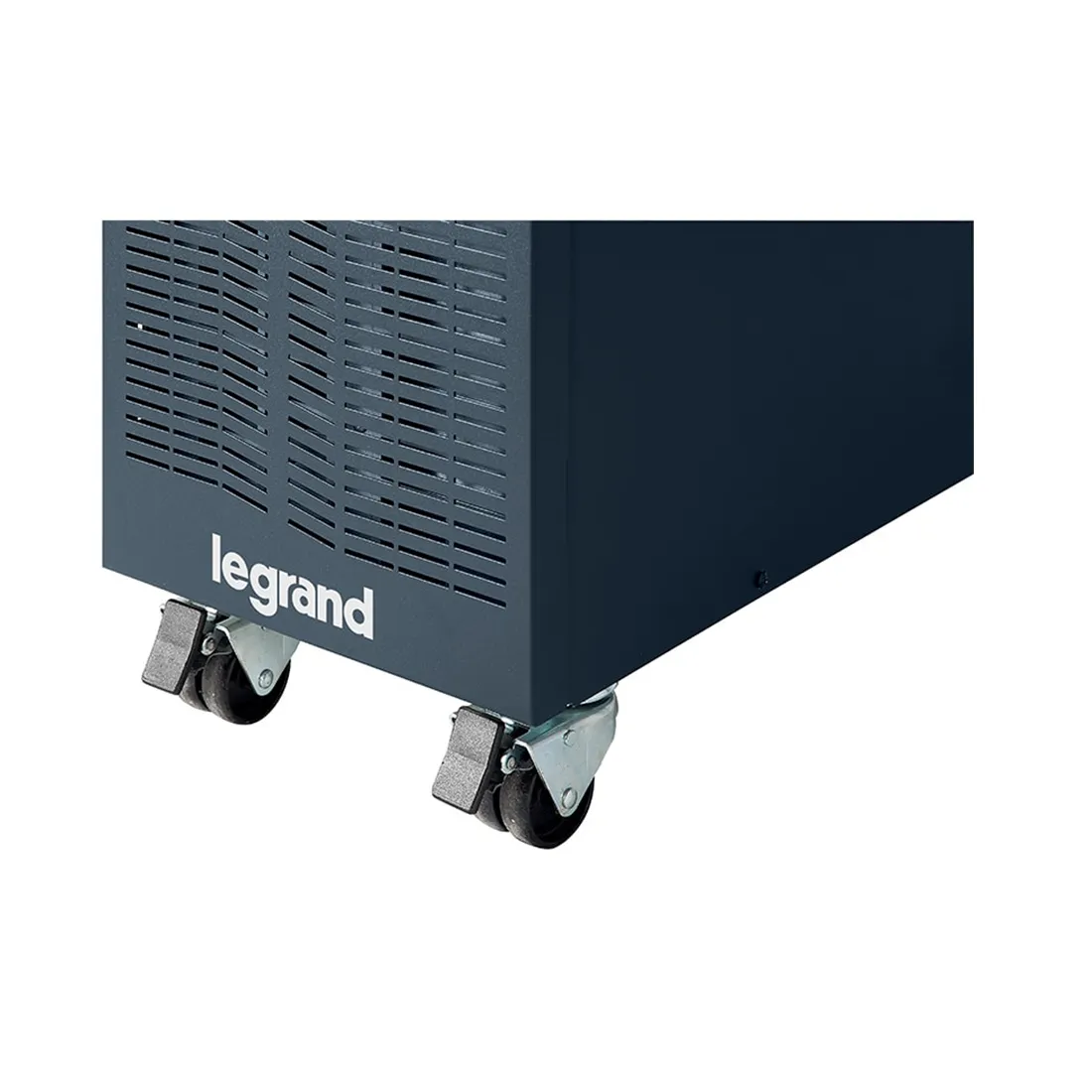

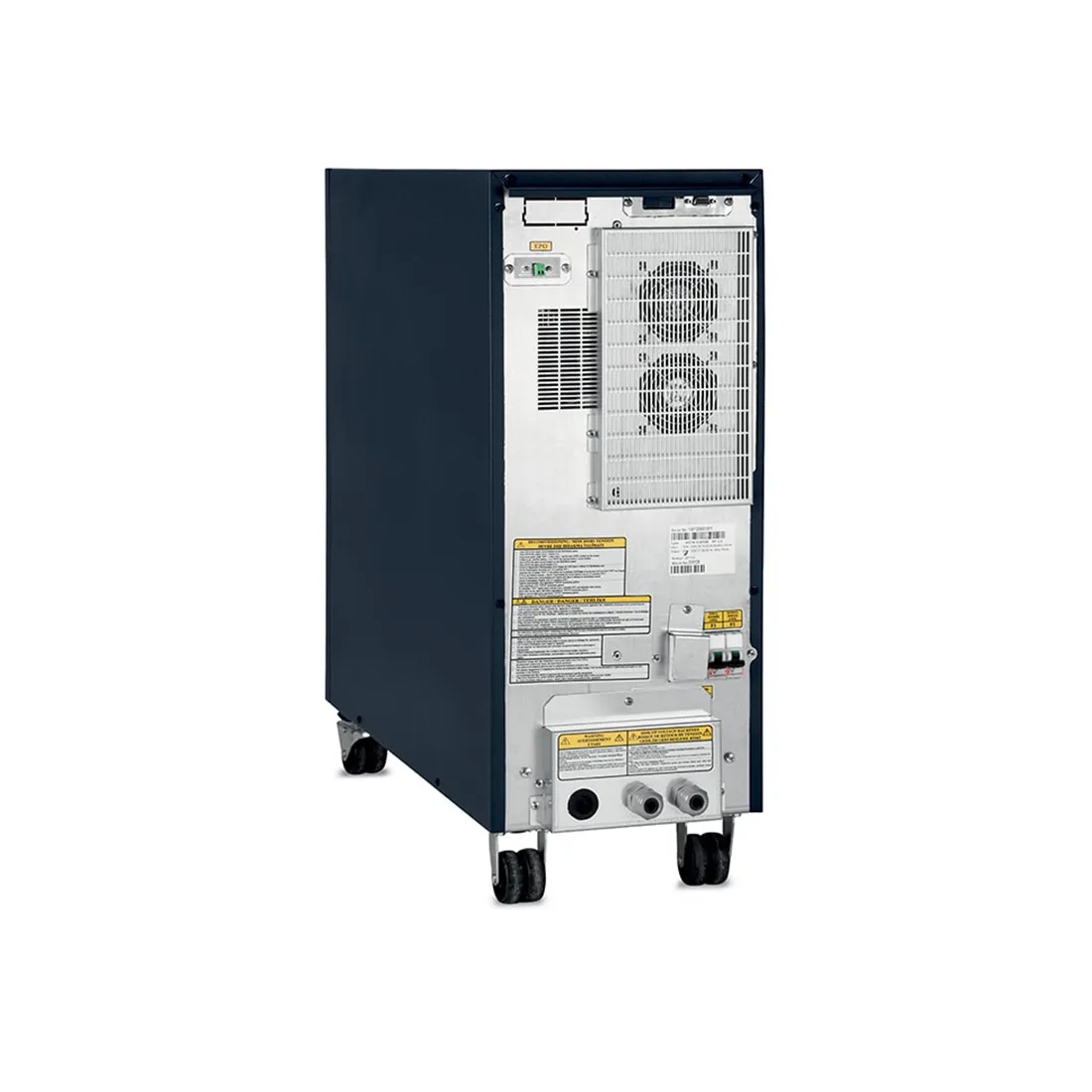

Источник бесперебойного питания Legrand Keor S 6 kВA 17'

Высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. Онлайн ИБП с чистым синусоидальным сигналом Высокая эффективность работы в энергосберегающем режиме ECO. Возможностьподключения до 4 внешних аккумуляторных блоков (SRVS240BP-9A) для увеличения времени автономной работы. Легко читаемый ЖК-интерфейс для получения подробной и точной информации о состоянии ИБП. Экологические характеристики продукта

Overview Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. Delivery time Usually in stock Key features Runtime with 10,000 W load Min.-max.: 1000-10000 W 2 min 52 sec Max. Used capacity 100% Main Input voltage 230 V Product type Uninterruptible power supply (UPS) Other Input voltage 220 V 240 V Main Output voltage 230 V Other Output voltage 220 V 240 V Nominal power [W] 10000 W Nominal power, VA 10000 VA Output connection type Permanent three-wire (1P + N + E) 1 Quantity Unit 4U provided equipment 1 USB cable 1 RS-232 configuration cable 2 Rack mounting brackets 2 Rack mounting guides 1 external battery pack 1 battery cable operation manual Easy UPS On-Line Series Batteries and Autonomous Runtime View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage 192 V Extended runtime capability 0 Pre-installed batteries 0 Free battery slots 0 Typical recharge time 5 h Battery life 3…5 year(s) Charger power (W) 235 W nominal General Number of slots occupied by power modules 0 Number of slots not occupied by power modules 0 spare No Physical parameters Colour Black (RAL 7010) Height 173 mm Width 438 mm Depth 710 mm Product weight 68 kg Mounting location Front Mounting type Bottom Mounting type Rack-mount USB-compatible Yes Mounting position Horizontal Input Input voltage limits 110...300 V 60 % load 176...300 V full load Number of input connections 1 Non-detachable three-wire (1P + N + E) Network frequency 40–70 Hz autosensing Output Maximum set power (VA) 10000 VA Maximum set power (W) 10000 W Output frequency 50/60 Hz +/- 3 Hz synchronized with the mains Harmonic distortion 1 % UPS type Double conversion topology Waveform type Sine wave Efficiency 94 % (full load) Bypass type Internal bypass (automatic and manual) Crest factor 3:1 Conformity Certifications CE UKCA EAC TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental parameters Ambient operating temperature 0…40 °C Relative humidity 0…95 % non-condensing Altitude 0...3000 m Ambient storage temperature -15…60 °C Storage relative humidity 0…95 % non-condensing condensate Storage altitude 0…15000 m Acoustic level 58 dBA Heat output 2128 ‰ IP protection rating IP20 Communication and admin alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency power off (EPO) Yes Free slots 1 Control panel Multifunctional LCD status and control panel Surge and filter protection Surge energy rating 600 J

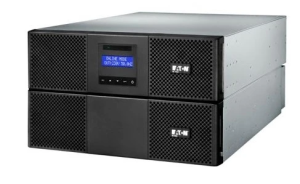

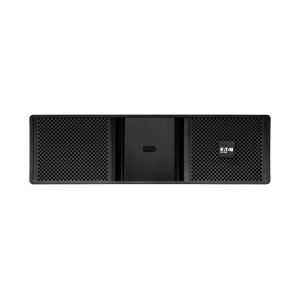

Батарейный блок расширение для увеличения времени автономной работы ИБП EATON 9SX11KIRT4UG2.
Дополнительная батарея для источника бесперебойного питания позволяет увеличить время автономной работы ИБП, кроме того, использование дополнительных батарей особенно необходимо, если в вашей электрической сети возможны длительные перебои, в то время как подключенные устройства не могут оставаться без питания.
Возможна горячая замена батареи.

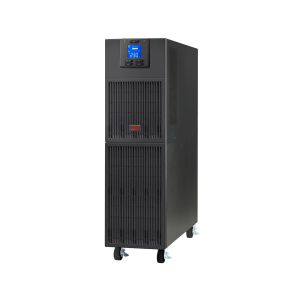

Main features
- Working time with a load of 10000 W: 2m 52s
- Output power: 10.0 kW / 10.0 kVA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Hard wire 3-wire (1P + N + E)

Exit
- Maximum specified power (W): 10.0 kW / 10.0 kVA
- Efficiency under full load: 94.0 %
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
-Topology: Topology double transformation
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)

Entrance
- Input frequency: 40-70 Hz
- Input voltage range when working from the mains: 110-300 Adjustable (half load), 176-300V
- Efficiency under full load: 94.0 %
- Other input voltage values: 220 V, 240 V

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 3 hours
- Charger Power (W): 531 Watts

Communication and administrative tools
- Interface Port (s): DB-9 RS-232, Intelligent Smart Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal
- Emergency Power Off (EPO): Yes
- Number of available SmartSlot™ interfaces: 1

Surge protection and noise filtering
- Burst energy rating: 600joules

Physical parameters
- Maximum height: 685MM, 68.5 cm
- Maximum width: 190MM, 19.0 cm
- Maximum depth: 447MM, 44.7 cm
- Net weight: 65.0 KG
- Gross weight: 77.0 KG
- Dimensions of the transport package: 910x320x580MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-60 °C
- Storage Relative humidity: 0-95 (Non-condensing) %
- Storage altitude: 0-15000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 58.0 dB (A)
- Protection class: IP20

Accordance
- Compliance with the requirements: CE, EAC, IEC 62040-1-1, IEC 62040-1-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Overview Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. Delivery time Usually in stock Key features Runtime with 10,000 W load Min.-max.: 1000-10000 W 2 min 52 sec Max. Used capacity 100% Main Input voltage 230 V Product type Uninterruptible power supply (UPS) Other Input voltage 220 V 240 V Main Output voltage 230 V Other Output voltage 220 V 240 V Nominal power [W] 10000 W Nominal power, VA 10000 VA Output connection type Permanent three-wire (1P + N + E) 1 Quantity Unit 4U provided equipment 1 USB cable 1 RS-232 configuration cable 2 Rack mounting brackets 2 Rack mounting guides 1 external battery pack 1 battery cable operation manual Easy UPS On-Line Series Batteries and Autonomous Runtime View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage 192 V Extended runtime capability 0 Pre-installed batteries 0 Free battery slots 0 Typical recharge time 5 h Battery life 3…5 year(s) Charger power (W) 235 W nominal General Number of slots occupied by power modules 0 Number of slots not occupied by power modules 0 spare No Physical parameters Colour Black (RAL 7010) Height 173 mm Width 438 mm Depth 710 mm Product weight 68 kg Mounting location Front Mounting type Bottom Mounting type Rack-mount USB-compatible Yes Mounting position Horizontal Input Input voltage limits 110...300 V 60 % load 176...300 V full load Number of input connections 1 Non-detachable three-wire (1P + N + E) Network frequency 40–70 Hz autosensing Output Maximum set power (VA) 10000 VA Maximum set power (W) 10000 W Output frequency 50/60 Hz +/- 3 Hz synchronized with the mains Harmonic distortion 1 % UPS type Double conversion topology Waveform type Sine wave Efficiency 94 % (full load) Bypass type Internal bypass (automatic and manual) Crest factor 3:1 Conformity Certifications CE UKCA EAC TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental parameters Ambient operating temperature 0…40 °C Relative humidity 0…95 % non-condensing Altitude 0...3000 m Ambient storage temperature -15…60 °C Storage relative humidity 0…95 % non-condensing condensate Storage altitude 0…15000 m Acoustic level 58 dBA Heat output 2128 ‰ IP protection rating IP20 Communication and admin alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency power off (EPO) Yes Free slots 1 Control panel Multifunctional LCD status and control panel Surge and filter protection Surge energy rating 600 J

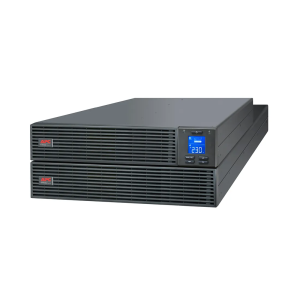

APC Easy UPS SRV10KRIRK высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. В комплект поставки входит: 1 USB кабель 1 Кабель для конфигурирования через порт RS-232 2 Кронштейны для монтажа в аппаратурные стойки 2 Направляющие для монтажа в аппаратурные стойки 1 external battery pack 1 батарейный кабель руководство по эксплуатации
