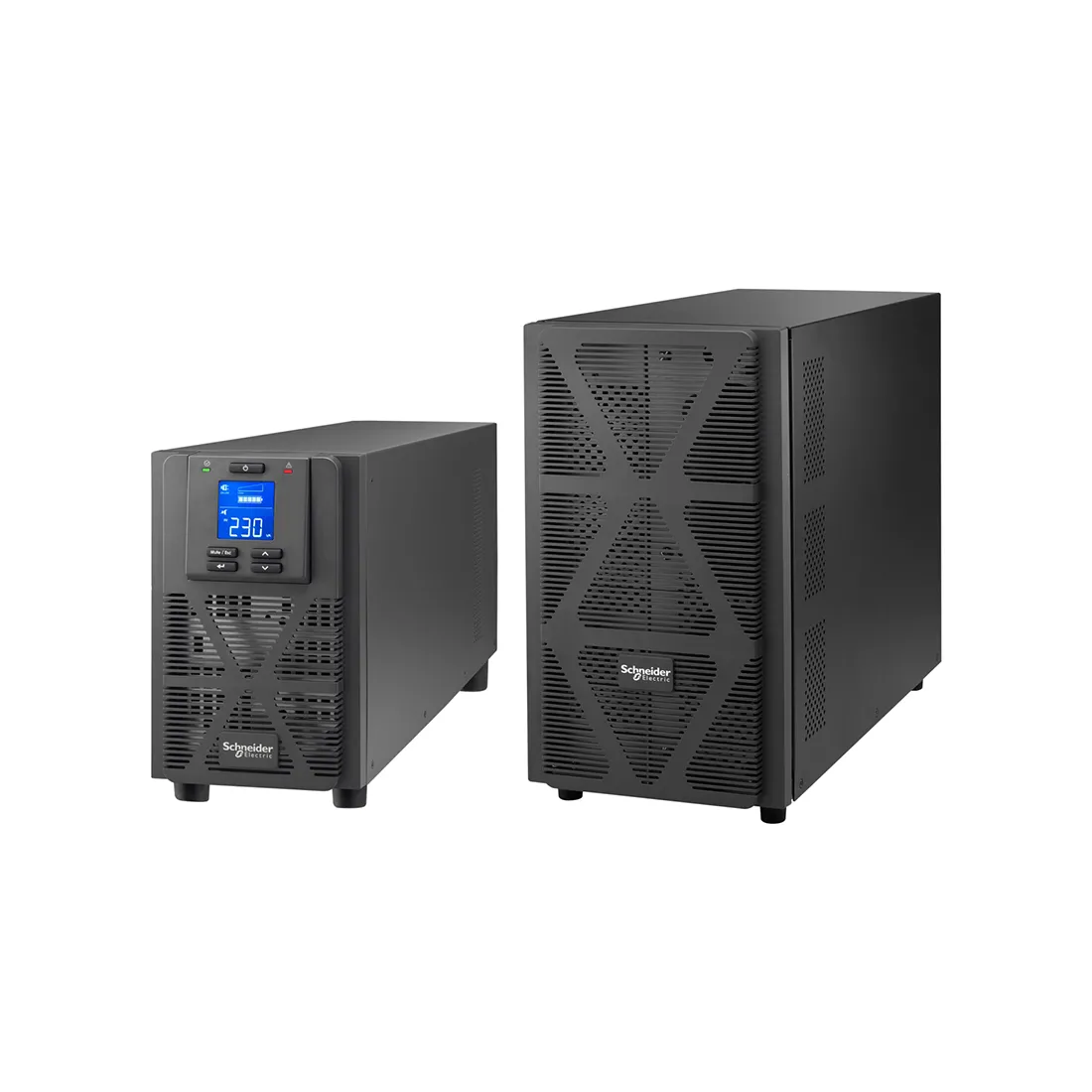

Источник бесперебойного питания Schneider Electric Easy UPS SRVS3KIL

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

The extended execution time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Extended Execution time model
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

The extended execution time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Extended Execution time model
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

Высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. ПО позволяет пользователю управлять функциями ИБП, планировать автоматическое отключение и отслеживать события в электросети через интерактивный интерфейс, который обеспечивает простой и интуитивно понятный мониторинг. 1 кабель питания IEC 60320 C13 — Schuko 1 кабель питания IEC 60320 C13 — C14 1 кабель USB 1 кабель конфигурации RS-232 1 внешний аккумуляторный блок 1 кабель аккумулятора руководство пользователя
