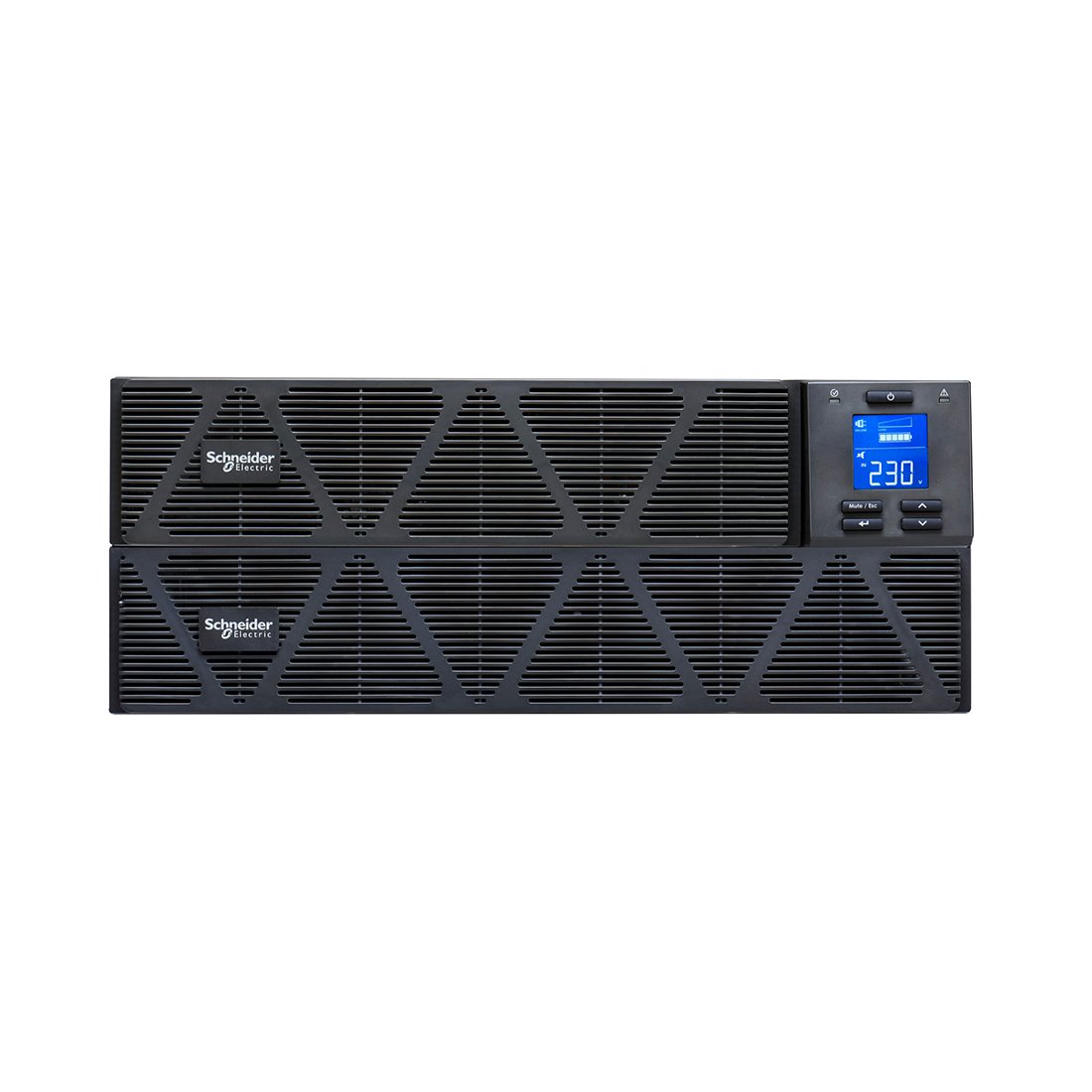

Источник бесперебойного питания Schneider Electric Easy UPS SRVS6KRIRK

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

The extended execution time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Extended Execution time model
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

Schneider Electric Easy UPS SRVS3KRILRK высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. В комплект поставки входит: 1 IEC 60320 C19 to Schuko силовой кабель 1 IEC 60320 C13 to C14 силовой кабель 1 USB кабель 1 Кабель для конфигурирования через порт RS-232 2 Кронштейны для монтажа в аппаратурные стойки 2 Направляющие для монтажа в аппаратурные стойки 1 external battery pack 1 батарейный кабель

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg
