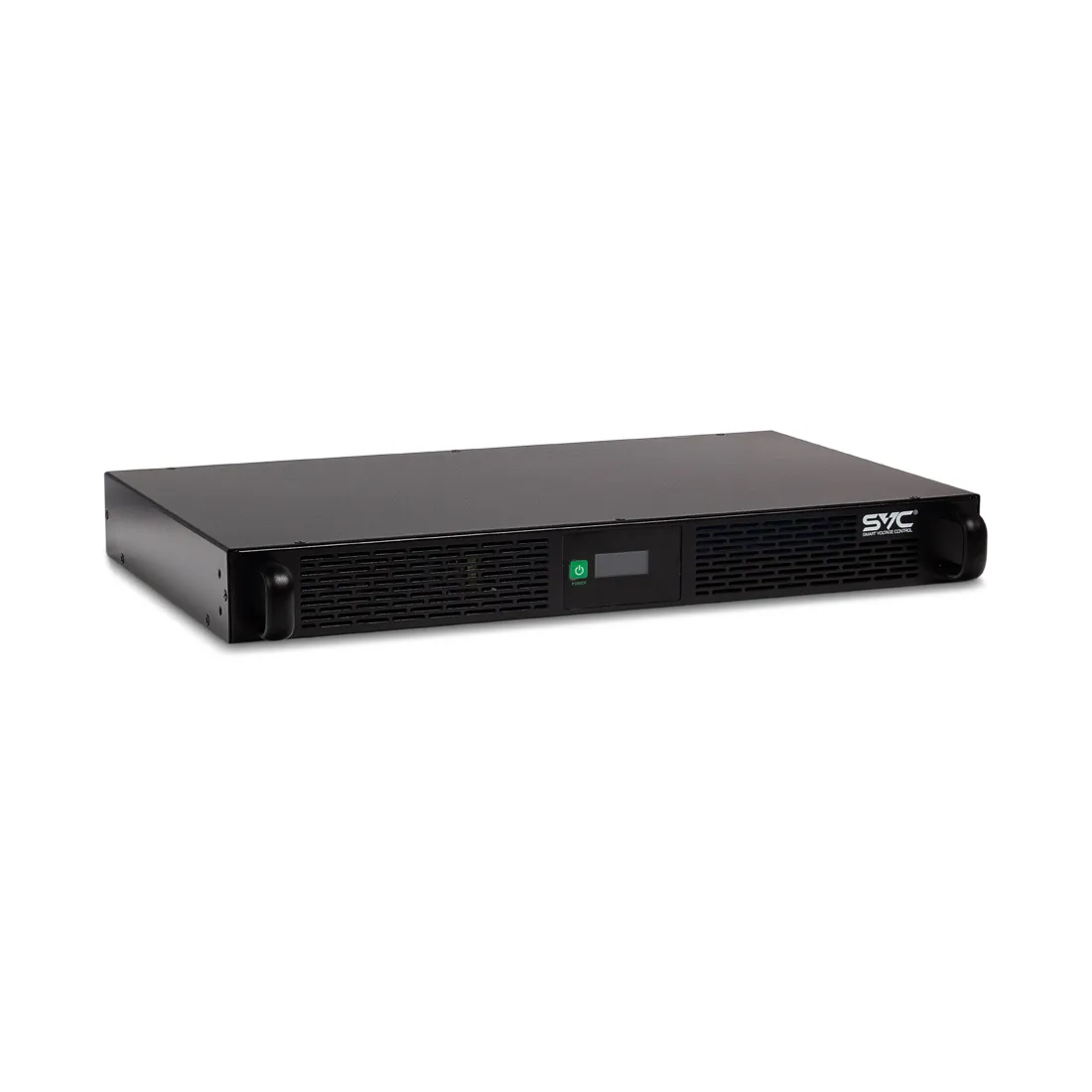

Источник бесперебойного питания SVC RTL-800-LCD

Main features
- Working time with 400W load: 2m 37s
- Output power: 400 Watts / 650VA
- Output connectors:
(2) Schuko CEE 7 (Surge protection)
(6) Schuko CEE 7 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.8meters
- Maximum input current: 6.0A

Exit
- Maximum set power (W): 400 Watts / 650VA
- Efficiency under full load: 80.0%
- Output frequency (synchronized with the power grid): 47 - 63 Hz Synchronized with the power grid, 50/60 Hz +/- 1 Hz Not synchronized
- Other output voltage: 220V
- Topology: Standby mode
- Type of voltage form: Stepwise approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 47 - 63 Hz
- Input voltage range during mains operation: 180–266V
- Efficiency under full load: 80.0 %

Batteries and battery life
- Battery Type: Lead acid battery
- Typical recharge time: 16 hours
- Replaceable battery: APCRBC110
- Expected battery life (years): 2 - 5
- Charger power (W): 5 Watts

Communication and administrative tools
- Interface Port(s): USB
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation) : replace battery (battery replacement required) and overload (overload)
- Beep: Signal to switch to battery operation mode : special battery depletion signal : continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 310joules
- Data line protection: Analog telephone line for telephone/Fax/Modem/DSL (RJ45 connector), Network line — 10/100 Base-T Ethernet (RJ45 connector)

Physical parameters
- Maximum height: 120MM, 12.0cm
- Maximum width: 130MM, 13.0cm
- Maximum depth: 365MM, 36.5cm
- Net weight: 4.0KG
- Gross weight: 4.5KG
- Dimensions of the transport package: 190 x 186 x 441MM
- Color: Black
- Package dimensions: 559 x 457 x 203MM
- Package weight: 14.5

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 90 %
- Operating altitude range above sea level: 0 - 914.4meters
- Storage temperature: -15 - 45 °C
- Relative humidity of storage: 0 - 95 %
- Storage altitude: 0 - 4572 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 45.0dB(A)

Accordance
- Compliance with the requirements: CE, EAC, EAC

Новый промышленный ИБП Schneider ElectricTM Easy на 24 В постоянного тока, установленный на din-рейке, обеспечивает надежную защиту питания при любых отключениях питания. Оснащен входными/выходными клеммами постоянного тока, а также возможностью подключения до 3 дополнительных аккумуляторных батарей для увеличения времени работы при отключении электроэнергии. ИБП оснащен контактными клеммами реле, которые позволяют удаленно управлять подключенным оборудованием, а также осуществлять мониторинг ИБП ИБП ПОСТАВЛЯЕТСЯ БЕЗ АКБ.

Main features
- Working time with 400W load: 2m 37s
- Output power: 400 Watts / 650VA
- Output connectors:
(2) Schuko CEE 7 (Surge protection)
(6) Schuko CEE 7 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Cord length: 1.8meters
- Maximum input current: 6.0A

Exit
- Maximum set power (W): 400 Watts / 650VA
- Efficiency under full load: 80.0%
- Output frequency (synchronized with the power grid): 47 - 63 Hz Synchronized with the power grid, 50/60 Hz +/- 1 Hz Not synchronized
- Other output voltage: 220V
- Topology: Standby mode
- Type of voltage form: Step approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 47 - 63 Hz
- Input voltage range during mains operation: 180–266V
- Efficiency under full load: 80.0 %

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 16 hours
- Replaceable battery: APCRBC110
- Expected battery life (years): 2 - 5
- Charger Power (W): 5 Watts

Communication and administrative tools
- Interface Port(s): USB
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation) : replace battery (need to replace the battery) and overload (overload)
- Beep: Signal to switch to battery operation mode : special signal of battery depletion : continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 310joules
- Data line protection: Analog telephone line for telephone/Fax/Modem/DSL (RJ45 connector), Network line — 10/100 Base-T Ethernet (RJ45 connector)

Physical parameters
- Maximum height: 120MM, 12.0cm
- Maximum width: 130MM, 13.0cm
- Maximum depth: 365MM, 36.5cm
- Net weight: 4.0KG
- Gross weight: 4.5KG
- Dimensions of the transport package: 190 x 186 x 441MM
- Color: Black
- Package dimensions: 559 x 457 x 203MM
- Package weight: 14.5

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 90 %
- Operating altitude range above sea level: 0 - 914.4meters
- Storage temperature: -15 - 45 °C
- Relative humidity of storage: 0 - 95 %
- Storage altitude above sea level: 0 - 4572 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 45.0dB(A)

Accordance
- Compliance with the requirements: CE, EAC, EAC

Standard Warranty
2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Maximum adjustable power (W)
400 W/650 VA

Efficiency at full load
80,0 %

Output frequency (network synchronization)
47-63 Hz Network synchronization, 50/60 Hz +/- 1 Hz Unsynchronized

Other output voltages
220 V

Topology
Support

Signal type
Stepwise approximation of a sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
47-63 Hz

Input voltage range for basic operations
180-266 V

Efficiency at full load
80,0 %

Battery Type
Lead-acid battery

Rated battery voltage
12 V

Expected battery life (years)
2-5

Battery power (W)
7.5 kW

USB Interface Port(s)


The Control Panel
LED status display with load and battery histograms, as well as online indicators: Battery power: Battery replacement: and overload indicators.

Pulse energy rating
310joules

Maximum height
120 mm, 12.0 cm

Maximum width
130 mm, 13.0 cm

Maximum depth
365 mm, 36.5 cm

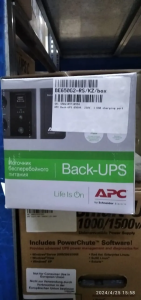

ИБП семейства Back-UPS надежно защищают электропитание мощных компьютерных систем, маршрутизаторов и модемов, внешних систем хранения, игровых приставок и прочей электроники в доме или организации. Эти ИБП стабилизируют напряжение при его отклонении от безопасных значений и дают возможность длительной работы от батарей при отключении электроэнергии. Они также обеспечивают защиту электропитания от опасных бросков и всплесков напряжения, а ПО для управления ИБП позволяет максимально полно использовать его возможности. BE650G2-GR имеет в общей сложности 8 выходных разъемов, 6 из которых предназначены для резервного питания, а 2 — выполняют функцию сетевого фильтра. Оснащен одним USB-портом для зарядки, а также программным обеспечением APC PowerChute Personal Edition для управления питанием и энергопотреблением.

Устройство, позволяющее подключенному оборудованию некоторое время работать от встроенных аккумуляторов, при пропадании электрического тока или при выходе его параметров за допустимые нормы. Кроме того, оно способно корректировать параметры (напряжение, частоту) электропитания. Часто применяется для обеспечения бесперебойной работы компьютеров.

Main features
- Working time with 400W load: 2m 37s
- Output power: 400 Watts / 650VA
- Output connectors:
(2) Schuko CEE 7 (Surge protection)
(6) Schuko CEE 7 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Cord length: 1.8meters
- Maximum input current: 6.0A

Exit
- Maximum set power (W): 400 Watts / 650VA
- Efficiency under full load: 80.0%
- Output frequency (synchronized with the power grid): 47 - 63 Hz Synchronized with the power grid, 50/60 Hz +/- 1 Hz Not synchronized
- Other output voltage: 220V
- Topology: Standby mode
- Type of voltage form: Step approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 47 - 63 Hz
- Input voltage range during mains operation: 180–266V
- Efficiency under full load: 80.0 %

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 16 hours
- Replaceable battery: APCRBC110
- Expected battery life (years): 2 - 5
- Charger Power (W): 5 Watts

Communication and administrative tools
- Interface Port(s): USB
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation) : replace battery (need to replace the battery) and overload (overload)
- Beep: Signal to switch to battery operation mode : special signal of battery depletion : continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 310joules
- Data line protection: Analog telephone line for telephone/Fax/Modem/DSL (RJ45 connector), Network line — 10/100 Base-T Ethernet (RJ45 connector)

Physical parameters
- Maximum height: 120MM, 12.0cm
- Maximum width: 130MM, 13.0cm
- Maximum depth: 365MM, 36.5cm
- Net weight: 4.0KG
- Gross weight: 4.5KG
- Dimensions of the transport package: 190 x 186 x 441MM
- Color: Black
- Package dimensions: 559 x 457 x 203MM
- Package weight: 14.5

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 90 %
- Operating altitude range above sea level: 0 - 914.4meters
- Storage temperature: -15 - 45 °C
- Relative humidity of storage: 0 - 95 %
- Storage altitude above sea level: 0 - 4572 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 45.0dB(A)

Accordance
- Compliance with the requirements: CE, EAC, EAC

Standard Warranty
2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
