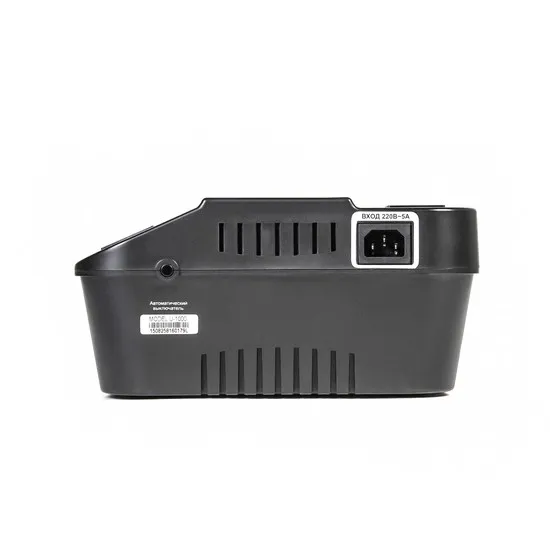

Источник бесперебойного питания SVC U-1000

Main features
- Working time with a load of 410 W: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko
- Length of the cord: 1.2 meters

Exit
- Maximum set power (W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 140-300V
- Number of power cables: 1
- Input power factor under full load: 0.63

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
-Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: A signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
- Burst energy rating: 273joules
- Data Line Protection: 10/100/1000 Base-T RJ45 Ethernet protection

Physical parameters
- Maximum height: 160MM, 16.0 cm
- Maximum width: 120MM, 12.0 cm
- Maximum depth: 355MM, 35.5 cm
- Net weight: 5.4 KG
- Gross weight: 5.9 KG
- Dimensions of the TRANSPORT package: 250x197x430MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-40 °C
- Storage Relative Humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-3000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
