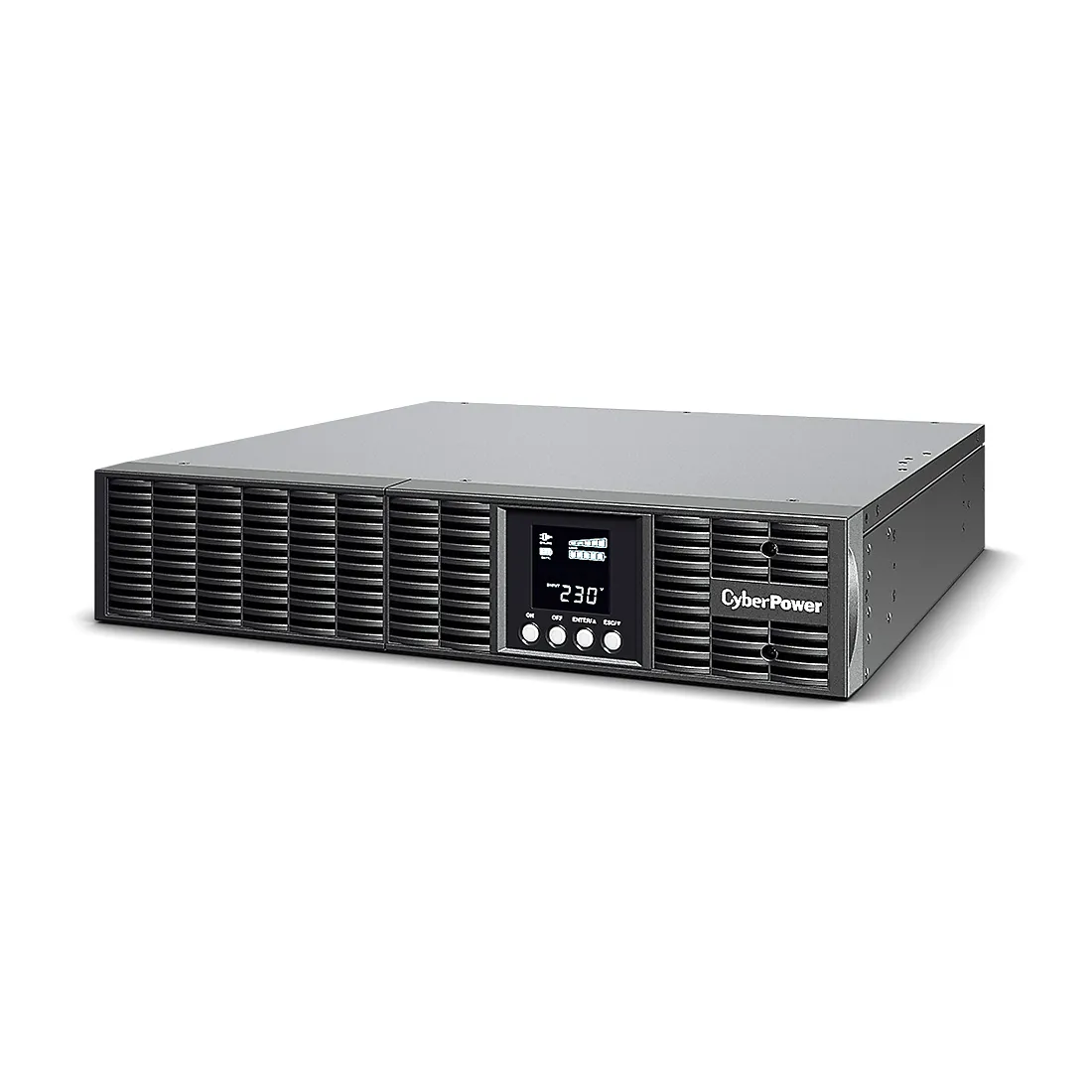

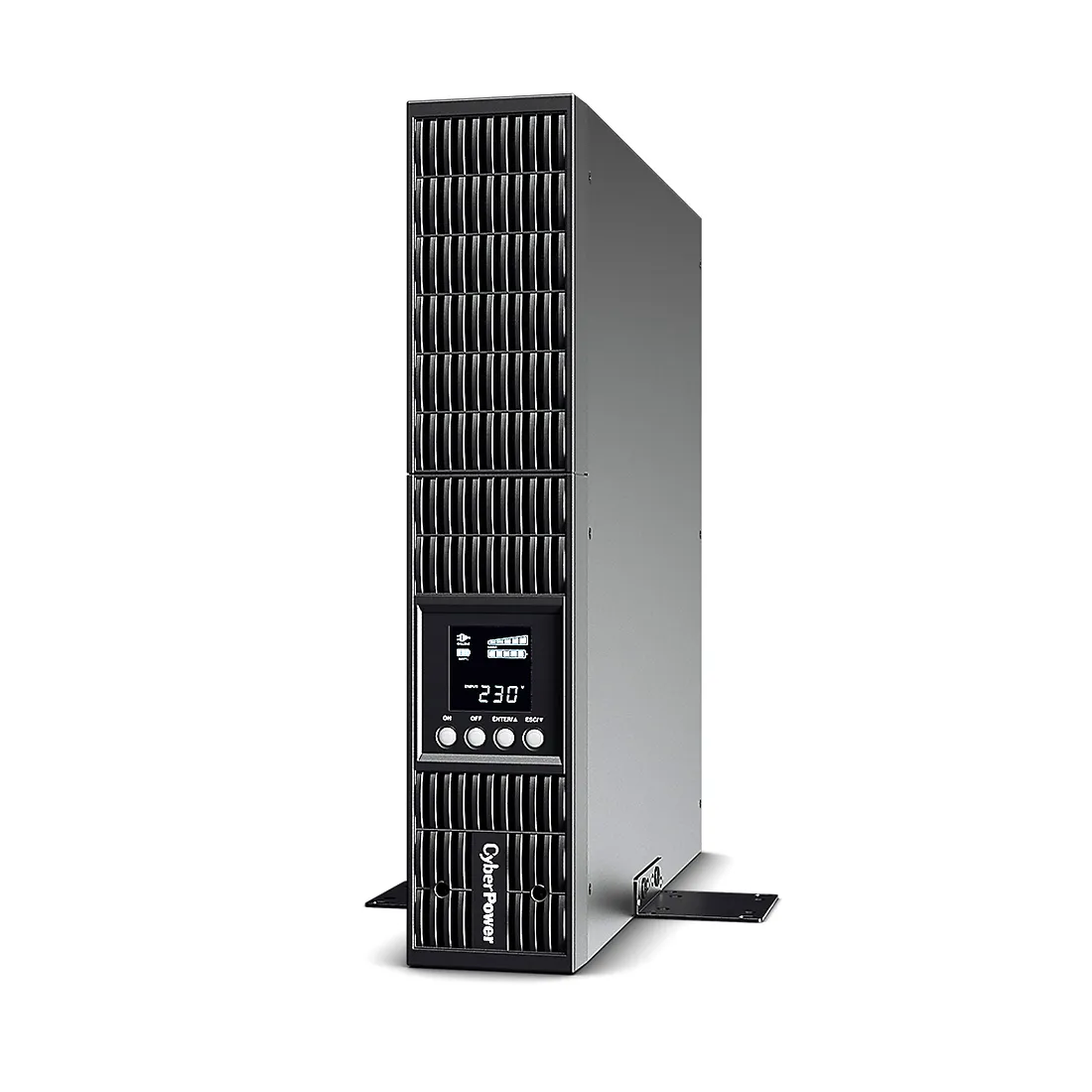

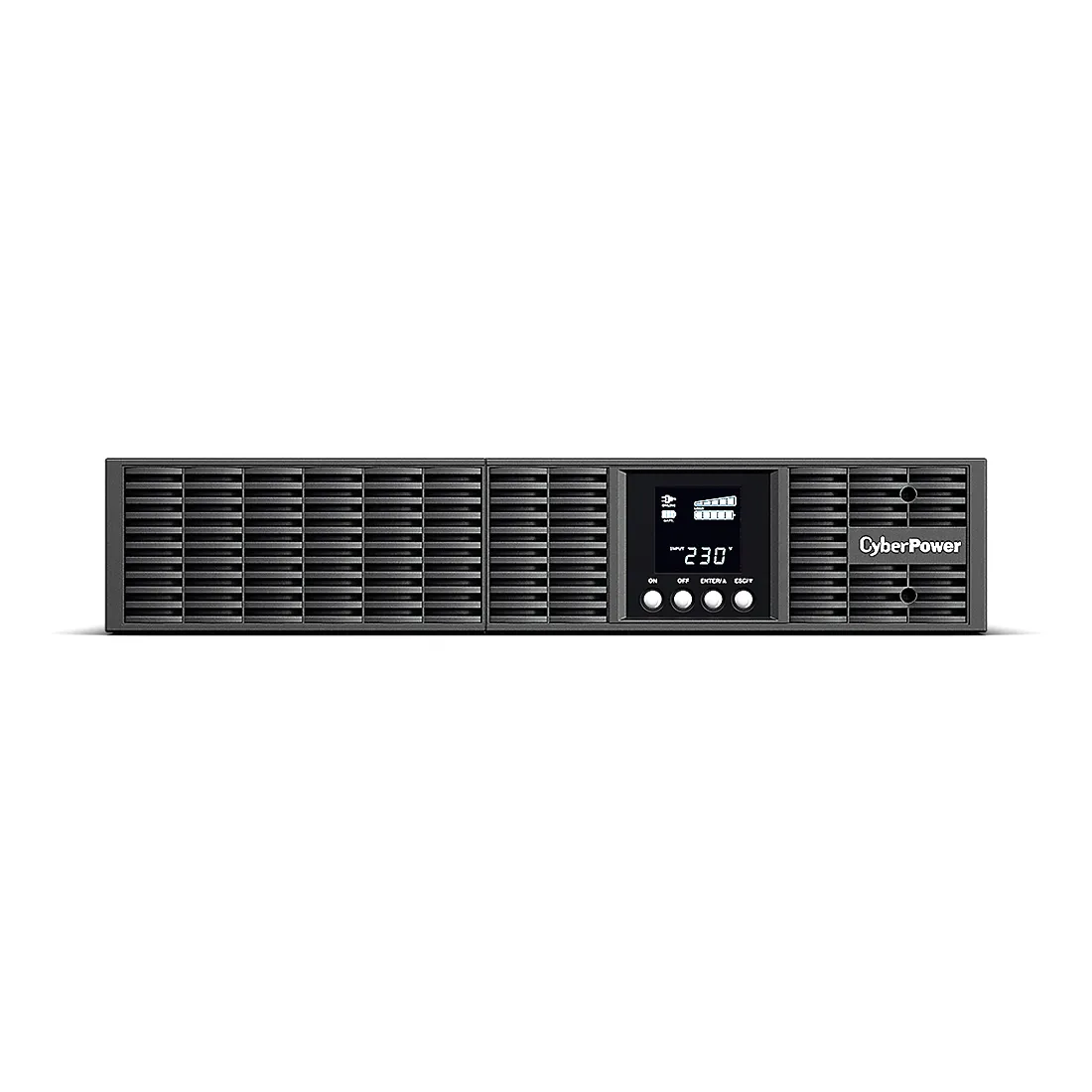

Источник бесперебойного питания CyberPower OLS1500ERT2U

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency 50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection:

Standard runtime model:
● RT-5K/6KC13 x6, C19 x2, terminal x1, programmable socket C19 x1
● RT-8K/10KC13 x6, C19 x4, Terminal x1, Programmable socket C19 x1

A model with extended working hours
Terminal x1, Programmable Terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode 95.5%

Eco Mode
Up to 99%

Battery Type VRLA/Lithium-ion

Rated voltage:
Standard operating time model:
● RT-5K/6K192 In the post. current
● RT-8K/10K240 Per post. current

A model with extended working hours
144 In the post. current(2), 192-264 VDC. current

Charging current:
Standard operating time model:
● RT-5K/6K1 A (default), up to 8 A
● RT-8K/10K1.5 A (default), up to 8 A

A model with extended working hours
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with extended working hours:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Standard operating time model:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

Type
Inverter (online)

The form factor
Rack (in the rack)

Operating time at full load
3.2 min

Operating time at full load
10.7 min

Input voltage
1 phase (230 V)

Input voltage range
115 – 288 V

Peak output power
2000 VA

Rated output power
2000 Watts

The output waveform
is pure sine wave (PSW)

Dimensions (HxWxD)
85x430x470 mm

Height (unit)
2 U

Weight
21 kg

APC Easy UPS SRV2KRIRK высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. В комплект поставки входит: 1 IEC 60320 C19 to Schuko силовой кабель 1 IEC 60320 C13 to C14 силовой кабель 1 USB кабель 1 Кабель для конфигурирования через порт RS-232 1 Кронштейны для монтажа в аппаратурные стойки 1 Направляющие для монтажа в аппаратурные стойки руководство по эксплуатации
