Grandstream GXP2160, 6-line Enterprise HD IP Phone, 480x272 TFT color LCD, 24+6 speed keys, dual GigE with 802.3af PoE, Bluetooth, USB, (with PS)

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, SNMP, 802.1x,
TLS, SRTP*, IPv6

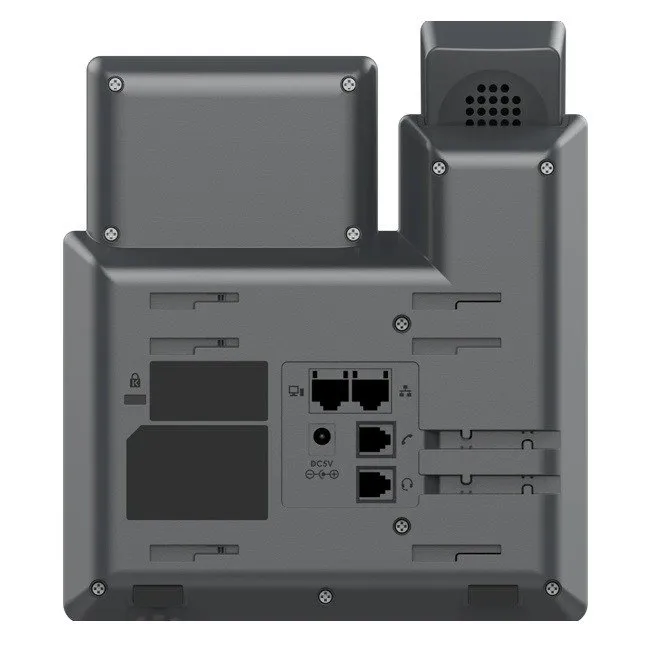

Network interfaces
- Two switched 10/100 Mbps Ethernet ports with auto-detection, built
-in PoE support (only in the GRP2602P model)
- Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2602G model)

Wi-Fi GRP2602W, dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5 GHz)

Screen 132 x 48 dots (2.41 inches’) Backlit graphic LCD display

Function buttons
2 line buttons with two-color LEDs and support for 4 SIP accounts, 4 XML
context-sensitive on-screen buttons, 5 buttons (navigation,
menu). 8 special function buttons for: MESSAGE (with LED
indicator), TRANSLATION, HEADSET, MICROPHONE MUTE, SEND /
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME

Additional ports
RJ9 headset jack (EHS support for Plantronics, Jabra and Sennheiser headsets)

Voice codecs and
features
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- and
out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel call indication (BLA),
downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting
, call log (up to 800 entries), auto-dial when you pick up the handset, auto-answer, clickto-dial, flexible number plan, hot table system, personalized
ringtones and music on hold, backup server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support

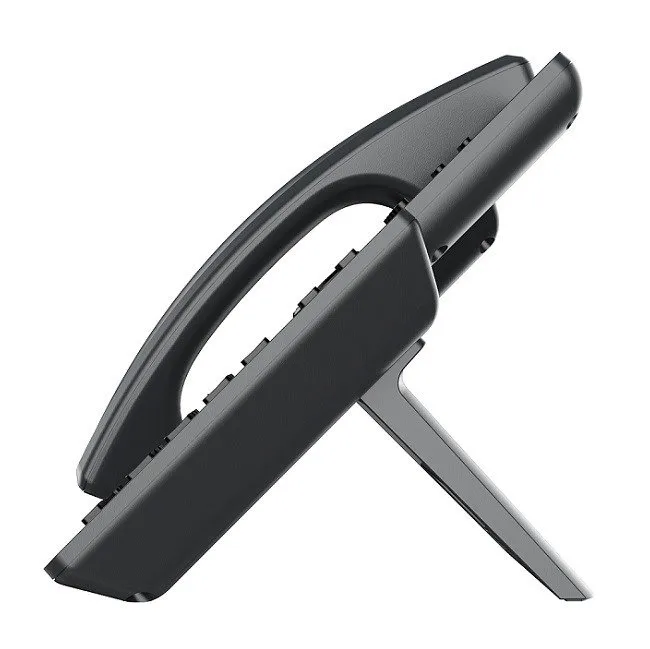

Footing
Yes, 1 position (45°) available, wall mounting option (*
wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Automatic setup
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration using
GDMS (Grandstream Device Management System), TR-069 or XML
configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (only
for GRP2602P/GRP2602G model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone model GRP2602, tube with wire, base, universal power
supply (only for model GRP2602/GRP2602W/GRP2602G), network cable, quick
guide

Sizes
Dimensions: 208mm (L) x 180mm (W) x 63.4mm (H) (with tube)
Device weight:670g; Package weight: 880g (GRP2602/GRP2602W/GRP2602G), 830g
(GRP2602P)

Compliance with standards
GRP2602/GRP2602P/GRP2602G
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32;
AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

Compliance with standards
GRP2602W
FCC: Part 15 Subpart B, Class B; FCC Part 15 Subpart E,15.407; FCC Part 68;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; ETSI EN 301 893;
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: RSS-Gen; ICES-003; CS-03.

Protocols/standards
SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN,
LLDP, TR-069, 802.1x

Graphic display
3.5" (480 x 320) high-resolution color LCD display

Network interfaces
One 10/100 Mbps Ethernet connector with auto-negotiation function and integrated
Class 2 PoE module

Wi-Fi
Built-in dual-band 802.11a/b/g/n/ac/ax Wi-Fi module (2.4 and 5 GHz) (GHP630W/
GHP631W models)

Main buttons
26 buttons, including:
6 context-sensitive programmable buttons;
12 standard numeric buttons (0-9: speed dial buttons with settings
in the web interface, *, #);
5 special buttons (Flash, Redial, Speakerphone, Answering machine, Hold);
3 volume control buttons: increase, decrease, off. Microphone (with red
LED indicator)

HD audio
One HD handset with broadband audio

Audio conference call
2 SIP accounts and 2 lines, conferences for up to 3 participants

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726, G.722 (broadband), G.723, iLBC,
full-band Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO),
VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Dial, answer, redial, reset, speakerphone, voicemail (with server), translation,
conference, hold/de-hold, microphone mute and on, flexible
configuration of subscriber groups, switching to a backup server in case of failure during
speed dial

Additional features
Support for multicast paging and E911 service
Door opening support via GDS
Support for advanced jitter resistance algorithm
USB Type-C connector for charging external devices (max. 500 mA)

Wall mounting
One wall mount

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Secure boot, random default password, unique security certificate
for each device, passwords for administrators, 256-bit configuration file
AES encryption, SRTP, TLS, access control to the transmission medium based on 802.1x

Languages
English, Spanish, French, Chinese (expected)

Update/Setup
Firmware update via FTP/TFTP/HTTP/HTTPS, quick setup in 15 seconds,
mass configuration using GDMS/TR-069 or an XML configuration file with AES encryption

Nutrition and energy efficiency
Universal Power Adapter (GHP630W/GHP631W)
Input: 100-240 VAC, 50/60 Hz
Output: 12V/0.5A (6W)

Temperature and humidity
Operation: from 0 to +40 °C
Storage: -10 to +60 °C
Humidity: 10-90% (non-condensing)

Package Contents
GHP phone, handset with cord, mount, Universal power adapter (GHP630W
and GHP631W), Front panel, quick installation guide

Colour
White (GHP630, GHP630W), Black (GHP631, GHP631W)

Physical characteristics
Device size: 210 mm (L) * 147 mm (W) * 89.8mm (H) (with tube and stand)
Device weight: 601g (GHP630/GHP631), 658g (GHP630W/GHP631W [USA]), 668g (GHP630W/
GHP631W [other countries])
Package weight: 824g (GHP630/GHP631), 881g (GHP630W/GHP631W [USA]), 891g (GHP630W/
GHP631W [other countries])

IP-телефон Fanvil V50P

Fanvil V50P — настольный IP-телефон начального уровня, предназначенный для корпоративной IP-телефонии в офисах и предприятиях. Устройство обеспечивает стабильную голосовую связь, поддержку двух SIP-линий и высокое качество звука благодаря технологии HD Voice.

Телефон оснащён графическим дисплеем, поддерживает локальную и удалённую телефонную книгу, а также функции аудиоконференции. Поддержка питания PoE упрощает установку устройства в корпоративной сети без необходимости использования отдельного блока питания.

Основные особенности

• Графический LCD-дисплей 2.3" (132 × 64)
• Поддержка 2 SIP-линий
• HD Voice и поддержка кодеков G.722 и Opus
• 6-сторонняя аудиоконференция
• Два сетевых порта Fast Ethernet 10/100 Мбит/с
• Поддержка питания PoE
• Разъём RJ9 для гарнитуры
• Совместимость с EHS-гарнитурами
• Локальная телефонная книга до 1000 контактов
• Поддержка удалённой телефонной книги LDAP/XML
• Настольная установка или настенный монтаж

Технические характеристики

• Дисплей: 2.3" графический LCD, 132 × 64
• SIP-линии: 2
• Аудио: HD Voice, поддержка кодеков G.722, Opus, G.711, G.729
• Конференция: до 6 участников
• Сетевые интерфейсы: 2 × Ethernet 10/100 Мбит/с
• Питание: PoE или адаптер питания 5V/1A
• Разъём гарнитуры: RJ9
• Телефонная книга: до 1000 записей
• Поддержка IPv4 / IPv6
• Монтаж: настольная установка или настенное крепление

Применение

Fanvil V50P используется в системах корпоративной IP-телефонии для обеспечения надежной голосовой связи сотрудников. Модель подходит для рабочих мест в офисах, колл-центрах, гостиницах и предприятиях малого и среднего бизнеса.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*,
IPV6

Network interfaces
Two dial-up 10/100/1000 Mbit/s Gigabit Ethernet ports with
auto-detection and integrated PoE

Bluetooth
Yes, built-in

Wi-Fi
Yes, Built-in dual-band WiFi module class 802.11a/b/g/n/ac (2.4GHz and 5 GHz)
USB Yes

Screen
4.3-inch color TFT LCD with a resolution of 480 by 272 pixels, additional 2.4
inches with a resolution of 240 by 320 pixels

Speech codecs and features
Supports G.729A/B, G.711m/a-law, G.726, G.722 (broadband), G723, iLBC, OPUS,
in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
Hold, Transfer, Forwarding, 3-way conference, Call parking
, Call interception, Paired lines (SCA)/(BLA), Downloadable phonebook (XML,
LDAP, up to 2000 entries), Call waiting, Call log (up to 2000 entries), XML
screen personalization, automatic dial-up, auto-reply, push call,
flexible number plan, user shift work, personalized
ringtones and on-hold ringtone, switching to a backup server in case of failure

HD Audio
Yes, high-resolution audio in the handset and speaker speakers with
broadband audio support

Function keys
6 two-color line buttons and up to 16 SIP accounts (up to 24
configurable BLF/speed dial numeric buttons can be configured), 5 XML programmable
context-sensitive on-screen buttons, 5 navigation/menu buttons, 10 special
function buttons: MESSAGE/MESSAGE (with LED indicator), PHONEBOOK/
PHONE BOOK, TRANSFER/TRANSLATION, CONFERENCE, HOLD/
HOLD, HEADSET, MUTE/OFF SOUND, SEND/REDIAL / SEND/
REDIAL, SPEAKERPHONE/SPEAKERPHONE, VOL+/VOLUME+, VOL-/
VOLUME -

Footing
Yes, 2 positions are available, wall mounting option (*Wall
mounting kit sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Additional ports
RJ9 headset jack (EHS support when using Plantronics headsets),
USB

Safety
User-level and administrative-level password, MD5-based authentication
and MD5-session, a configuration file with 256-bit AES encryption, SRTP*, TLS, 802.1x
media access control, secure download

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese, etc.

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS, TR-069 or XML configuration file with AES encryption

Nutrition and Energy Efficiency
A universal power adapter is included in the package:
Input: 100 - 240V; Output: +12V DC. Current, 1A
Built-in Ethernet power supply (802.3af)
IEEE 802.3az Ethernet energy efficiency
Max. power consumption 6.1W (power adapter) or 7.8W (PoE)

Temperature and humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C
Humidity: 10% to 90%, Non-condensing

Package Contents
Phone model GRP2616, handset with cable, stand, 12V power adapter,
network cable, quick installation guide, GPL license

Dimensions and weight
Device weight: 1020g ; Package weight: 1650g
Dimensions: 247mm x 228mm x 82.4mm

Accordance
FCC: Part 15 Class B; Part 15 Subsection C 15.247; Part 15 Subsection E 15.407; FCC
Part 68 HAC; Part 1 Subsection I(MPE)
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004; AS NZS 2772.2 IC: ICES003; CS-03; RSS-247; RSS-102(MPE).

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, SNMP, 802.1x,
TLS, SRTP*, IPv6

Network interfaces
- Two switched 10/100 Mbps Ethernet ports with auto-detection, built
-in PoE support (only in the GRP2602P model)
- Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2602G model)

Wi-Fi
GRP2602W, dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
132 x 48 dots (2.41 inches’) backlit graphic LCD display

Function buttons
2 line buttons with two-color LEDs and support for 4 SIP accounts, 4 XML
context-sensitive on-screen buttons, 5 buttons (navigation,
menu). 8 special function buttons for: MESSAGE (with LED
indicator), TRANSLATION, HEADSET, MICROPHONE MUTE, SEND /
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME

Additional ports
RJ9 headset jack (EHS support for Plantronics, Jabra and Sennheiser headsets)

Voice codecs and features
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- and
out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel call indication (BLA),
downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting
, call log (up to 800 entries), auto-dial when you pick up the handset, auto-answer, clickto-dial, flexible number plan, hot table system, personalized
ringtones and music on hold, backup server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support

Footing
Yes, 1 position (45°) available, wall mounting option (*
Wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Automatic configuration
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration using
GDMS (Grandstream Device Management System), TR-069 or XML
configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (only
for GRP2602P/GRP2602G model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents

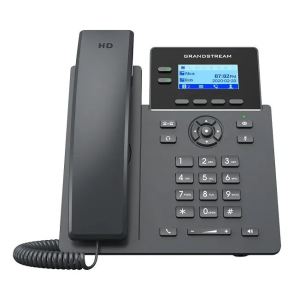

Phone model GRP2602, tube with wire, base, universal power
supply (only for model GRP2602/GRP2602W/GRP2602G), network cable, quick
guide

Sizes
Dimensions: 208mm (L) x 180mm (W) x 63.4mm (H) (with tube)
Device weight:670g; Package weight: 880g (GRP2602/GRP2602W/GRP2602G), 830g
(GRP2602P)

Compliance with standards
GRP2602/GRP2602P/GRP2602G
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32;
AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

Compliance with standards
GRP2602W
FCC: Part 15 Subpart B, Class B; FCC Part 15 Subpart E,15.407; FCC Part 68;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; ETSI EN 301 893;
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: RSS-Gen; ICES-003; CS-03.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6

Network interfaces
Two Gigabit network ports 10/100 Mbit/s auto-detection with support
PoE

Bluetooth
Yes, built-in

Wi-Fi Yes, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
TFT color LCD screen 2.8 inches (320x240), additional screen 2.4 inches
(320x240)

Speech Codecs and Features
Support G7.29A/B, G.711p/a-law, G.726, G.722(wide-band), G723,iLBC, OPUS,
in- and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC,
AJB, AGC

Telephony functions
Hold, Transfer, forwarding, 3-way conference, Call Parking
, Call Interception, paired lines (SCA)/(BLA), downloadable
Phonebook (XML, LDAP, up to 2000 positions), Call waiting, Call log (up to 2000
records), XML personalization of the screen, auto-dial when you pick up the handset, auto-answer,
call by pressing, flexible number plan, shift work of users,
personalized ringtones and melody on hold, switching to
a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Extension Module
No

Function keys
4 line buttons and up to 4 SIP accounts, 8 MPK expansion buttons with two-color
LED display with 2 left/right buttons, 4 XML programmable
context-sensitive on-screen buttons, 5 navigation/menu buttons,
11 special function buttons: MESSAGE/MESSAGE (with LED
indicator), phonebook/phonebook, transfer/transfer, conference/
conference call, hold/hold, headset/headset, mute/off sound,
send/redial/send/redial, speakerphone/speakerphone, vol+/
volume+, vol-/Volume base Yes, 2 positions available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS
Additional RJ9 ports headset jack (EHS support when using Plantronics headsets)

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Configuration Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and Energy Efficiency
Universal Power Adapter - Input: 100-240V; Output: +12VDC, 1A; Powered
by Ethernet (802.3af); IEEE 802.3az Ethernet energy efficiency; Max.
Power consumption 3.5W (power adapter) or 4W (PoE)

Temperature and Humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone GRP2614, handset with wire, stand, 12V power adapter,
network cable, quick installation guide, GPL license

Dimensions and weight
Device weight: 950g; Package weight: 1460g Dimensions: 234mm x 213mm x 82.2mm

Accordance
FCC: Part 15 Class B; Part 15 Subsection C, 15.247; Part 15 Subsection E, 15.407;
FCC Part 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 4268; AS/NZS
60950.1; AS/CA S004
IC: ICES-003; CS-03; RSS-247; RSS-102.

Telephone connections
GXW4216/4224/4232: 16/24/32 x RJ11 FXS ports and 1/1/2 50-pin connectors
Telco GXW4248: 2 50–pin Telco Connectors

Network interfaces
1 x 10M/100M/1000Mbps RJ45 port with automatic identification

LED indicators
LAN Link, LAN Activity, connection for each phone port

LCD display
128x32 backlit graphic LCD display with multi
-language support

Speech transmission functions in batch mode
Windows-based operator-class line echo cancellation, dynamic
delay oscillation buffer, modem detection and automatic switching
to G.711

Speech signal compression
G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC

Fax by IP
Fax relay of the third group of the standard T.38 with support for data transfer rates
up to 14.4 Kbit/s and automatic switching to G.711 for fax transmission,
a functional unit for transmitting and receiving data by fax V.17, V.21, V.27ter, V.29
for fax relays of standard T.38

Phone functions
Displaying or blocking the caller's number, notification
of an incoming call, blind or accompanied call transfer,
forwarding, banning incoming calls, three-way conference call,
dialing the last incoming call, search call, LED indicator
of an incoming message (NEON LED) and intermittent signal, auto-dial

Quality of service
DiffServ, TOS, 802.1P/Q VLAN tagging

Network protocols
TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE,
STUN, LLDP (expected)

DTMF method
Configurable DTMF transmission methods, including In-audio, RFC2833, and/or SIP INFO

Signal transmission
SIP (RFC 3261) over UDP/TCP/TLS

SIP server profiles and accounts for each system
4 separate SIP server profiles for each system and separate accounts
SIP for each phone port

Registration
TFTP, HTTP, HTTPS, TR069

Safety
SRTP*, TLS/SIPS, HTTPS (AES-128 encryption for SRTP*, TLS and HTTPS)

Management
Syslog, HTTPS, Web browser, Telnet, Voice Reminders, TR-069

Universal power supply
GXW4232/4224/4216: Output: DC12V, 5 A; Input: 100~240V
AC, 50~60Hz; GXW4248: Output: DC24V, 6.25A; input:
100~240 vac, 50~60 Hz

Environmental characteristics
Operation: 0°C ~45°C; Storage: -20°C ~60°C; Humidity: 10％ ~ 90% (non
-condensing)

Electrical protection
Overvoltage and overvoltage protection (ITU-T Recommendation K.21, basic
level of verification)

Physical characteristics
Device size: 440 mm (L) x 255 mm (W) x 44 mm (H) (1U) (GXW4248)
440 mm (L) x 185 mm (W) x 44 mm (H) (1U) (GXW4216/4224/4232)
Device weight:
3.21 kg; package weight: 4.31 kg (GXW4248) 2.63 kg; 3.68 kg (GXW4232)
2.57 kg; 3.62 kg (GXW4224)
2.39 kg; 3.48 kg (GXW4216)

Installation
Installation on a table and in a rack using front brackets

Near and far communication
2 REN, up to 6000 feet for 24 AWG wire

Caller's number
Bellcore Type 1&2, ETSI, BT, NTT, and DTMF based CID

Disabling methods
Busy signal, change/instability of polarity, current in the circuit

Compliance with regulatory requirements
US Federal Communications Commission: Part 15 (CFR 47) Class B, Council of Europe:
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RoHS, C-TICK:
AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, ITU-T K.21 (basic
verification level); UL 60950 (power adapter)

IP‑телефон Fanvil X6U

Fanvil X6U — расширенный IP‑телефон бизнес‑класса с двумя цветными дисплеями и мощными возможностями для корпоративной связи. Устройство поддерживает до 20 SIP‑линий, оснащено большим основным экраном и дополнительным дисплеем для DSS‑клавиш, обеспечивает HD‑звук и высокую гибкость в настройке вызовов, что делает его отличным решением для офисов и колл‑центров.

Телефон оснащён основным 4.3" цветным LCD‑экраном и двумя дополнительными 2.4" цветными дисплеями для программируемых DSS‑клавиш. Имеет два гигабитных Ethernet‑порта с поддержкой PoE, HD‑аудио, поддержку многоточечных аудиоконференций и гибкие возможности подключения гарнитур и аксессуаров через USB‑адаптеры. Bluetooth встроенный (v4.2), Wi‑Fi доступен через USB‑донгл.

Основные особенности

• Поддержка до 20 SIP‑линий
• Основной экран 4.3", два дополнительных 2.4" для DSS‑клавиш
• До 60 программируемых DSS‑клавиш (12 физических × 5 страниц)
• HD‑аудио с поддержкой Opus и G.722
• 6‑сторонняя аудиоконференция
• 2 × Gigabit Ethernet (10/100/1000 Мбит/с) с PoE
• Поддержка EHS‑гарнитур
• Bluetooth v4.2 встроенный
• Wi‑Fi через USB‑адаптер (опционально)
• Локальная телефонная книга до 2000 контактов
• Журнал вызовов до 1000 записей
• Настольная и настенная установка
• Поддержка VoIP‑протоколов: IPv4/IPv6, SIP, SRTP/TLS, VLAN, DHCP
• Совместимость с Asterisk, 3CX, Broadsoft и другими платформами

Применение

IP‑телефон Fanvil X6U подходит для средних и крупных офисов, колл‑центров и корпоративных коммуникационных сред, где требуется многоканальная связь, высокая функциональность и удобство управления вызовами. Модель обеспечивает эффективную работу с большим количеством линий и функций на каждом рабочем месте.

The GHP Series of hospitality phones includes the easy-to-use GHP620/GHP620W and GHP621/GHP621W IP phones for any hotel room, which can be programmed and configured to meet the needs of hotels and their guests. The GHP620W and GHP621W models feature built-in dual-band Wi-Fi to support wireless network deployments. This series features a high-definition speakerphone, two SIP accounts/lines, six programmable keys, ten speed-dial keys, three-way voice conferencing, support for the full-band OPUS voice codec, and an advanced jitter-tolerance algorithm that tolerates up to 30% packet loss without affecting voice quality. The GHP Series is supported by the Grandstream Device Management System (GDMS), which provides a centralized interface for configuring, provisioning, managing, and monitoring Grandstream endpoint deployments. The GHP series IP phones can be desktop or wall-mounted and can be powered via PoE (GHP620/GHP621), a power adapter (GHP620W/GHP621W), or a USB Type-C charger. Their sleek and compact design makes the GHP620/GHP620W and GHP621/GHP621W ideal for not only hotels but also apartments, dormitories, hospitals, and retail spaces.
