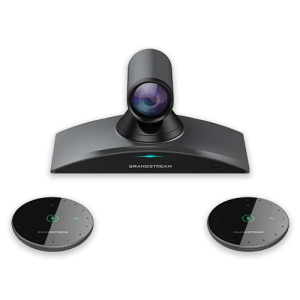

Grandstream GVC3210 - Video Conferencing Endpoint 4K

Technical specifications:
Protocols / Standards SIP RFC3261, H.323,BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE,LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP**, TCP/IP/UDP, IPv6, OpenVPN®

MCU
5-sided conference as 1080p@30fps, and 9-sided as 720p@30fps

Camera
1/2.5“, 8 MP, CMOS, 4k 30fps or 1080p 60fps

Lens
12x optical zoom,+/-30° tilt, +/-170° panorama, 70.1°~7.4°(W) viewing angle, 40.7°~4.2°(T) viewing angle

Network interface
1× RJ4510/ 100/ 1000 Mbps

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Wi-Fi support

Multimedia
Bluetooth
Built-in Bluetooth 5.0 + EDR module

Video outputs
1x HDMI 2.0 to 4K, 1x HDMI 1.4 to 1080p

Video inputs
1x HDMI 1.4a with up to 1080p resolution

Microphone/Speaker
Support external Bluetooth or 2.4G microphone, 1 built-in speaker, cascade support up to 2 GMD1208 wireless speakerphones

Audio inputs/outputs
1x Line input/output, 1x Media
Bluetooth remote control and IR remote control with multi-touch touchpad

Additional ports
1x USB 3.0, 1x USB 2.0, 1x SD, 1x Reset

Speech codecs
Support G.711µ/a, G.722 (wide-band), iLBC, Opus, G.711, G.722.1, G.722.1c,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)

Video codecs
H.264 BP/MP/HP, resolution up to 4k, frame rate up to 30 fps, bitrate up to 8Mbps,
H.265 BP/MP/HP, resolution up to 4K, frame rate up to 30 fps, bitrate up to 8Mbps

Video resolution
4K from 1Mbps to 8Mbps, 1080p from 1Mbps to 4Mbps and 720p from 512Kbps to 2Mbps

Video content Resolution
Input: 720p, 1080p (HDMI)
Coding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p

Streaming video from two BFCP sources, portrait video (up to 4K@30fps) + video content (up to 1080p@15fps)

Audio
AEC, ANS, AGC, PLC, CNG/VAD


FEC video, Dynamic layout, Picture in picture, Picture out of picture

Videoconferencing services platform
SIP, H.323, Grandstream IPVideoTalk, Bluejeans and Zoom

Telephony functions
Hold, Microphone off, Downloadable contacts (XML, LDAP), Call waiting, Call log, Flexible number plan, Backup serverfail-over

Application Examples
Microsoft Teams, Skype or Skype for Business, Zoom, Youtube, API/SDK support for installing custom applications

Application Deployment
Development, download and launch of various applications compatible with the Android 9.0 operating system on an embedded device with initialization control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption, TLS, 128/256-bit SRTP**, HTTPS, 802.1x media access control

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, etc.

Update/Automatic setup
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, automatic configuration using TR-069 or XML configuration file with AES encryption. Automatic detection of system updates from U disk/SD card

Power and energy efficiency
Universal Power Adapter:
Input: 100~240V AC 50~60Hz
Output: 48V/1.35A(64.8W)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (non-condensing)

FCC Compliance: Part15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; MPE
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1
IC: ICES-003; RSS-GEN; RSS-247; RSS-102(MPE). HDMI/EAC/REACH/ROHS/WEEE

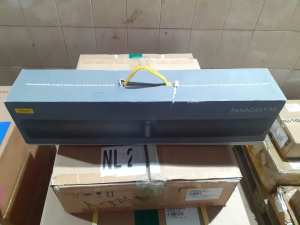

Jabra PanaCast 50 Video camera, EMEA, Black
Color-black; viewing angle180°; real-time video stitching technology; 8 microphones with directional beam formation function; 4 speakers integrated into a stereo system with full vibration suppression; Plug - and-play; Microsoft Teams, Zoom certificates; Compatibility with all known UC platforms

Intelligent functions:
The built-in "picture in picture" function displays the conference participants and the marker board in real time;
Speaker detection and appropriate framing;
Inclusion of all conference participants in the frame;
Search and count people in the frame;
Analysis of the safe filling of the room;
Meeting room usage statistics (Jabra Xpress)

Mounting methods:
- On the wall
-On the screen
Mounts on the table and on the screen are sold separately

Connection:
- computer

Number of cameras
3

Camera Type
Panoramic multi-chamber grille

Camera Resolution
13 megapixels

Increase
Up to 6x lossless digital zoom

Field of view
Horizontal: 180°, Vertical: 54°

Permission
Panoramic-4K: 3840 x 1080 @ 30 frames per second

Intelligent zoom
Yes

Dynamic composition
Yes. Requires a USB 3.0 connection (USB 3.0 port + USB 3.0 cable) and UC clients that support NV12 format.

Virtual Director
Yes

Bright HDR
Yes

Speakers
2 low-frequency speakers with a diameter of 2 inches (50 mm), high-frequency speakers with a diameter of 2 x 3/4 inches (20 mm)

Speaker frequency range
80 Hz – 20 kHz

Number of speakers
4

Automatic speaker detection
Yes

Microphone Type
Array of 8 microphones with the formation of a directional pattern

Number of microphones
8

Microphone sensitivity
-37 dBFS

Microphone frequency range
100 Hz – 8 kHz

System Requirements
Compatible with Windows 10, macOS 10.15 and later, including macOS 11.x.

Compatible software and applications
Jabra Direct, Jabra Sound+, Jabra Xpress

Proxy support
HTTP, SOCKS4, SOCKS4A, SOCKS5, SOCKS5H

Integrated counting of people
Yes

Software Development Kit (SDK)
Yes

Board sharing/Content camera
Yes

Manual Pan, Tilt and Zoom (PTZ)
Yes

Connectivity options
USB-A, USB-C, Ethernet (RJ45) for connection to supported

Supported USB versions
USB 2.0, USB 3.0

USB Cable Length
2m | 6.5 ft

Support Bluetooth with low power consumption
Yes, for remote control and access to Sound+.

Operating Temperature
from 5°C to 35°C | 41°F to 95°F

Storage temperature
-20°C to 60°C | -4°F to 140°F
