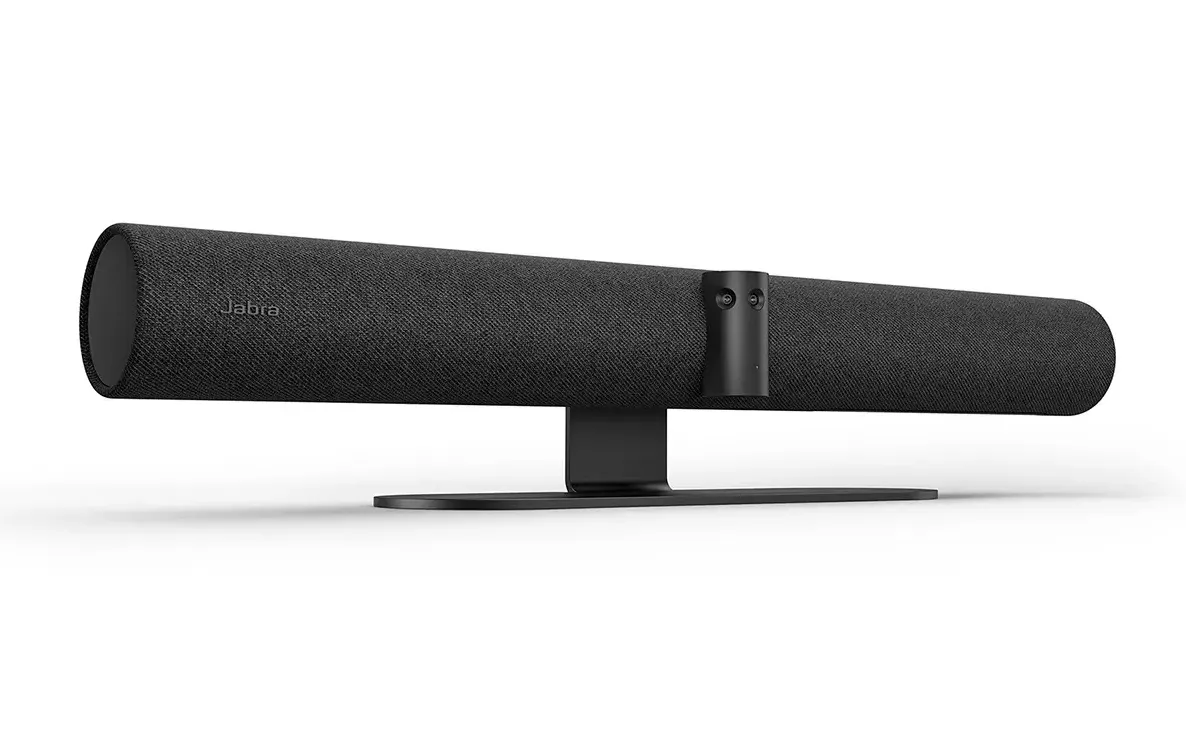

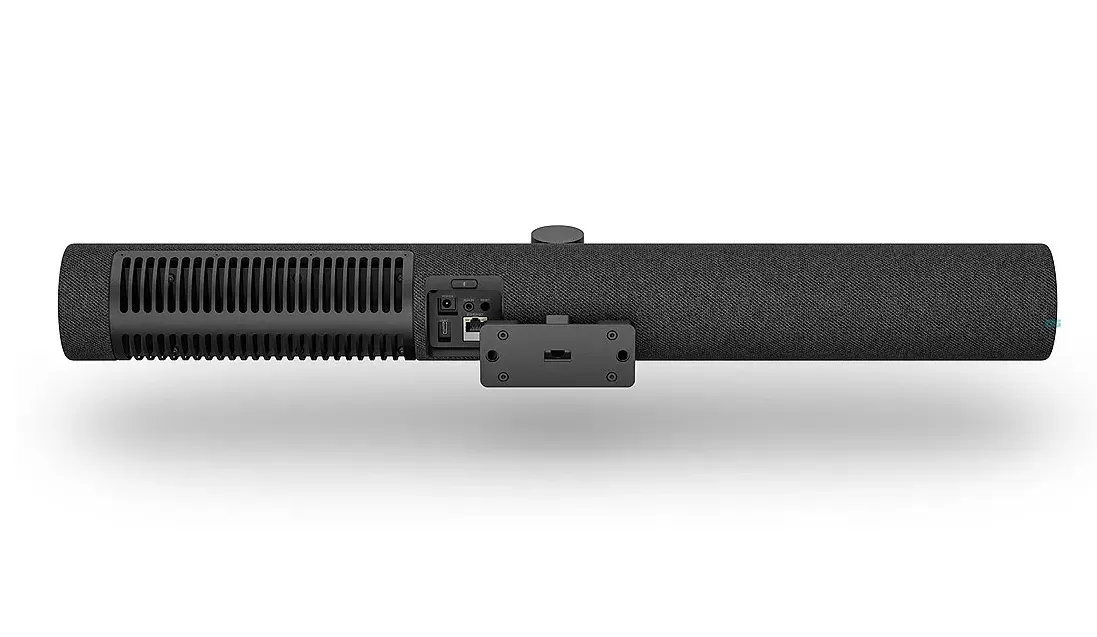

Jabra PanaCast 50, EMEA, Black

Technical specifications:
Protocols / Standards SIP RFC3261, H.323,BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE,LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP**, TCP/IP/UDP, IPv6, OpenVPN®

MCU
5-sided conference as 1080p@30fps, and 9-sided as 720p@30fps

Camera
1/2.5“, 8 MP, CMOS, 4k 30fps or 1080p 60fps

Lens
12x optical zoom,+/-30° tilt, +/-170° panorama, 70.1°~7.4°(W) viewing angle, 40.7°~4.2°(T) viewing angle

Network interface
1× RJ4510/ 100/ 1000 Mbps

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Wi-Fi support

Multimedia
Bluetooth
Built-in Bluetooth 5.0 + EDR module

Video outputs
1x HDMI 2.0 to 4K, 1x HDMI 1.4 to 1080p

Video inputs
1x HDMI 1.4a with up to 1080p resolution

Microphone/Speaker
Support external Bluetooth or 2.4G microphone, 1 built-in speaker, cascade support up to 2 GMD1208 wireless speakerphones

Audio inputs/outputs
1x Line input/output, 1x Media
Bluetooth remote control and IR remote control with multi-touch touchpad

Additional ports
1x USB 3.0, 1x USB 2.0, 1x SD, 1x Reset

Speech codecs
Support G.711µ/a, G.722 (wide-band), iLBC, Opus, G.711, G.722.1, G.722.1c,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)

Video codecs
H.264 BP/MP/HP, resolution up to 4k, frame rate up to 30 fps, bitrate up to 8Mbps,
H.265 BP/MP/HP, resolution up to 4K, frame rate up to 30 fps, bitrate up to 8Mbps

Video resolution
4K from 1Mbps to 8Mbps, 1080p from 1Mbps to 4Mbps and 720p from 512Kbps to 2Mbps

Video content Resolution
Input: 720p, 1080p (HDMI)
Coding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p

Streaming video from two BFCP sources, portrait video (up to 4K@30fps) + video content (up to 1080p@15fps)

Audio
AEC, ANS, AGC, PLC, CNG/VAD


FEC video, Dynamic layout, Picture in picture, Picture out of picture

Videoconferencing services platform
SIP, H.323, Grandstream IPVideoTalk, Bluejeans and Zoom

Telephony functions
Hold, Microphone off, Downloadable contacts (XML, LDAP), Call waiting, Call log, Flexible number plan, Backup serverfail-over

Application Examples
Microsoft Teams, Skype or Skype for Business, Zoom, Youtube, API/SDK support for installing custom applications

Application Deployment
Development, download and launch of various applications compatible with the Android 9.0 operating system on an embedded device with initialization control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption, TLS, 128/256-bit SRTP**, HTTPS, 802.1x media access control

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, etc.

Update/Automatic setup
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, automatic configuration using TR-069 or XML configuration file with AES encryption. Automatic detection of system updates from U disk/SD card

Power and energy efficiency
Universal Power Adapter:
Input: 100~240V AC 50~60Hz
Output: 48V/1.35A(64.8W)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (non-condensing)

FCC Compliance: Part15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; MPE
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1
IC: ICES-003; RSS-GEN; RSS-247; RSS-102(MPE). HDMI/EAC/REACH/ROHS/WEEE

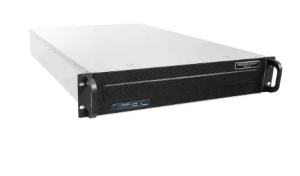

IPVT10 is a powerful on-premises video conferencing server designed to create
corporate communications for collaboration. It offers a state-of-the-art
collaboration platform with an excellent user interface and a wide range of features,
including audio/video conferencing, screen/app sharing, and group/
personal chats. This video conferencing server is equipped with advanced
meeting management tools, flexible customization options and supports access from a variety
of devices, including video conferencing systems, video telephones, PC/Mac,
Android/iOS mobile devices, PSTN backbone and SIP PBX. IPVT10 provides a centralized and
scalable solution for managing all the conference resources of the organization. It
is ideal for businesses with multiple locations that require an excellent
video communication system that will bring together remote employees and external customers in an easy-to-use
system.

Support for up to 300 participants and 10 simultaneous conferences
Ability to record audio, video, chats and reports in 500GB local memory
1080p 30fps H. 264/VP8 for real-time video and screen sharing
Up to 120 video signals and 300 participants per conference
Live broadcasts via Facebook/YouTube Live
Advanced meeting management, flexible schedule settings, customizable registration, invitations, subscriptions and reporting
Algorithm responsible for suppressing delay fluctuations, which provides excellent picture and sound quality with up to 30% packet loss
Access from PC / Mac, mobile devices, video conferencing systems, video telephones, PSTN trunks or SIP PBX
HTTPS and WSS / DTLS-SRTP encryption for WebRTC, TLS / SRTP encryption for SIP
