An access point with Wi-Fi 6 support and built-in PoE

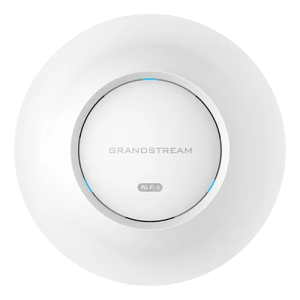

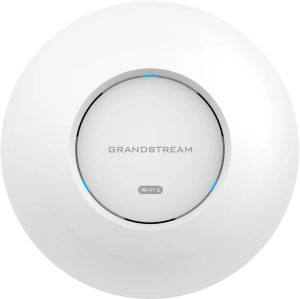

GWN7604 is an AX3000 compact Wi—Fi 6 access point for small companies, hotels and home offices. It has four Gigabit Ethernet connectors, including one upstream connector for powering the access point via PoE/PoE+ and two PSE connectors for powering and connecting other devices to the network. The GWN7604 has a dual-band module with support for MU-MIMO technology (2× 2:2 2.4G, 4×4:4 5G) and an antenna of complex design for simultaneous connection of up to 256 clients and increasing the Wi-Fi coverage area to 100 m. For easy installation and management, this Wi-Fi access point supports GDMS Networking and GWN Manager, the Grandstream cloud and on-premises device management platforms. The GWN7604 works great as a Wi-Fi hotspot in low- and medium-density wireless networks.

It provides improved quality of service, low-latency real-time applications, support for mesh topology networks, authorization portals and 3 Gbit/s wireless bandwidth.

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC
