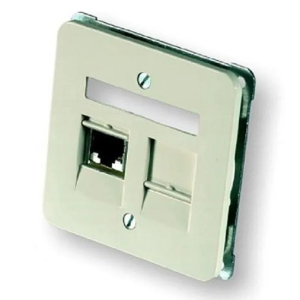

Лицевая панель 45x22,5 мм, для 1 модуля Keystone

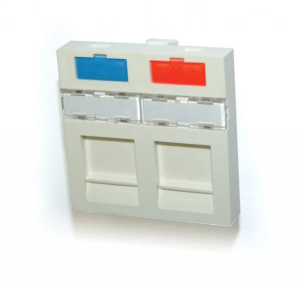

Лицевая панель предназначена для применения с универсальной настенной коробкой для открытого монтажа (на штукатурку). Вмещает 2 модуля. Простой монтаж с использованием шурупов. Отсутствие острых углов. Эстетическое исполнение.

Classification of products

Regional accessibility
Europe, Middle East and Africa

portfolio
NETCONNECT®

Product Type
Exit

product series
SL Series

Main Features

Application
It is used with sockets of the SL series.

Gangs, number
2

Total ports, number
2

Packaging and weight

Packing Quantity
1

Type of packaging
Bag

Classification of products

Regional accessibility
Europe, Middle East and Africa

portfolio
NETCONNECT®

Product Type
Exit

product series
SL Series

Main Features

Application
It is used with sockets of the SL series.

Gangs, number
2

Total ports, number
2

Packaging and weight

Packing Quantity
1

Type of packaging
Bag

Classification of products
Regional accessibility
Europe, Middle East and Africa | Latin America

portfolio
NETCONNECT®

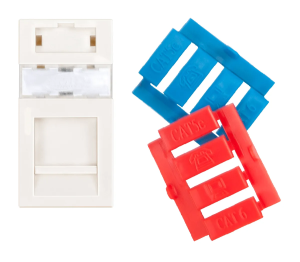

Product Type
Plug-in kit

Main Features
Application
It is used with sockets of the SL series.

Colour
White

Output orientation
Flat

Total ports, number
1

Packaging and weight
Packing Quantity
1

Type of packaging
Bag

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Black

Type of conductor
Solid | Stuck

Built-in type of dust cover
No

Mounting
SL series faceplates and panels

Installation Note
The color is combined with black SL-style faceplates and surface mount boxes.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes

Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.26 mm | 0.64 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics

Change in contact resistance, maximum
20 MOM

Contact resistance, maximum
100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Alpine White

Type of conductor
Solid

Built-in type of dust cover
Nobody

Mounting
SL series faceplates and panels

Installation Note
The color corresponds to the front panels and boxes for surface mounting in the style of SL Alpine white or Pro white.

Socket function
Jack's upside-down face

Outlet Type
Standard

Termination blows, minimum
200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Sizes
Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.13 mm | 0.635 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible cable diameter, max
5.8mm | 0.228 inch

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Electrical characteristics
Change in contact resistance, maximum
20 MOM

Contact resistance, max
. 100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

Remote power supply
Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002.

PoE durability
Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection.

Rated safe voltage
150 V AC

Material Characteristics
Contact base material
Beryllium copper

Contact coating material
Gold

Type of material
Polycarbonate

Contact coating
Pot
