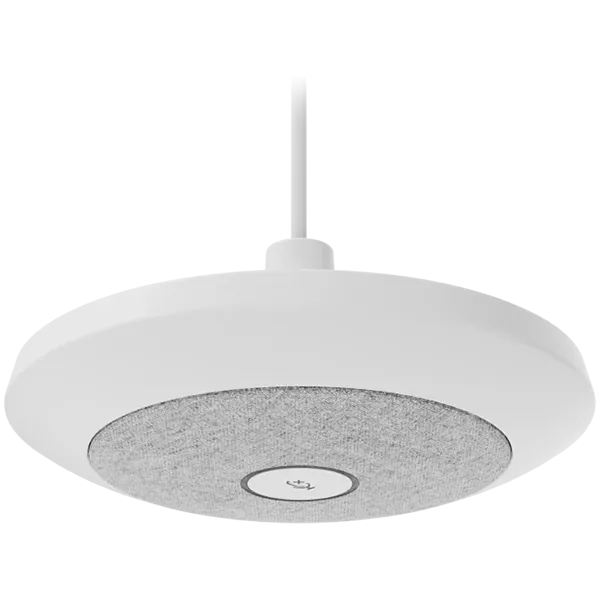

LOGITECH Mic Pod Pendant Mount - OFF-WHITE - EMEA29-953

Максимальный уровень звукового давления 85 дБ.

Искажение ≦4%

Отношение сигнал/шум 80 дБ

Диапазон частот 150 Гц ~ 16 кГц

 МИКРОФОН

Количество микрофонных решеток x6

Диапазон приема голоса 5 м (радиус)

Диапазон частот 150 Гц ~ 8 кГц

 ПОДКЛЮЧЕНИЕ И УПРАВЛЕНИЕ КНОПКАМИ

USB Type C x1 (аудиовход/выход, зарядка 5 В/2 А)

AUX x1 (вход/выход, 3,5 мм, шлейфовое подключение)

Блютуз 4.2+ЭДР

Кнопки Питание, Громкость, Bluetooth, Отключение звука, Ответ/Отбой

 АКСЕССУАРЫ И АККУМУЛЯТОРЫ

Bluetooth-приемник да

USB-кабель (тип A–C) да

Аудиокабель да

Емкость аккумулятора 7,4 В/2200 мАч

Зарядка проводная 5 В/2 А, беспроводная 5 Вт

Время автономной работы на одном заряде 8 часов.

 УСТОЙЧИВОСТЬ

Нормативы CE, поддержка RoHS, ErP, WEEE, REACH

 РАЗМЕРЫ / ВЕС

Вес (без коробки) 0,4 кг.

Platform
IPVideoTalk

Network interface
1x RJ45 10/100 Mbps Ethernet Port with Auto-detection

1x HDMI 1.4 with up to 1080p quality support

Camera
1 MP with CMOS matrix, 720P@30fps

The lens
60°wide angle lens

DO
IR remote control

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac

Additional ports
TRS 3.5mm input, 2x USB 2.0

Audio codecs
Full-band Opus, Broadband G.722, G.711, AEC, ANS, AGC, Noise Shield, PLC, CNG/
VAD

Video codecs and
H.264 BP/MP/HP capabilities, video resolution up to 720P 30fps; content resolution up to 720P and up to 5fps;
BFCP; flicker suppression, auto focus and exposure

Conference functions
Off microphone, call recording, call waiting, auto answer, flexible number plan,
customizable ringtones and music on hold, backup server

Wireless connection
Miracast and Airplay support (expected)

HD audio
Built-in omnidirectional and cardioid microphones supporting
a full-band voice sampling rate of 48 kHz with a voice capture distance of 3 meters with improved
acoustic echo cancellation

Mounting
Built-in stand for mounting on the top of the TV

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
A random default password, a unique certificate for each device,
user and administrator level passwords, MD5 and MD5-sess authentication,
a configuration file with 256-bit AES encryption, TLS, SRTP, HTTPS, 802.1x
media access control

Update/Automatic configuration
Firmware update via TFTP /HTTP/HTTPS or local HTTP download, automatic
configuration using an XML configuration file with AES encryption

Technical specifications:
Protocols / Standards SIP RFC3261, H.323,BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE,LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP**, TCP/IP/UDP, IPv6, OpenVPN®

MCU
5-sided conference as 1080p@30fps, and 9-sided as 720p@30fps

Camera
1/2.5“, 8 MP, CMOS, 4k 30fps or 1080p 60fps

Lens
12x optical zoom,+/-30° tilt, +/-170° panorama, 70.1°~7.4°(W) viewing angle, 40.7°~4.2°(T) viewing angle

Network interface
1× RJ4510/ 100/ 1000 Mbps

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Wi-Fi support

Multimedia
Bluetooth
Built-in Bluetooth 5.0 + EDR module

Video outputs
1x HDMI 2.0 to 4K, 1x HDMI 1.4 to 1080p

Video inputs
1x HDMI 1.4a with up to 1080p resolution

Microphone/Speaker
Support external Bluetooth or 2.4G microphone, 1 built-in speaker, cascade support up to 2 GMD1208 wireless speakerphones

Audio inputs/outputs
1x Line input/output, 1x Media
Bluetooth remote control and IR remote control with multi-touch touchpad

Additional ports
1x USB 3.0, 1x USB 2.0, 1x SD, 1x Reset

Speech codecs
Support G.711µ/a, G.722 (wide-band), iLBC, Opus, G.711, G.722.1, G.722.1c,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)

Video codecs
H.264 BP/MP/HP, resolution up to 4k, frame rate up to 30 fps, bitrate up to 8Mbps,
H.265 BP/MP/HP, resolution up to 4K, frame rate up to 30 fps, bitrate up to 8Mbps

Video resolution
4K from 1Mbps to 8Mbps, 1080p from 1Mbps to 4Mbps and 720p from 512Kbps to 2Mbps

Video content Resolution
Input: 720p, 1080p (HDMI)
Coding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p

Streaming video from two BFCP sources, portrait video (up to 4K@30fps) + video content (up to 1080p@15fps)

Audio
AEC, ANS, AGC, PLC, CNG/VAD


FEC video, Dynamic layout, Picture in picture, Picture out of picture

Videoconferencing services platform
SIP, H.323, Grandstream IPVideoTalk, Bluejeans and Zoom

Telephony functions
Hold, Microphone off, Downloadable contacts (XML, LDAP), Call waiting, Call log, Flexible number plan, Backup serverfail-over

Application Examples
Microsoft Teams, Skype or Skype for Business, Zoom, Youtube, API/SDK support for installing custom applications

Application Deployment
Development, download and launch of various applications compatible with the Android 9.0 operating system on an embedded device with initialization control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption, TLS, 128/256-bit SRTP**, HTTPS, 802.1x media access control

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, etc.

Update/Automatic setup
Firmware update via TFTP/HTTP/HTTPS or local HTTP download, automatic configuration using TR-069 or XML configuration file with AES encryption. Automatic detection of system updates from U disk/SD card

Power and energy efficiency
Universal Power Adapter:
Input: 100~240V AC 50~60Hz
Output: 48V/1.35A(64.8W)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% (non-condensing)

FCC Compliance: Part15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; MPE
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1
IC: ICES-003; RSS-GEN; RSS-247; RSS-102(MPE). HDMI/EAC/REACH/ROHS/WEEE

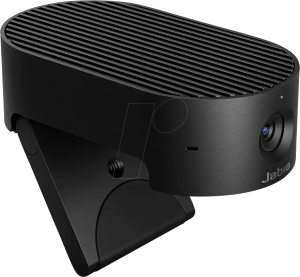

Jabra PanaCast 50 Wall Mount

Color
black

Quantity in a package
of 1 pc
