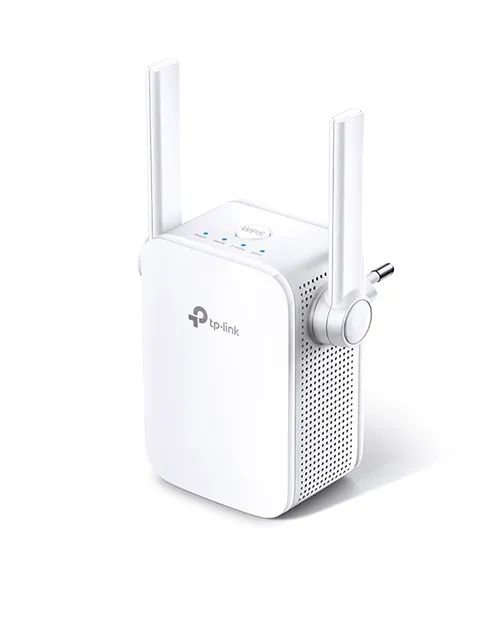

TP-Link RE305 Усилитель Wi-Fi сигнала AC1200

Беспроводная MESH-система Wi-Fi TP-Link Deco E4 (1-pack)

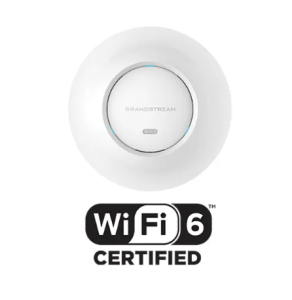

Беспроводное вещание

Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
5 separate internal antennas
Two 2.4GHz, 4 dBi gain
Three 5 GHz, 5 dBi gain

Data transfer rate by
Wi-Fi
5G
IEEE 802.11ax: 7.3–2402 Mbps;
IEEE 802.11ac: 6.5–867 Mbps;
IEEE 802.11n: 6.5−300 Mbps;
IEEE 802.11a: 6; 9; 12; 18; 24; 36; 48; 54
2.4G Mbps
IEEE 802.11ax: 7.3–573.5 Mbps;
IEEE 802.11n: 6.5−300 Mbps;
IEEE 802.11b: 1; 2; 5.5; 11 Mbps;
IEEE 802.11g: 6; 9; 12; 18; 24; 36; 48; 54 Mbit/s
* The transmission rate can be affected by various factors, including environmental conditions, the distance between
devices, radio interference, and the combination of devices on the network.

2.4 GHz frequency ranges: 2400-2483.5 MHz
5 GHz: 5150-5850 MHz

2.4G bandwidth 20 and 40 MHz
5G 20.40, 80 and 160 MHz

Wi-Fi and system security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking download and blocking
Mission-critical data/management tools with digital signatures, a unique security certificate, and a random
default password for each device.

MIMO 2x2:2 2.4GHz
3x3:2 5 GHz

Coverage area Up to 175 meters
* The coverage area depends on the environmental conditions.

Maximum power
of the transmitter
5G 24 dBm
2.4G 24 dBm
* The maximum power depends on the country, frequency range and MCS.

Receiver sensitivity
2.4G
802.11b -96 dBm at 1 Mbit/s; -88 dBm at 11 Mbit/s; 802.11g: -93 dBm at 6 Mbit/s; -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ax 20 MHz: -60 dBm at MCS11; 802.11ax 40 MHz: -58 dBm at MCS11;
5G
802.11a: -92 dBm at 6 Mbps, -74 dBm at 54 Mbps;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ac 20 MHz: -67 dBm at MCS8; 802.11ac: 40 MHz: -63 dBm at MCS9; 802.11ac 80 MHz: -59 dBm at MCS9;
802.11ax 20 MHz: -60 dBm at MCS11; 802.11ax 40 MHz: -58 dBm at MCS11; 802.11ax 80 MHz: -56 dBm at
MCS11; 802.11ax 160 MHz: -52 dBm at MCS11
SSID Total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

The number of simultaneously
connected client
devices
256

Network interfaces
1 10/100/1000 Base-T Ethernet Port with Automatic recognition

Additional ports
1 drop hole; 1 Kensington lock

Mounting
On the wall or ceiling in the premises, mounting kit included

LED indicators
3 three-color LEDs for device monitoring and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Quality of service
802.11e/WMM, VLAN, TOS

Network management
The integrated controller can control 50 local GWN access points.
The free GWN cloud platform.The Cloud supports the management of an unlimited number
of GWN access points.
GWN Manager provides a local software controller with support for up to 3,000 GWN access points.

Nutrition and energy efficiency
PoE 802.3af/802.3at;
Max. power consumption: 12.95 Watts

Environmental conditions
Operation: from 0 to 50 °C
Storage: -10 to +60 °C
Humidity: 10 to 90% (non-condensing)

Physical characteristics
Device dimensions: 180.4 x 180.4 x 40.8 mm (to be specified); device weight: 385g
Package dimensions: 228.5 x 220 x 79 mm (to be specified); total package weight: 630 g

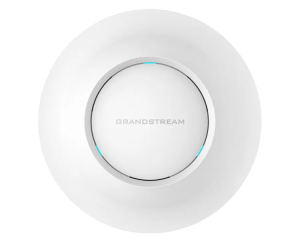

Wi-Fi standards
IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas
2 dual-band internal antennas
2.4GHz, 3dBi gain
5 GHz, 4dBi gain

IEEE 802.11ac Wi-Fi data transfer rate
: from 6.5 Mbit/s to 867 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
IEEE 802.11n: 6.5Mbit/s to 300 Mbit/s; 400 Mbit/s with 256-QAM on 2.4Ghz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s

2.4GHz radio frequency: 2412 – 2484 MHz
5 GHz radio: 5180-5825 MHz


2.4G channel bandwidth: 20 and 40 MHz
5G: 20.40 and 80 MHz

Wi-Fi and system protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking download and
blocking of critical data/management by means of digital signatures,
unique security certificate/random default password for each
device

MIMO
2x2:2 2.4GHz (MIMO)
2x2:2 5 GHz (MU-MIMO)

Coverage area
Up to 165 meters
*coverage area may vary depending on the environment

Maximum transmitter power
2.4G:24 dBm
5G:22 dBm

Receiver sensitivity
2.4G
802.11b: -96dBm@1Mbit/s, -88dBm@11Mbit/s; 802.11g: -93dBm @6Mbit/s, -75dBm@54Mbit/s;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs
A total of 16 SSIDs, 8 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client
devices 100+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1 x Kensington Lock

Mounting
Indoors, on the wall or ceiling, mounting kits are included

SIDs
3 x Three-color LEDs for device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN Manager - a local software controller for managing up to 3,000 access points
GWN

Power and energy efficiency
PoE 802.3af/ 802.3at;
Max consumption: 10.16W

Environmental conditions
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 180.4mmx180.4mmx40.8mm; Device weight: 388.2g
Dimensions of the whole package: 228.5x220x79mm; Weight of the whole package: 719.3g

Package contents
GWN7605 802.11ac Wireless access Point, mounting kits, quick
Start Guide

Compliance with FCC, CE, RCM, IC

Точка доступа MikroTik RBSXTsq5nD

MikroTik SXTsq Lite5 - это радиомост с максимальной мощностью передатчика в 25 dBm и поддержкой стандарта 802.11a/n. Он имеет встроенную двухполяризционную антенну с коэффициентом усиления 16 dBi. Максимальная дальность действия равна 12 км. Имеется порт 10/100 Mbps Fast Ethernet, а питание осуществляется по PoE.

Радиомост MikroTik SXTsq Lite5 применяется для организации каналов типа «точка-точка». Модель имеет компактные размеры и выполнена во всепогодном корпусе. Она защищена от статического напряжения и имеет заземляющее соединение для защиты от молнии.

Радиомост MikroTik SXTsq Lite5 поддерживает технологию двойной поляризации Nv2 TDMA, что позволяет достигать высоких параметров пропускной способности в 300 Мб/с.

• Тип оборудования радиомост
• Стандарты Wi-Fi Wi-Fi 4 (802.11n)
• Дальность действия 12 km
• Частотный диапазон 5 GHz
• HPBW по горизонтали 23°
• HPBW по веритикали 23°
• Операционная система Mikrotik RouterOS Level 3
• Частота процессора 600 MHz
• Размер оперативной памяти 64 MB
• Размер встроенной памяти 16 MB
i>
• Мощность передачи (макс) 25 dBm
• MIMO 2 × 2
• Усиление антенны 16 dBiv
• Порты и интерфейсы 1 × Fast Ethernet 10/100 Мбит/сек PoE
• Стандарты проводной связи Passive PoE
• Потребляемая мощность (макс) 6 Watts
• Питание PoE, 10-30 V, 6W
• Передача данных двухдиапазонная
• Тип точки доступа базовая станция
• Диапазоны частот 5 GHz
• Стандарты PoE Passive PoE
• Цвет белый
• Входная мощность 6 W
• Процессор AR9344
• Рабочая температура -40...+70 °C
• Размеры (Ш×В×Г) 12.9×12.9×3.4 cm
• Вес товара 0.295 kg
