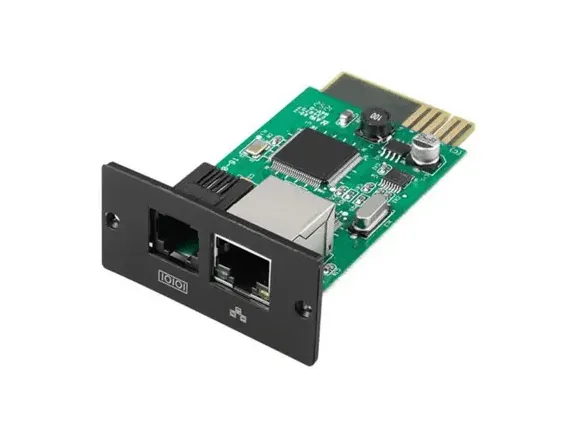

UPS Network Management Card LIEBERT GXT-MT+ SNMP card

Number of Units
0U

Supplied equipment
Humidity sensor
Installation Guide
Temperature sensor

Physical parameters
Colour
Black
Height
0,6 cm

Width
0,5 cm

depth
0,5 cm

Net weight
0,18 kg

Type of fastener
No preference

Installation execution
Rack

Environmental parameters
Operating ambient temperature
0...55 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…65 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95 %

Шкафы для аккумуляторов используются для хранения, размещения и обеспечения зарядки тем или иным аккумуляторам. Шкафы аккумуляторные используются на различных производственных предприятиях, в промышленных компаниях, мастерских и автосервисах. Шкаф для аккумулятора обладает удобной и продуманной конструкцией. Изготовленные из прочного металла, такие шкафы обладают длительным сроком эксплуатации и высокой надежностью и прочностью. Вместимость: 200Ач/40шт.

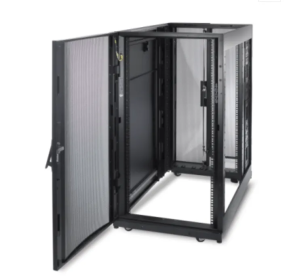

Main Features:
- Product type Rack enclosure;
- Number of Unit 24U;

Physical parameters:
- Height 120 cm;
- Width 60 cm;
- Depth 107 cm;
- Product weight - 89.09 kg;
- Color Black;
- Type of fastener No preference;
- Non-post mounting design;
- Maximum mounting depth 91.49 cm;
- Minimum mounting depth of 19.1 cm;
- The width of the rack is 19";

Marking:
- 14 (according to the SWG table) Mounting rail;
- 16 (according to the SWG table) front door;
- 16 (according to the SWG table) mounting brackets;
- 18 (according to the SWG table) rear door;
- 18 (according to the SWG table) roof;
- 18 (according to the SWG table) side panels;
- Permissible load 1020.58 kg dynamic.

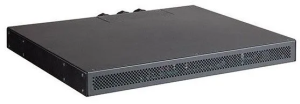

Height
4,45 cm

Width
7,35 cm

Depth
46,8 cm

Net weight
3.1 kg

Installation execution
Rack-mounted

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
9,1 cm

Package 1 Width
42,5 cm

Package 1 Length
9,1 cm

Package 1 Weight
3,4 kg

Floor and rack versions 19”

Appointment
office

Number of phases (input-output)
1-1

Rated power, kVA
3

Active power,
2.7 kW

Rated voltage
200 At this voltage, the rated power of the UPS is lowered to the level of 90%./208 At this voltage, the rated power of the UPS is lowered to the level of 90%./220/230/240 Perem. current

Voltage range
175-280 V perem. current (100% load)? 20-175 Vac. current (load 50-100%)

The coefficient of nonlinear current distortion

Power factor
> 0.99 (at full load)

Frequency
40~70 Hz

Voltage
200 At this voltage, the rated power of the UPS is lowered to the level of 90%./208 At this voltage, the rated power of the UPS is lowered to the level of 90%./220/230/240 Perem. current

The output power factor
is 0.9

The coefficient of nonlinear voltage distortion

Voltage regulation limits
± 1% (at linear load)

Frequency
50/60 Hz ± 0.05 Hz

Overload capacity
At load
Cross factor
3:1

Sockets
IEC C13x6

Battery Type
72 In the post. current

The rated battery
life is 7.5 minutes (When the total load reaches 75%.)

Charging time
3 hours to 90 %

Charge current
2 A

Standard
1 SMART slot, 1 RS-232 port, 1 USB port, 1 REPO port

Normal mode (on-line)
up to 94 %

Economy mode
up to 97 %
