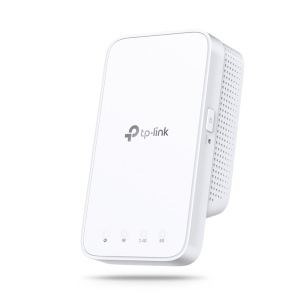

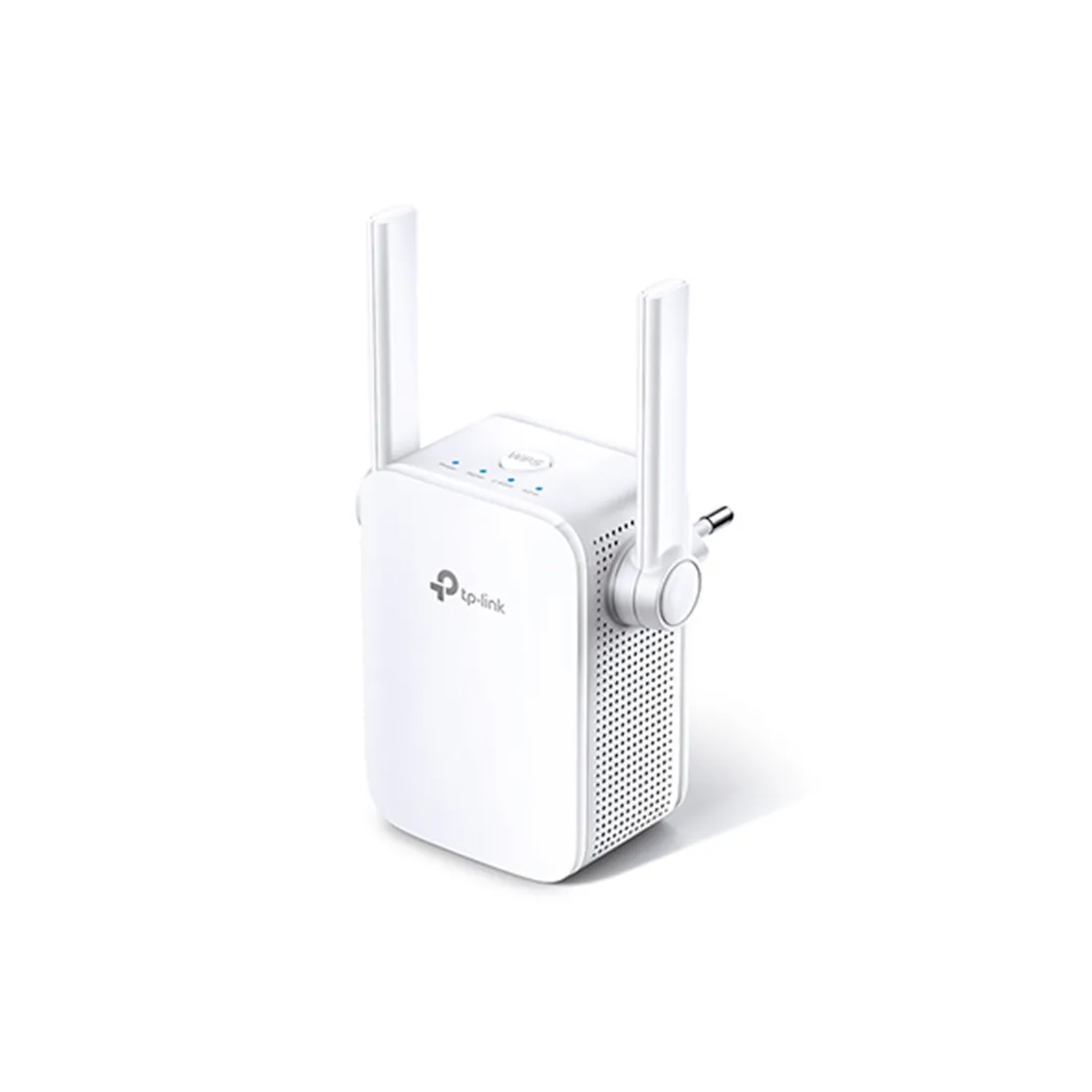

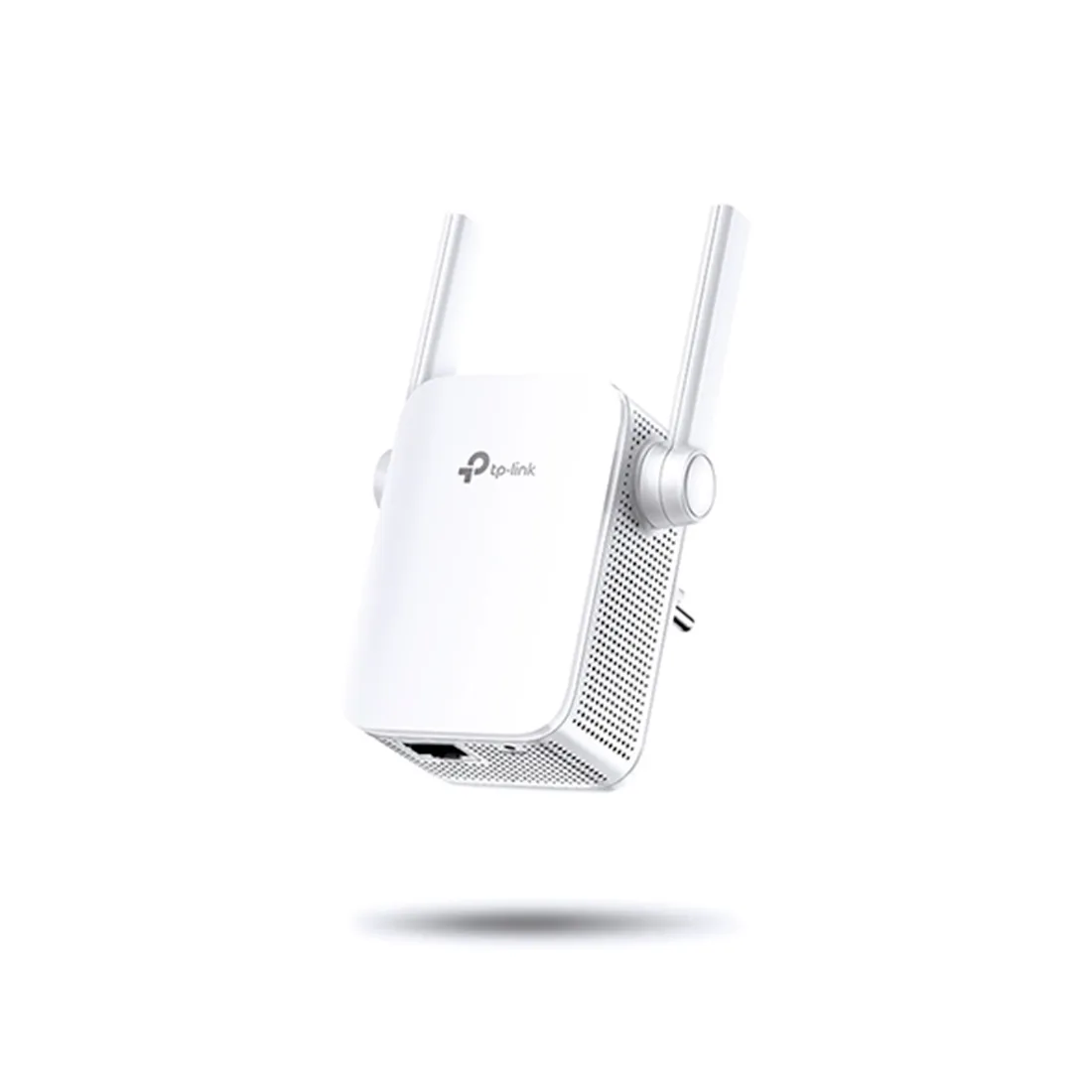

Усилитель Wi-Fi сигнала TP-Link RE305

Беспроводная MESH-система Wi-Fi TP-Link Deco E4 (1-pack)

Беспроводное вещание

Wi-Fi standards
IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas
2 dual-band internal antennas
2.4GHz, 3dBi gain
5 GHz, 4dBi gain

IEEE 802.11ac Wi-Fi data transfer rate
: from 6.5 Mbit/s to 867 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
IEEE 802.11n: 6.5Mbit/s to 300 Mbit/s; 400 Mbit/s with 256-QAM on 2.4Ghz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s

2.4GHz radio frequency: 2412 – 2484 MHz
5 GHz radio: 5180-5825 MHz


2.4G channel bandwidth: 20 and 40 MHz
5G: 20.40 and 80 MHz

Wi-Fi and system protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking download and
blocking of critical data/management by means of digital signatures,
unique security certificate/random default password for each
device

MIMO
2x2:2 2.4GHz (MIMO)
2x2:2 5 GHz (MU-MIMO)

Coverage area
Up to 165 meters
*coverage area may vary depending on the environment

Maximum transmitter power
2.4G:24 dBm
5G:22 dBm

Receiver sensitivity
2.4G
802.11b: -96dBm@1Mbit/s, -88dBm@11Mbit/s; 802.11g: -93dBm @6Mbit/s, -75dBm@54Mbit/s;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs
A total of 16 SSIDs, 8 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client
devices 100+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1 x Kensington Lock

Mounting
Indoors, on the wall or ceiling, mounting kits are included

SIDs
3 x Three-color LEDs for device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN Manager - a local software controller for managing up to 3,000 access points
GWN

Power and energy efficiency
PoE 802.3af/ 802.3at;
Max consumption: 10.16W

Environmental conditions
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 180.4mmx180.4mmx40.8mm; Device weight: 388.2g
Dimensions of the whole package: 228.5x220x79mm; Weight of the whole package: 719.3g

Package contents
GWN7605 802.11ac Wireless access Point, mounting kits, quick
Start Guide

Compliance with FCC, CE, RCM, IC
