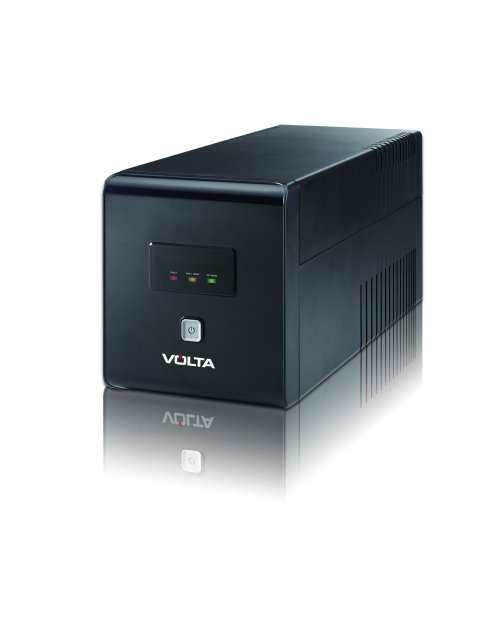

VOLTA Active 1200 LED

Main features
- Working time with a load of 410 W: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko
- Length of the cord: 1.2 meters

Exit
- Maximum set power (W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 140-300V
- Number of power cables: 1
- Input power factor under full load: 0.63

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
-Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: A signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
- Burst energy rating: 273joules
- Data Line Protection: 10/100/1000 Base-T RJ45 Ethernet protection

Physical parameters
- Maximum height: 160MM, 16.0 cm
- Maximum width: 120MM, 12.0 cm
- Maximum depth: 355MM, 35.5 cm
- Net weight: 5.4 KG
- Gross weight: 5.9 KG
- Dimensions of the TRANSPORT package: 250x197x430MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-40 °C
- Storage Relative Humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-3000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Устройство, позволяющее подключенному оборудованию некоторое время работать от встроенных аккумуляторов, при пропадании электрического тока или при выходе его параметров за допустимые нормы. Кроме того, оно способно корректировать параметры (напряжение, частоту) электропитания. Часто применяется для обеспечения бесперебойной работы компьютеров.

Main features
- Working time with a load of 410 W: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko
- Length of the cord: 1.2 meters

Exit
- Maximum set power (W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 140-300V
- Number of power cables: 1
- Input power factor under full load: 0.63

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
-Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: A signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
- Burst energy rating: 273joules
- Data Line Protection: 10/100/1000 Base-T RJ45 Ethernet protection

Physical parameters
- Maximum height: 160MM, 16.0 cm
- Maximum width: 120MM, 12.0 cm
- Maximum depth: 355MM, 35.5 cm
- Net weight: 5.4 KG
- Gross weight: 5.9 KG
- Dimensions of the TRANSPORT package: 250x197x430MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3000 meters
- Storage temperature: -15-40 °C
- Storage Relative Humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-3000meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

ИБП серии Keor SP можно использовать не только дома или в офисе, но и на предприятиях малого бизнеса – в магазинах, кафе и пр. К числу преимуществ относится: расширенный диапазон номинальной мощности, усовершенствованная схемотехника, а также современный дизайн. Дополнительную ценность представляет оптимальное сочетание цены и качества. В серии представлены модели ИБП мощностью от 600 ВА до 2000 ВА. Для организации оптимальной защиты оборудования ИБП оснащены электронным автоматическим стабилизатором напряжения. Функция мониторинга позволяет отслеживать все необходимые показатели электросети, а также состояние работы самого ИБП. В моделях от 800 ВА имеется USB-разъем для зарядки мобильных устройств. На передней панели ИБП присутствует трехцветный индикатор состояния работы устройства, а также кнопка быстрого отключения зуммера.
