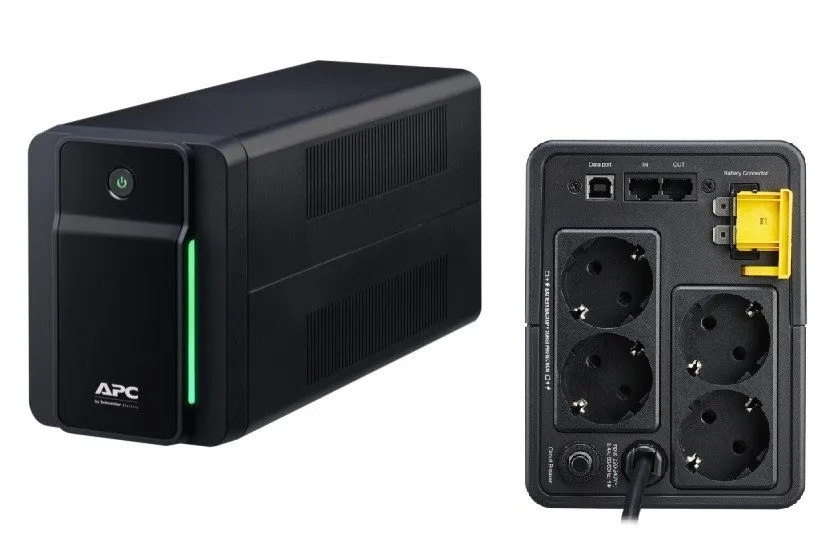

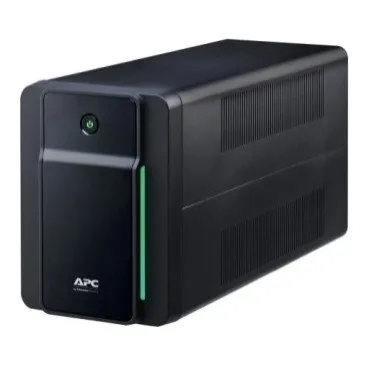

APC Back-UPS 950VA, 230V, AVR, Schuko Sockets

Main characteristics:
- Main input voltage 230 V
- Rated power [W] 520 W
- Rated power 950 VA

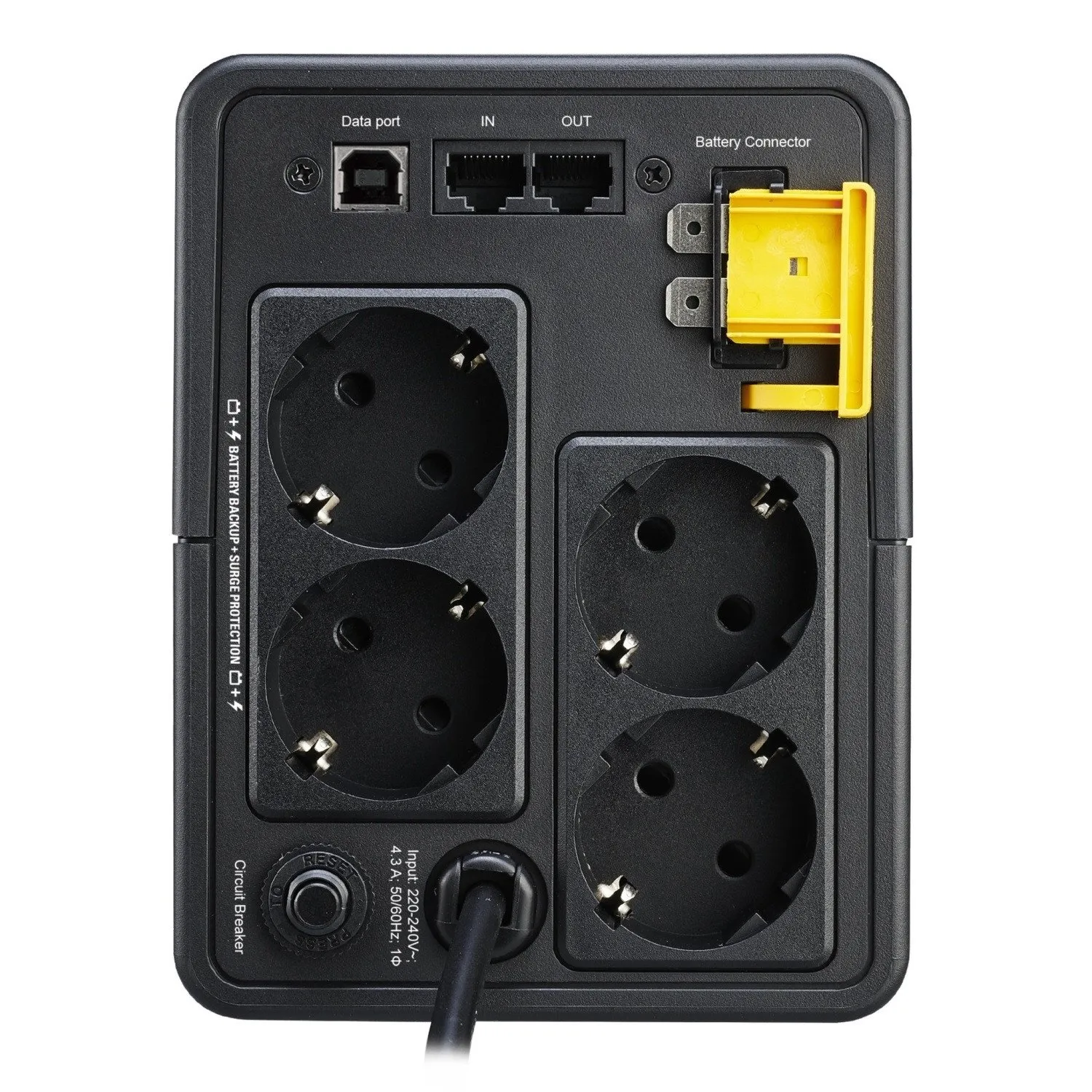

- Output connection type 4 Schuko
- Length 1.22 m
- Number of cables 1
- Battery type Lead-acid battery

Are common
- Equipment included - instruction manual
- Maximum autonomy time - 120 min
- Number of unoccupied layers by power modules - 0
- Number of slots occupied by power modules - 0
- Spare - No

Physical parameters:
- Black color
- Height 16 cm
- Width 12 cm
- Depth 35.5 cm
- Net weight 6.1 kg
- Fastening type No preference
- Installation style: Non-rackmount
- Two-post mount 0
- USB compatible No

Entrance:
- Network frequency - 50/60 Hz +/- 5 Hz auto detection
- Input voltage limits - 140...300 V
- Input Coefficient power at full load - 0.54

Exit:
- Maximum set power (W) 520 W
- Output frequency 50/60 Hz +/- 1 Hz synchronized with the mains
- UPS type Line-interactive
- Voltage waveform type: Stepwise sinusoidal approximation
- Autonomy time at full load 00:01:00 480 W
- Autonomy time at half load 00:06:30 240 W
- Maximum set power (VA) 950 VA
- Switching time Typical time - 6 ms, maximum - 10 ms

Correspondence:
- Certificates - CE, CB, EAC
- Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
- Equipment protection policy For the entire service life: 50 thousand euros
- Environment parameters
- Operating ambient temperature 0…40 °C
- Relative humidity 0…95% without condensation
- Altitude above sea level 0...3000 m
- Ambient temperature during storage -15…40 °C
- Relative storage humidity 0…95% without condensation
- Storage altitude 0…3000 m
- Acoustic level 40 dBA
- IP protection degree IP20

Batteries and battery life:
- Pre-installed batteries - 0
- Free battery compartments 0
- Typical recharge time 8 h
- Battery voltage 12 V
- Battery capacity 9.0 Ah
- Battery capacity in volt-ampere hours
- 97 VAh operating time
- 108 Wh capacity
- Battery life 3…5 year(s)
- Spare RBC17 battery
- Comments on the battery graph: The curve corresponds to the results of battery life measurements. All measurements
were carried out with new, fully charged batteries, in typical climate conditions
conditions, without voltage applied to the input and with a resistive load at the output.
- Possibility of increasing autonomy time - 0

Communication and admin tools
- Control panel LED display with on line indicators (working from the network)

Surge and filtering protection:
- Rating according to the level of absorbed energy of the surface
