Maximum adjustable power (W)
1.6 kW/2.0 kVA
Output voltage Note
Configurable for rated output voltage 220: 230 or 240.
Efficiency at full load
88,0 %
Output voltage distortion
3 %
Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization
Other output voltages
220 V, 240 V
Peak load factor
3 : 1
Topology
Double Conversion Online
Signal type
The sine wave
Bypass
Internal bypass (automatic and manual)
Input frequency
40-70 Hz, automatic detection
Input voltage range for basic operations
110-285 Half load, 160-280 Full load In
Number of power cords
1
Efficiency at full load
88,0 %
Other input voltages
220 V, 240 V
Battery Type
Lead-acid battery
Typical recharge time
4 hours)
Rated battery voltage
48 V

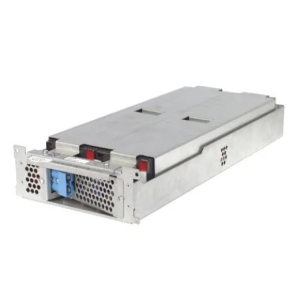

Spare battery
APCRBCV204
Expected battery life (years)
3-5
Battery power (W)
70 W

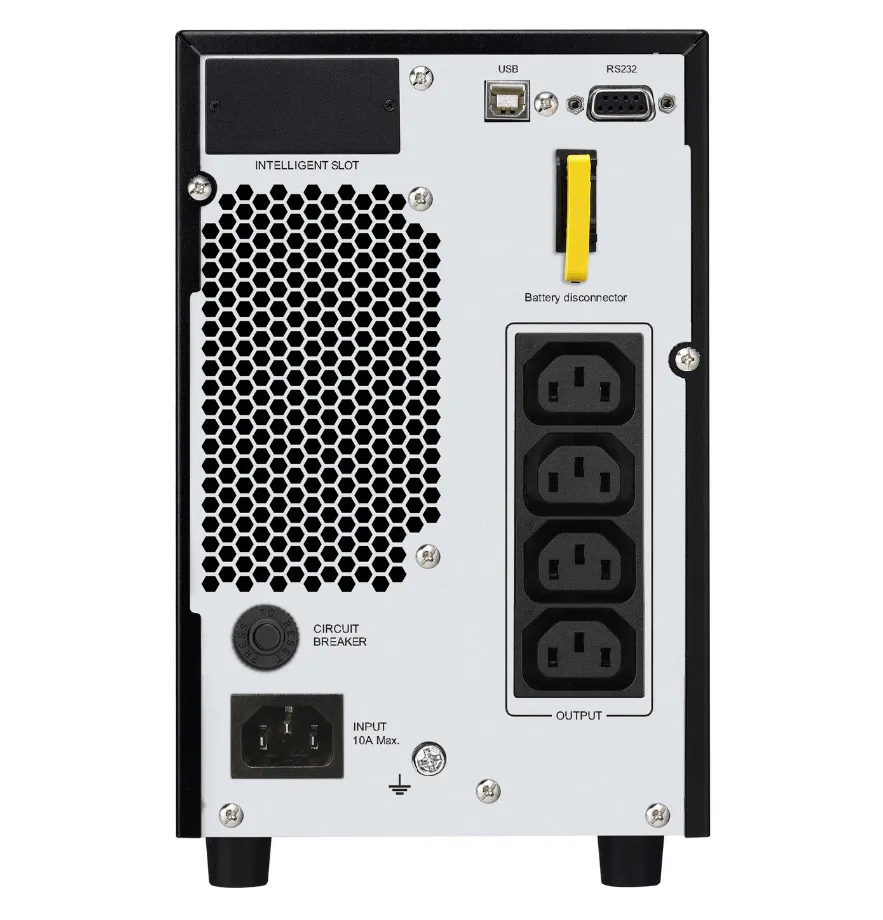

DB-9 RS-232 Interface Port(s), USB

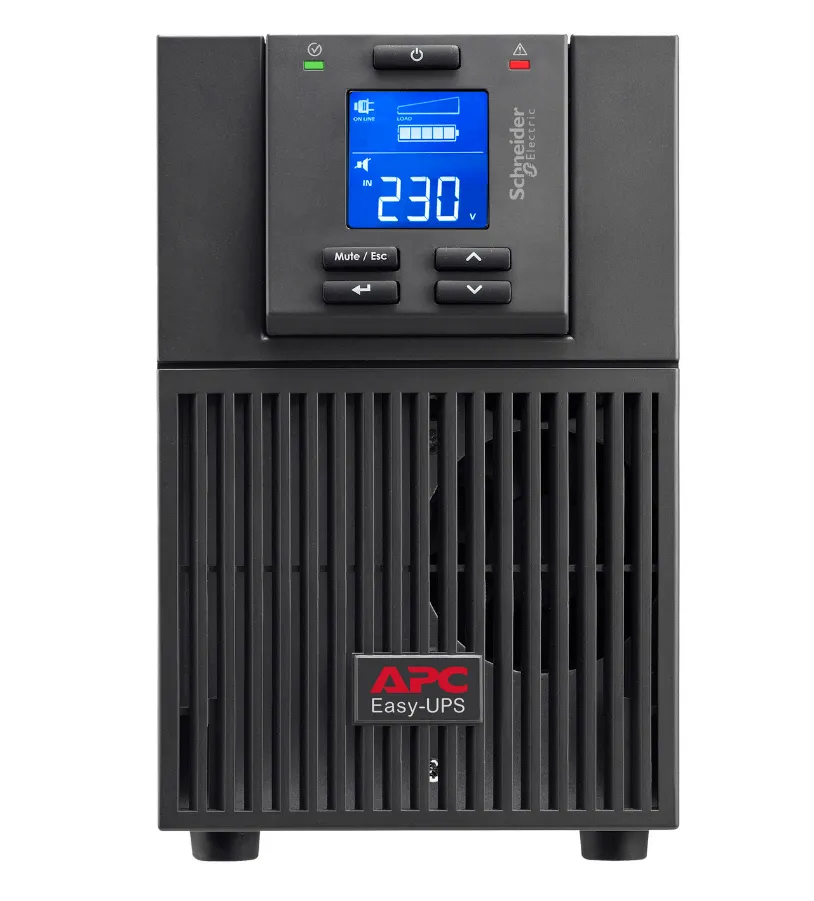

The Control Panel
Multifunctional LCD status and control console
Operating Temperature
0-40 °C
Operating relative humidity
0-95 (non-condensing) %
Working height
0 - 3000 meters
Storage temperature
-20–50 °C
Relative humidity during storage
0-95 (non-condensing) %
Storage height
0 - 15000 meters
A noise is heard at a distance of 1 meter from the surface of the device.
50.0 dBA
Online heat dissipation
745.0 BTU/h
Protection class
IP20
