Источник бесперебойного питания Eaton 5SC1000IR

Main features
- Output power: 375 Watts / 650VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum set power (W): 375 Watts / 650VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools

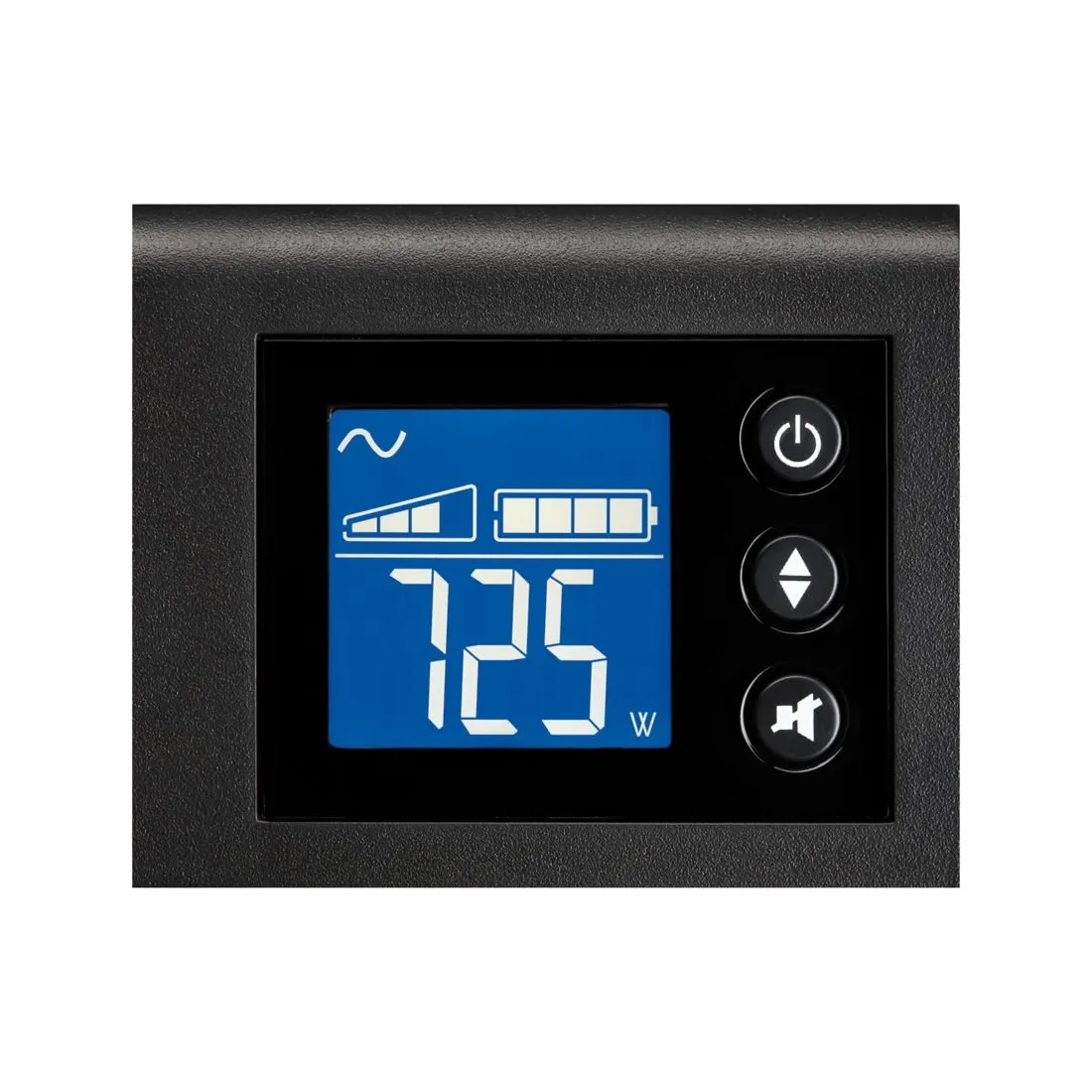

- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 165MM, 16.5 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 4.5 KG
- Gross weight: 4.8 KG
- Dimensions of THE TRANSPORT package: 237x143x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main features
- Output power: 450 Watts / 800VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum specified power (W): 450 Watts / 800VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 161MM, 16.05 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 5.3 KG
- Gross weight: 5.6 KG
- Dimensions of the TRANSPORT package: 237x3632x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
