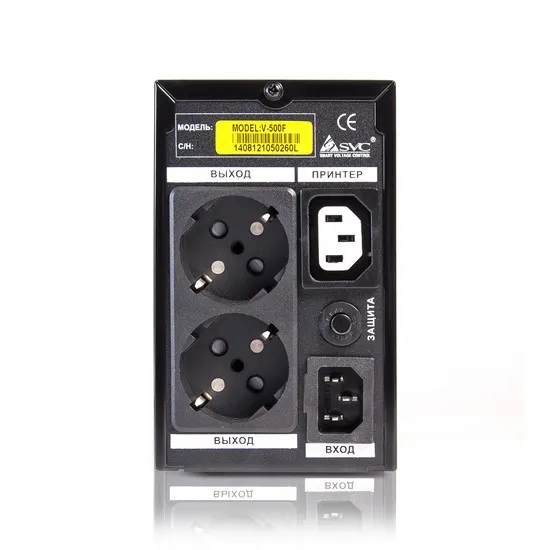

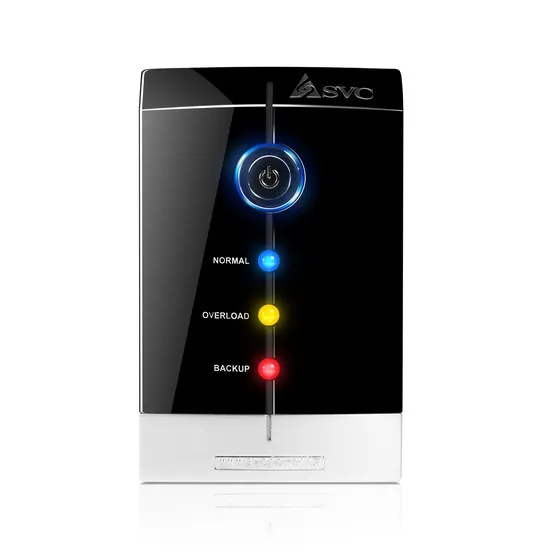

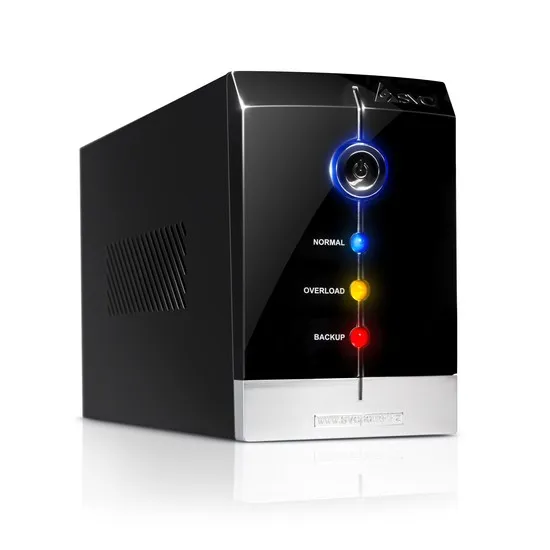

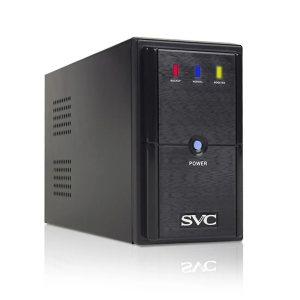

Источник бесперебойного питания SVC V-500-F

Устройство, позволяющее подключенному оборудованию некоторое время работать от встроенных аккумуляторов, при пропадании электрического тока или при выходе его параметров за допустимые нормы. Кроме того, оно способно корректировать параметры (напряжение, частоту) электропитания. Часто применяется для обеспечения бесперебойной работы компьютеров. Информативный LCD-дисплей отображает все необходимые параметры в работе ИБП, что значительно облегчает использование ИБП.

Maximum adjustable power (W)
500 W/750 VA

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
The sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-280 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Rated battery voltage
24 V

Expected battery life (years)
3-5

The number of RBC
1

Battery power (W)
49 W

Smart Slot interface Port(s)
, USB

The Control Panel
Multifunctional LCD status and control console

Emergency Power Off (EPO)
Optional

The available number of SmartSlot™ interfaces
1

Pulse energy rating
540joules

Filtering
Constant multi-pole noise filtering: 0.3% IEEE overvoltage bandwidth: zero response time limits: compliant with UL 1449

Maximum height
161 mm, 16.1 cm

Maximum width
138 mm, 13.8 cm

Maximum depth
369 mm, 36.9 cm

Net weight
11.8 kg
